Transmittance Measurement Instrument JY-T01
Product Introduction

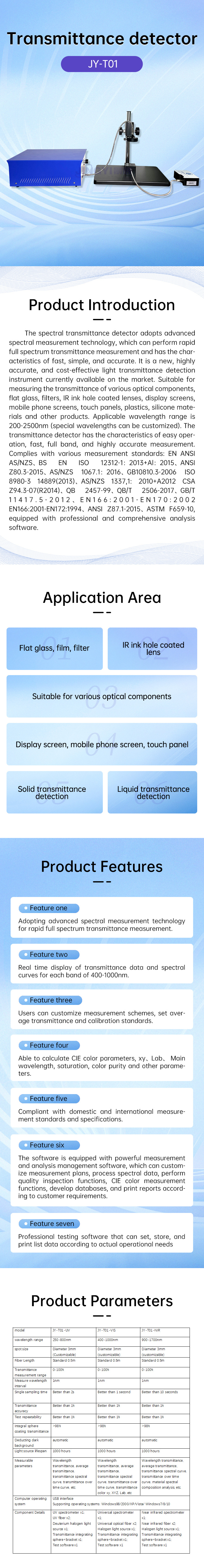

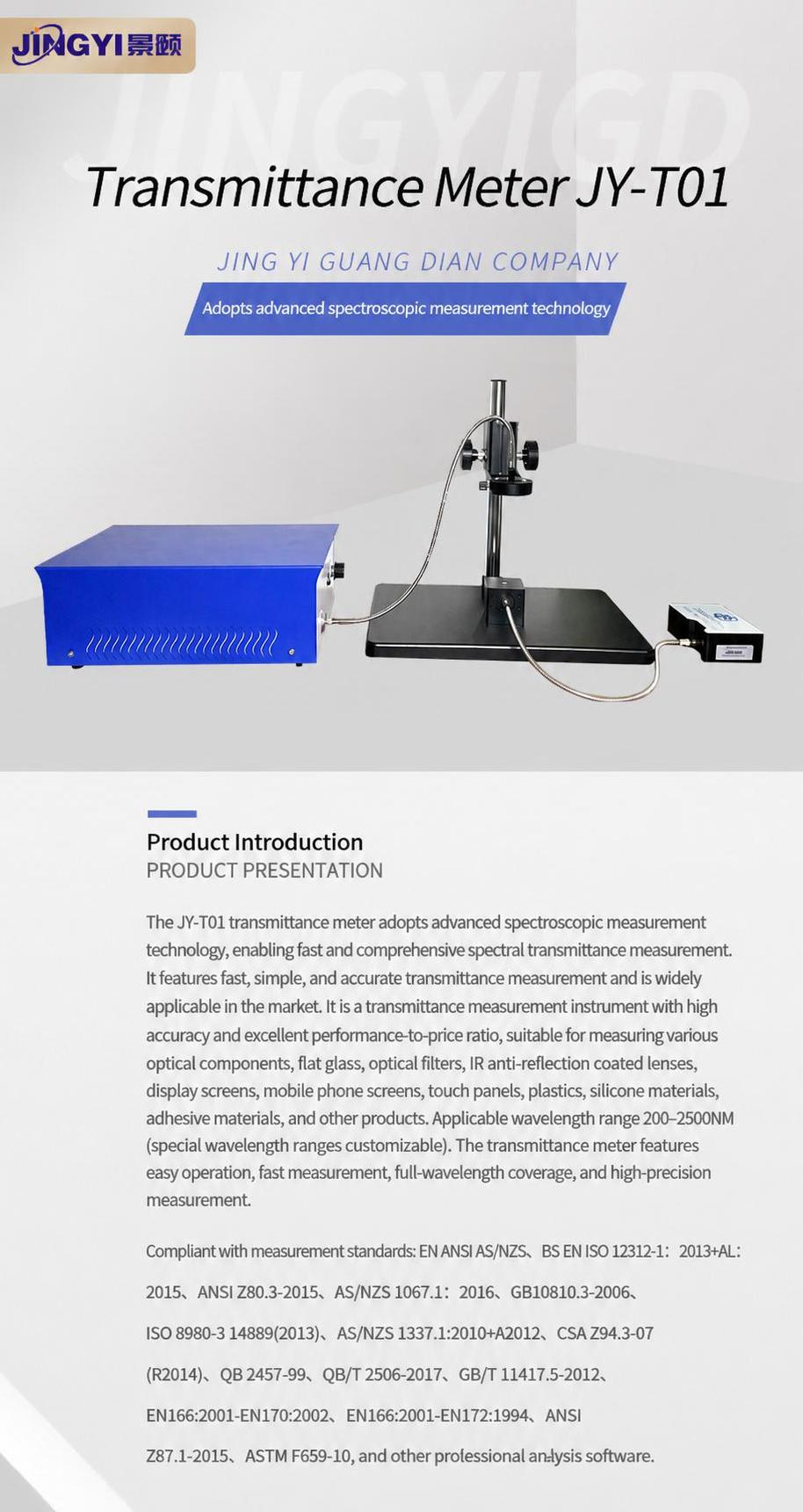

The Jingyi Optoelectronics Transmittance Measurement Instrument adopts advanced spectroscopic measurement technology, enabling rapid full-spectrum transmittance measurements with features of speed, simplicity, and high accuracy. It is a widely used, cost-effective transmittance analyzer in the current market, offering accurate data and excellent performance. Suitable for measuring the transmittance of various optical components, flat glass, filters, IR inkjet-coated lenses, displays, smartphone screens, touch panels, plastics, silicone materials, etc. The applicable wavelength range is 200–2500nm (customizable for special wavelengths). This instrument offers easy operation, fast response, full-spectrum coverage, and high-precision measurement capabilities. It complies with multiple international and national standards, including EN ANSI AS/NZS, BS EN ISO 12312-1:2013+AL:2015, ANSI Z80.3-2015, AS/NZS 1067.1:2016, GB10810.3-2006, ISO 8980-3 14889(2013), AS/NZS 1337,1:2010+A2012, CSA Z94.3-07 (R2014), QB 2457-99, QB/T 2506-2017, GB/T 11417.5-2012, EN166:2001-EN170:2002, EN166:2001-EN172:1994, ANSI Z87.1-2015, ASTM F659-10, etc., and comes with professional and comprehensive analysis software.
Product Features

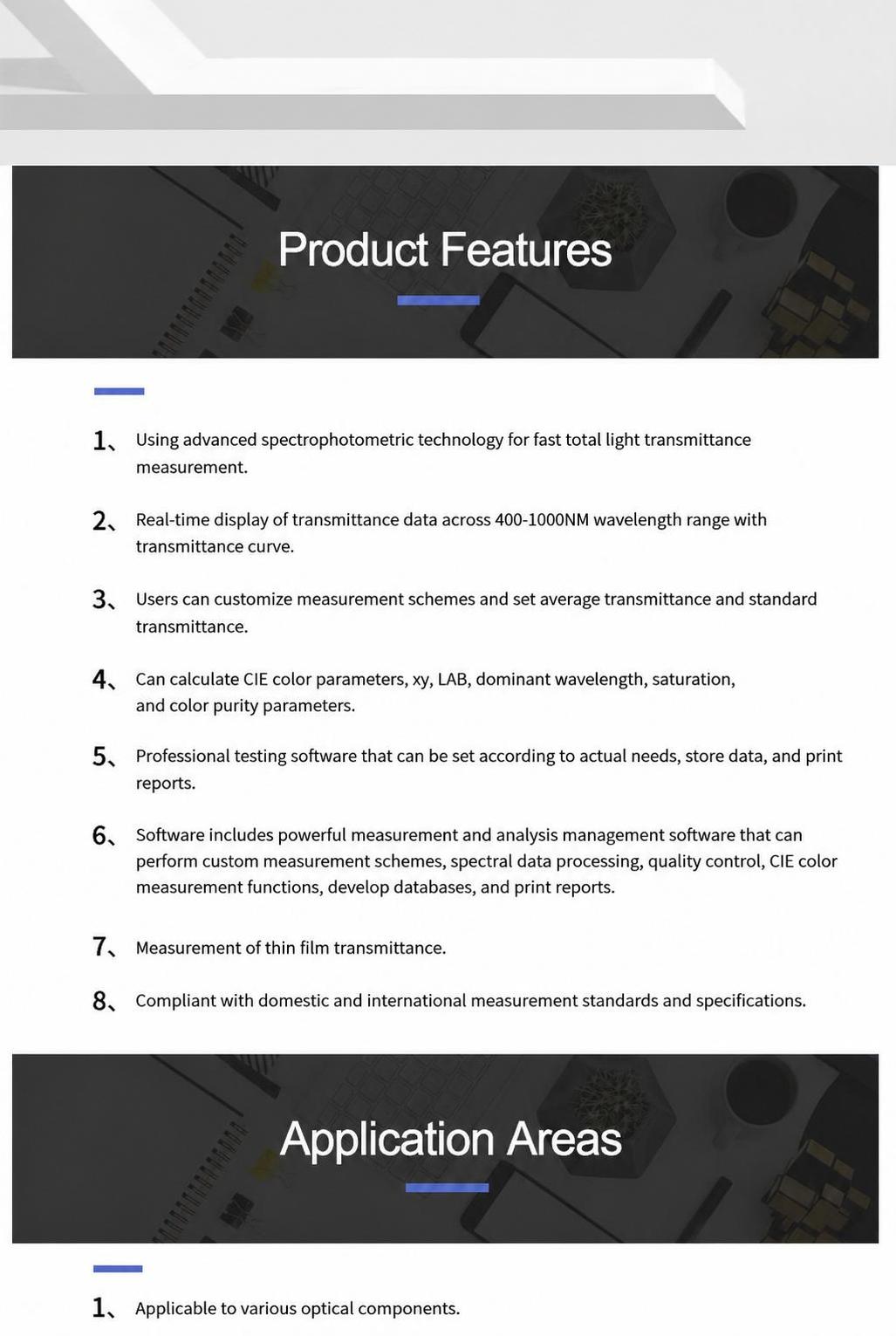

- Adopts advanced spectroscopic measurement technology for rapid full-spectrum transmittance measurement.
- Real-time display of transmittance data and spectral curves across 400–1000nm wavelength ranges.
- Users can define their own measurement schemes and set average transmittance and reference standards.
- Calculates CIE color parameters such as XY, LAB, dominant wavelength, saturation, chroma, and other parameters.
- Professional testing software allows setting, storing, and printing test data according to actual operational needs.
- Built-in powerful measurement and analysis management software supports customized measurement plans, spectral data processing, quality control functions, CIE color measurement, development-oriented databases, and report printing.
- Capable of thin-film transmittance detection.
- Complies with domestic and international measurement standards and regulations.
- Various optical components
- Flat glass, filters
- IR inkjet-coated lenses
- Displays, smartphone screens, touch panels
- Liquid transmittance detection
- Solid transmittance detection
- Thin-film transmittance detection
Product Parameters

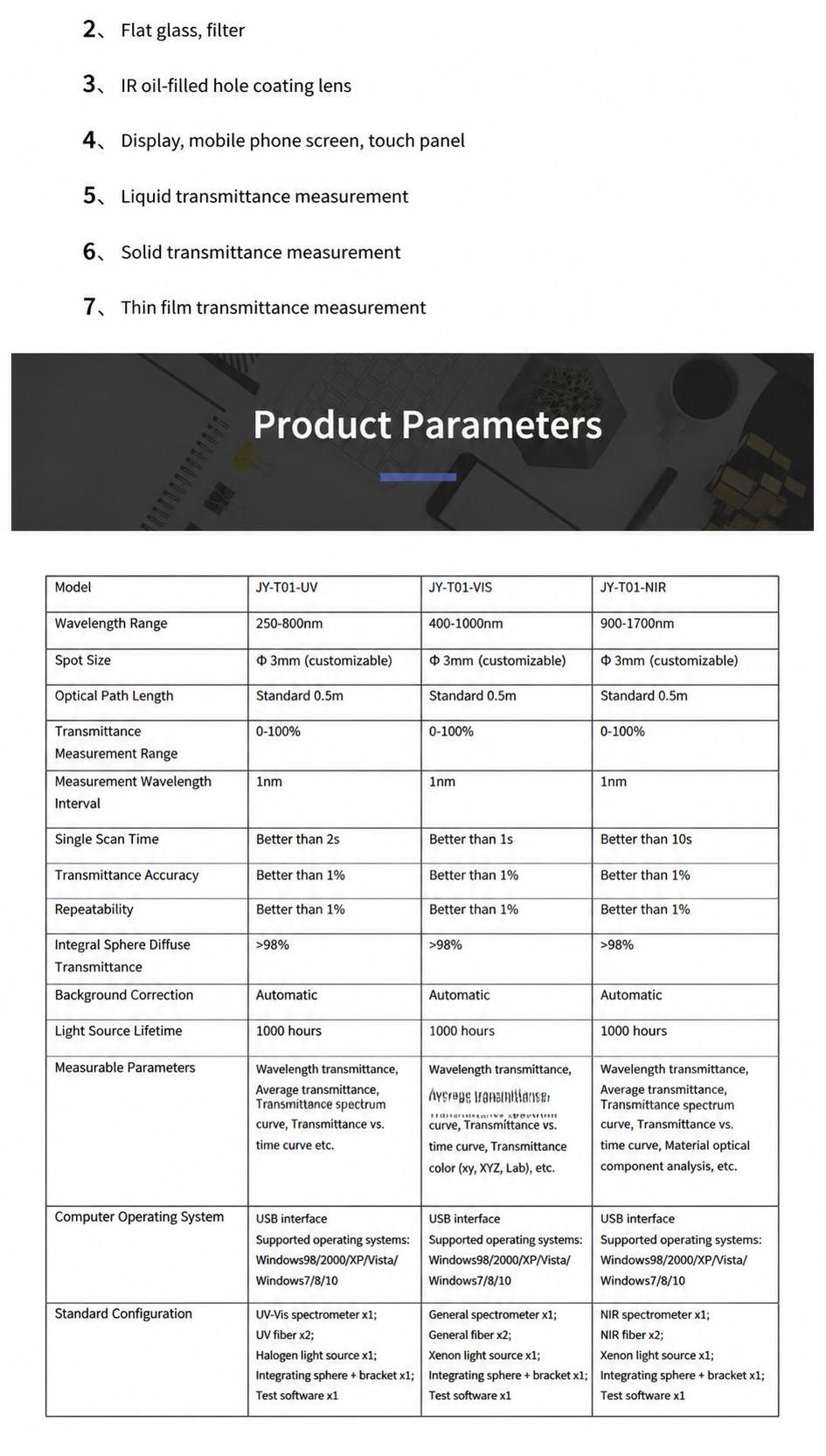

| Model |
JY-T01-UV |
JY-T01-VIS |
JY-T01-NIR |
| Wavelength Range |
250–800nm |
400–1000nm |
900–1700nm |
| Spot Size |
Φ3mm (customizable) |
Φ3mm (customizable) |
Φ3mm (customizable) |
| Fiber Length |
Standard 0.5m |
Standard 0.5m |
Standard 0.5m |
| Transmittance Measurement Range |
0–100% |
0–100% |
0–100% |
| Measurement Wavelength Interval |
1nm |
1nm |
1nm |
| Single Sampling Time |
Better than 2s |
Better than 1s |
Better than 10s |
| Transmittance Accuracy |
Better than 1% |
Better than 1% |
Better than 1% |
| Test Repeatability |
Better than 1% |
Better than 1% |
Better than 1% |
| Integrating Sphere Coating Transmittance |
>98% |
>98% |
>98% |
| Dark Background Subtraction |
Automatic |
Automatic |
Automatic |
| Light Source Lifespan |
1000 hours |
1000 hours |
1000 hours |
| Measurable Parameters |
Wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, etc. |
Wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, transmittance color xy, XYZ, Lab, etc. |
Wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, material spectral composition analysis, etc. |
| Computer Operating System |
USB interface
Supports Windows 98/2000/XP/Vista/Windows 7/8/10 |
|
|
| Component Details |

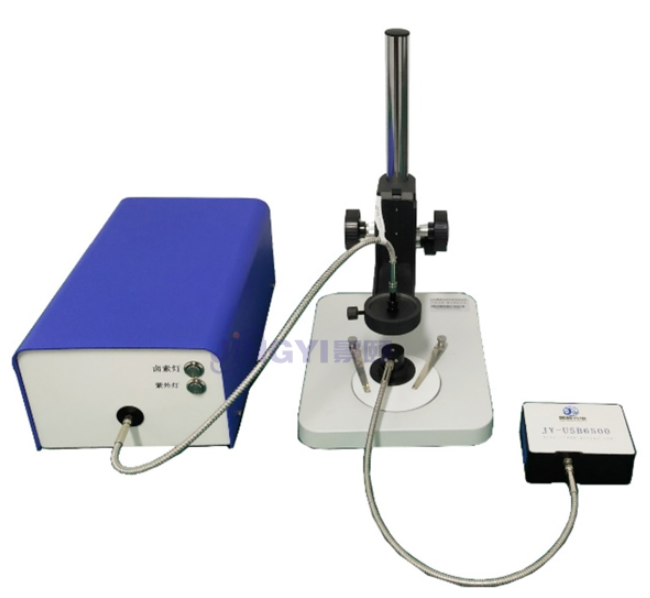

UV spectrometer ×1
UV fiber ×2
Deuterium-halogen light source ×1
Transmittance integrating sphere + bracket ×1
Test software ×1 |
Universal spectrometer ×1
Universal optical fiber ×2
Halogen light source ×1
Transmittance integrating sphere + bracket ×1
Test software ×1 |
Near-infrared spectrometer ×1
Near-infrared fiber ×2
Halogen light source ×1
Transmittance integrating sphere + bracket ×1
Test software ×1 |
