JY-FIOS150L 均匀光源积分球产品介绍

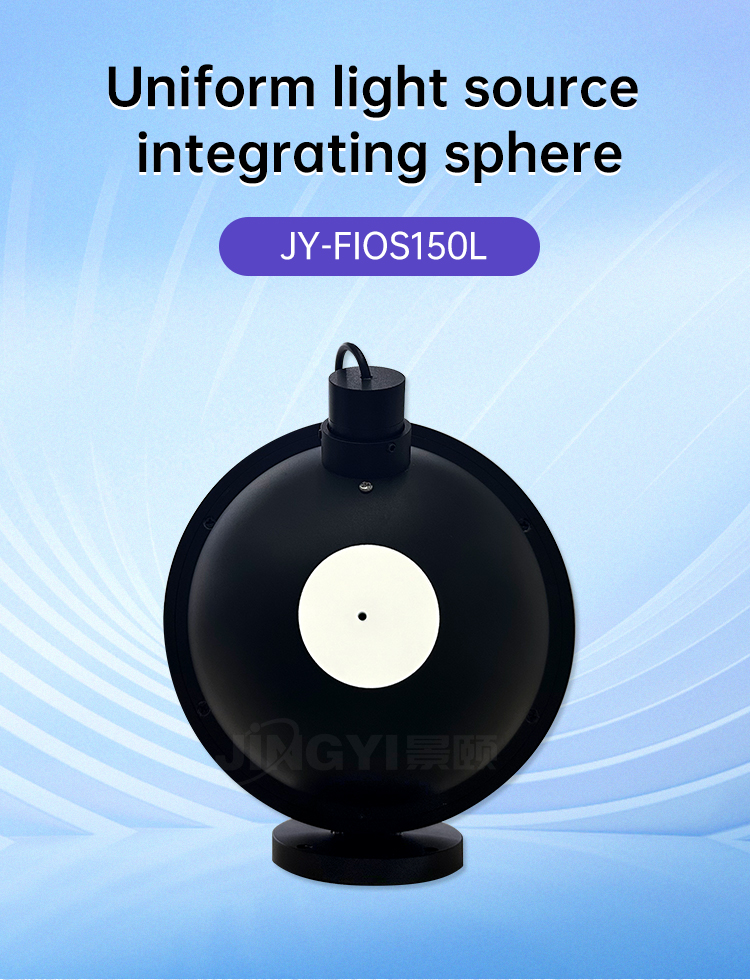

Uniform light source integrating sphere JY-FIOS150L
Product Introduction This universal integrating sphere uniform light source has a uniform light outlet that can reach 98%. The installed light source is a white LED light source, and the light source can also be customized according to specific needs. The diameter of the light outlet is 50mm, located horizontally at the center line of the sphere, and flange installation calibration devices can be customized.
Application Area Calibration of imaging systems and devices in the laboratory Film, digital camera, camera uniformity correction, spectral response characteristics Suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors Biology, low light imaging, and quantitative measurement calibration, etc Uniform output for weak light, such as simulating starlight, moonlight, etc Used for calibrating low light measurement cameras, such as fluorescence measurement systems Uniformity correction of large and small aperture space remote sensing detection systems
Product Features 98% high uniformity of light output The area and position of the light outlet can be customized Has excellent Lambertian characteristics Halogen lamp light source/LED light source/Xenon lamp light source can be customized Customizable and adjustable brightness output Customizable open flange

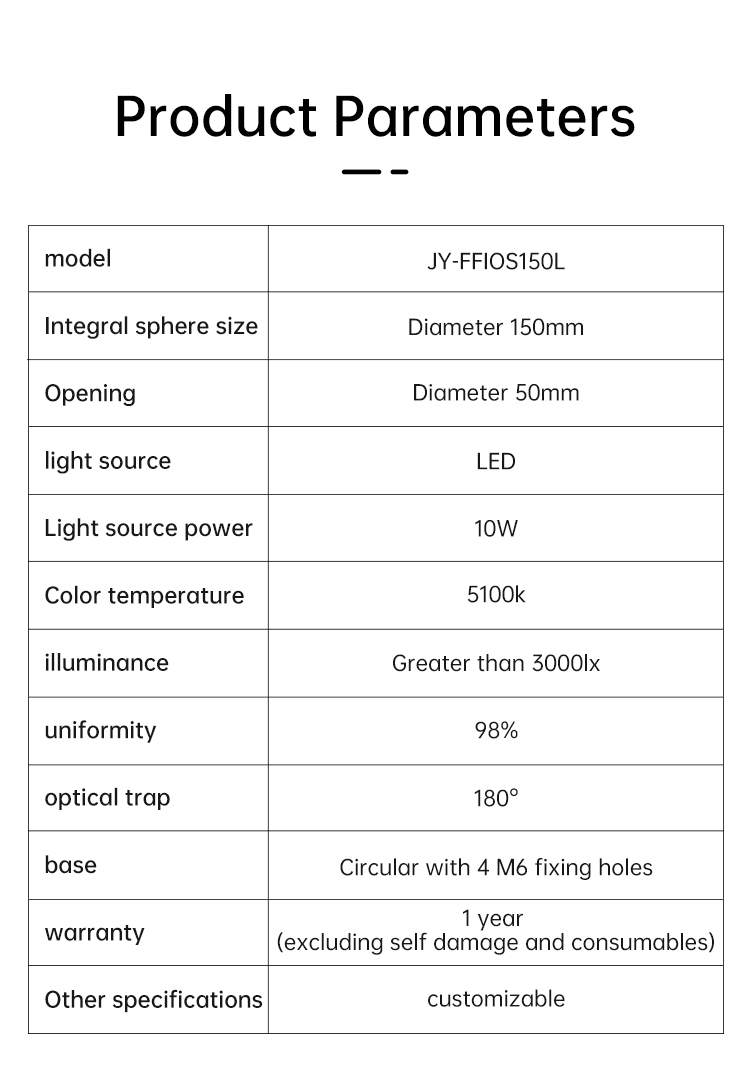

Product Parameters
|
|
|
|
model
|
JY-FFIOS150L
|
|
Integral sphere size
|
Diameter 150mm
|
|
Opening
|
Diameter 50mm
|
|
light source
|
LED
|
|
Light source power
|
10W
|
|
Color temperature
|
5100k
|
|
illuminance
|
Greater than 3000lx
|
|
uniformity
|
98%
|
|
optical trap
|
180°
|
|
base
|
Circular with 4 M6 fixing holes
|
|
warranty
|
1 year (excluding self damage and consumables)
|
|
Other specifications
|
customizable
|
