Mercury Argon Calibration Light Source HG-1 Product Introduction

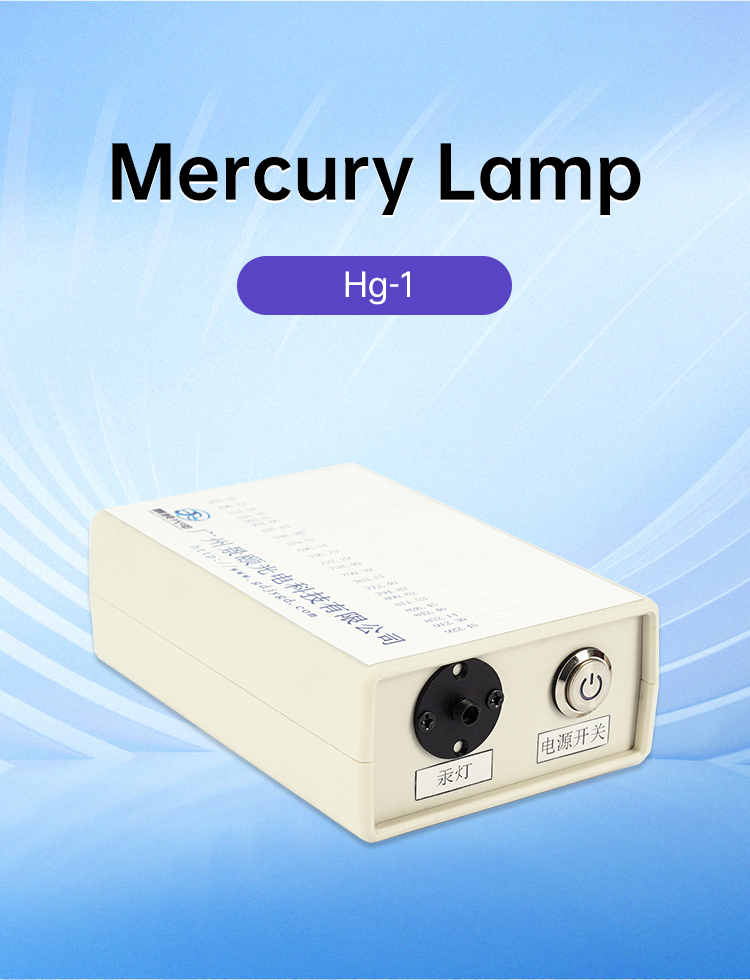

Mercury Lamp Hg-1
Product Introduction Mercury argon lamps have a compact structure, excellent seismic resistance, low cost, and high cost-effectiveness. This HG-1 mercury argon calibration light source is suitable for wavelength calibration of UV-VIS-NTR spectroscopy systems. The spectral band range generated by this light source is 253nm-1700nm ultraviolet visible infrared spectrum, which can be used for fast and reliable wavelength calibration.
Application Area Spectral system wavelength calibration
Product Features SMA905 connector/FC connector is optional. The light source is durable and has a lifespan of up to 3000 hours. Wide spectral range, suitable for calibration in the 253-1700nm spectral band. Generate mercury and argon atomic emission lines to calibrate the spectrometer. Easy to operate, only a power supply and optical fiber are needed to integrate with the spectrometer system.

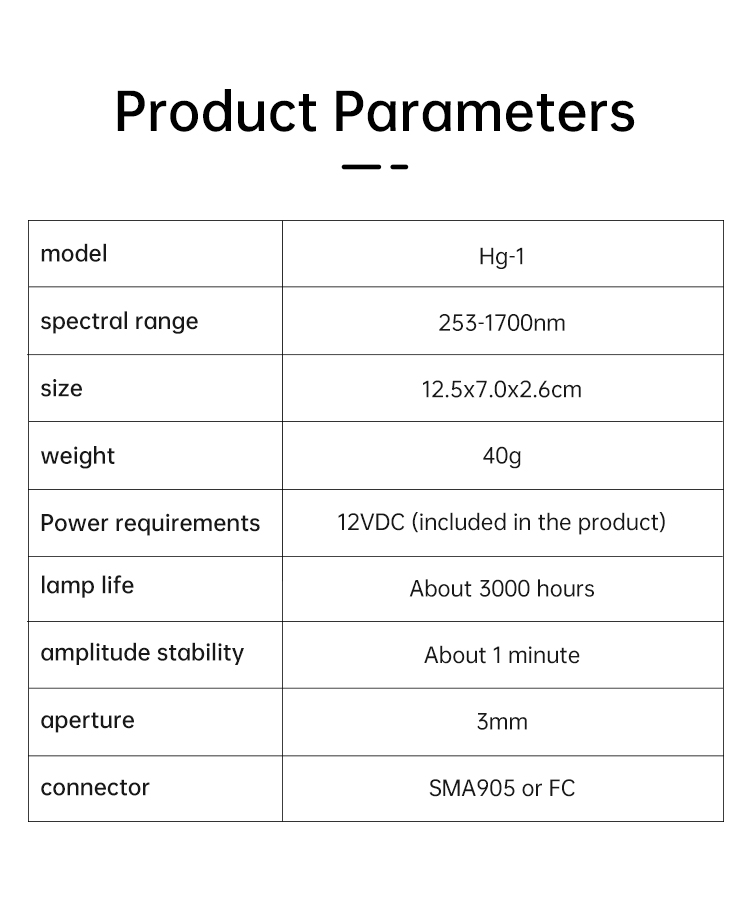

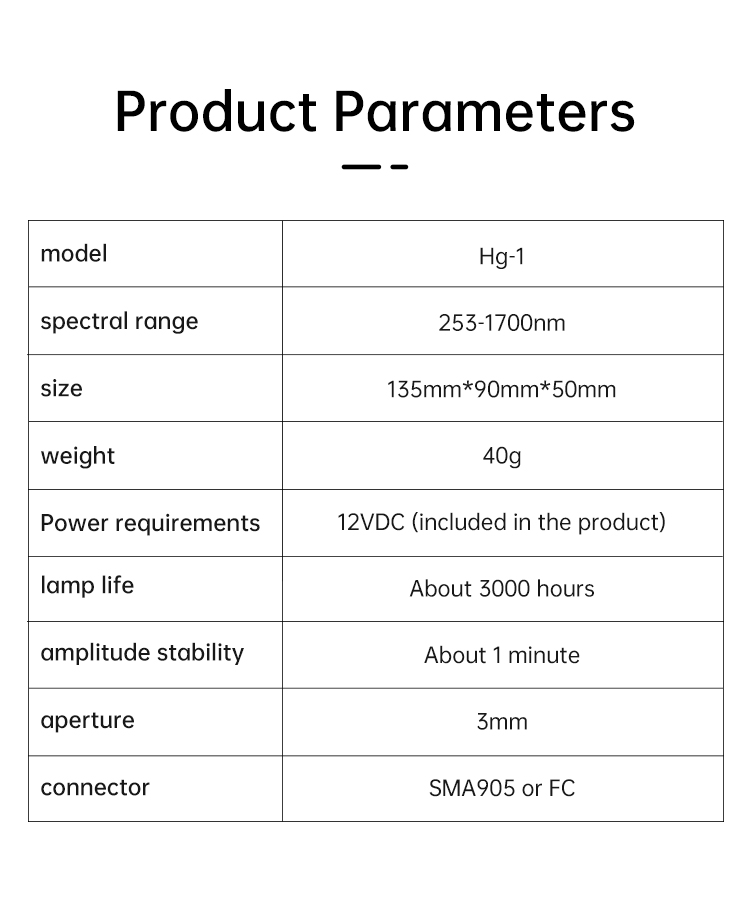

Product Parameters
|
model
|
Hg-1
|
|
spectral range
|
253-1700nm
|
|
size
|
135mm90mm50mm
|
|
weight
|
40g
|
|
Power requirements
|
12VDC (included in the product)
|
|
lamp life
|
About 3000 hours
|
|
amplitude stability
|
About 1 minute
|
|
aperture
|
3mm
|
|
connector
|
SMA905 or FC
|
