JY-JFIOS200 均匀光源积分球产品介绍

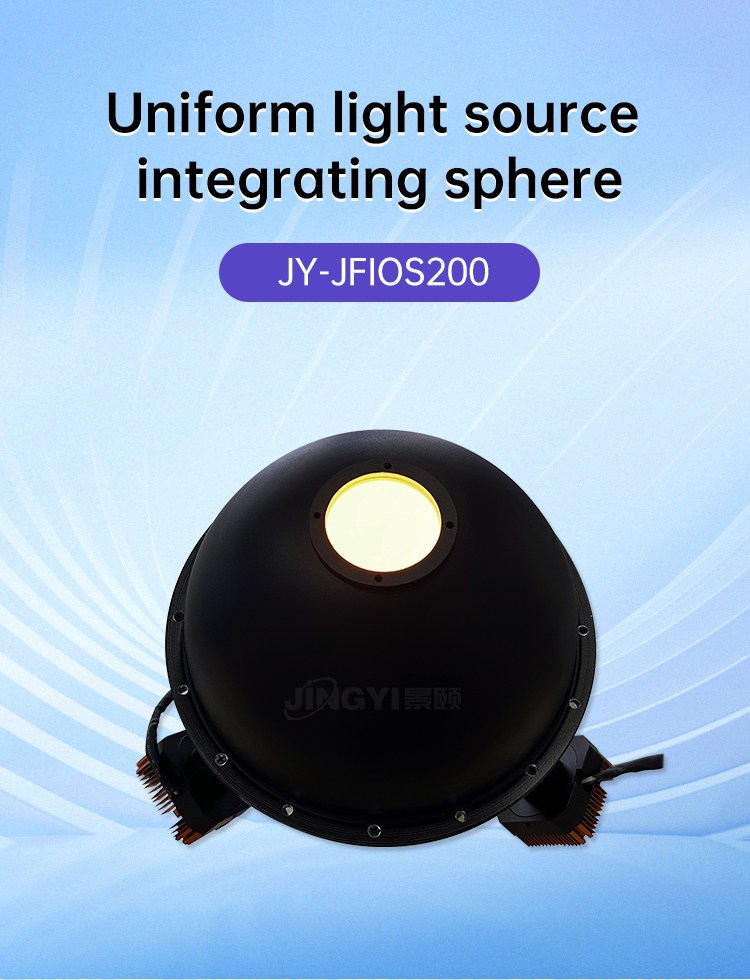

Uniform light source integrating sphere JY-JFIOS200

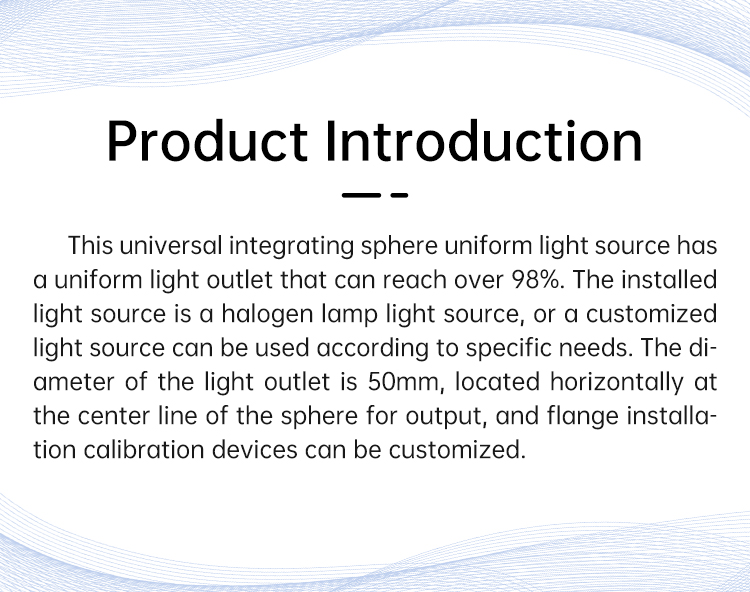

Product Introduction This universal integrating sphere uniform light source has a uniform light outlet that can reach over 98%. The installed light source is a halogen lamp light source, or a customized light source can be used according to specific needs. The diameter of the light outlet is 50mm, located horizontally at the center line of the sphere for output, and flange installation calibration devices can be customized.
Application Area Calibration of imaging systems and devices in the laboratory Film, digital camera, camera uniformity correction, spectral response characteristics Suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors Biology, low light imaging, and quantitative measurement calibration, etc Uniform output for weak light, such as simulating starlight, moonlight, etc Used for calibrating low light measurement cameras, such as fluorescence measurement systems Uniformity correction of large and small aperture space remote sensing detection systems

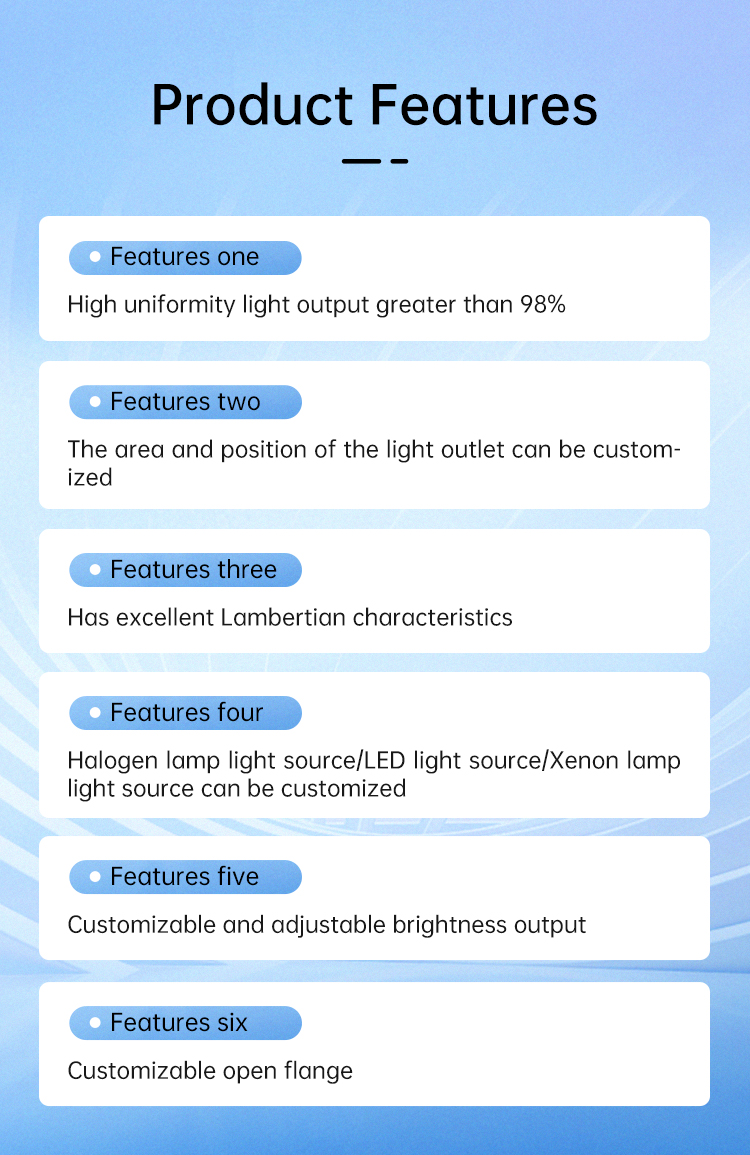

Product Features Features one: High uniformity light output greater than 98% Features two: The area and position of the light outlet can be customized Features three: Has excellent Lambertian characteristics Features four: Halogen lamp light source/LED light source/Xenon lamp light source can be customized Features five: Customizable and adjustable brightness output Features six: Customizable open flange

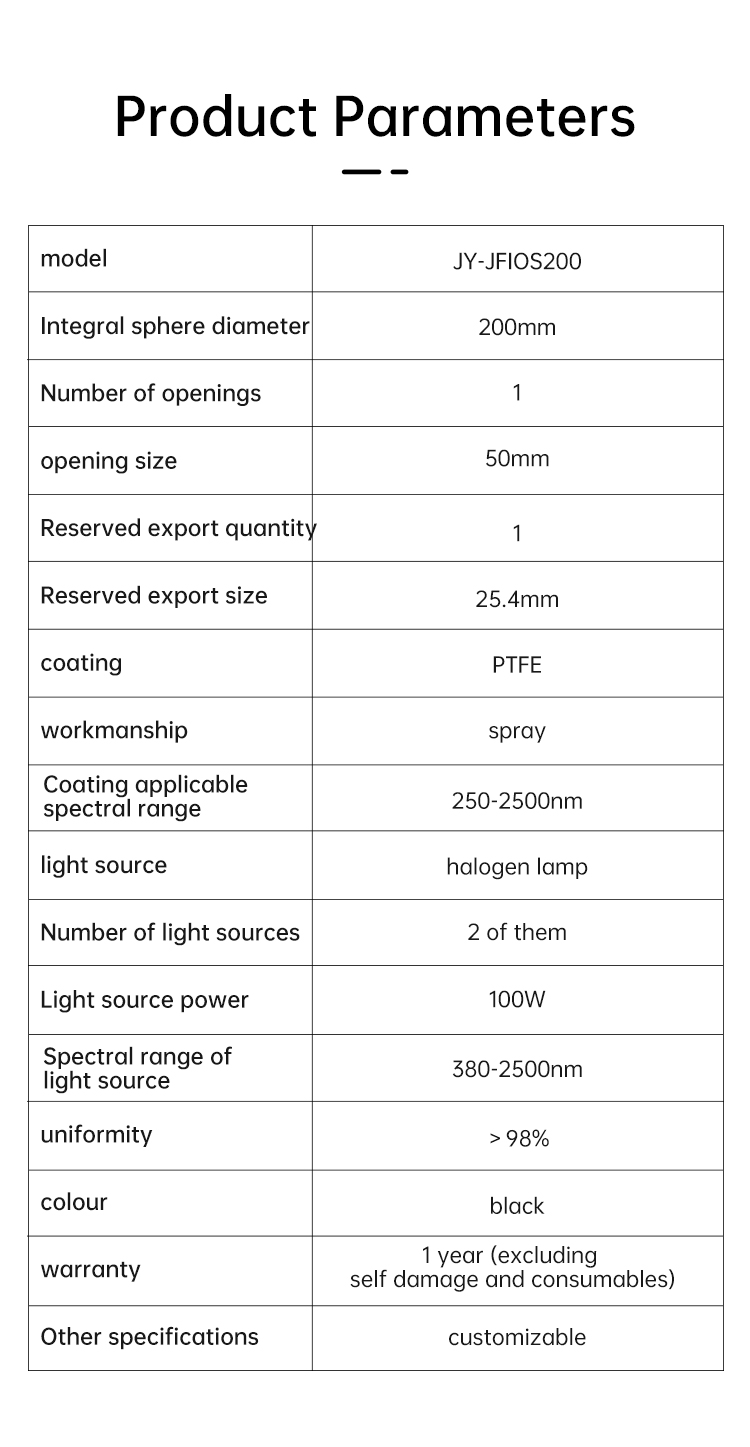

Product Parameters
|
model
|
JY-JFIOS200
|
|
Integral sphere diameter
|
200mm
|
|
Number of openings
|
1
|
|
opening size
|
50mm
|
|
Reserved export quantity
|
1
|
|
Reserved export size
|
25.4mm
|
|
coating
|
PTFE
|
|
workmanship
|
spray
|
|
Coating applicable spectral range
|
250-2500nm
|
|
light source
|
halogen lamp
|
|
Number of light sources
|
2 of them
|
|
Light source power
|
100W
|
|
Spectral range of light source
|
380-2500nm
|
|
uniformity
|
>98%
|
|
colour
|
black
|
|
warranty
|
1 year (excluding self damage and consumables)
|
|
Other specifications
|
customizable
|
