84UV 准直透镜与 SMA905 接口产品介绍

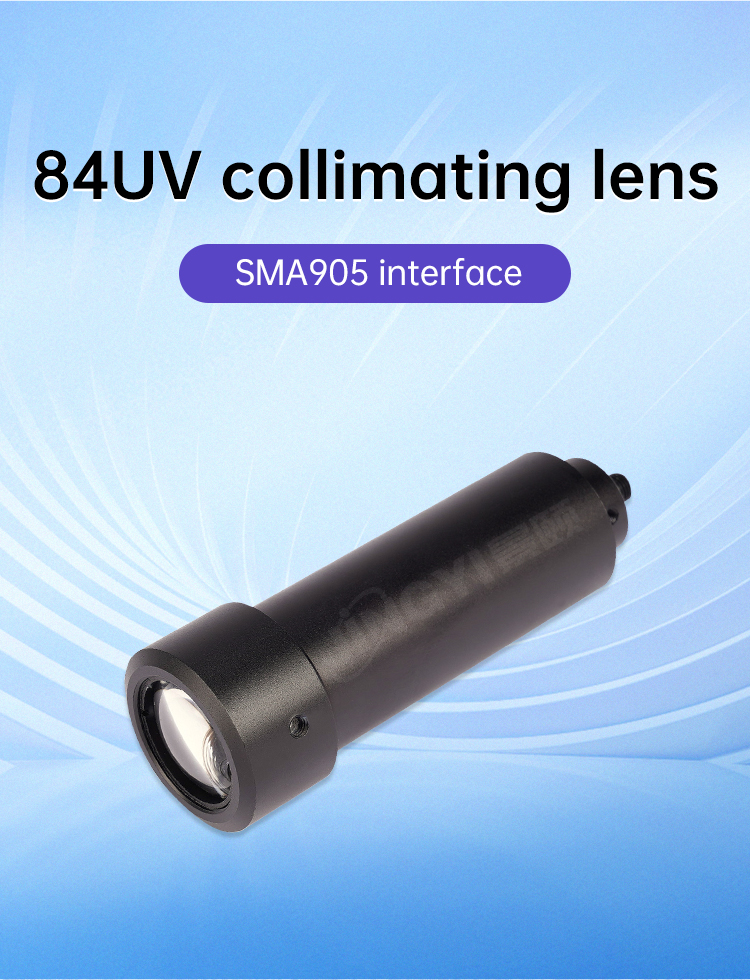

84UV collimating lens SMA905 interface
Product Introduction The 84 series collimating lens is designed to couple larger free space beams into optical fibers. The threaded tube positions the optical fiber on the surface of the lens at a distance of approximately 100mm, which can be adjusted to achieve ideal focusing.
Product Features Black oxidation treated stainless steel Tail distance can be fine tuned Wavelength range 200-2000nm Long focal length test

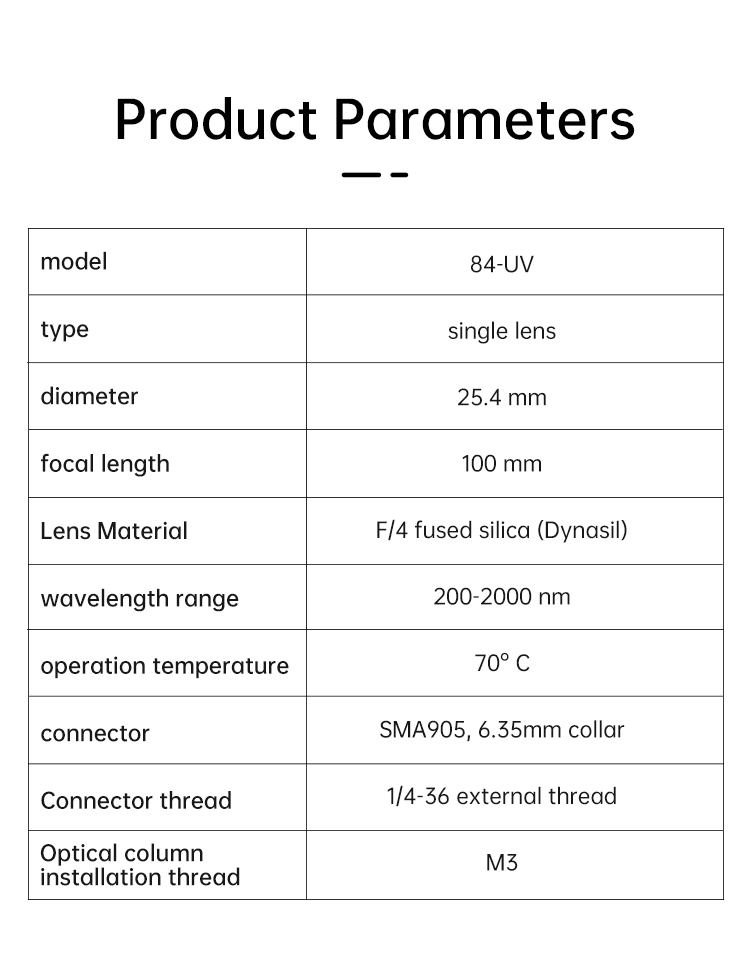

Product Parameters
|
|
|
|
model
|
84-UV
|
|
type
|
single lens
|
|
diameter
|
25.4 mm
|
|
focal length
|
100 mm
|
|
Lens Material
|
F/4 fused silica (Dynasil)
|
|
wavelength range
|
200-2000 nm
|
|
operation temperature
|
70° C
|
|
connector
|
SMA905, 6.35mm collar
|
|
Connector thread
|
1/4-36 external thread
|
|
Optical column installation thread
|
M3
|
