JY-L2000 100W 卤素灯产品介绍

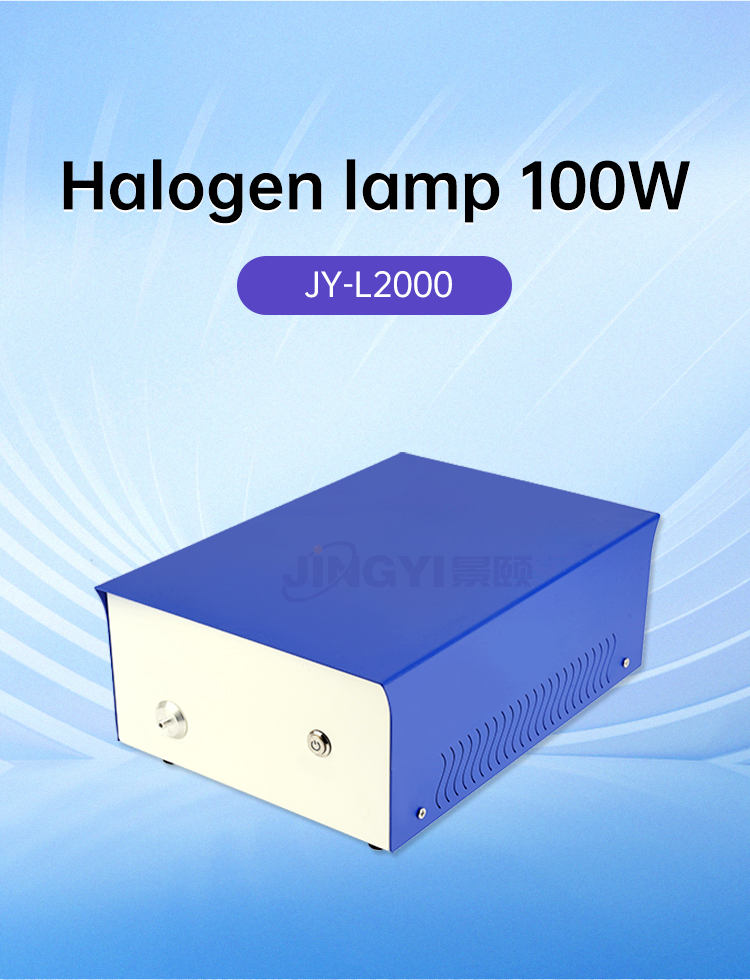

Halogen lamp 100W JY-L2000
Product Introduction JY-L2000 halogen lamp is a 100W bulb with a wavelength range from 380 to 2500nm. The high-power light source series lamps are near blackbody light sources, and the filament is coated with a layer of fused silica. The brightness of the light source is adjustable, and the chassis is equipped with a cooling fan.
Application Area Spectral transmittance and reflectance analysis Spectral chromaticity and absorbance analysis Diffuse reflectance integrating sphere measurement of reflectance spectra, transmission spectra, and radiometric calibration
Product Features Optical output provided for fiber optic spectrometer Provide stable color temperature The power supply can provide adjustable constant current

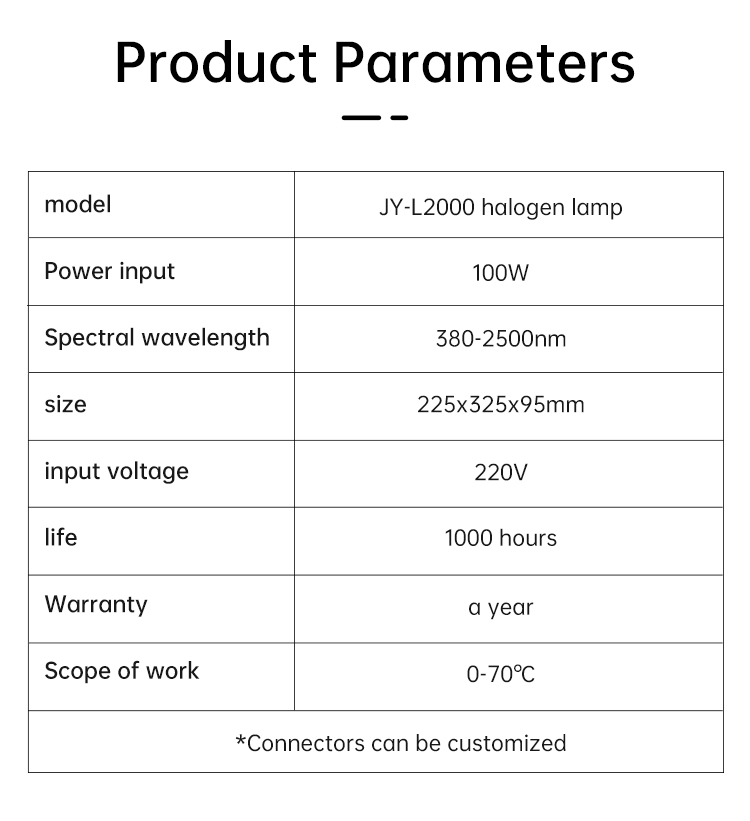

Product Parameters
|
|
|
|
model
|
JY-L2000 halogen lamp
|
|
Power input
|
100W
|
|
Spectral wavelength
|
380-2500nm
|
|
size
|
225x325x95mm
|
|
input voltage
|
220V
|
|
life
|
1000 hours
|
|
Warranty
|
a year
|
|
Scope of work
|
0-70℃
|
|
*Connectors can be customized
|
|

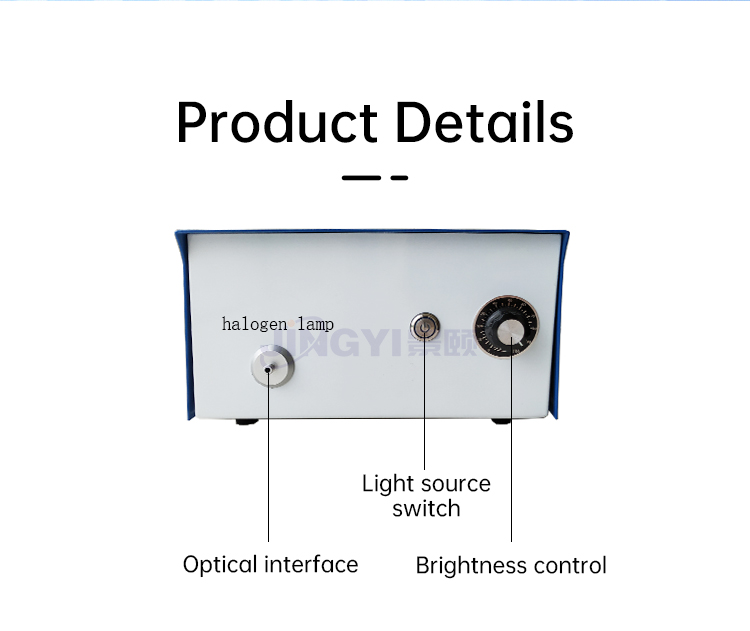

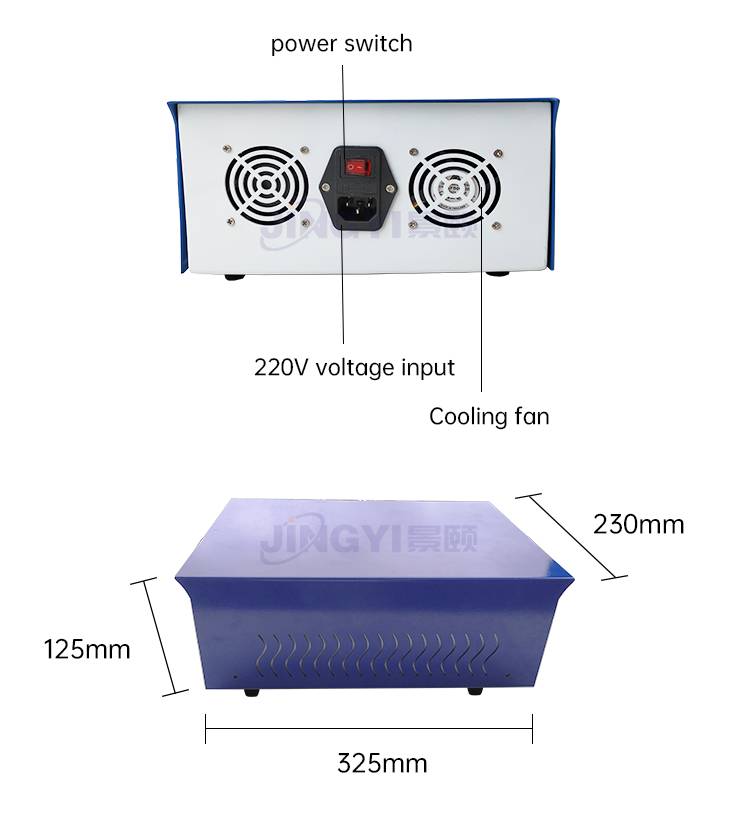

Product Details halogen lamp Optical interface Light source switch Brightness control power switch 220V voltage input Cooling fan

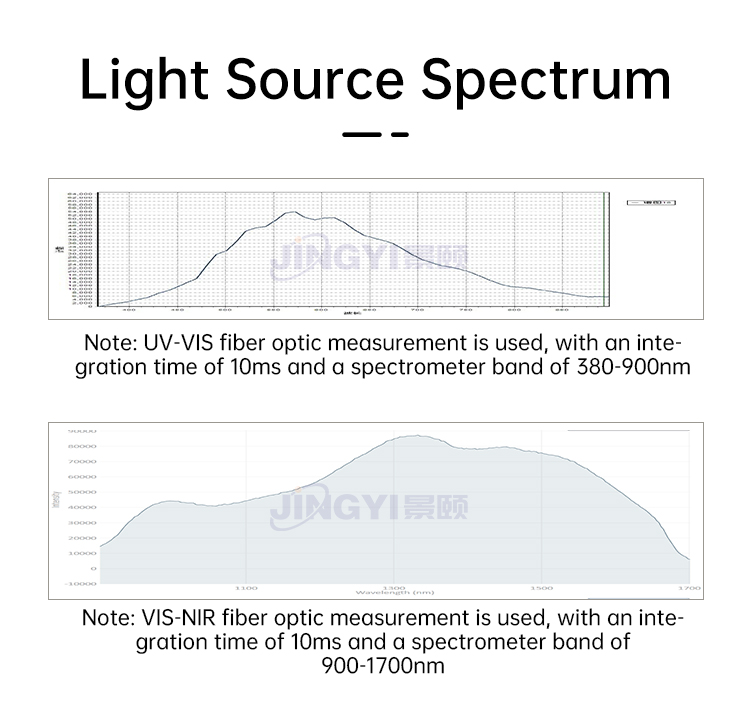

Light Source Spectrum Note: UV-VIS fiber optic measurement is used, with an integration time of 10ms and a spectrometer band of 380-900nm Note: VIS-NIR fiber optic measurement is used, with an integration time of 10ms and a spectrometer band of 900-1700nm

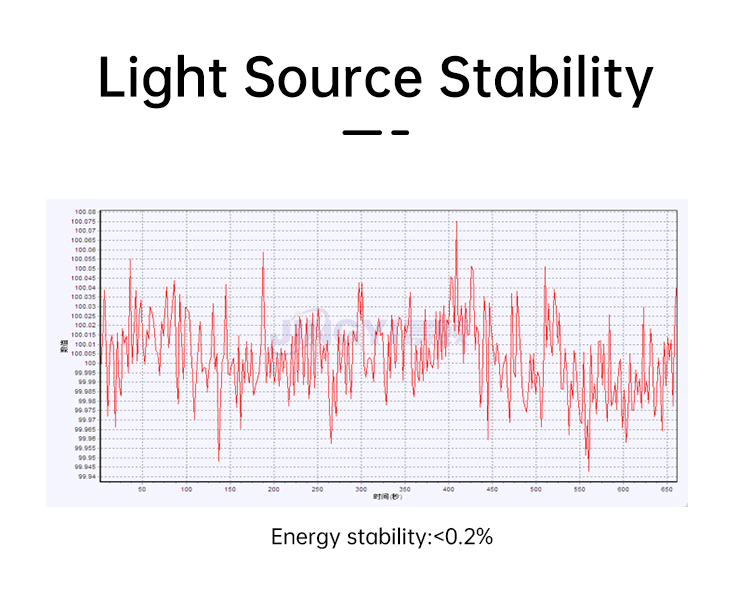

Light Source Stability Energy stability:<0.2%
