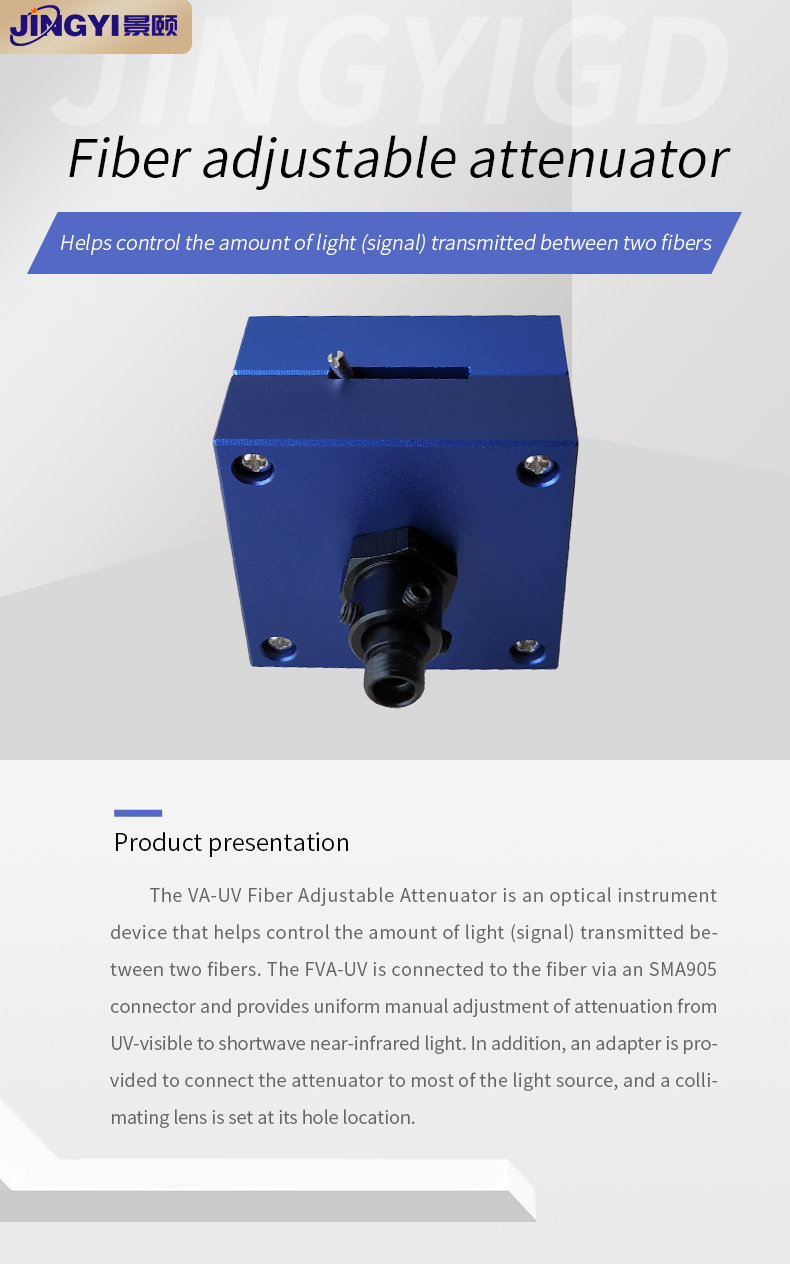

Fiber Adjustable Attenuator Product Presentation
Fiber adjustable attenuator Helps control the amount of light (signal) transmitted between two fibers
Product presentation The VA-UV Fiber Adjustable Attenuator is an optical instrument device that helps control the amount of light (signal) transmitted between two fibers. The FVA-UV is connected to the fiber via an SMA905 connector and provides uniform manual adjustment of attenuation from UV-visible to shortwave near-infrared light. In addition, an adapter is provided to connect the attenuator to most of the light source, and a collimating lens is set at its hole location.

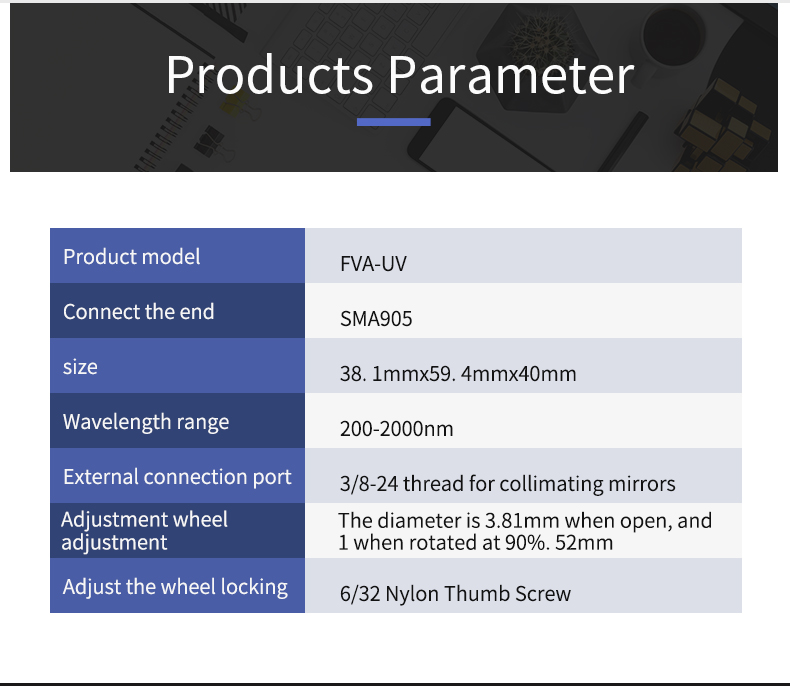

Products Parameter
|
|
|
|
Product model
|
FVA-UV
|
|
Connect the end
|
SMA905
|
|
size
|
38.1mmx59.4mmx40mm
|
|
Wavelength range
|
200-2000nm
|
|
External connection port
|
3/8-24 thread for collimating mirrors
|
|
Adjustment wheel adjustment
|
The diameter is 3.81mm when open, and 1 when rotated at 90%. 52mm
|
|
Adjust the wheel locking
|
6/32 Nylon Thumb Screw
|

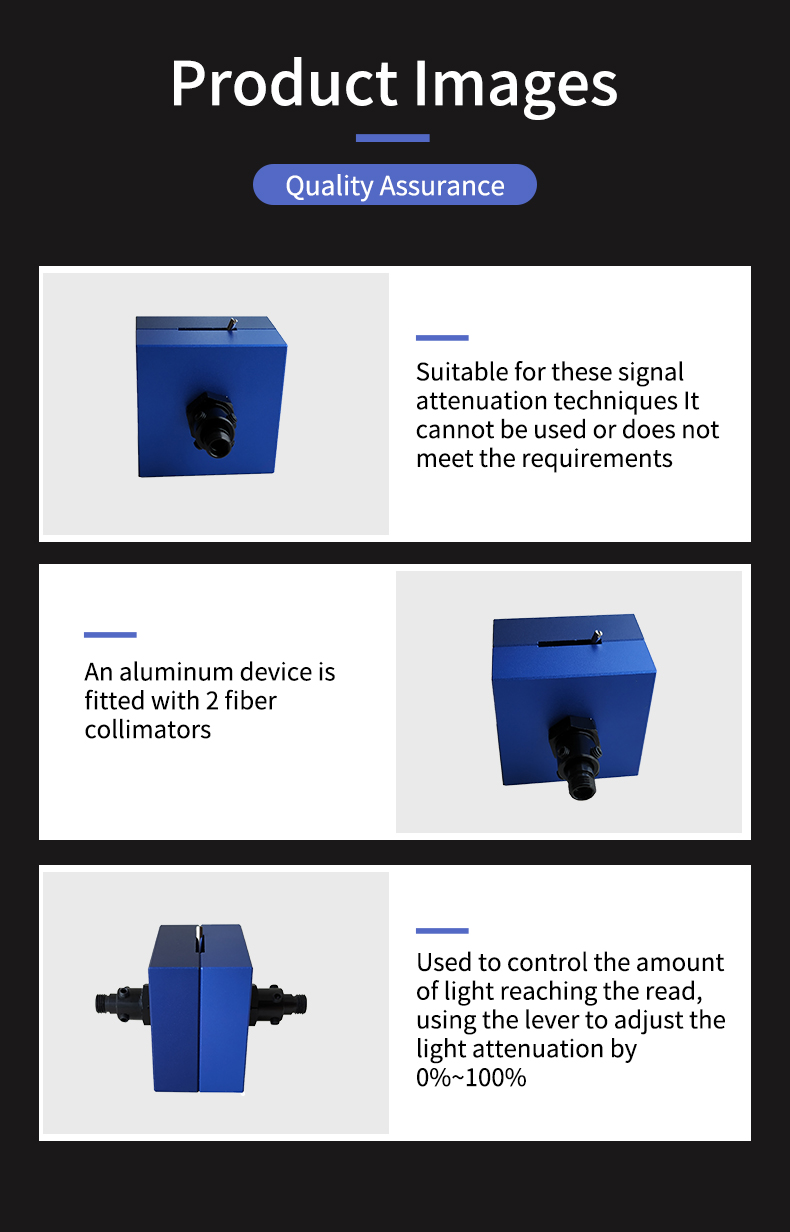

Product Images Suitable for these signal attenuation techniques It cannot be used or does not meet the requirements An aluminum device is fitted with 2 fiber collimators Used to control the amount of light reaching the read, using the lever to adjust the light attenuation by 0%~100%
