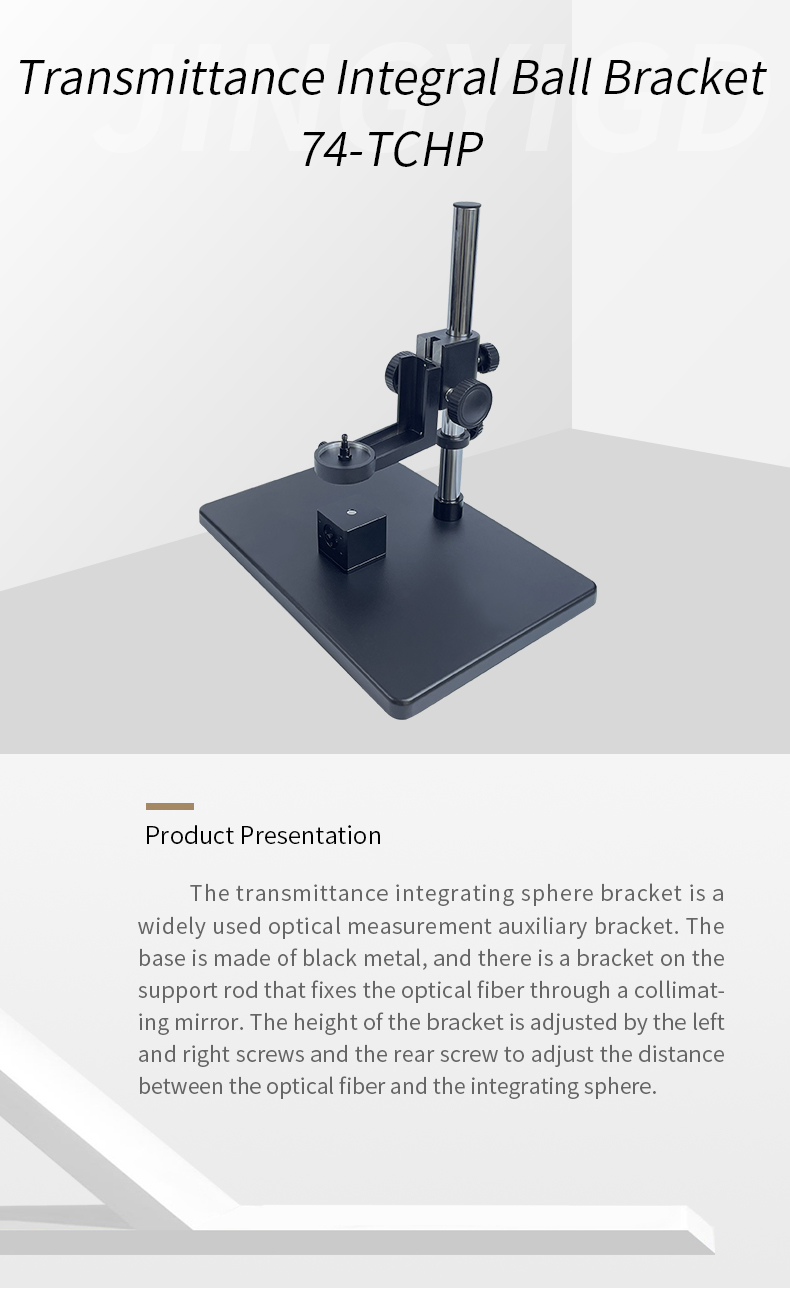

Transmittance Integral Ball Bracket 74-TCHP

Product Presentation The transmittance integrating sphere bracket is a widely used optical measurement auxiliary bracket. The base is made of black metal, and there is a bracket on the support rod that fixes the optical fiber through a collimating mirror. The height of the bracket is adjusted by the left and right screws and the rear screw to adjust the distance between the optical fiber and the integrating sphere.

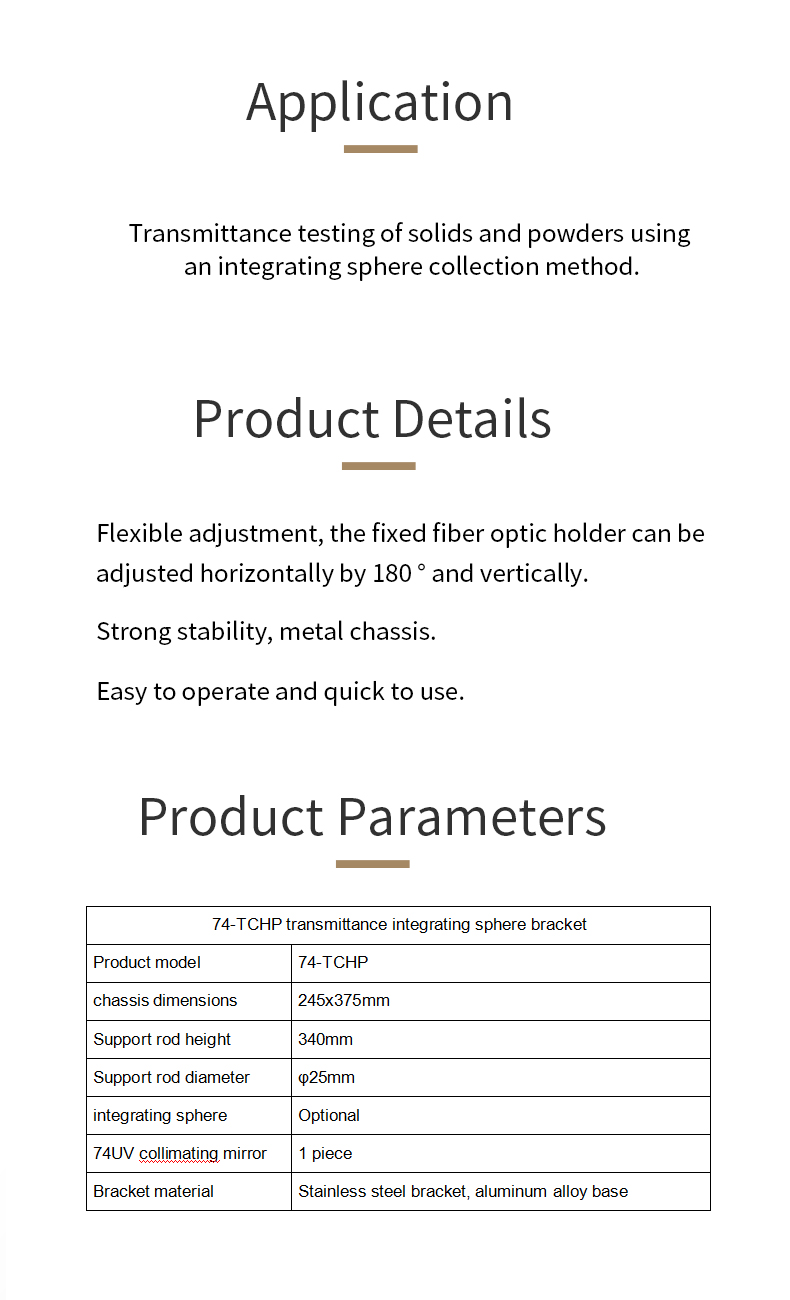

Application Transmittance testing of solids and powders using an integrating sphere collection method.

Product Details Flexible adjustment, the fixed fiber optic holder can be adjusted horizontally by 180 ° and vertically. Strong stability, metal chassis. Easy to operate and quick to use.

Product Parameters

	74-TCHP transmittance integrating sphere bracket
Product model	74-TCHP
chassis dimensions	245x375mm
Support rod height	340mm
Support rod diameter	φ25mm
integrating sphere	Optional
74UV collimating mirror	1 piece
Bracket material	Stainless steel bracket, aluminum alloy base
