Laser Radar Special Test Board: JY-MRT Detailed Explanation

Laser radar dedicated test board

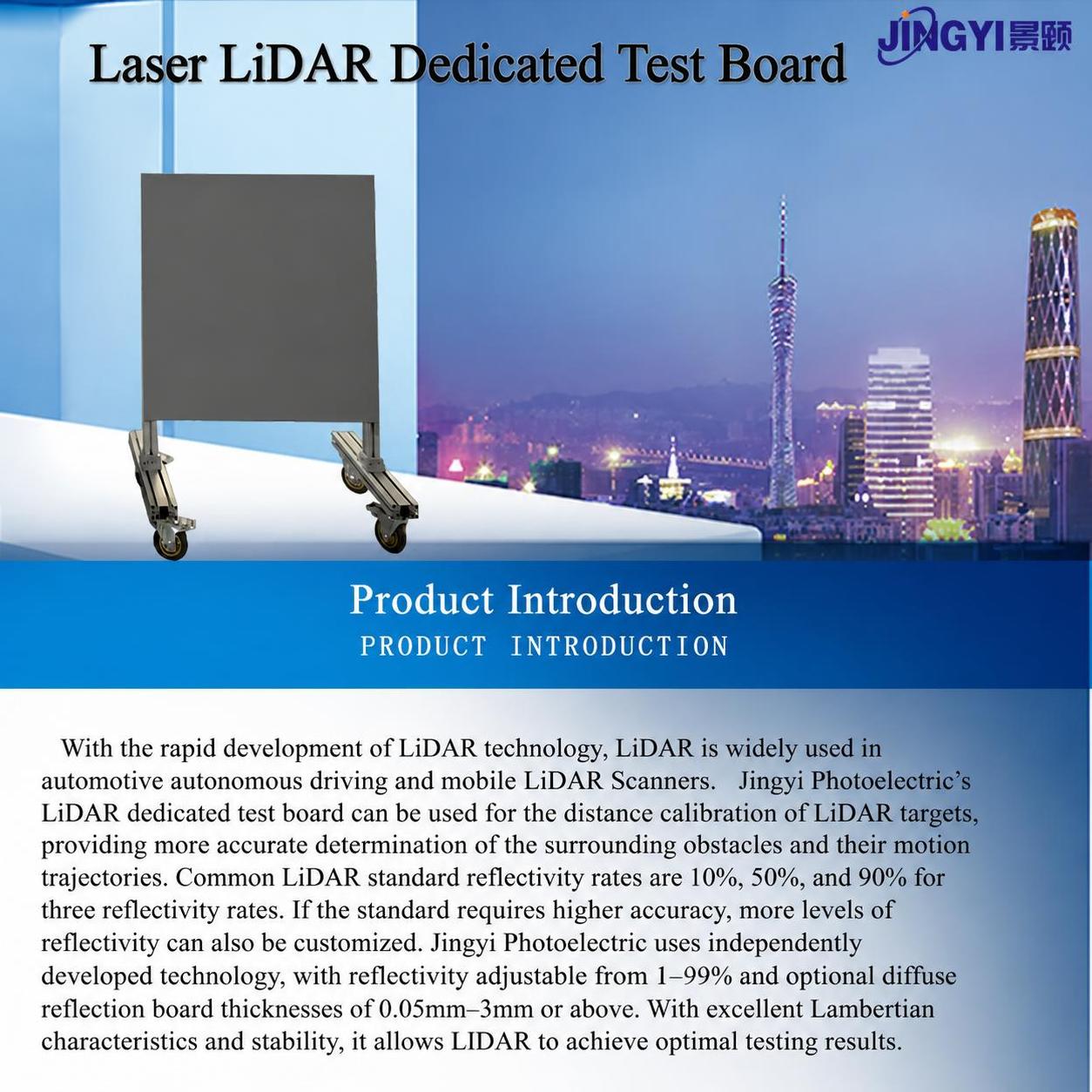

Product Introduction
With the rapid development of LiDAR technology, LiDAR has been widely used in automotive autonomous driving and mobile LiDAR scanners. The lidar dedicated test board produced by Jingyi Optoelectronics can be used for target distance calibration of LiDAR, allowing LiDAR to more accurately determine surrounding faulty objects and their motion trajectories. The reflectivity commonly used for laser radar calibration includes three reflectivity levels: 10%, 50%, and 90%. If high calibration accuracy is required, more step reflectivity can be customized Jingyi Optoelectronics adopts independently developed technology and processes, with reflectivity ranging from 1-99%. It can customize diffuse reflection plate sizes of 0.05m-3m or more, all of which have nearly perfect Lambertian characteristics and stability, allowing laser radar calibration to achieve optimal testing results.
Application Fields
Autonomous driving of automobiles
Mobile LiDAR scanner
Product Advantages
Advantage 1: With a wide wavelength range of 200-2500nm, it can be used for common lasers such as 850nm, 905nm, 940nm, and 1550nm.

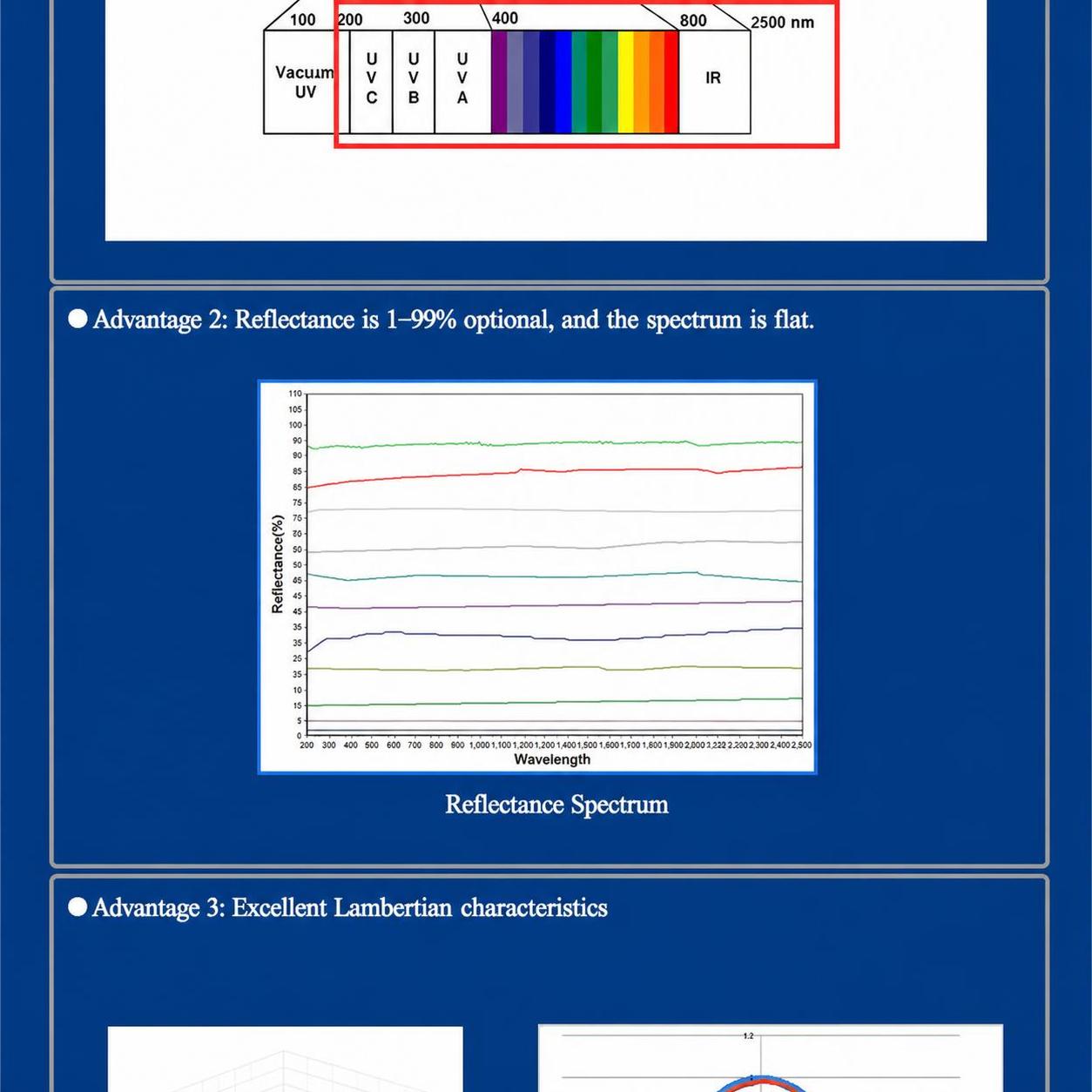

Advantage 2: optional reflectivity of 1-99%, and flat spectrum
Advantage 3: Possessing excellent Lambertian characteristics

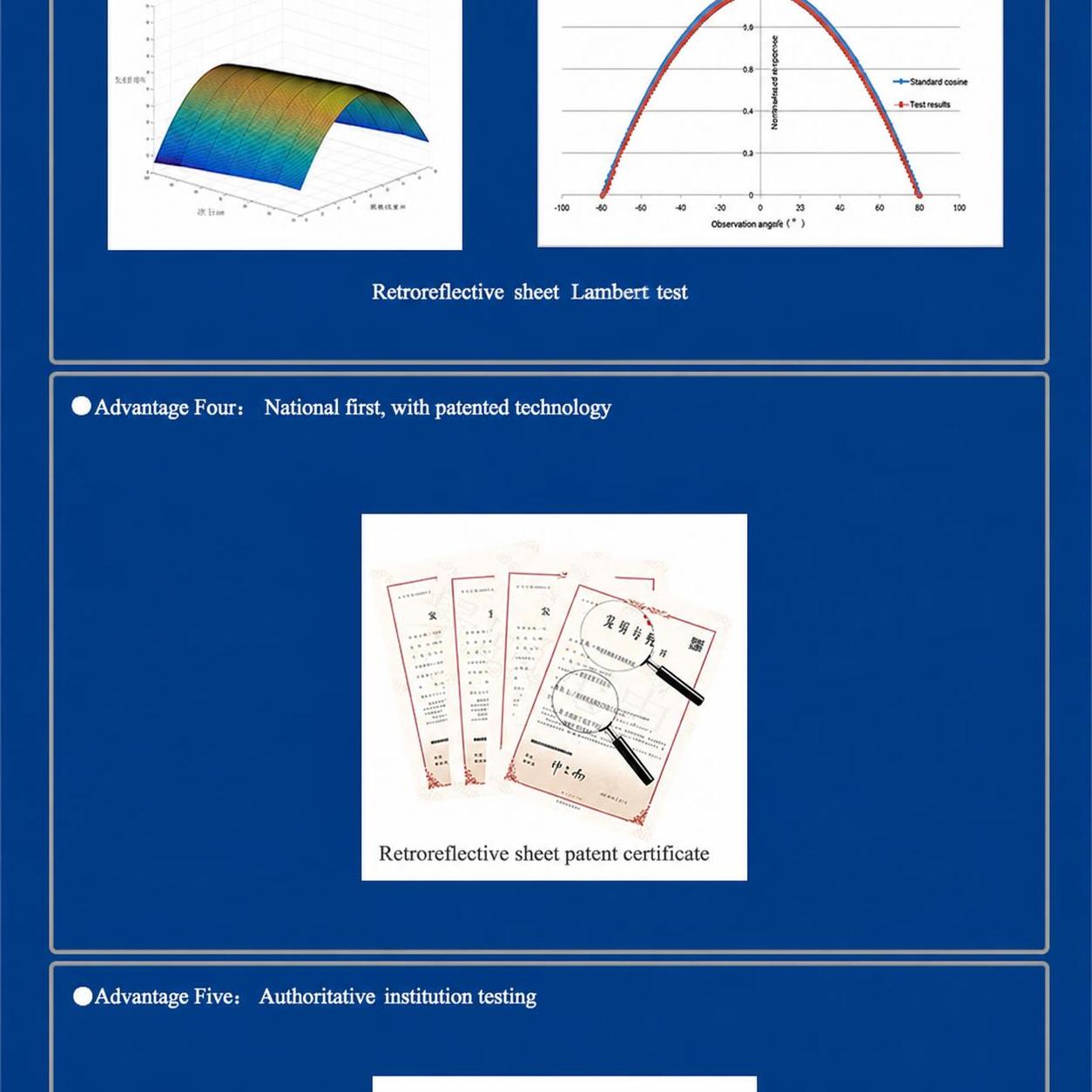

Lambert test for diffuse reflection plate
Advantage 4: The first in the country to have patented invention technology
Diffuse reflection plate patent certificate
Advantage 5: Authoritative Institution Testing
Third party organization certification
Calibration Certificate
Advantage 6: Excellent diffuse reflectance testing effect

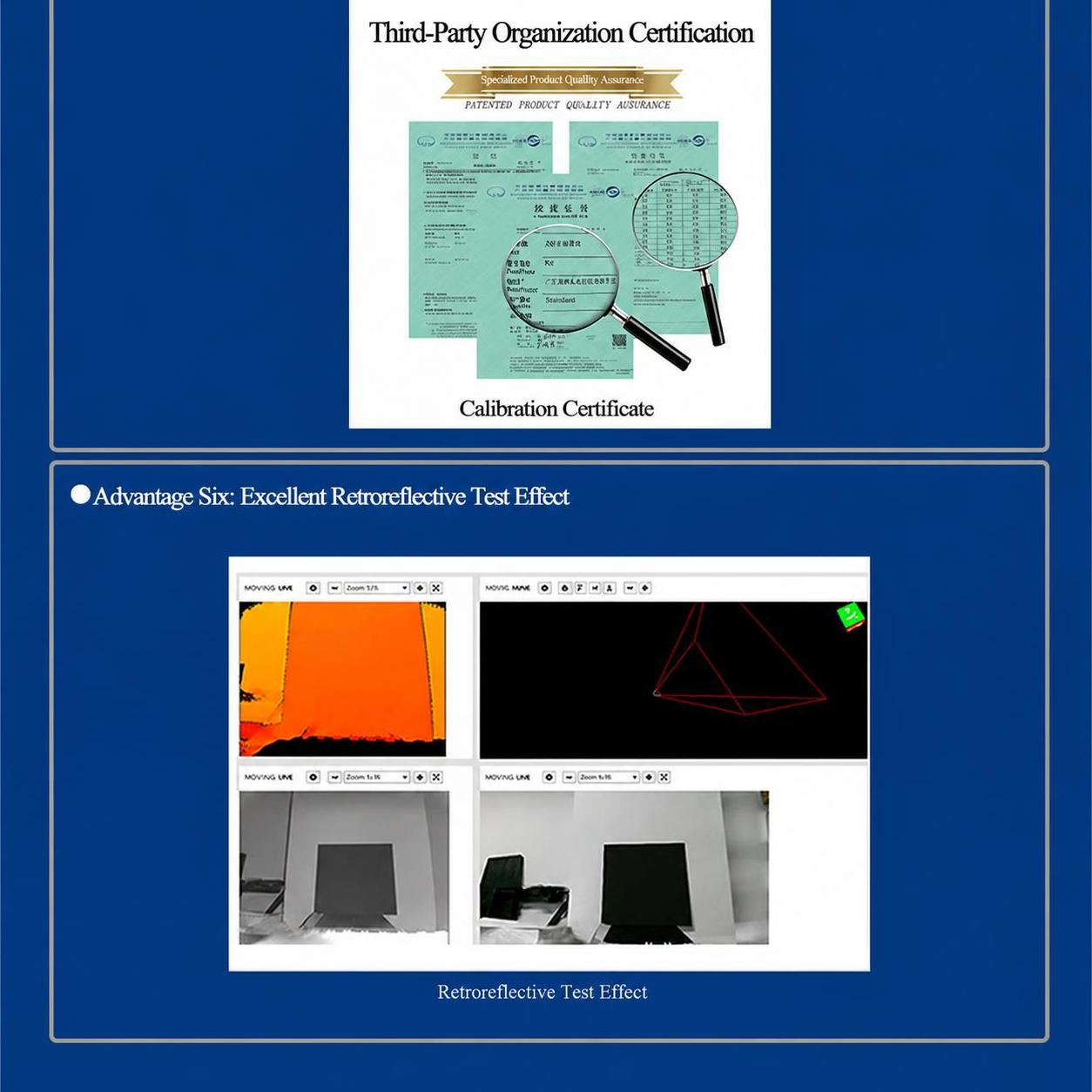

Test effect of diffuse reflection board

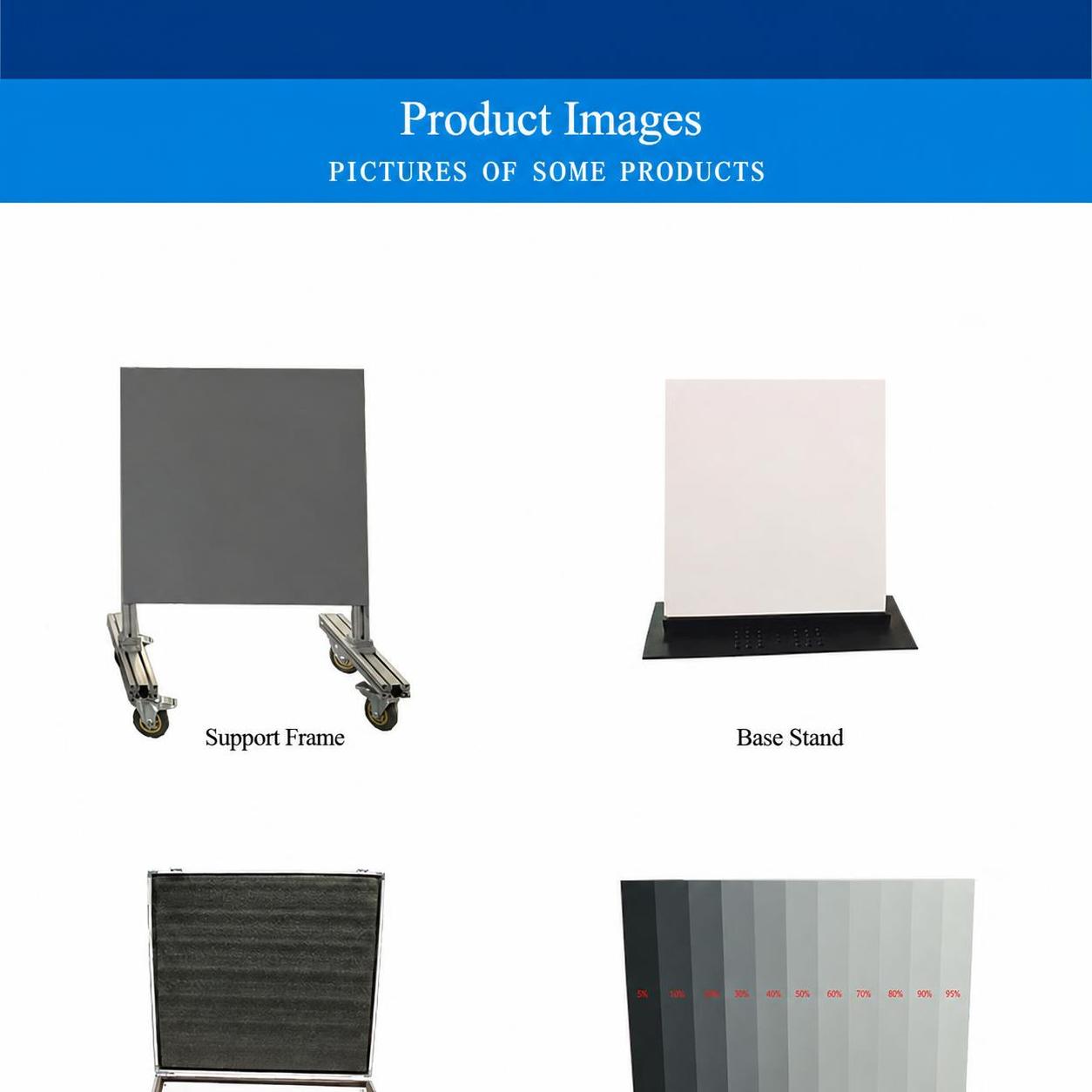

product image
Install bracket
Install the base
Aluminum box packaging
Reflectivity stitching

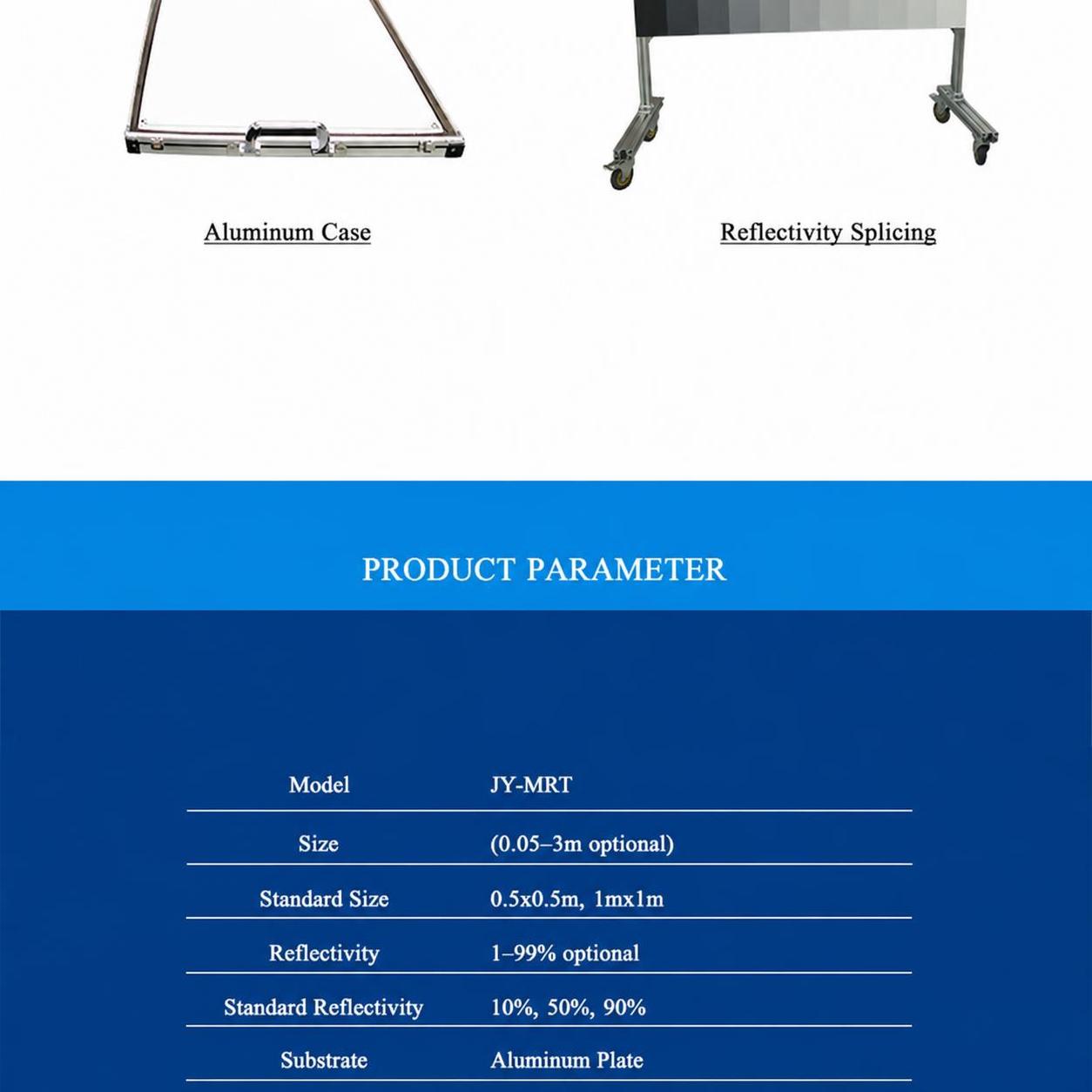

Product Specifications
