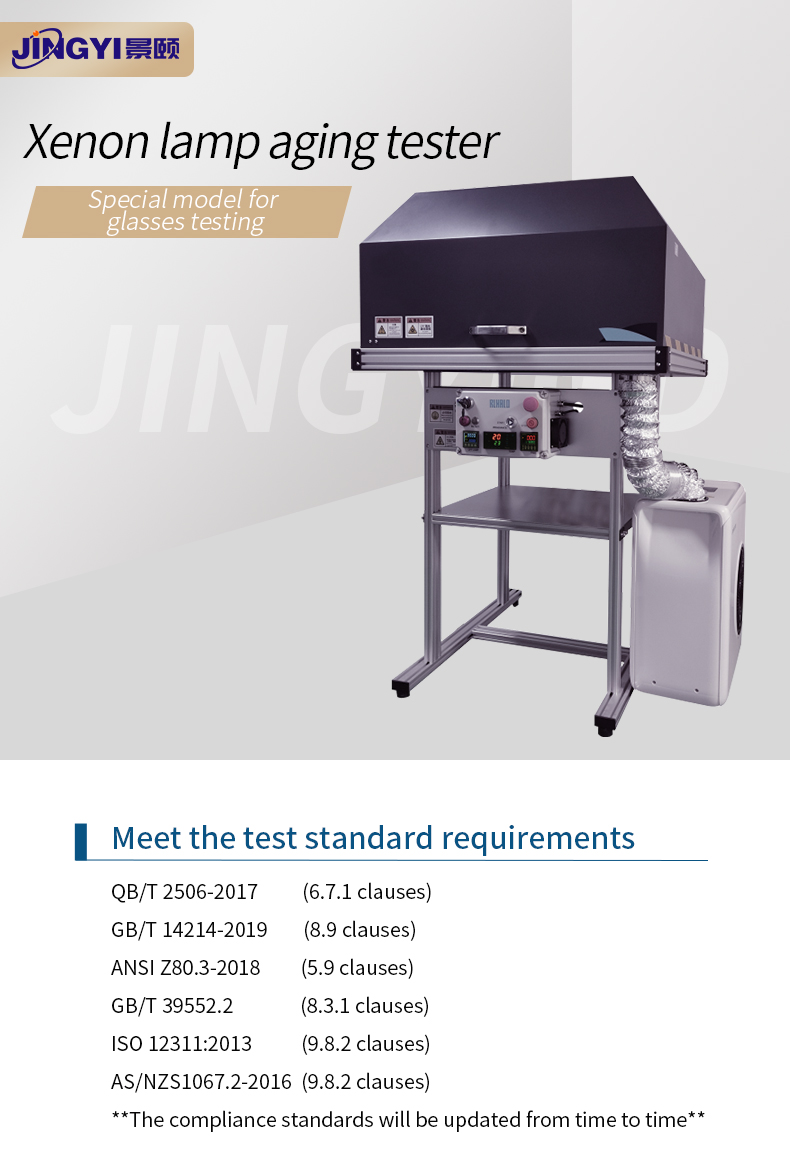

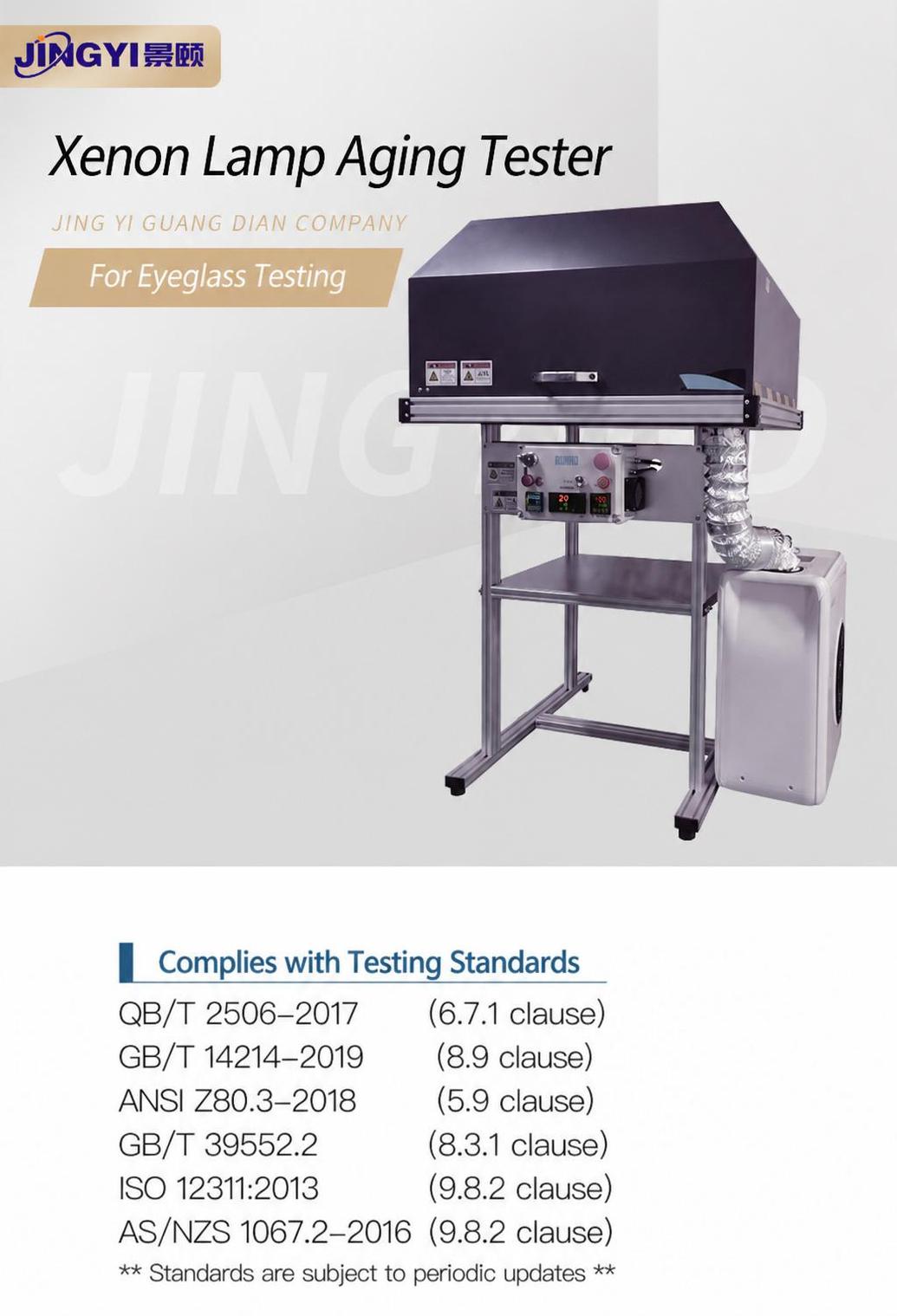

Xenon Lamp Aging Tester for Glasses Testing
Xenon lamp aging tester
Special model for glasses testing
Meet the test standard requirements
QB/T 2506-2017 (6.7.1 clauses)
GB/T 14214-2019 (8.9 clauses)
ANSI Z80.3-2018 (5.9 clauses)
GB/T 39552.2 (8.3.1 clauses)
ISO 12311:2013 (9.8.2 clauses)
AS/NZS1067.2-2016 (9.8.2 clauses)
The compliance standards will be updated from time to time

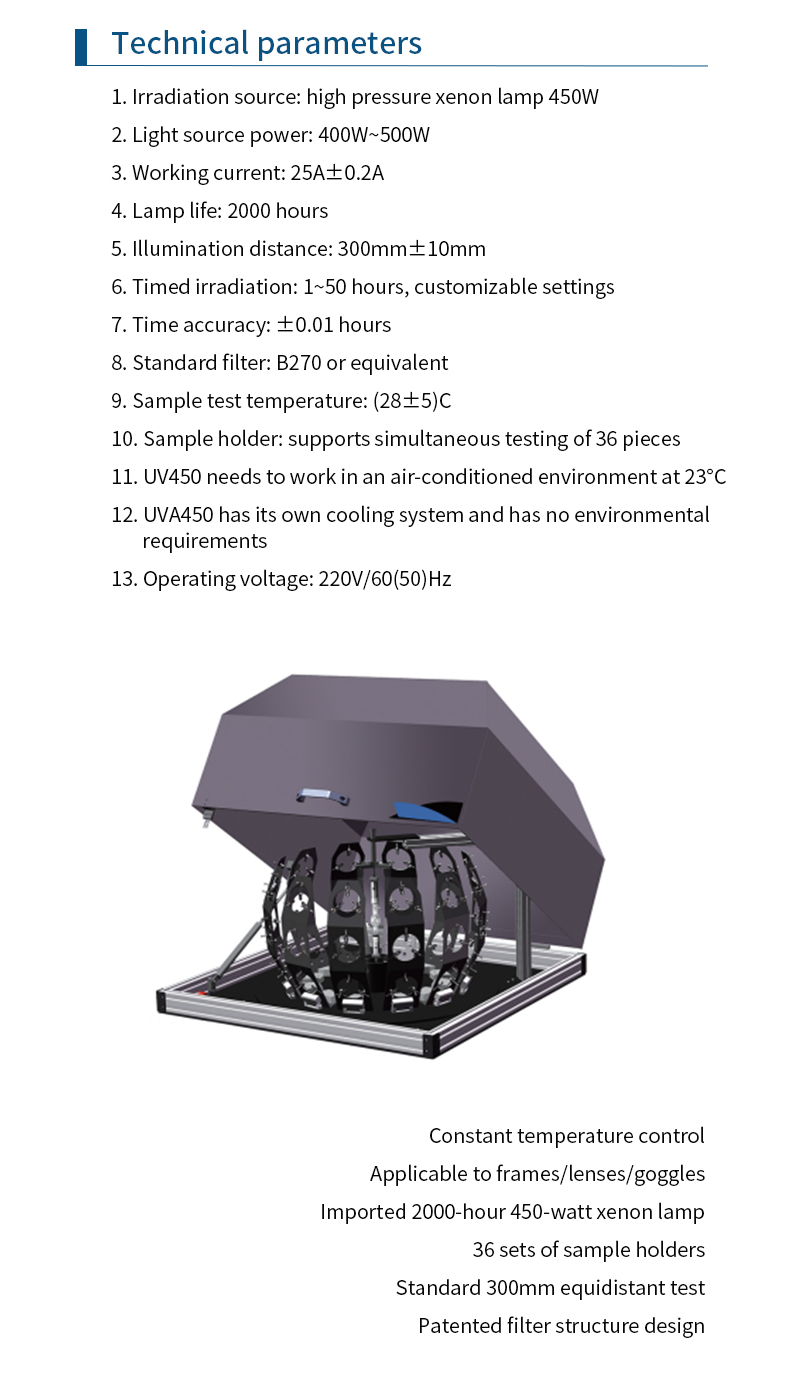

Technical parameters
|
Item
|
Parameter
|
|
Irradiation source
|
high pressure xenon lamp 450W
|
|
Light source power
|
400W~500W
|
|
Working current
|
25A±0.2A
|
|
Lamp life
|
2000 hours
|
|
Illumination distance
|
300mm±10mm
|
|
Timed irradiation
|
1~50 hours, customizable settings
|
|
Time accuracy
|
±0.01 hours
|
|
Standard filter
|
B270 or equivalent
|
|
Sample test temperature
|
(28±5)C
|
|
Sample holder
|
supports simultaneous testing of 36 pieces
|
|
UV450 working condition
|
needs to work in an air-conditioned environment at 23°C
|
|
UVA450 working condition
|
has its own cooling system and has no environmental requirements
|
|
Operating voltage
|
220V/60(50)Hz
|
Constant temperature control
Applicable to frames/lenses/goggles
Imported 2000-hour 450-watt xenon lamp
36 sets of sample holders
Standard 300mm equidistant test
Patented filter structure design
