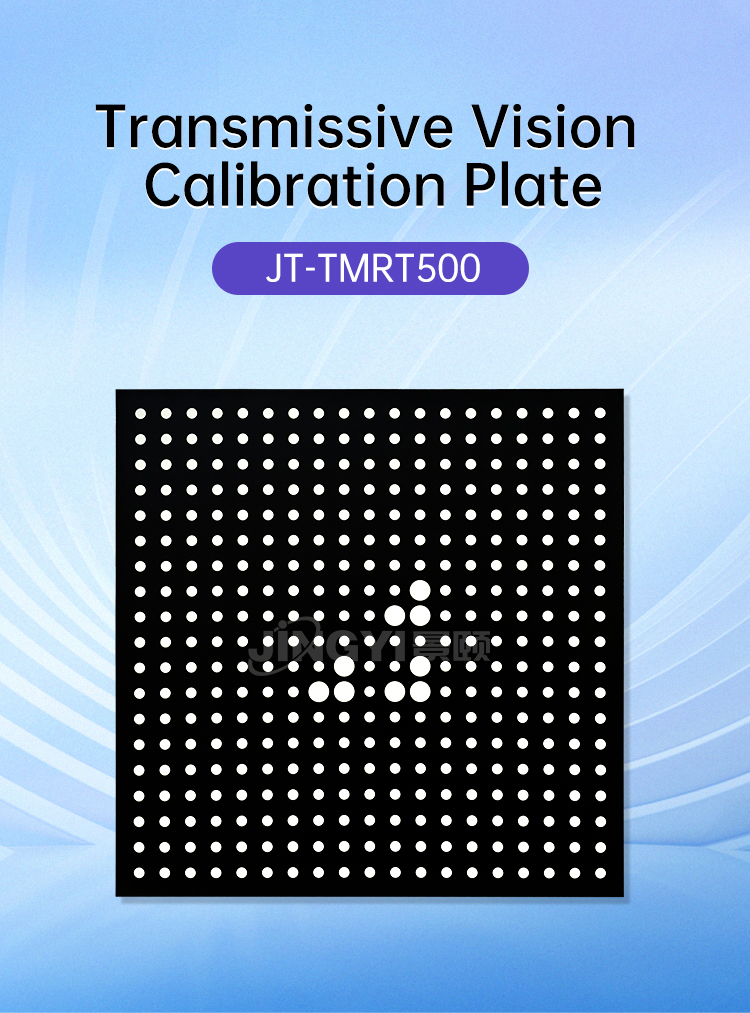

Transmissive Vision Calibration Plate
JT-TMRT500

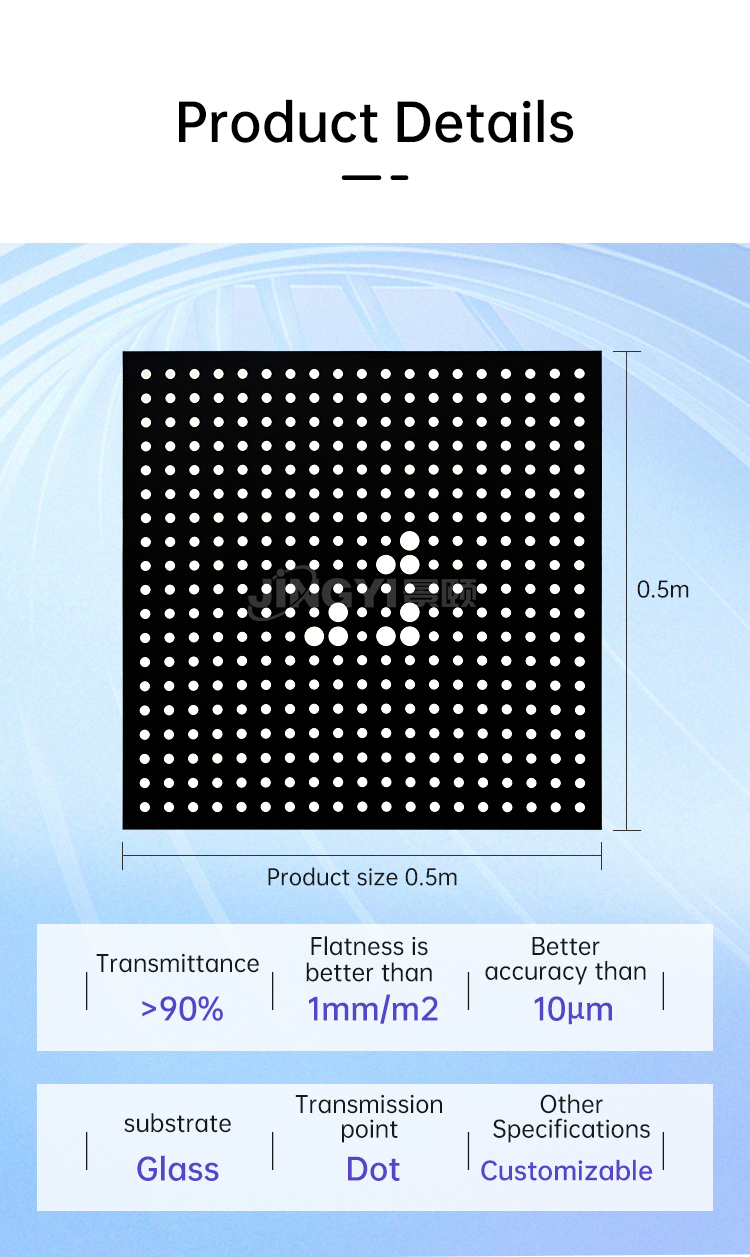

Product Details
Product size 0.5m Transmittance:>90% Flatness is better than 1mm/m2 Better accuracy than 10μm substrate:Glass Transmission point:Dot Other Specifications:Customizable

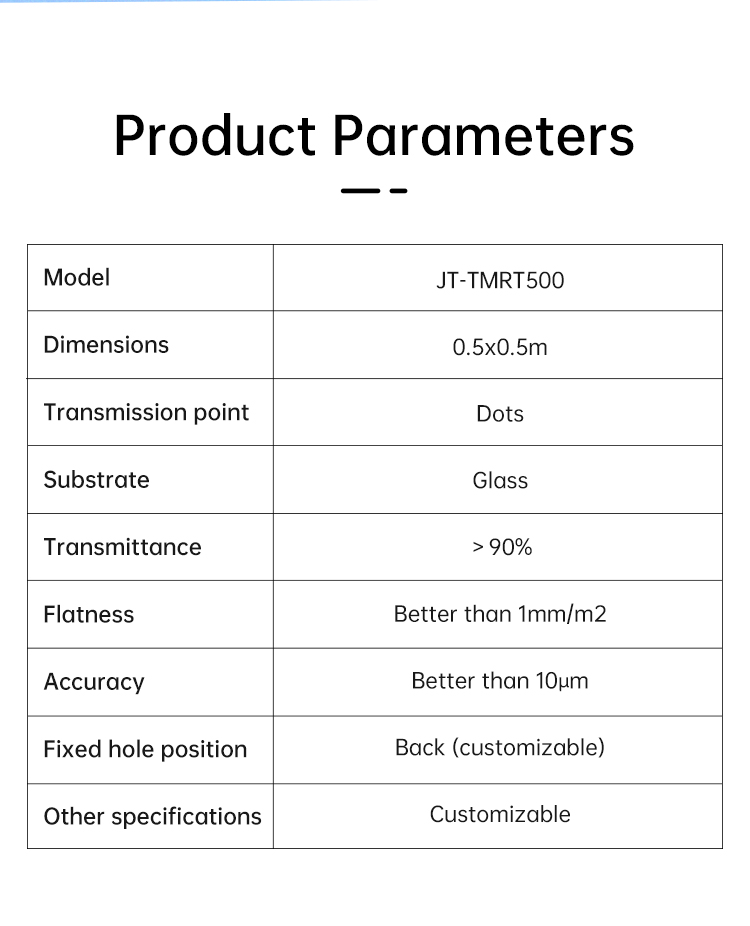

Product Parameters
|
Item
|
Parameter
|
|
Model
|
JT-TMRT500
|
|
Dimensions
|
0.5x0.5m
|
|
Transmission point
|
Dots
|
|
Substrate
|
Glass
|
|
Transmittance
|
>90%
|
|
Flatness
|
Better than 1mm/m2
|
|
Accuracy
|
Better than 10μm
|
|
Fixed hole position
|
Back (customizable)
|
|
Other specifications
|
Customizable
|

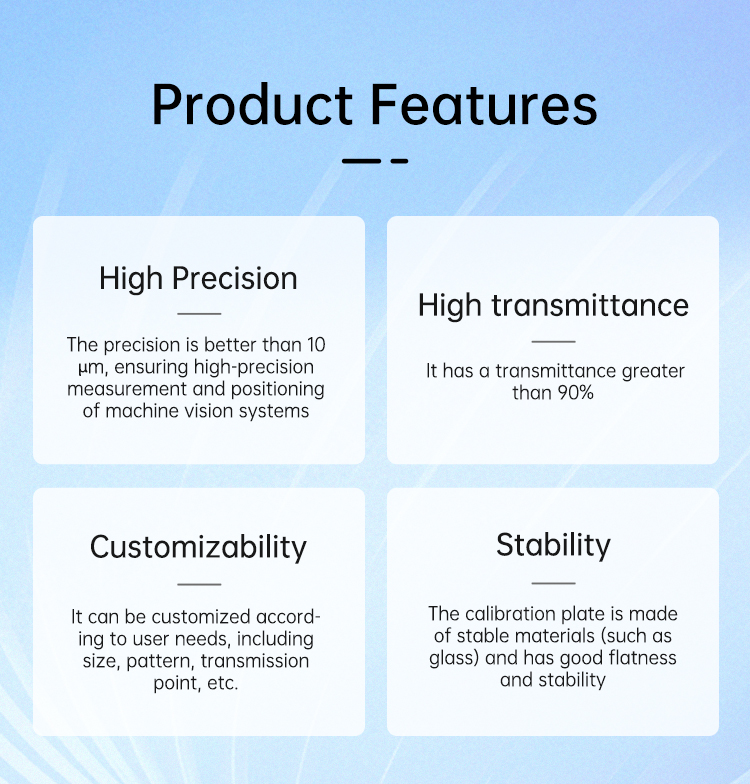

Product Features
High Precision
The precision is better than 10μm, ensuring high-precision measurement and positioning of machine vision systems
High transmittance
It has a transmittance greater than 90%
Customizability
It can be customized according to user needs, including size, pattern, transmission point, etc.
Stability
The calibration plate is made of stable materials (such as glass) and has good flatness and stability

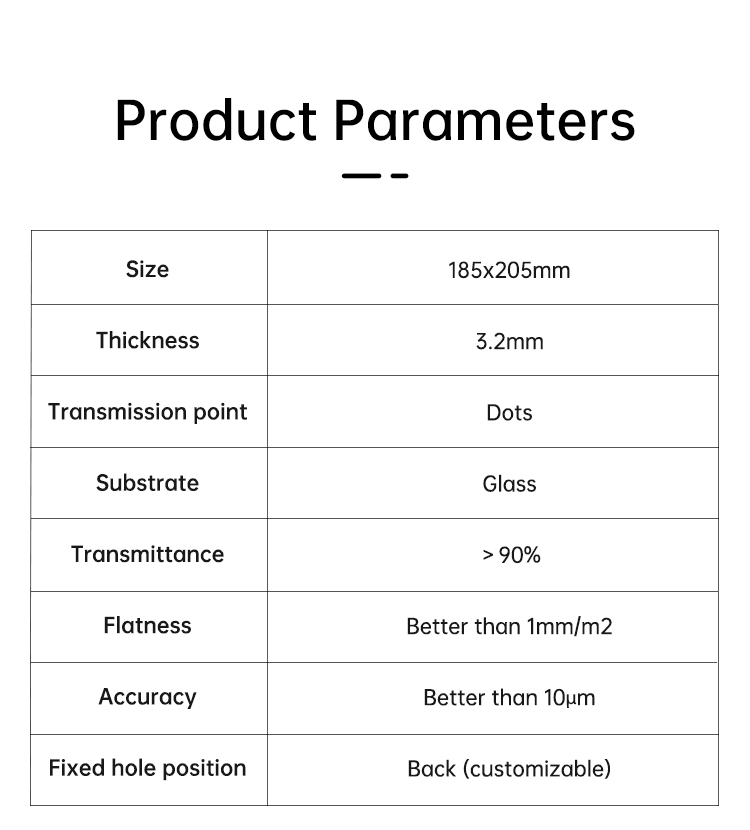

Product Parameters
|
Item
|
Parameter
|
|
Size
|
185x205mm
|
|
Thickness
|
3.2mm
|
|
Transmission point
|
Dots
|
|
Substrate
|
Glass
|
|
Transmittance
|
>90%
|
|
Flatness
|
Better than 1mm/m2
|
|
Accuracy
|
Better than 10μm
|
|
Fixed hole position
|
Back (customizable)
|
Product Sizes
185mm，205mm
