Integral sphere spectral power measurement

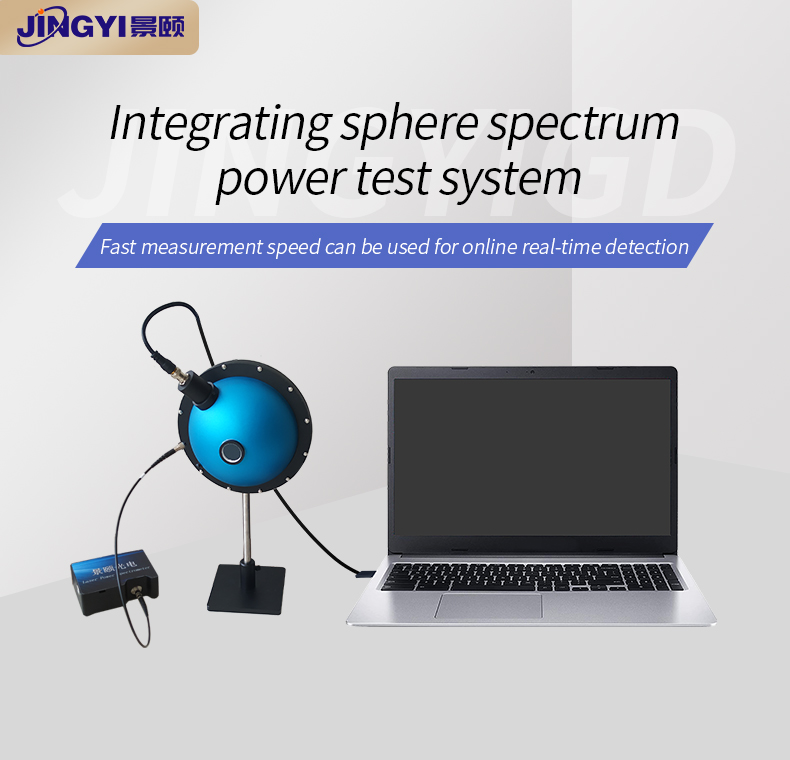

Integral sphere spectral power testing system

JINGYI Jing Yi

Fast measurement speed, suitable for online real-time detection

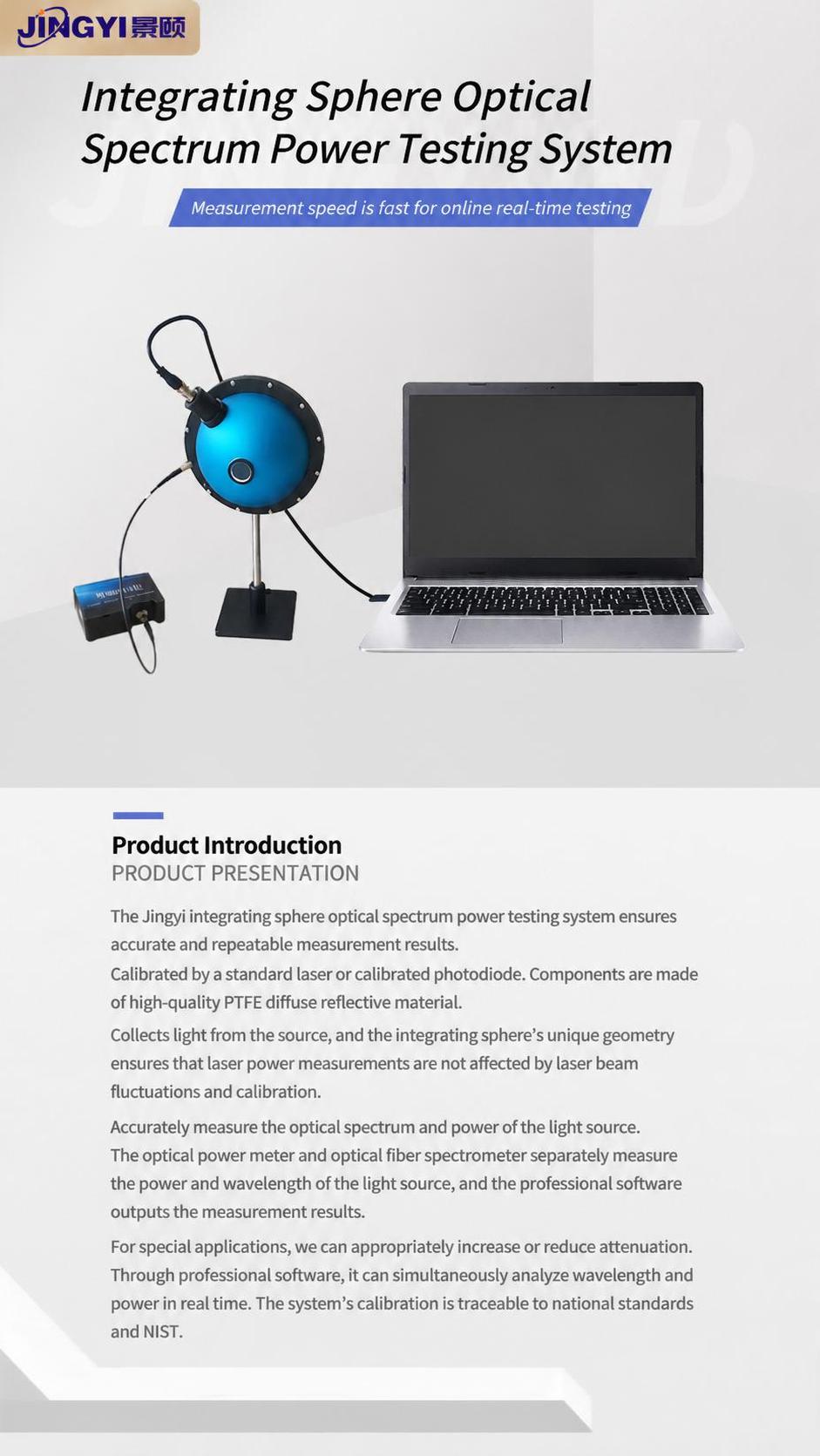

Product Introduction

PRODUCT PRESENTATION

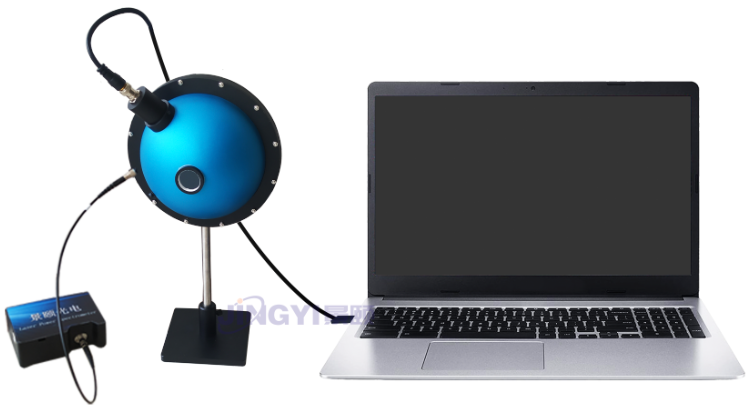

The Jingyi Optoelectronic Integrating Sphere Spectral Power Testing System ensures accurate and reproducible measurement of calibrated or divergent lasers or laser diodes. The components are made of high-quality PTFE high diffuse reflection material, and the integrating sphere collects the light source. The unique geometric structure of the integrating sphere design ensures that the measurement of laser beam power is not affected by laser beam polarization and calibration, and can accurately measure the spectrum and power of the light source. Measure the power and wavelength of the light source separately using an optical power meter and a fiber optic spectrometer, and output the measurement results through professional software. For some special applications, we can attenuate by adding attenuation plates. The calibration of this system can be traced back to the National Institute of Standards and Technology (NIST) by analyzing the real-time situation of wavelength and power through professional software.

Product Features

Factory traceability calibration
Calibration of integrating sphere and optical power probe together
Specialized software allows for one click acquisition of spectral and optical power data
Capable of accurately and effectively collecting the power of highly divergent light sources
Fast measurement speed, suitable for online real-time detection

Product Application

laser
laser diode
Laser diode component
Divergent monochromatic light source
Pulse laser power

Technical Parameters

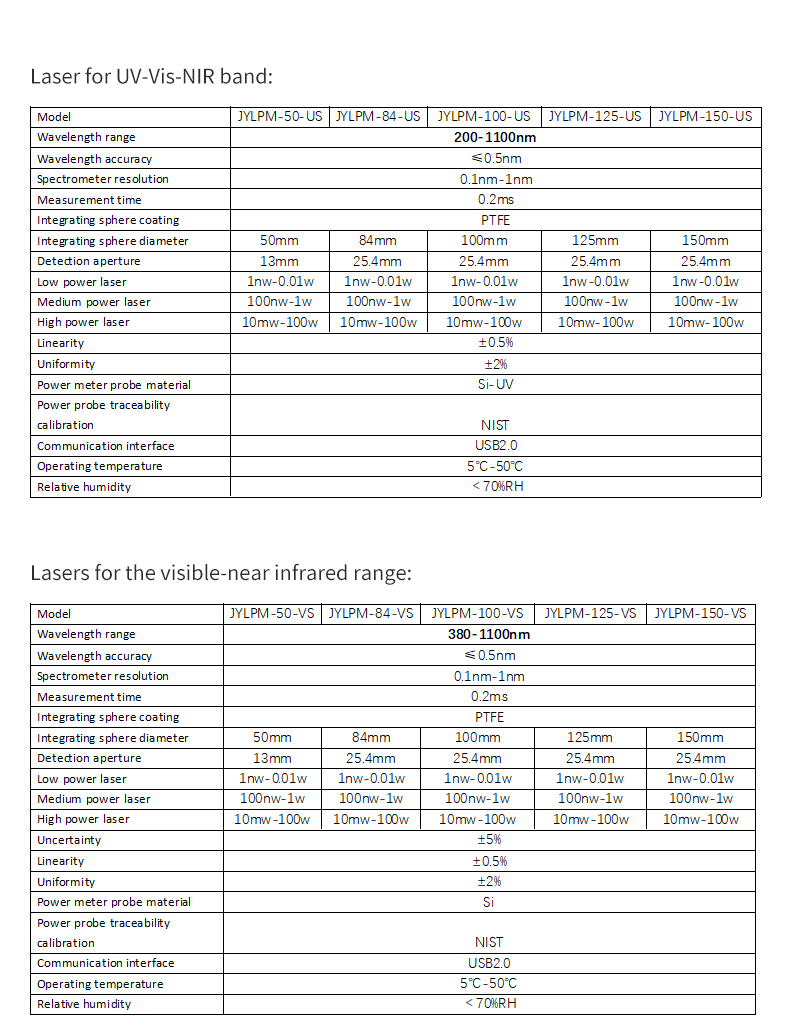

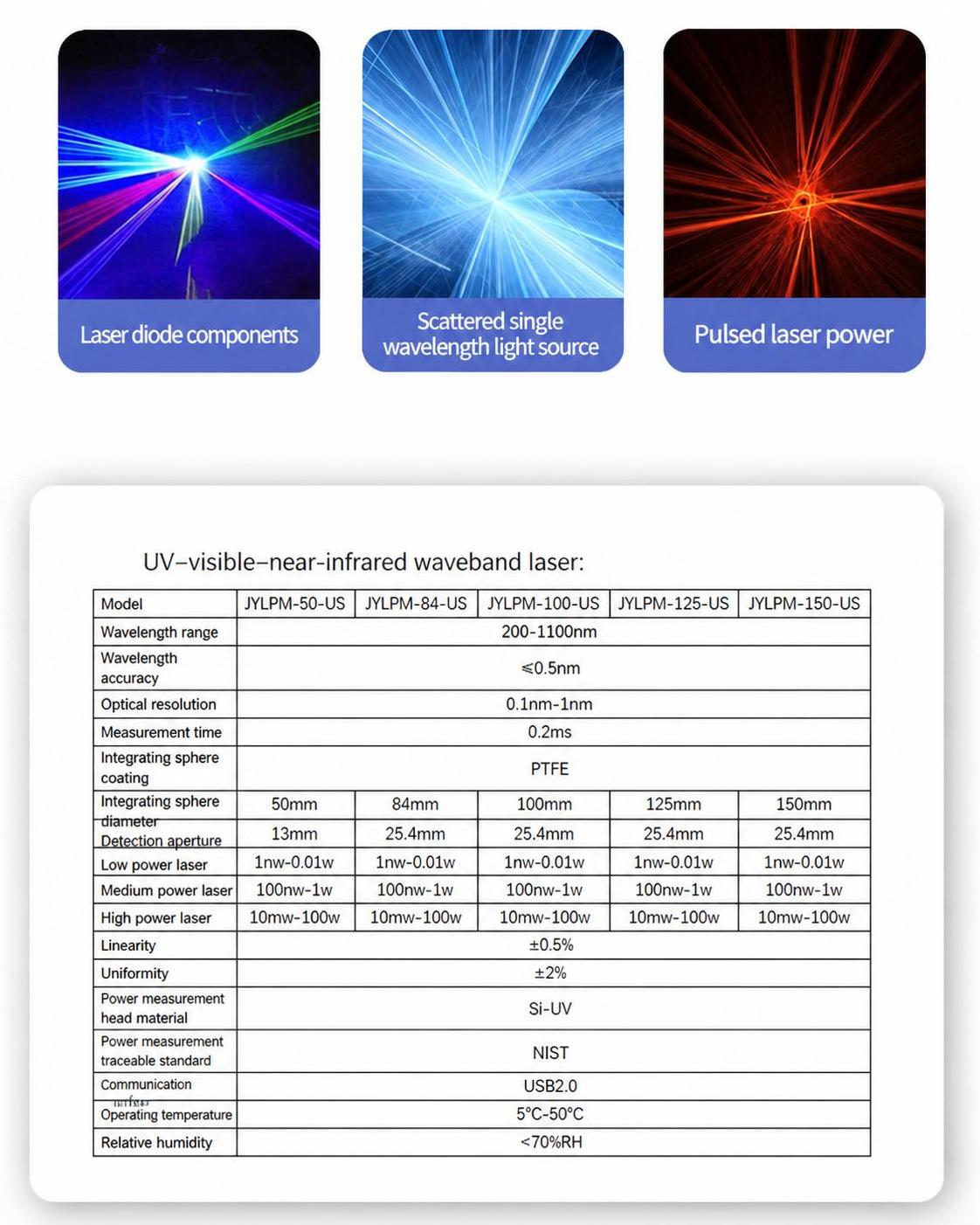

Laser for UV Vis NIR band:

	JYLPM-50-US	JYLPM-84-US	JYLPM-100-US	JYLPM-125-US	JYLPM-150-US
wavelength range	200–1100nm	200–1100nm	200–1100nm	200–1100nm	200–1100nm
Wavelength accuracy	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm
Spectral resolution	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm
measure time	0.2ms	0.2ms	0.2ms	0.2ms	0.2ms
Integral sphere coating	PTFE	PTFE	PTFE	PTFE	PTFE
Integral sphere diameter	50mm	84mm	100mm	125mm	150mm
Detection aperture	13mm	25.4mm	25.4mm	25.4mm	25.4mm
Low power laser	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w
Medium power laser	100nw–1w	100nw–1w	100nw–1w	100nw–1w	100nw–1w
High power laser	10mw–100w	10mw–100w	10mw–100w	10mw–100w	10mw–100w
linearity	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
uniformity	±2%	±2%	±2%	±2%	±2%
Power meter probe material	Si–UV	Si–UV	Si–UV	Si–UV	Si–UV
Power probe traceability calibration	NIST	NIST	NIST	NIST	NIST
communication interface	USB2.0	USB2.0	USB2.0	USB2.0	USB2.0
Operating Temperature	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C
relative humidity	<70%RH	<70%RH	<70%RH	<70%RH	<70%RH

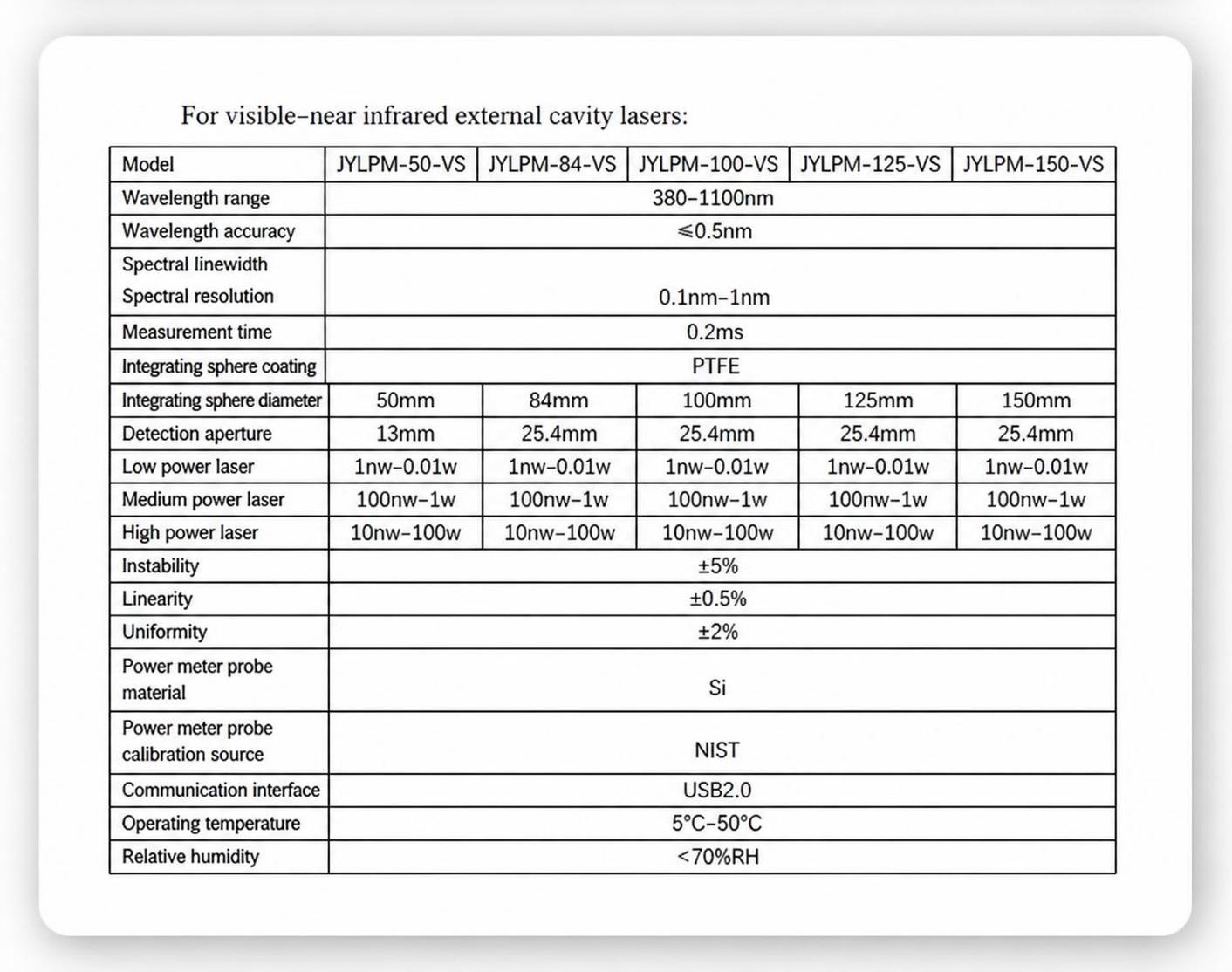

Laser for visible near infrared band:

parameter	JYLPM-50-VS	JYLPM-84-VS	JYLPM-100-VS	JYLPM-125-VS	JYLPM-150-VS
wavelength range	380–1100nm	380–1100nm	380–1100nm	380–1100nm	380–1100nm
Wavelength accuracy	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm
Spectral resolution	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm	0.1nm–1nm
measure time	0.2ms	0.2ms	0.2ms	0.2ms	0.2ms
Integral sphere coating	PTFE	PTFE	PTFE	PTFE	PTFE
Integral sphere diameter	50mm	84mm	100mm	125mm	150mm
Detection aperture	13mm	25.4mm	25.4mm	25.4mm	25.4mm
Low power laser	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w
Medium power laser	100nw–1w	100nw–1w	100nw–1w	100nw–1w	100nw–1w
High power laser	10mw–100w	10mw–100w	10mw–100w	10mw–100w	10mw–100w
uncertainty	±5%	±5%	±5%	±5%	±5%
linearity	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
uniformity	±2%	±2%	±2%	±2%	±2%
Power meter probe material	Si	Si	Si	Si	Si
Power probe traceability calibration	NIST	NIST	NIST	NIST	NIST
communication interface	USB2.0	USB2.0	USB2.0	USB2.0	USB2.0
Operating Temperature	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C
relative humidity	<70%RH	<70%RH	<70%RH	<70%RH	<70%RH

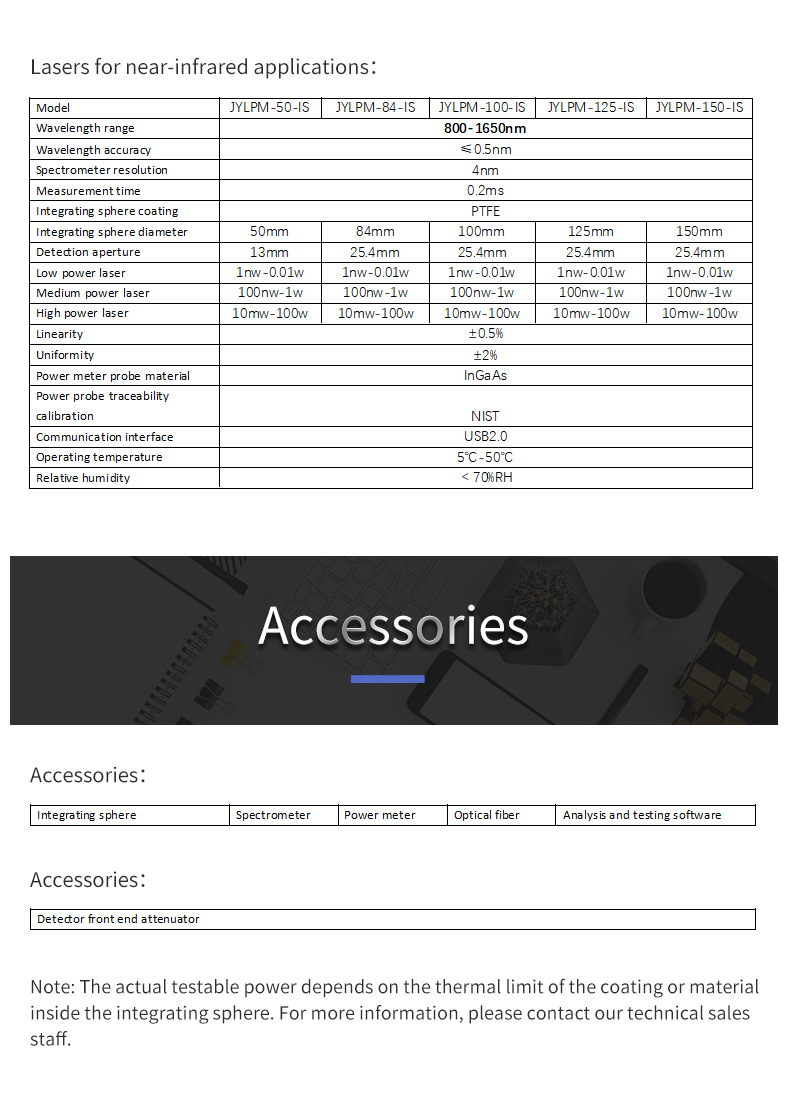

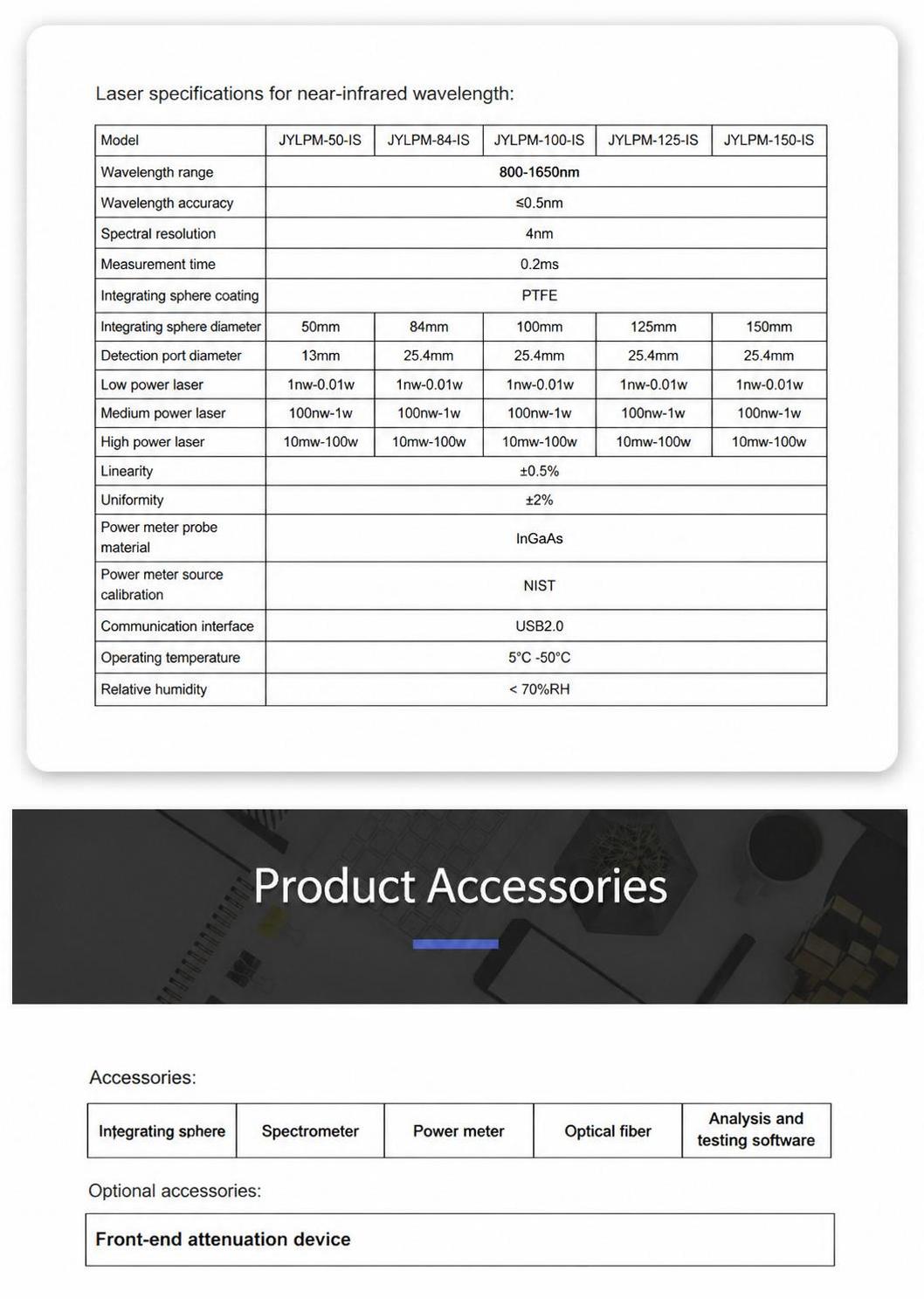

Laser for near-infrared band:

parameter	JYLPM-50-IS	JYLPM-84-IS	JYLPM-100-IS	JYLPM-125-IS	JYLPM-150-IS
wavelength range	800–1650nm	800–1650nm	800–1650nm	800–1650nm	800–1650nm
Wavelength accuracy	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm	≤0.5nm
Spectral resolution	4nm	4nm	4nm	4nm	4nm
measure time	0.2ms	0.2ms	0.2ms	0.2ms	0.2ms
Integral sphere coating	PTFE	PTFE	PTFE	PTFE	PTFE
Integral sphere diameter	50mm	84mm	100mm	125mm	150mm
Detection aperture	13mm	25.4mm	25.4mm	25.4mm	25.4mm
Low power laser	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w	1nw–0.01w
Medium power laser	100nw–1w	100nw–1w	100nw–1w	100nw–1w	100nw–1w
High power laser	10mw–100w	10mw–100w	10mw–100w	10mw–100w	10mw–100w
linearity	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
uniformity	±2%	±2%	±2%	±2%	±2%
Power meter probe material	InGaAs	InGaAs	InGaAs	InGaAs	InGaAs
Power probe traceability calibration	NIST	NIST	NIST	NIST	NIST
communication interface	USB2.0	USB2.0	USB2.0	USB2.0	USB2.0
Operating Temperature	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C	5°C–50°C
relative humidity	<70%RH	<70%RH	<70%RH	<70%RH	<70%RH

Product accessories

Standard accessories:

integrating sphere
spectrometer
power meter
Optical fiber
Analysis and testing software

Optional accessories:

Detector front-end attenuator
