Quartz Fiber Optic Product Introduction

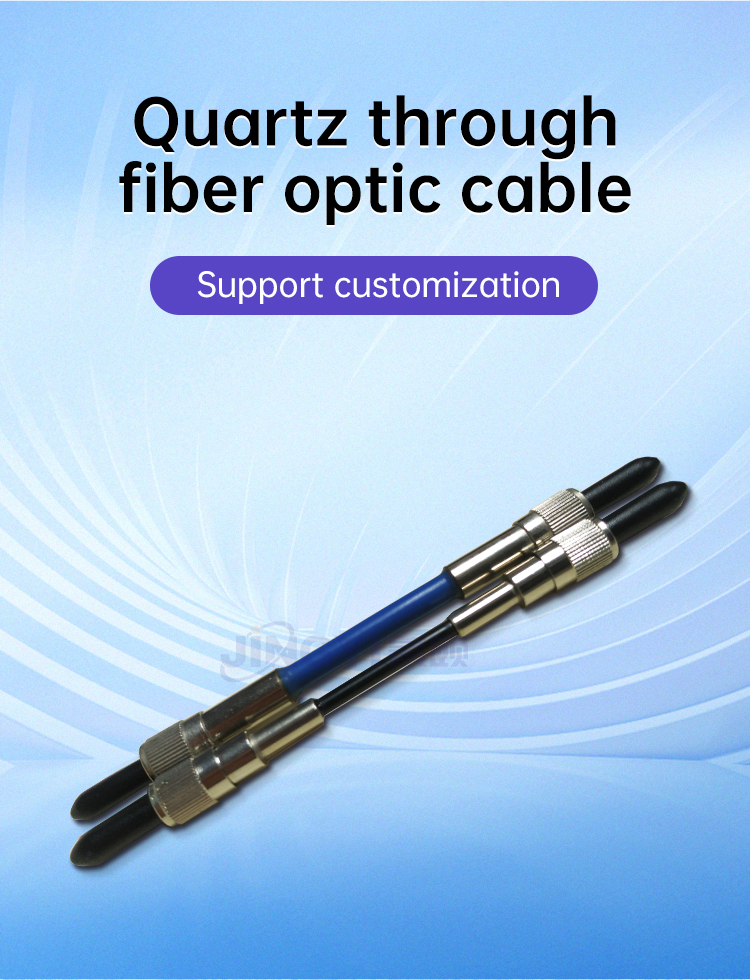

Quartz through fiber optic cable Support customization
Product Introduction Our company designs and produces various optical fibers, such as anti ultraviolet quartz fiber, deep ultraviolet quartz fiber, visible light glass quartz fiber, near-infrared quartz fiber, mid infrared quartz fiber, etc. Specialized fiber optic design achieves high-throughput characteristics, and can be combined with our company's miniature spectrometer, fiber optic light source, and other spectral accessories to build multiple spectral measurement systems.
Application Area High energy light source transmission Spectral construction Medical sensing, laser therapy Light source collection, optical temperature measurement
Product Features High coupling efficiency Low loss High light source compatibility High transparency Can be customized according to different needs

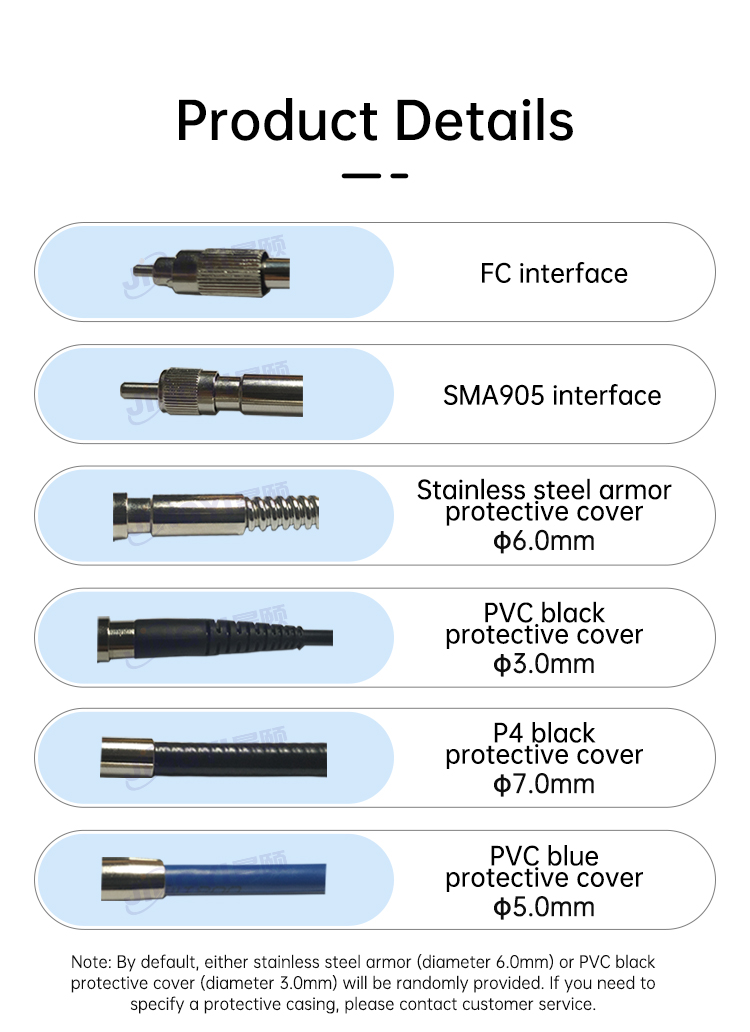

Product Details FC interface SMA905 interface Stainless steel armor protective cover φ6.0mm PVC black protective cover φ3.0mm P4 black protective cover φ7.0mm PVC blue protective cover φ5.0mm

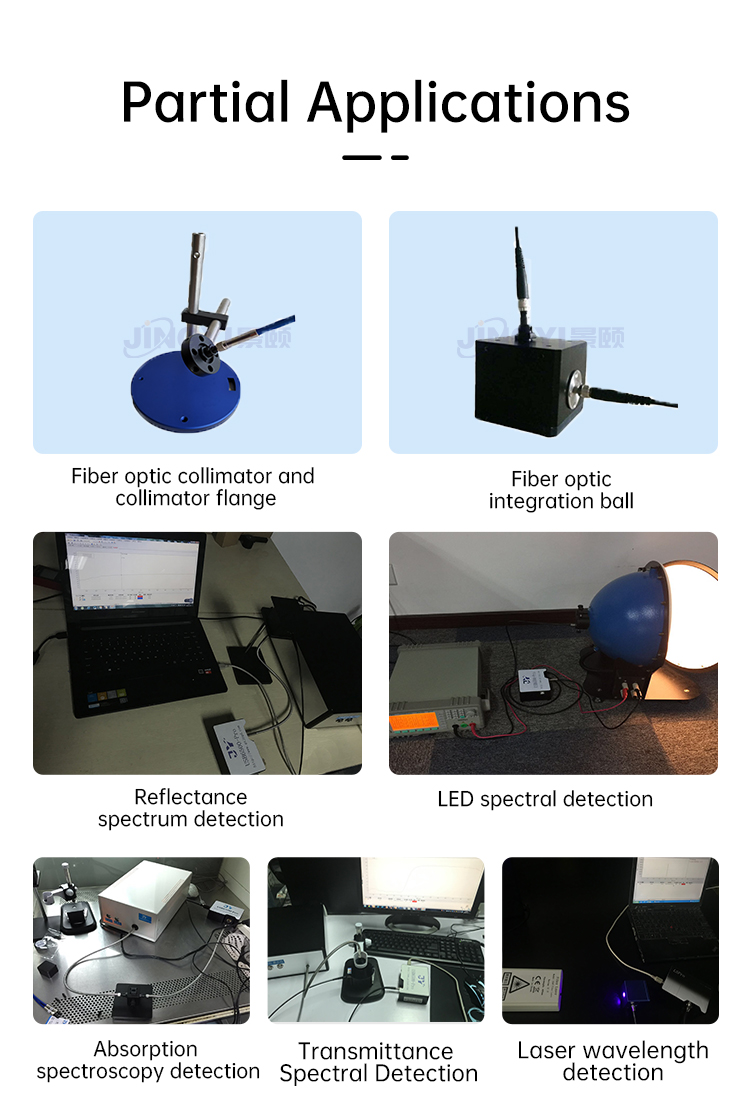

Partial Applications Fiber optic collimator and collimator flange Fiber optic integration ball Reflectance spectrum detection LED spectral detection Absorption spectroscopy detection Transmittance Spectral Detection Laser wavelength detection

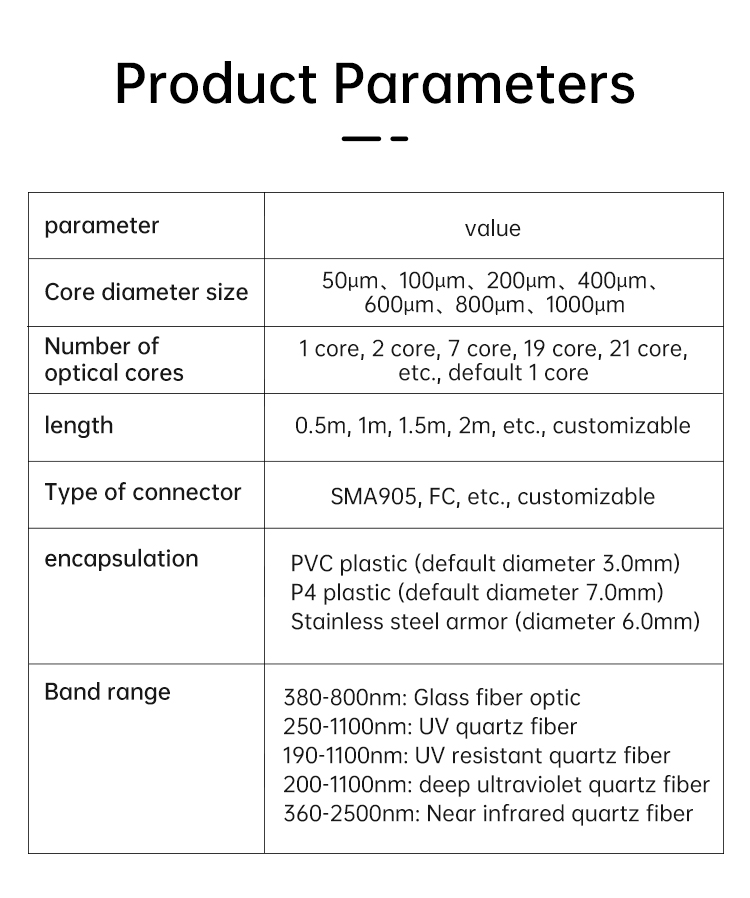

Product Parameters
|
parameter
|
value
|
|
Core diameter size
|
50μm、100μm、200μm、400μm、600μm、800μm、1000μm
|
|
Number of optical cores
|
1 core, 2 core, 7 core, 19 core, 21 core, etc., default 1 core
|
|
length
|
0.5m, 1m, 1.5m, 2m, etc., customizable
|
|
Type of connector
|
SMA905, FC, etc., customizable
|
|
encapsulation
|
PVC plastic (default diameter 3.0mm) P4 plastic (default diameter 7.0mm) Stainless steel armor (diameter 6.0mm)
|
|
Band range
|
380-800nm: Glass fiber optic 250-1100nm: UV quartz fiber 190-1100nm: UV resistant quartz fiber 200-1100nm: deep ultraviolet quartz fiber 360-2500nm: Near infrared quartz fiber
|
