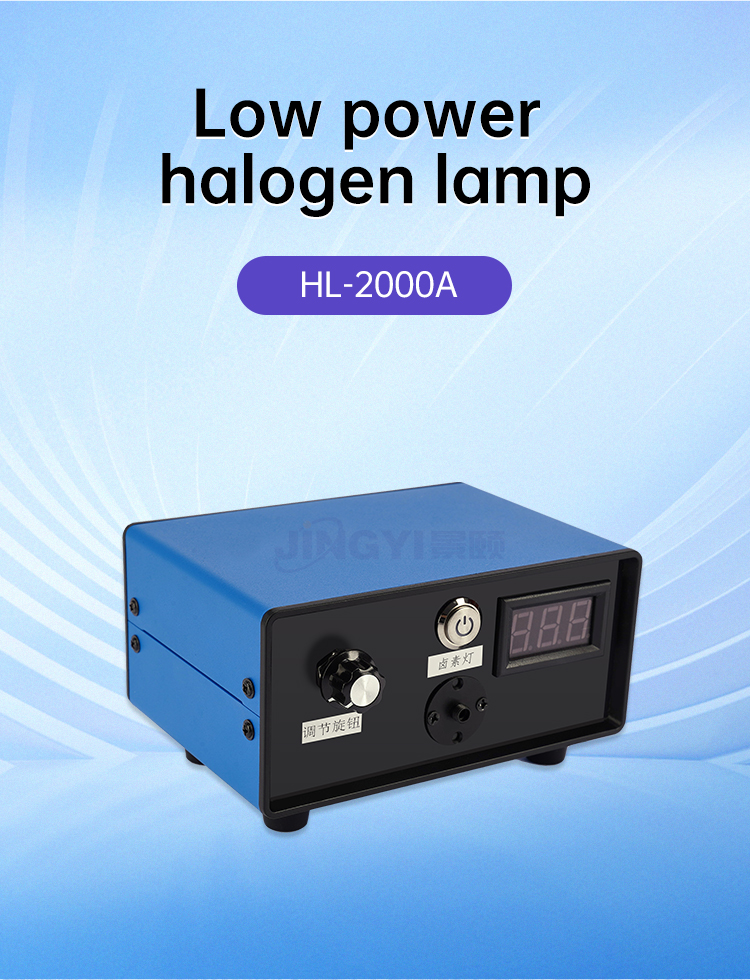

Low Power Halogen Lamp HL-2000A Product Introduction
Low power halogen lamp HL-2000A
Product Introduction Halogen tungsten light source is a multi-purpose light source suitable for VIS-NIR (380-2500nm). The characteristics of this light source are adjustable light source intensity, standard SMA905 fiber optic interface for light outlet, which can be connected to fiber optic or used as FC fiber optic interface, etc. There is a cooling fan inside to cool and stabilize the light source, and a power adapter comes with the factory.
Product Features Adjustable light source intensity Fiber optic interface output Optional long-life models Built in fan cooling

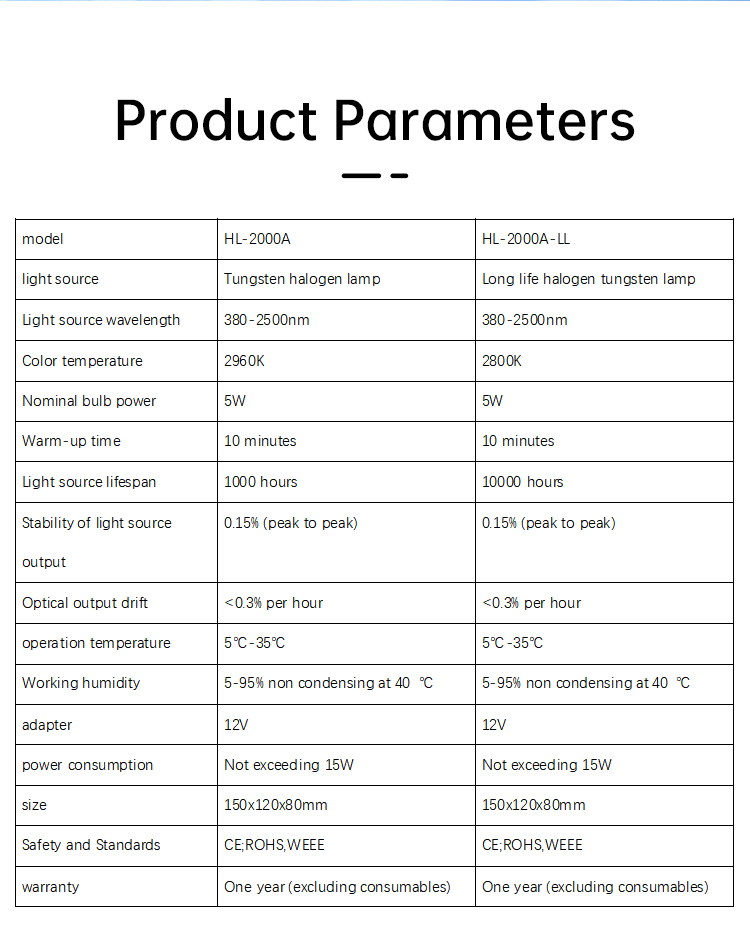

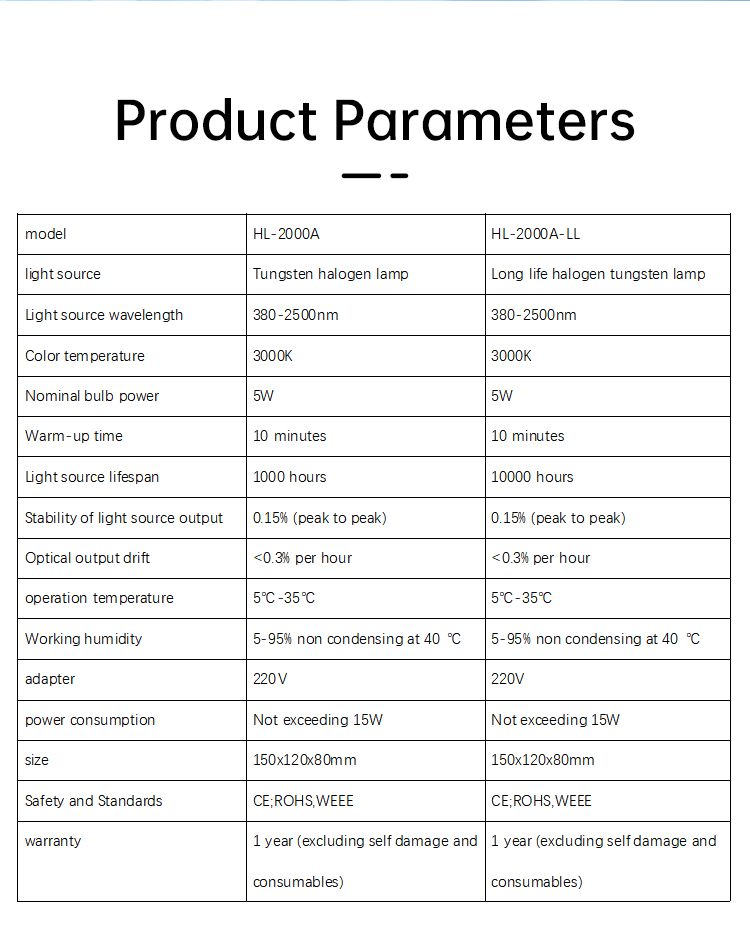

Product Parameters
|
|
HL-2000A
|
HL-2000A-LL
|
|
model
|
HL-2000A
|
HL-2000A-LL
|
|
light source
|
Tungsten halogen lamp
|
Long life halogen tungsten lamp
|
|
Light source wavelength
|
380-2500nm
|
380-2500nm
|
|
Color temperature
|
3000K
|
3000K
|
|
Nominal bulb power
|
5W
|
5W
|
|
Warm-up time
|
10 minutes
|
10 minutes
|
|
Light source lifespan
|
1000 hours
|
10000 hours
|
|
Stability of light source output
|
0.15% (peak to peak)
|
0.15% (peak to peak)
|
|
Optical output drift
|
<0.3% per hour
|
<0.3% per hour
|
|
operation temperature
|
5℃-35℃
|
5℃-35℃
|
|
Working humidity
|
5-95% non condensing at 40 ℃
|
5-95% non condensing at 40 ℃
|
|
adapter
|
12V
|
12V
|
|
power consumption
|
Not exceeding 15W
|
Not exceeding 15W
|
|
size
|
150x120x80mm
|
150x120x80mm
|
|
Safety and Standards
|
CE;ROHS,WEEE
|
CE;ROHS,WEEE
|
|
warranty
|
One year(excluding consumables)
|
One year (excluding consumables)
|
