UV Point Light Source Irradiation Head with Customization Options

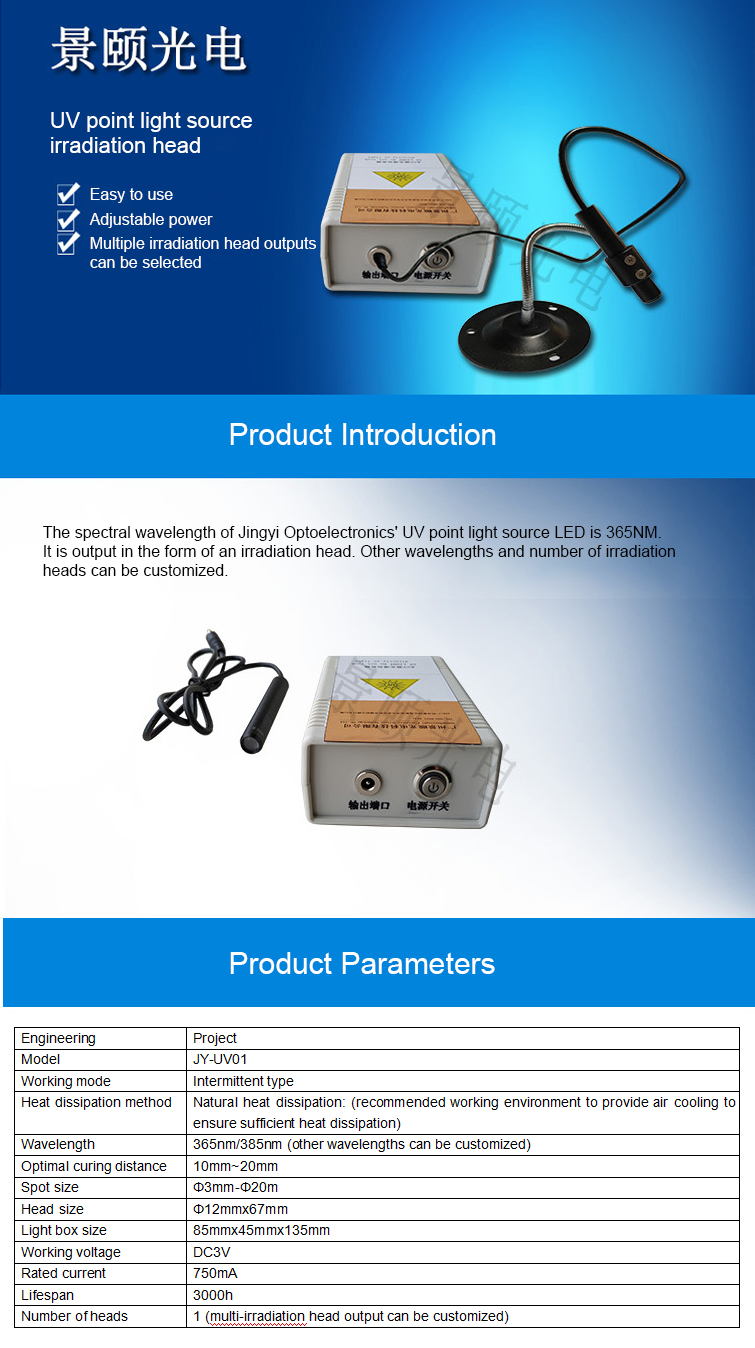

UV point light source irradiation head Easy to use Adjustable power Multiple irradiation head outputs can be selected
Product Introduction The spectral wavelength of Jingyi Optoelectronics' UV point light source LED is 365NM. It is output in the form of an irradiation head. Other wavelengths and number of irradiation heads can be customized.
Product Parameters
|
|
|
|
Model
|
JY-UV01
|
|
Working mode
|
Intermittent type
|
|
Heat dissipation method
|
Natural heat dissipation: (recommended working environment to provide air cooling to ensure sufficient heat dissipation)
|
|
Wavelength
|
365nm/385nm (other wavelengths can be customized)
|
|
Optimal curing distance
|
10mm~20mm
|
|
Spot size
|
Φ3mm-Φ20m
|
|
Head size
|
Φ12mmx67mm
|
|
Light box size
|
85mmx45mmx135mm
|
|
Working voltage
|
DC3V
|
|
Rated current
|
750mA
|
|
Lifespan
|
3000h
|
|
Number of heads
|
1 (multi-irradiation head output can be customized)
|
|

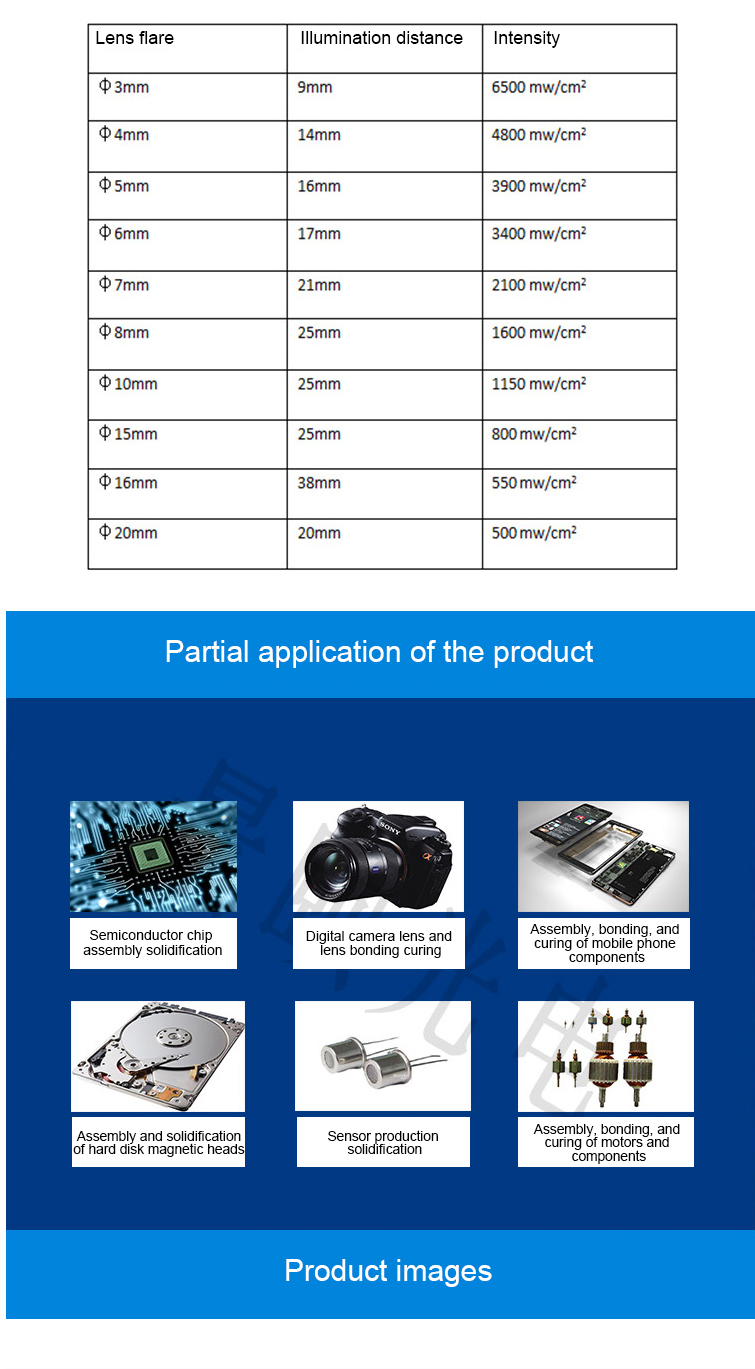

Lens flare
|
Illumination distance
|
Intensity
|
|
Φ3mm
|
9mm
|
6500 mw/cm²
|
|
Φ4mm
|
14mm
|
4800 mw/cm²
|
|
Φ5mm
|
16mm
|
3900 mw/cm²
|
|
Φ6mm
|
17mm
|
3400 mw/cm²
|
|
Φ7mm
|
21mm
|
2100 mw/cm²
|
|
Φ8mm
|
25mm
|
1600 mw/cm²
|
|
Φ10mm
|
25mm
|
1150 mw/cm²
|
|
Φ15mm
|
25mm
|
800 mw/cm²
|
|
Φ16mm
|
38mm
|
550 mw/cm²
|
|
Φ20mm
|
20mm
|
500 mw/cm²
|
Partial application of the product Semiconductor chip assembly solidification Digital camera lens and lens bonding curing Assembly, bonding, and curing of mobile phone components Assembly and solidification of hard disk magnetic heads Sensor production solidification Assembly, bonding, and curing of motors and components

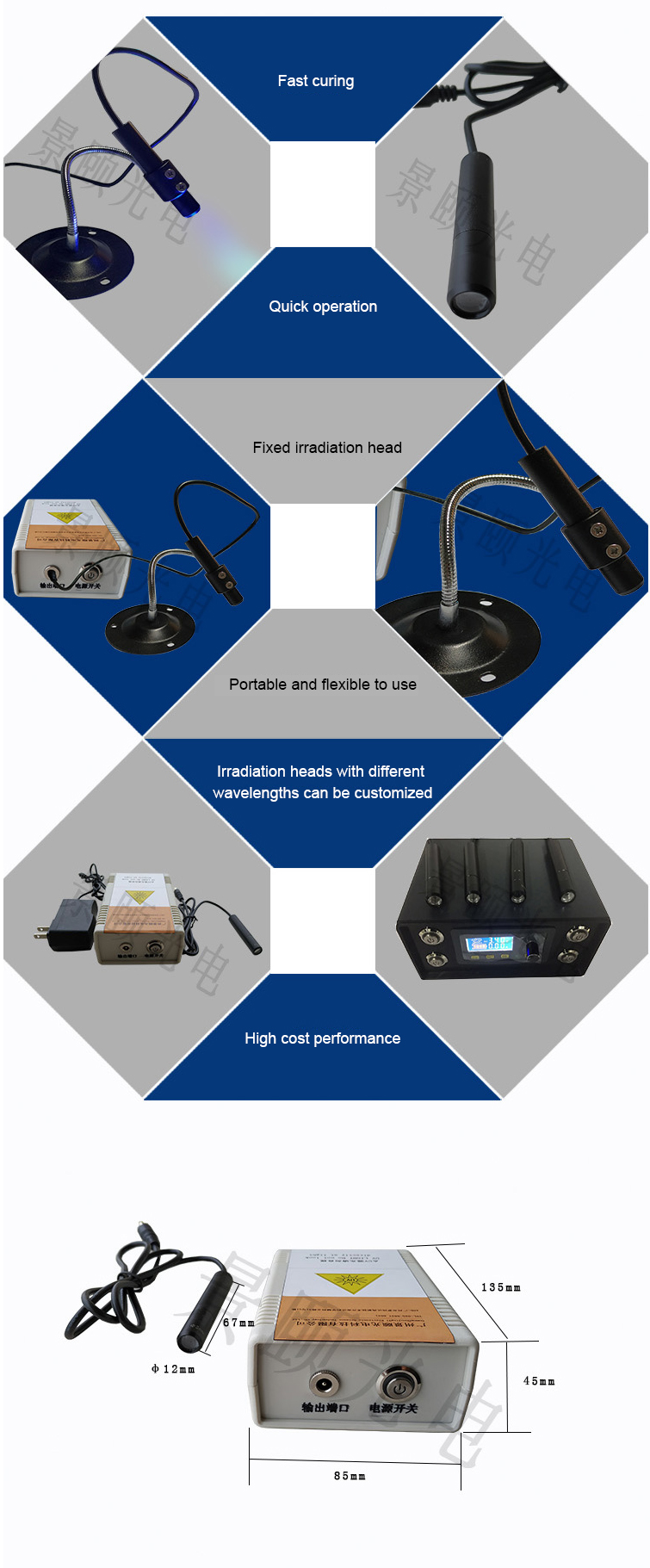

Fast curing Quick operation Fixed irradiation head Portable and flexible to use Irradiation heads with different wavelengths can be customized High cost performance
Product images
