Brand: JINGYI Jingyi

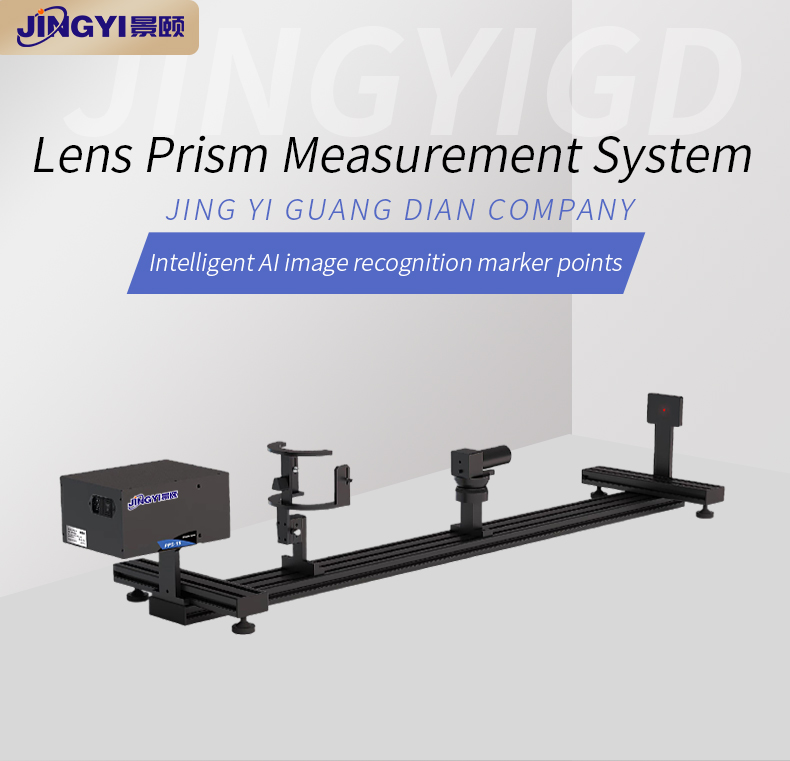

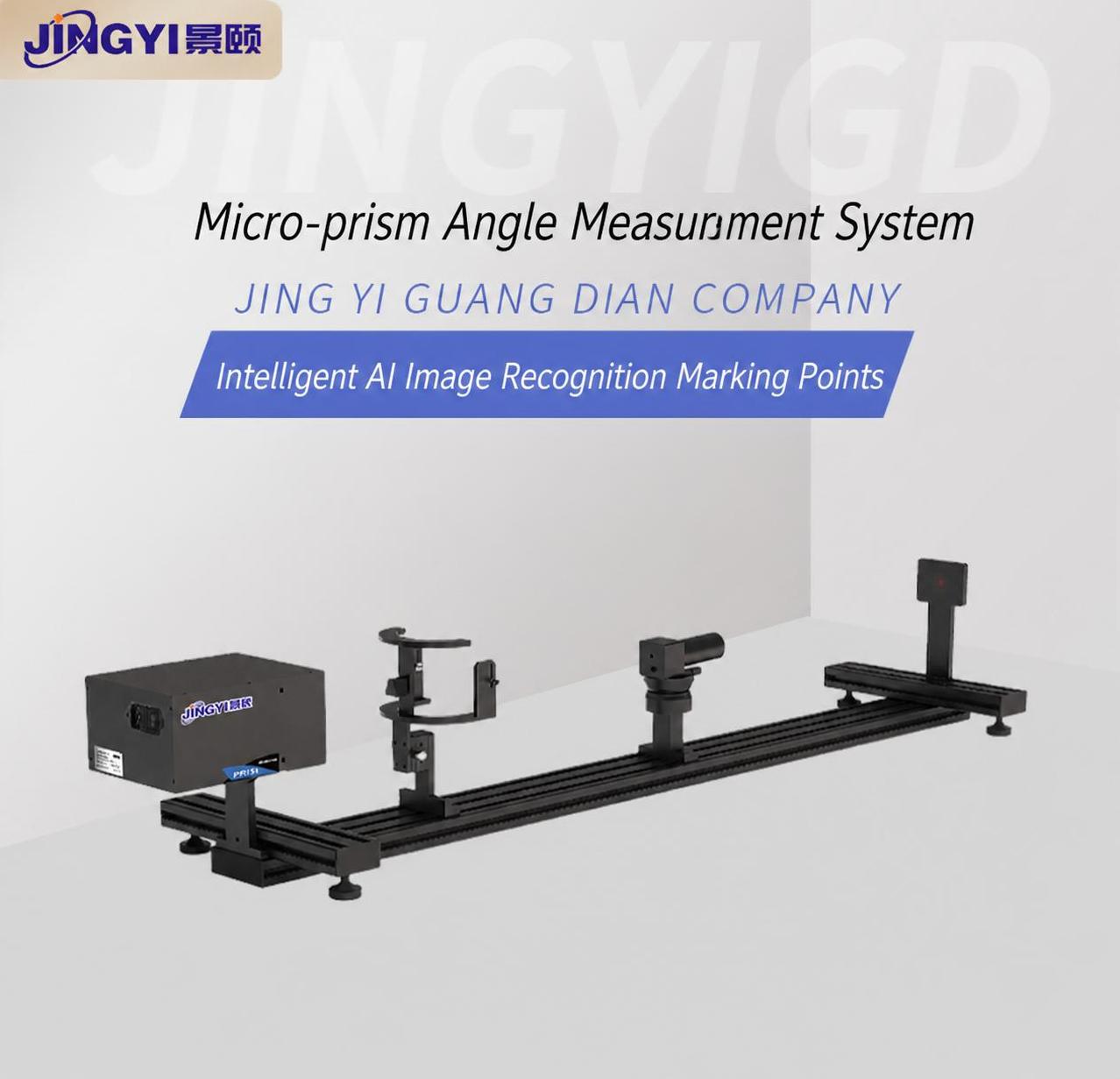

Product Name: Microprism Degree Measurement System

English company name: JING YI GUAN DIAN Company

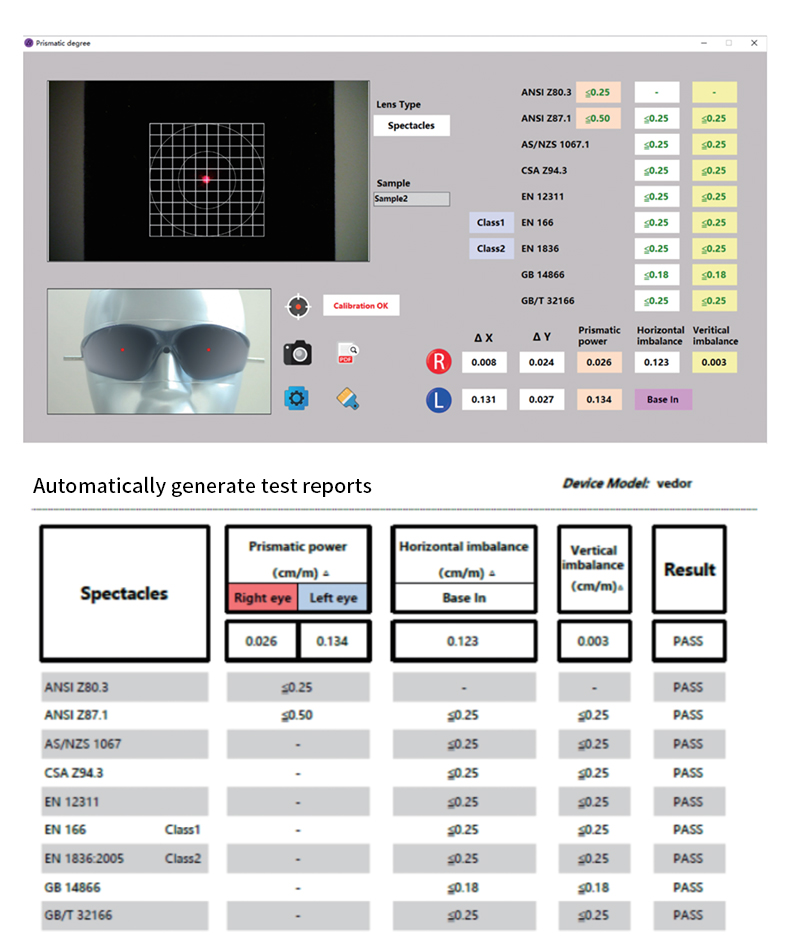

Software interface and report

• Title: Prismatic degree
• Function label:

  • Lens Type: Spectacles
  • Sample: Sample2
  • Calibration status: Calibration OK
• Standard limits (partial):

  • ANSI Z80.3: ≤0.25
  • ANSI Z87.1: ≤0.50
  • AS/NZS 1067.1: ≤0.25
  • CSA Z94.3: ≤0.25
  • EN 12311: ≤0.25
  • EN 166 (Class1): ≤0.25
  • EN 1836 (Class2): ≤0.25
  • GB 14866: ≤0.18
  • GB/T 32166: ≤0.25
• Measurement data:

  • right eye (R): ΔX=0.008, ΔY=0.024, Prismatic power=0.026, Horizontal imbalance=0.123, Vertical imbalance=0.003
  • left eye (L): ΔX=0.131, ΔY=0.027, Prismatic power=0.134, Base In
• Report Title: Automatically Generate Test Report
• Equipment model:Device Model: vedor
• Report module:Spectacles、Prismatic power (cm/m)、Horizontal imbalance (cm/m)、Vertical imbalance (cm/m)、Result
• Test results: All standard items are PASS

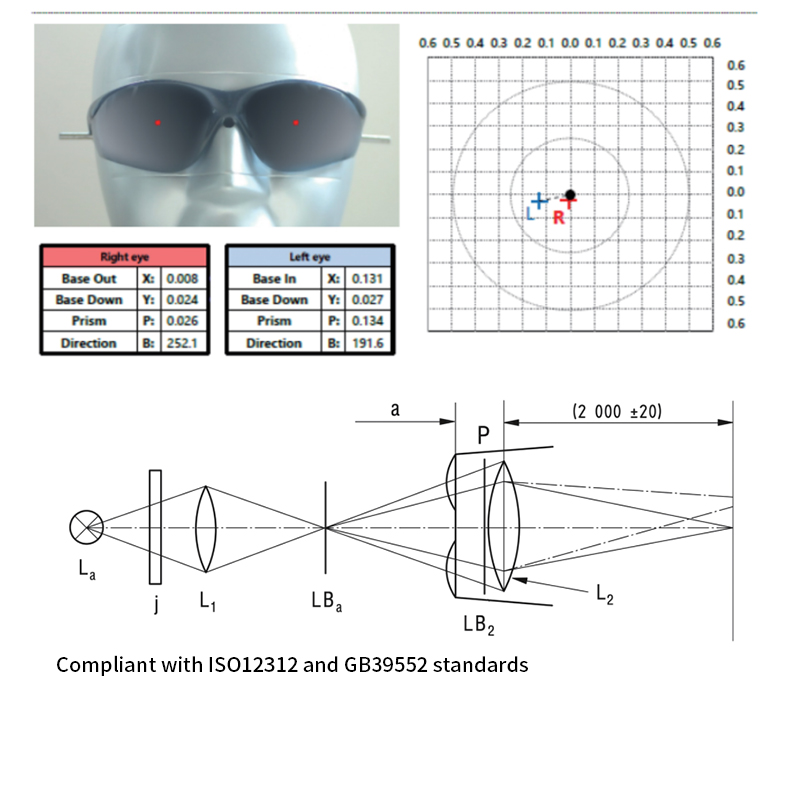

Measurement details and optical path

• Single eye data:

  • Right eye: Base Out X=0.008, Base Down Y=0.024, Prism P=0.026, Direction B=252.1
  • Left eye: Base In X=0.131, Base Down Y=0.027, Prism P=0.134, Direction B=191.6
• Coordinate diagram: Grid range ± 0.6, marked with R (right eye) and L (left eye) points
• Optical path diagram parameters:

  • Distance: (2000 ± 20)
  • Optical component identification: La, j, L ₁, LBa, P, LB ₂, L ₂
• Compliance standards: Complies with ISO 12312 and GB 39552 standards
