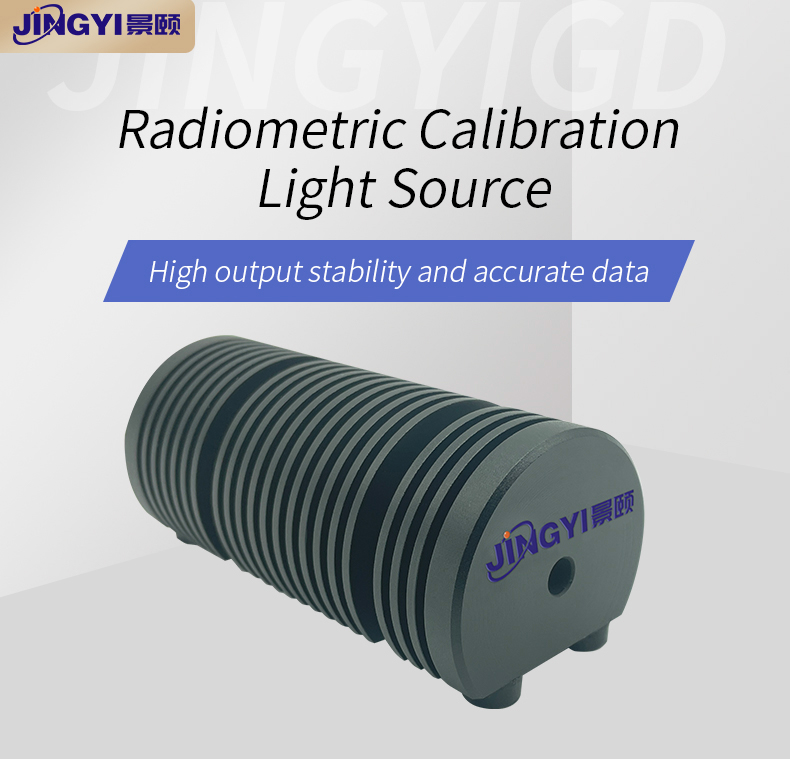

Jingyi Optoelectronics Radiometric Calibration Light Source
Radiometric Calibration Light Source High output stability and accurate data

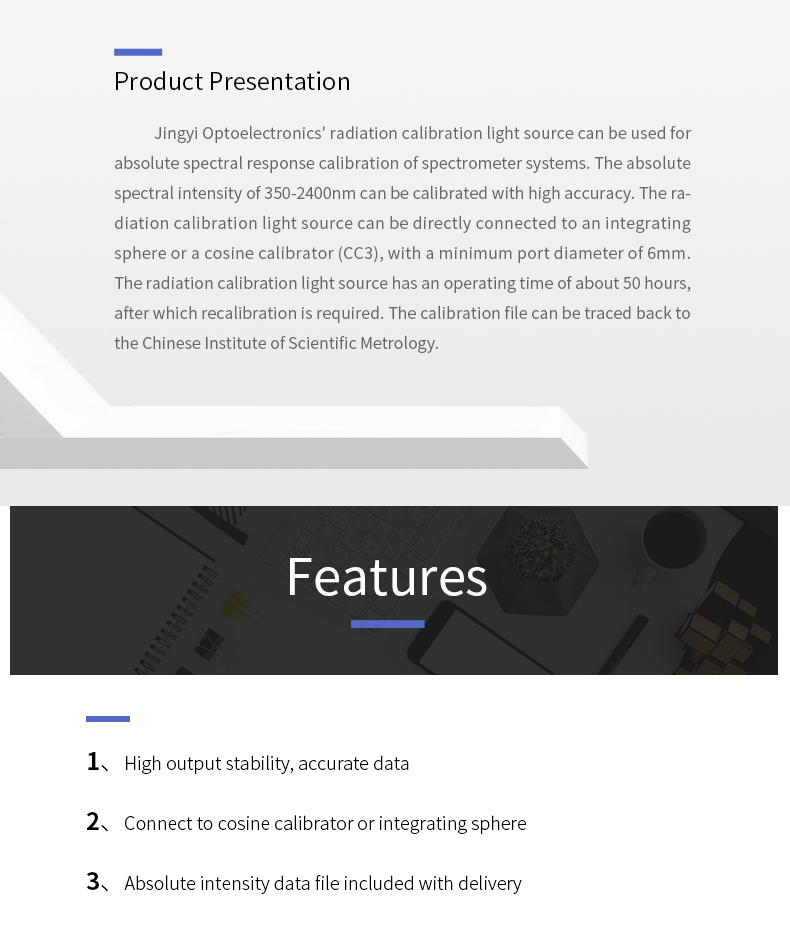

Product Presentation Jingyi Optoelectronics' radiation calibration light source can be used for absolute spectral response calibration of spectrometer systems. The absolute spectral intensity of 350-2400nm can be calibrated with high accuracy. The radiation calibration light source can be directly connected to an integrating sphere or a cosine calibrator (CC3), with a minimum port diameter of 6mm. The radiation calibration light source has an operating time of about 50 hours, after which recalibration is required. The calibration file can be traced back to the Chinese Institute of Scientific Metrology.
Features
-
High output stability, accurate data
-
Connect to cosine calibrator or integrating sphere
-
Absolute intensity data file included with delivery

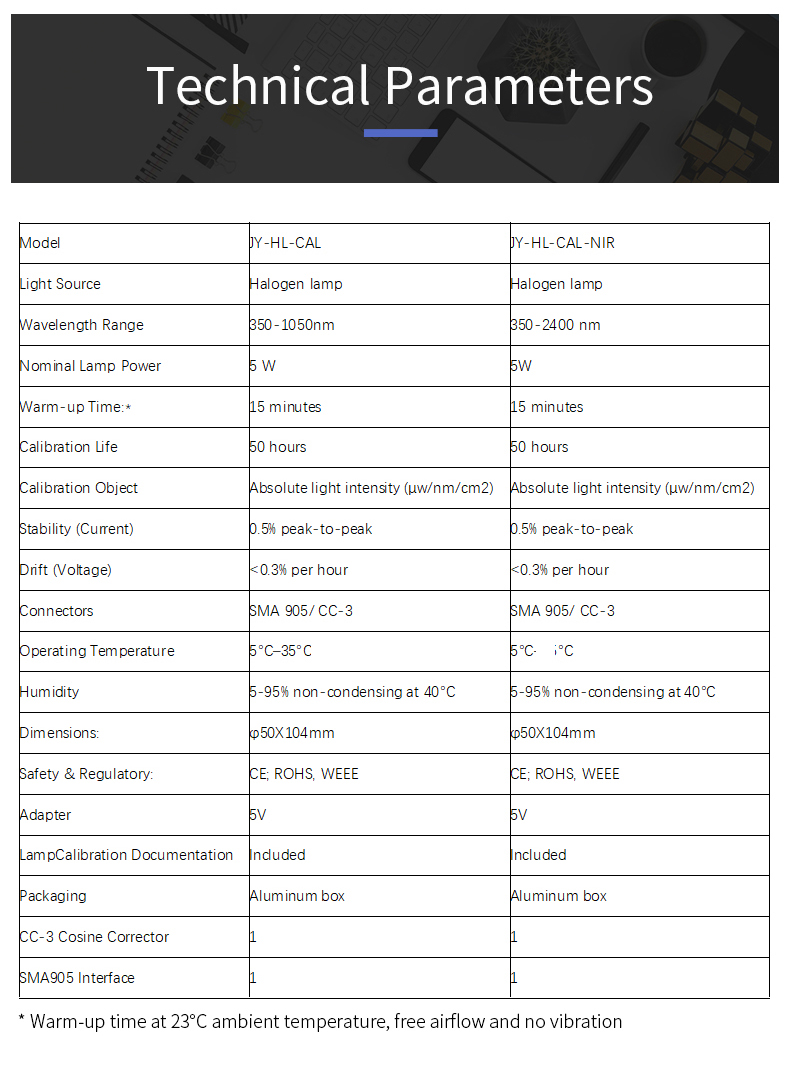

Technical Parameters
|
|
JY-HL-CAL
|
JY-HL-CAL-NIR
|
|
Model
|
JY-HL-CAL
|
JY-HL-CAL-NIR
|
|
Light Source
|
Halogen lamp
|
Halogen lamp
|
|
Wavelength Range
|
350-1050nm
|
350-2400 nm
|
|
Nominal Lamp Power
|
5 W
|
5W
|
|
Warm-up Time:*
|
15 minutes
|
15 minutes
|
|
Calibration Life
|
50 hours
|
50 hours
|
|
Calibration Object
|
Absolute light intensity (uw/nm/cm2)
|
Absolute light intensity (uw/nm/cm2)
|
|
Stability (Current)
|
0.5% peak-to-peak
|
0.5% peak-to-peak
|
|
Drift (Voltage)
|
<0.3% per hour
|
<0.3% per hour
|
|
Connectors
|
SMA 905/ CC-3
|
SMA 905/ CC-3
|
|
Operating Temperature
|
5°C-35°C
|
5°C-35°C
|
|
Humidity
|
5-95% non-condensing at 40°C
|
5-95% non-condensing at 40°C
|
|
Dimensions
|
φ50X104mm
|
φ50X104mm
|
|
Safety & Regulatory
|
CE, ROHS, WEEE
|
CE, ROHS, WEEE
|
|
Adapter
|
5V
|
5V
|
|
Lamp Calibration Documentation
|
Included
|
Included
|
|
Packaging
|
Aluminum box
|
Aluminum box
|
|
CC-3 Cosine Corrector
|
1
|
1
|
|
SMA905 Interface
|
1
|
1
|
