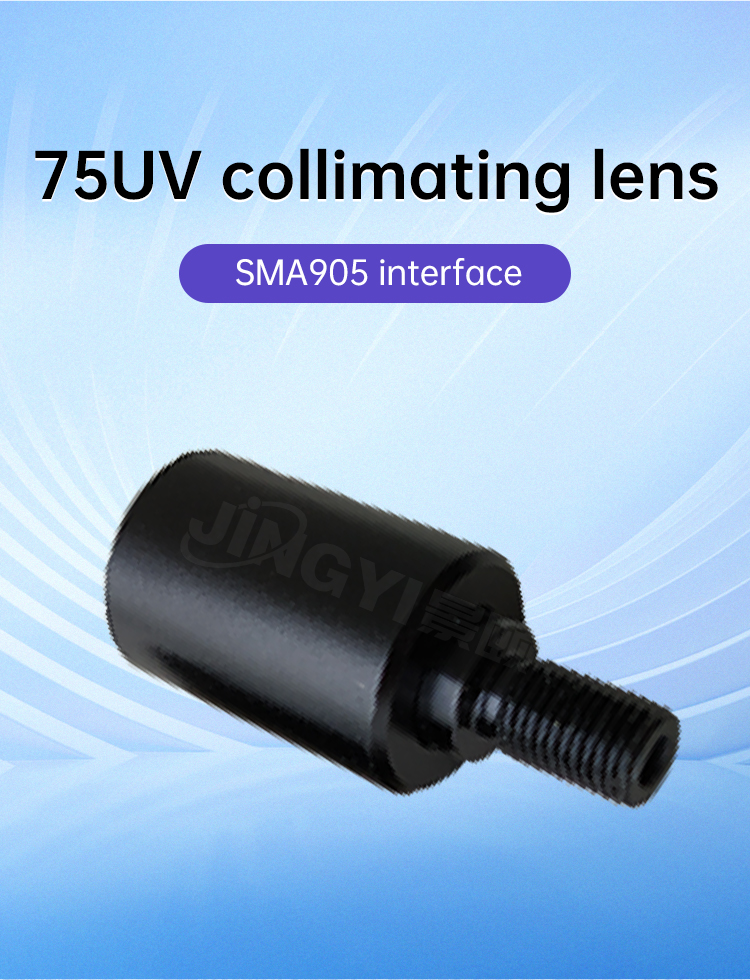

75UV - SMA905 光纤准直器产品介绍
75UV collimating lens SMA905 interface

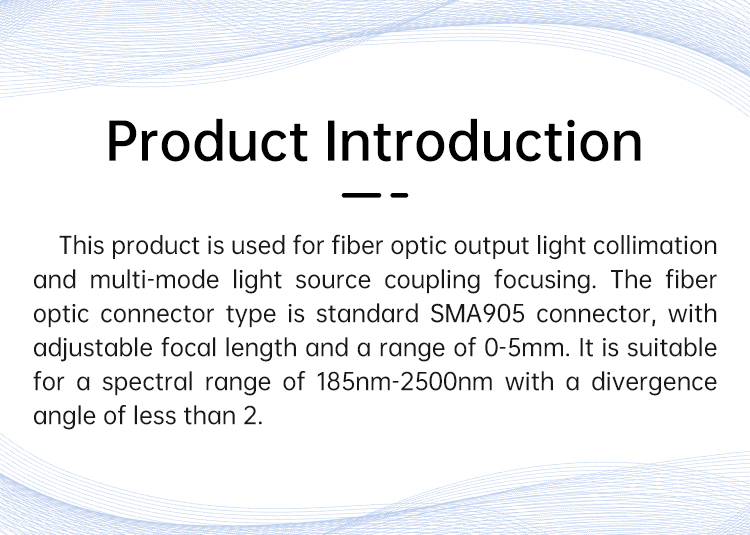

Product Introduction This product is used for fiber optic output light collimation and multi-mode light source coupling focusing. The fiber optic connector type is standard SMA905 connector, with adjustable focal length and a range of 0-5mm. It is suitable for a spectral range of 185nm-2500nm with a divergence angle of less than 2.

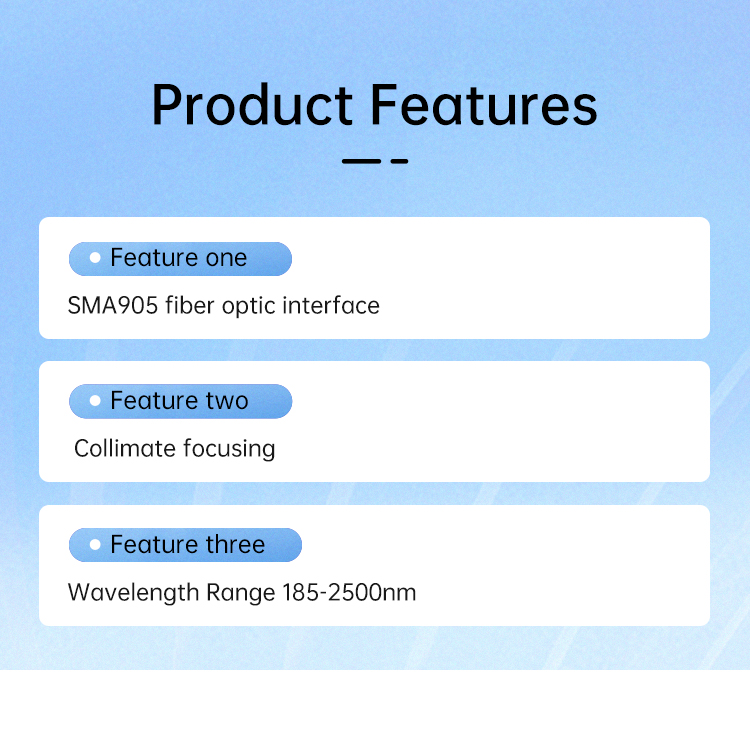

Product Features SMA905 fiber optic interface Collimate focusing Wavelength Range 185-2500nm

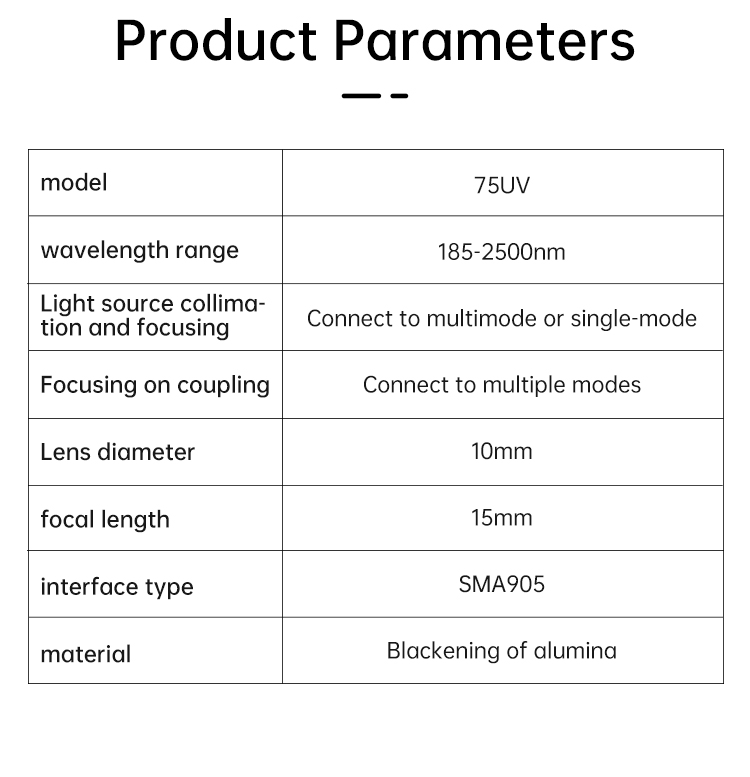

Product Parameters
|
|
|
|
model
|
75UV
|
|
wavelength range
|
185-2500nm
|
|
Light source collimation and focusing
|
Connect to multimode or single-mode
|
|
Focusing on coupling
|
Connect to multiple modes
|
|
Lens diameter
|
10mm
|
|
focal length
|
15mm
|
|
interface type
|
SMA905
|
|
material
|
Blackening of alumina
|
Product Images Supporting flange Connecting optical fibers Assemble flange
