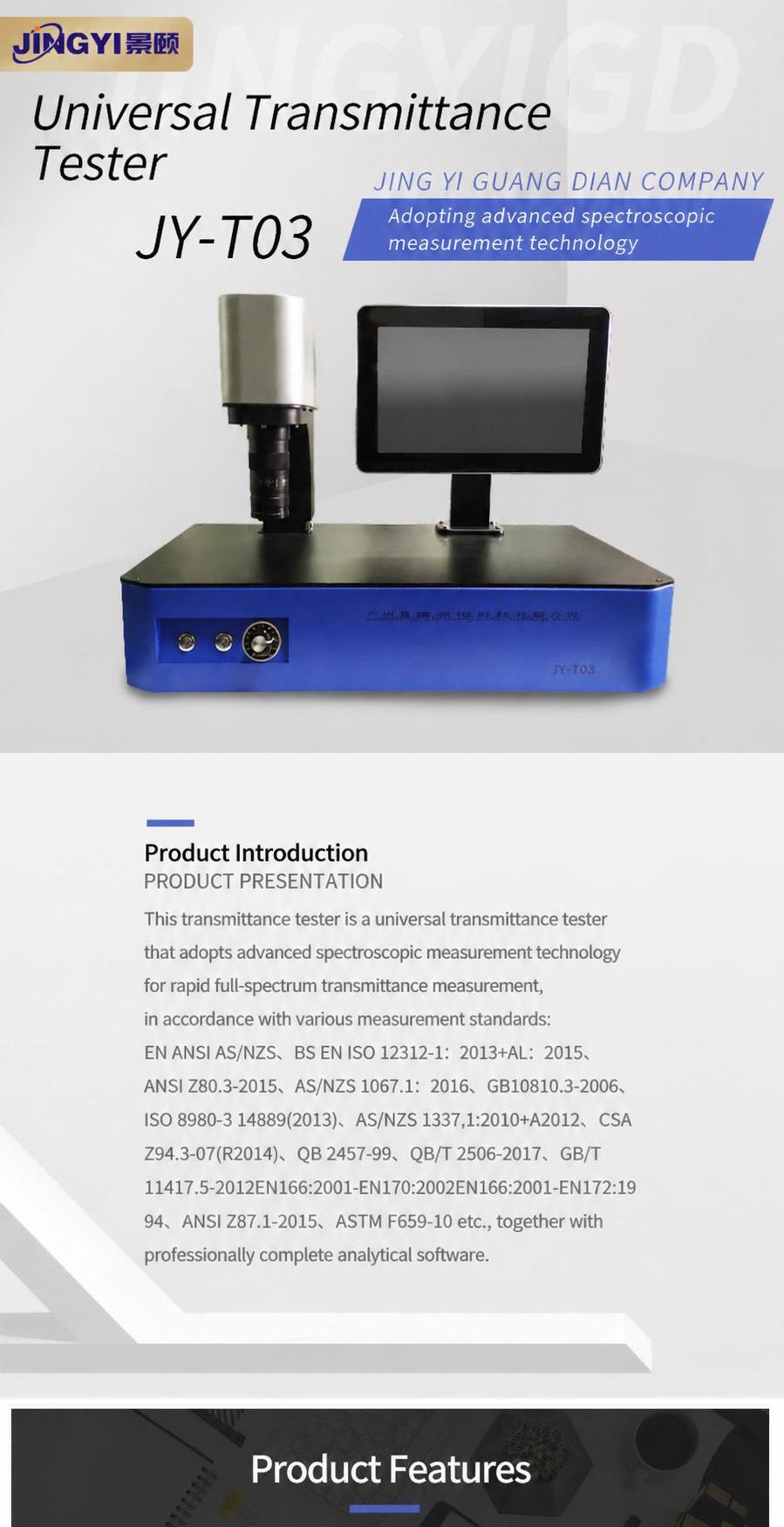

Jingyi JY-T03 Universal Transmittance Detector
🔹 Basic Product Information
- Brand: JINGYI Jingyi
- Model: JY-T03
- Technical core: Adopting advanced spectral measurement technology
- Production company: Guangzhou Jingyi Optoelectronics Technology Co., Ltd
🔹 Product Introduction
This transmittance detector is a universal transmittance detector that uses advanced spectral measurement technology for rapid full spectrum transmittance measurement, meeting various measurement standards:
EN ANSI AS/NZS、BS EN ISO 12312-1: 2013+AL: 2015、ANSI Z80.3-2015、AS/NZS 1067.1: 2016、GB10810.3-2006、ISO 8980-3 14889 (2013)、AS/NZS 1337,1:2010+A2012、CSA Z94.3-07 (R2014)、QB 2457-99、QB/T 2506-2017、GB/T 11417.5-2012 EN166:2001-EN170:2002 EN166:2001-EN172:1994、ANSI Z87.1-2015、ASTM F659-10 Wait, paired with professional and comprehensive analysis software.

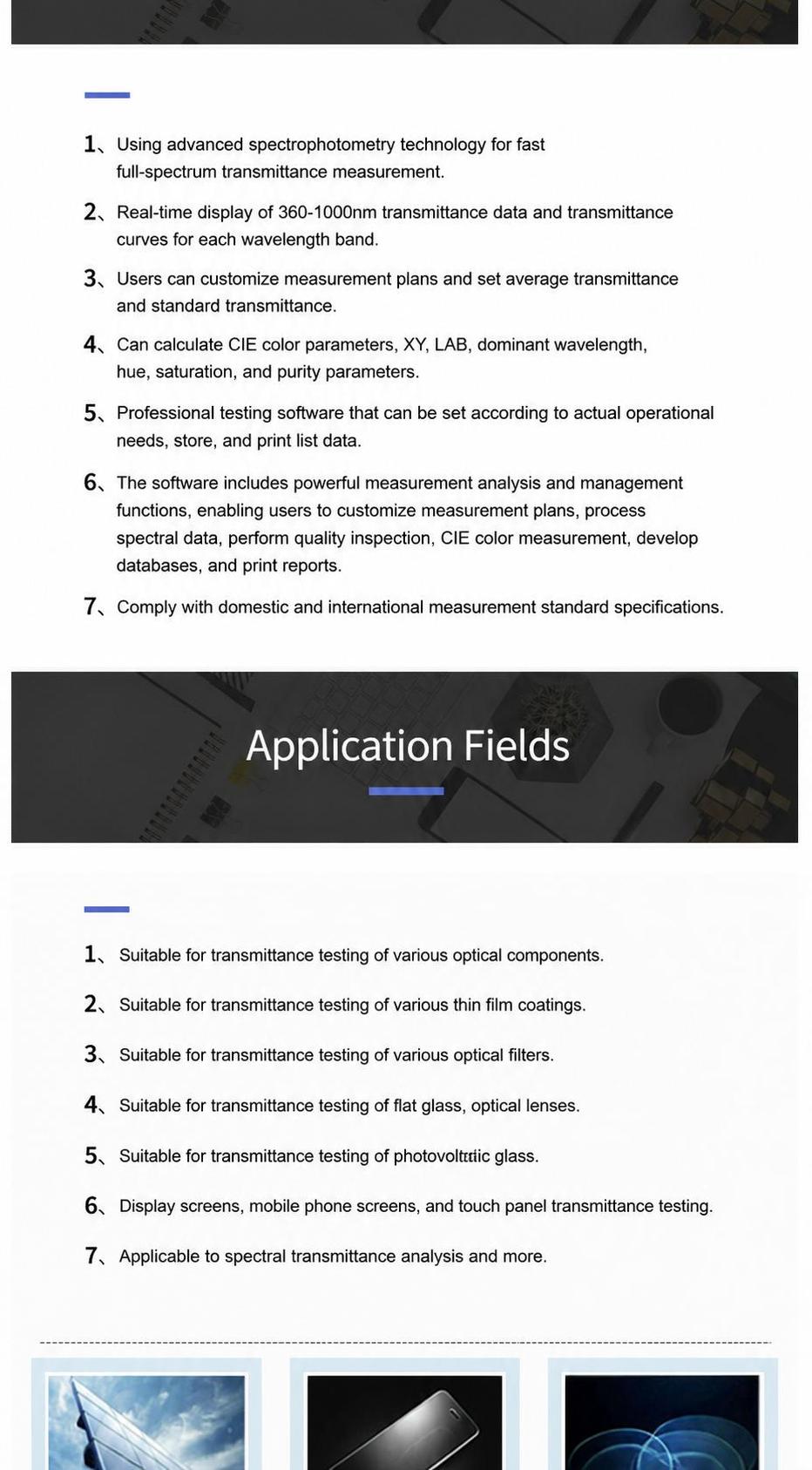

🔹 Product Features
Adopting advanced spectral measurement technology for rapid full spectrum transmittance measurement.
Real time display of transmittance data and spectral curves for 360-1000NM bands.
Users can customize measurement schemes, set average transmittance and calibration standards.
CIE color parameters can be calculated, XY、LAB、 Main wavelength, saturation, color purity and other parameters.

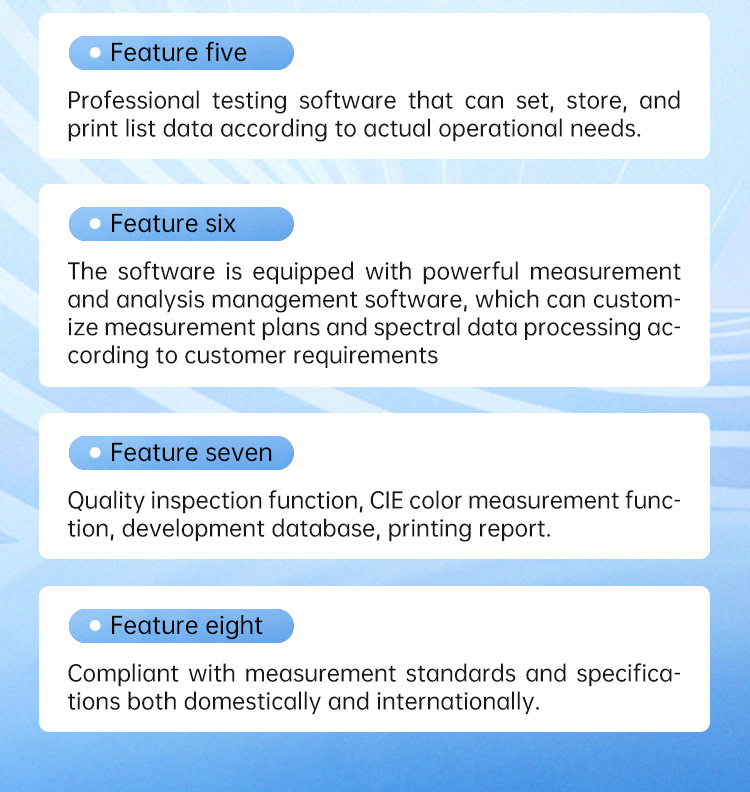

Professional testing software that can set, store, and print list data according to actual operational needs.
The software is equipped with powerful measurement and analysis management software, which can customize measurement schemes, spectral data processing, quality inspection functions, CIE color measurement functions, development databases, and print reports according to customer requirements.
Compliant with domestic and international measurement standards and specifications.

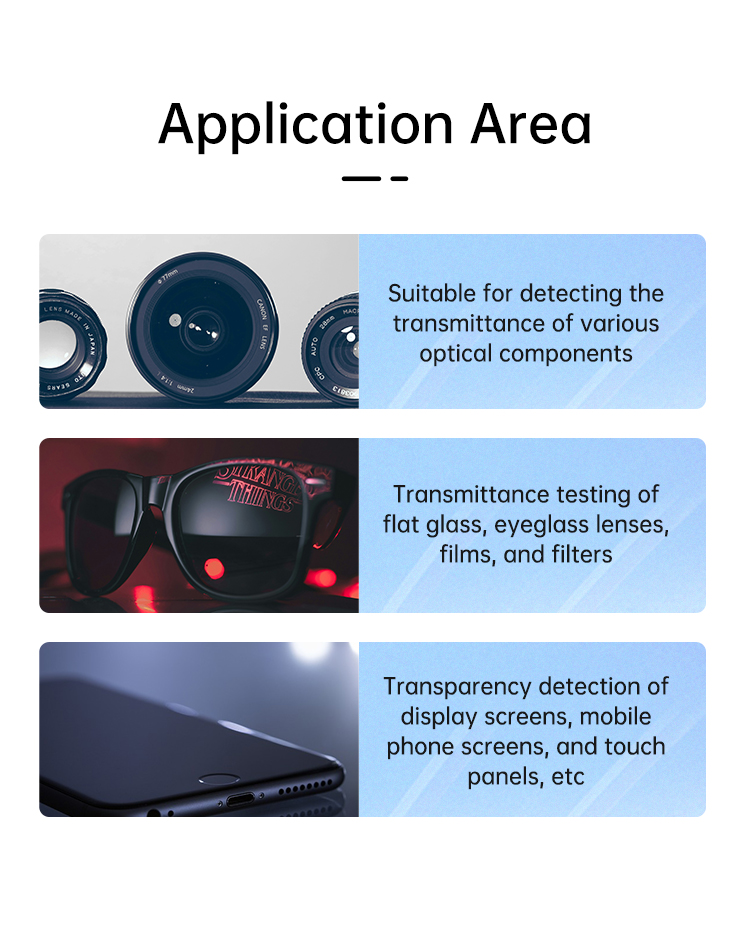

🔹 Application Fields
Suitable for detecting the transmittance of various optical components.
Suitable for detecting the transmittance of various thin films.
Suitable for detecting the transmittance of various filters.
Suitable for detecting the transmittance of flat glass and eyeglass lenses.
Suitable for detecting the transmittance of photovoltaic glass.
Transparency detection of display screens, mobile phone screens, and touch panels.
Suitable for spectral transmittance analysis, etc.
Measurement of transmittance of photovoltaic glass
Measurement of Light Transmittance of Mobile Phone Panel
Measurement of transmittance of planar lens
Measurement of filter transmittance
Spectral analysis of transmittance in chemical engineering and scientific research
Measurement of film transmittance

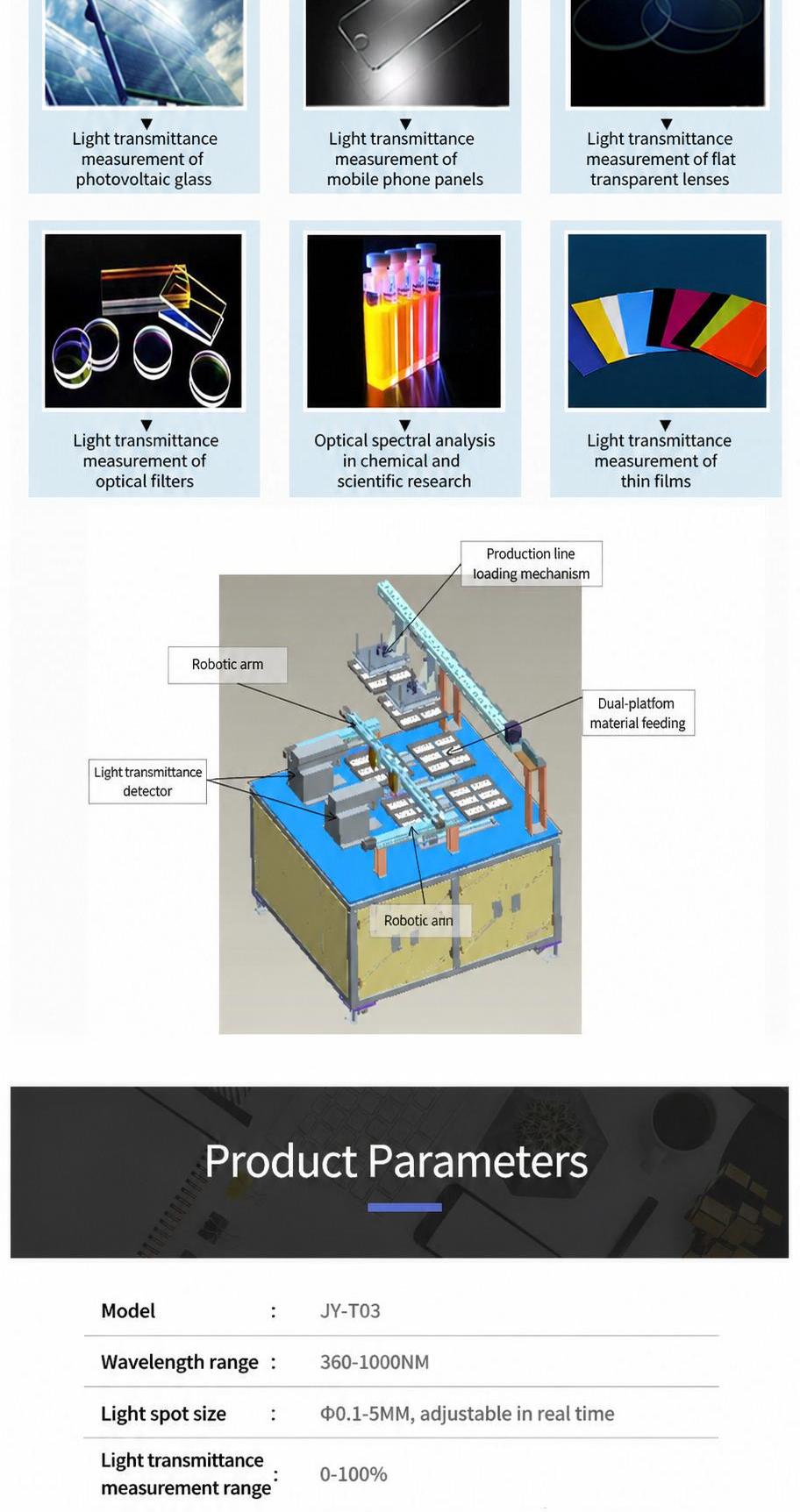

Production line automation testing (including light transmission detector, gripping robot arm, dual platform feeding, production line tray gripping mechanism)

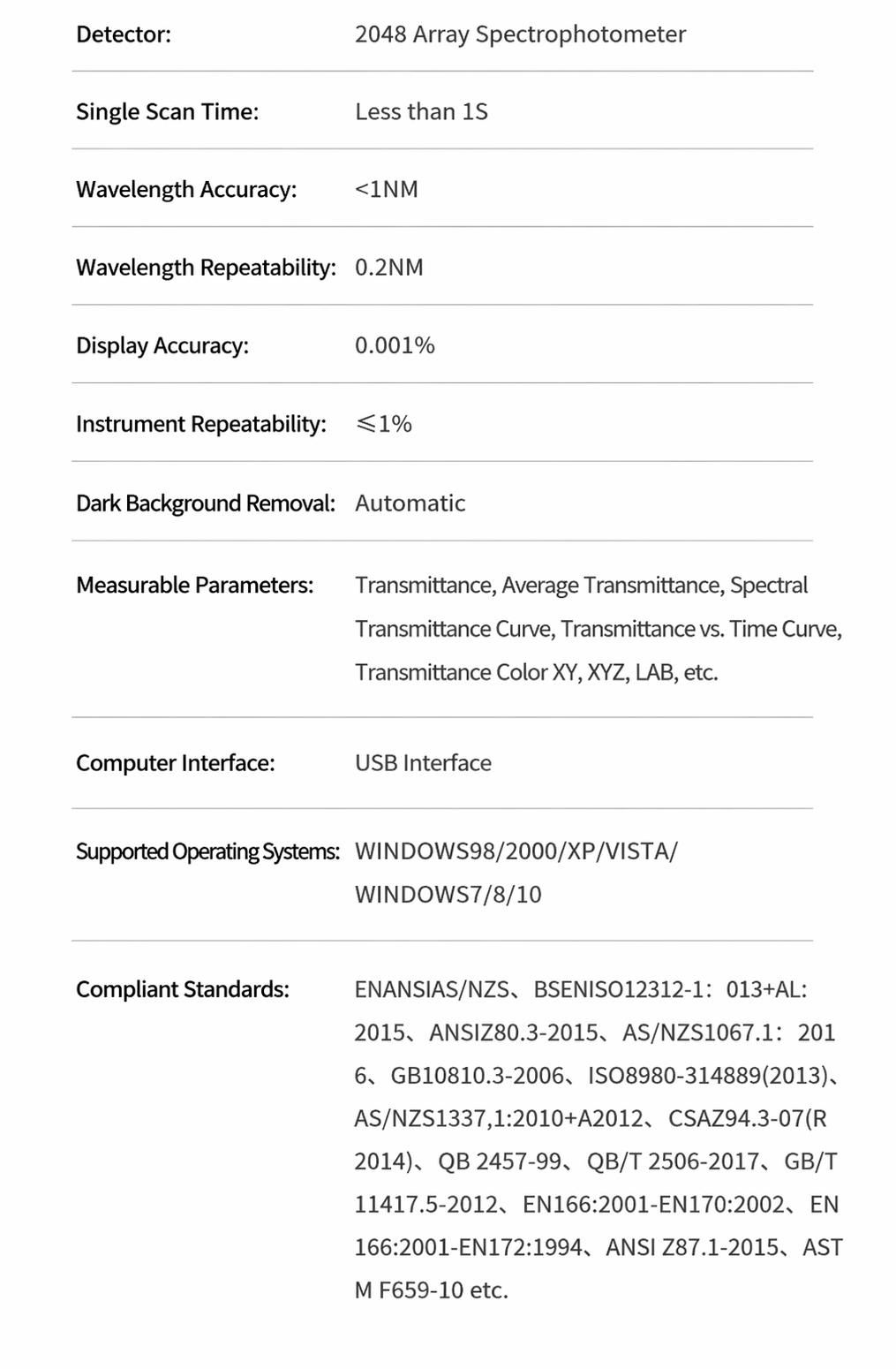

🔹 Product Specifications
| parameter item |
Specification |
| model |
JY-T03 |
| wavelength range |
360-1000NM |
| Spot size |
Φ0.1-5MM Real time adjustable |
| Transmittance measurement range |
0-100% |
| detector |
2048 array photodetector |
| Single sampling time |
superior to 1S |
| Wavelength accuracy |
<1NM |
| Wavelength repeatability |
0.2NM |
| display precision |
0.001% |
| Instrument repeatability |
≤1% |
| Deducting dark background |
Automatic |
| Measurable parameters |
Wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, transmittance colors XY, XYZ, LAB, etc |
| Computer operating system |
USB port |
| Supporting operating systems |
WINDOWS98/2000/XP/VISTA/WINDOWS7/8/10 |
| meet the standard |
ENANSIAS/NZS、BSENISO12312-1: 013+AL:2015、ANSIZ80.3-2015、AS/NZS1067.1: 2016、GB10810.3-2006、ISO8980-314889 (2013)、AS/NZS1337,1:2010+A2012、CSAZ94.3-07 (R2014)、QB 2457-99、QB/T 2506-2017、GB/T 11417.5-2012、EN166:2001-EN170:2002、EN166:2001-EN172:1994、ANSIZ87.1-2015、ASTM F659-10 Wait |
🔹 Product Advantages

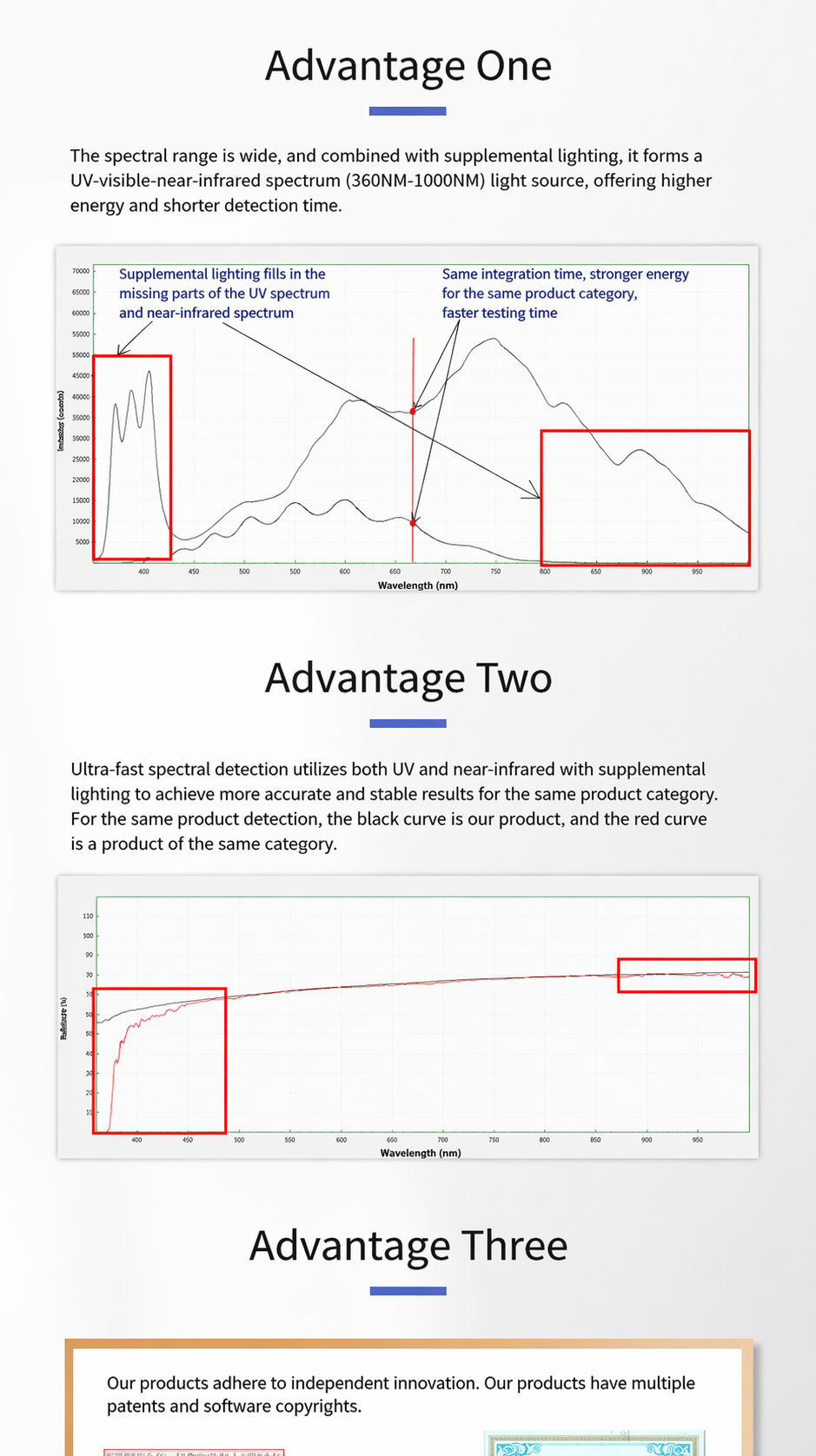

- Wide spectral range: The combination of complementary light paths forms a light source for measuring ultraviolet visible infrared spectra (360NM-1000NM), with higher energy and shorter detection time.
- Ultra fast detection: By utilizing fill light function at both UV and near-infrared ends, compared with similar products, the detection results are more accurate and stable.
- Independent innovation: Apply for multiple patent technology and software copyright certificates.

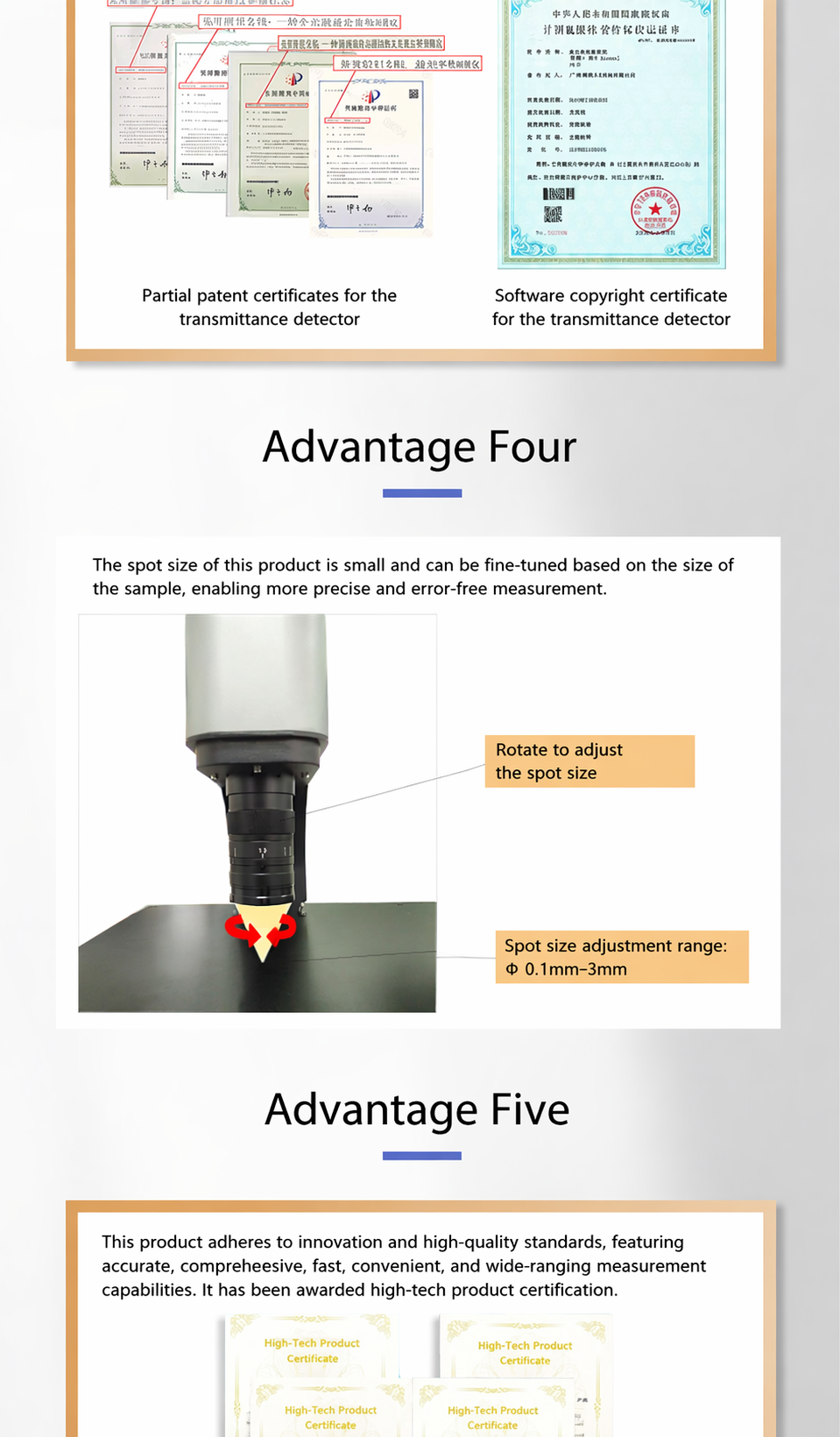

- Adjustable spot size: The size of the emitted spot can be adjusted according to the sample size（
- High tech products: Accurate, comprehensive, fast, convenient, and widely applicable measurement results, certified as high-tech products.

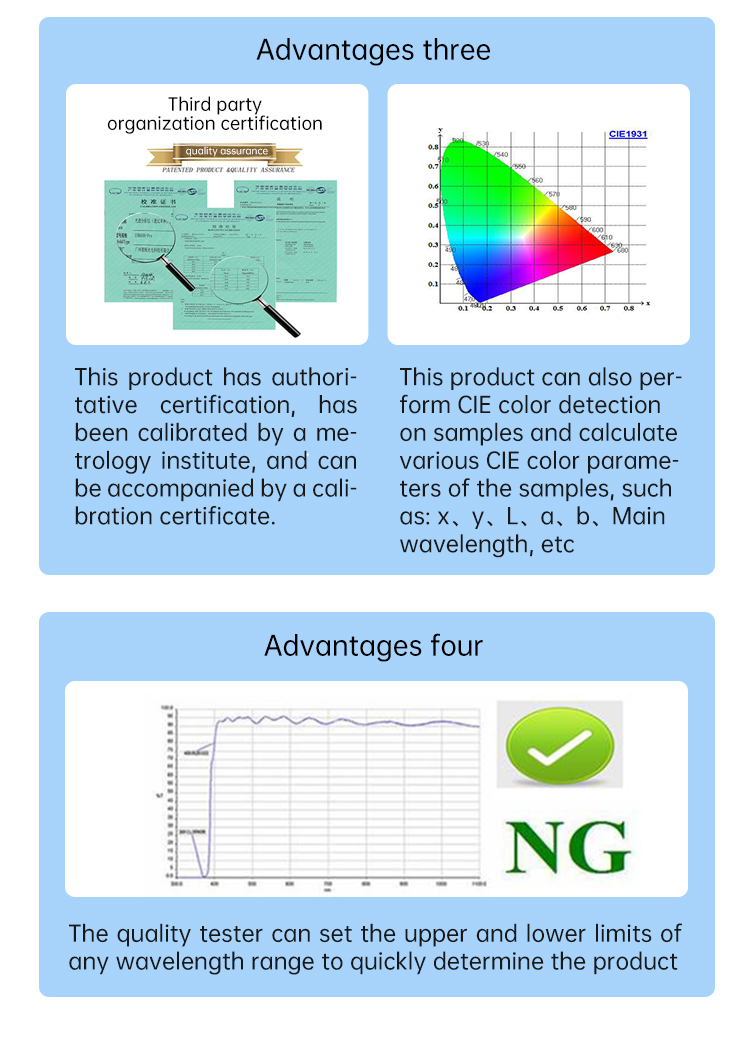

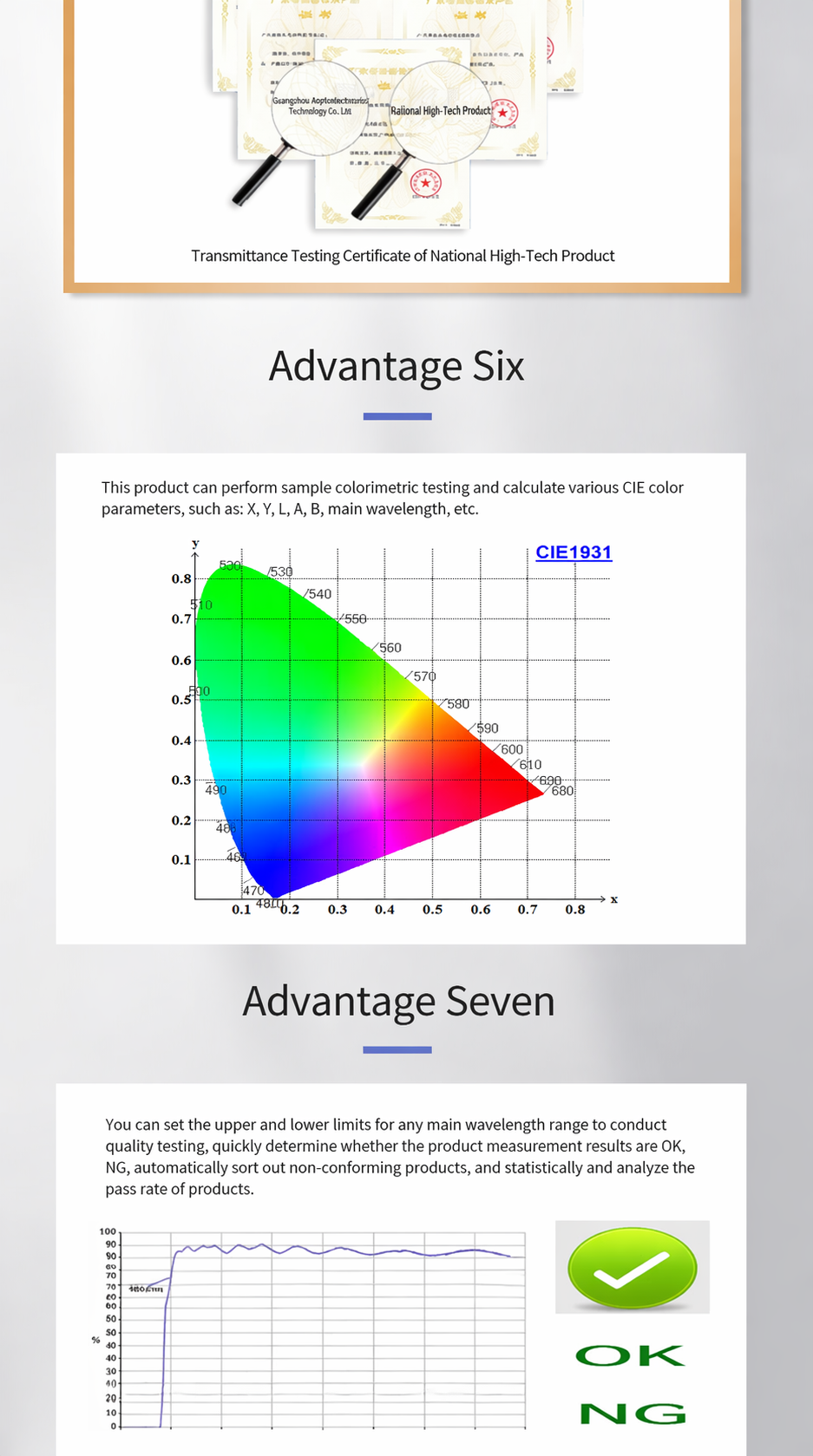

- CIE color detection: It can calculate various CIE color parameters (X, Y, L, A, B, dominant wavelength, etc.) of the sample.
- Quality inspection function: It can set the upper and lower limits of any wavelength range for quality inspection, quickly determine whether the product measurement results are OK or NG, automatically sort out unqualified products, and statistically analyze the yield of products.
- Authoritative certification: After calibration by a metrology institute, a calibration certificate can be attached.
🔹 Relevant certificates
- Partial patent certificate for transmittance detector (including utility model patent and design patent)
- Software copyright certificate for transmittance detector
- High tech product certificate for transmittance detector
- South China National Metrology and Testing Center/Guangdong Province Metrology Science Research Institute License
