Integrating sphere standard lamp

Integrating sphere standard lamp









Universal Integral Ball Standard Lamp Product Introduction

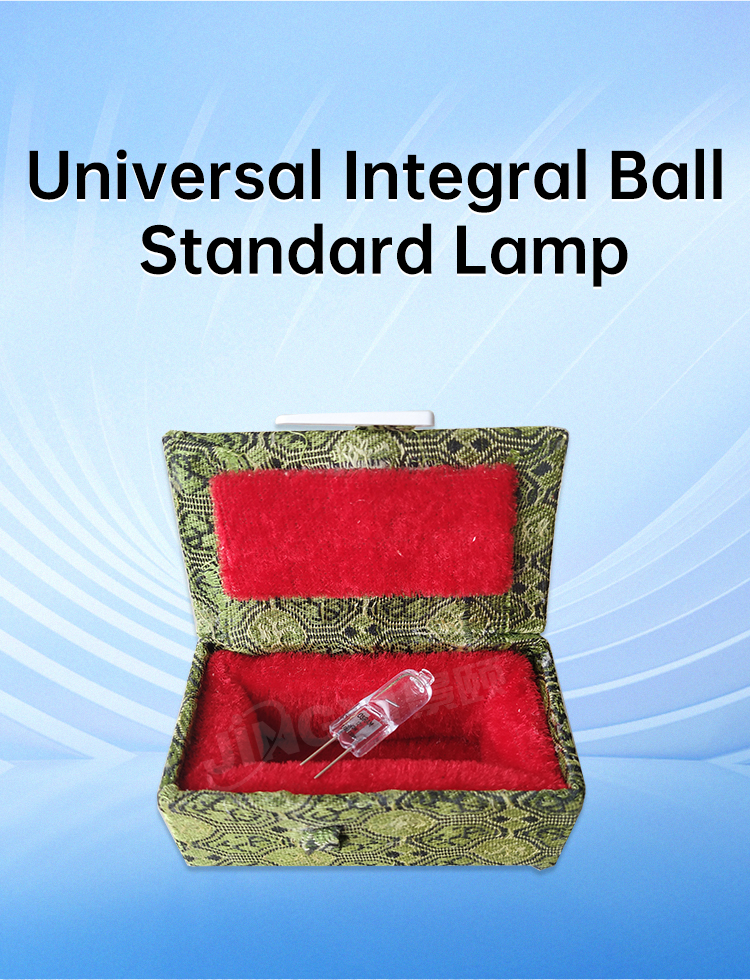

Universal Integral Ball Standard Lamp
Product Introduction This standard lamp is mainly used for integrating sphere spectral calibration, correcting luminous flux, color temperature, intensity, etc. Suitable for various brands of scoring balls, such as Jingyi Optoelectronics, Hangzhou Yuanfang, Zhejiang University Tri color, Zhongwei Optoelectronics, Ocean Optics, HP Instruments, Chuanghui, Hongpu, Lingcai, Zhongpu, Shengpu, Jingfei and other brands. Application field: VIS radiation calibration, traceable to NIST, digital calibration data can be loaded into optical software to obtain intensity data.
Product Features Universal calibration for various brands Value transfer can be directly traced back to the Chinese Academy of Metrology Comes with both paper and digital calibration certificates

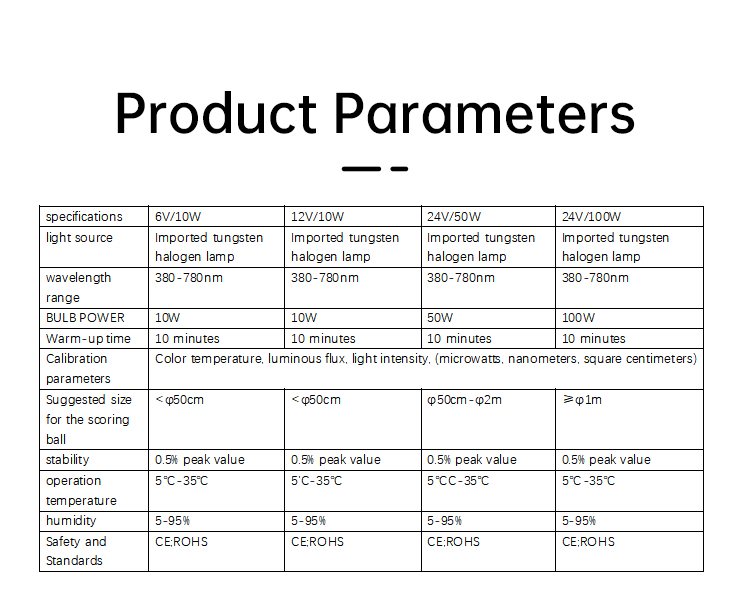

Product Parameters
specifications
6V/10W
12V/10W
24V/50W
24V/100W
light source
Imported tungsten halogen lamp
Imported tungsten halogen lamp
Imported tungsten halogen lamp
Imported tungsten halogen lamp
wavelength range
380-780nm
380-780nm
380-780nm
380-780nm
BULB POWER
10W
10W
50W
100W
Warm-up time
10 minutes
10 minutes
10 minutes
10 minutes
Calibration parameters
Color temperature, luminous flux, light intensity, (microwatts, nanometers, square centimeters)
Color temperature, luminous flux, light intensity, (microwatts, nanometers, square centimeters)
Color temperature, luminous flux, light intensity, (microwatts, nanometers, square centimeters)
Color temperature, luminous flux, light intensity, (microwatts, nanometers, square centimeters)
Suggested size for the scoring ball
<φ50cm
<φ50cm
φ50cm-φ2m
≥φ1m
stability
0.5% peak value
0.5% peak value
0.5% peak value
0.5% peak value
operation temperature
5℃-35℃
5℃-35℃
5℃-35℃
5℃-35℃
humidity
5-95%
5-95%
5-95%
5-95%
Safety and Standards
CE;ROHS
CE;ROHS
CE;ROHS
CE;ROHS
