Neon Lamp JY-NE-1 Product Introduction

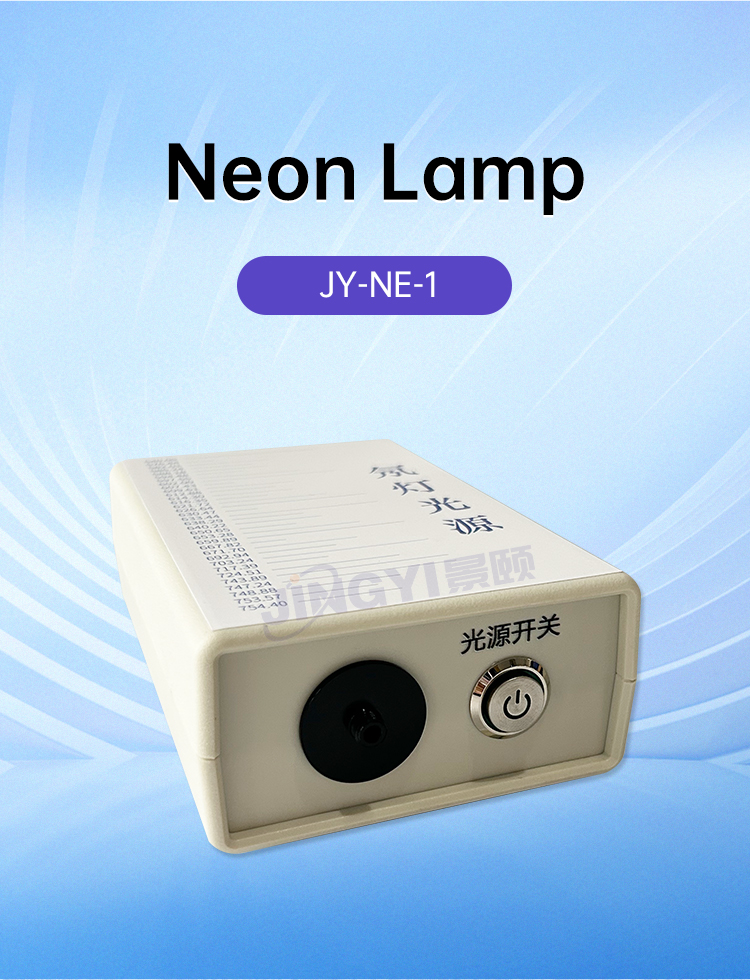

Neon Lamp JY-NE-1
Product Introduction This compact and low-cost NE-1 calibration light source is suitable for wavelength calibration of visible and near-infrared spectra. The NE-1 can generate transmittance spectral lines in the range of 540-754 nanometers, making it suitable for fast and reliable wavelength calibration of spectrometers. NE-1 can be used to confirm the wavelength accuracy of any spectrometer and can also be used for recalibration of the spectrometer if necessary. NE-1 operates with a 220VDC power supply (included in the product). It can be equipped with any SMA fiber or FC fiber to connect with NE-1.
Application Area Visible Near Infrared Wavelength Calibration
Product Features High accuracy Small size, easy and fast to use Can be customized according to specific needs

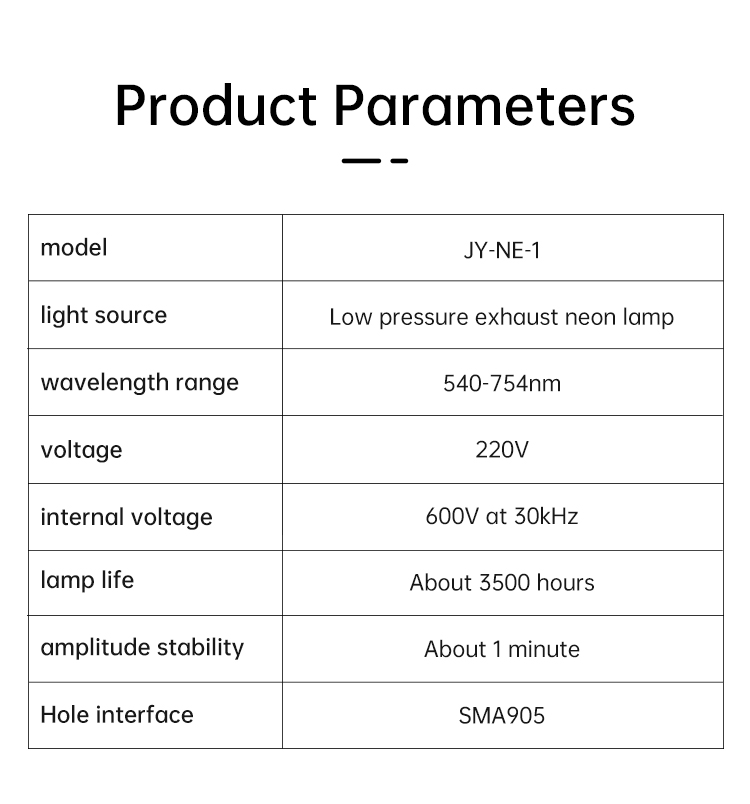

Product Parameters
|
model
|
JY-NE-1
|
|
light source
|
Low pressure exhaust neon lamp
|
|
wavelength range
|
540-754nm
|
|
voltage
|
220V
|
|
internal voltage
|
600V at 30kHz
|
|
lamp life
|
About 3500 hours
|
|
amplitude stability
|
About 1 minute
|
|
Hole interface
|
SMA905
|
