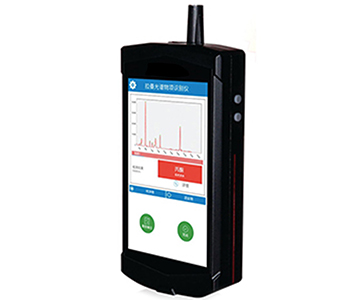

ATR6500
Handheld Raman Spectrometer

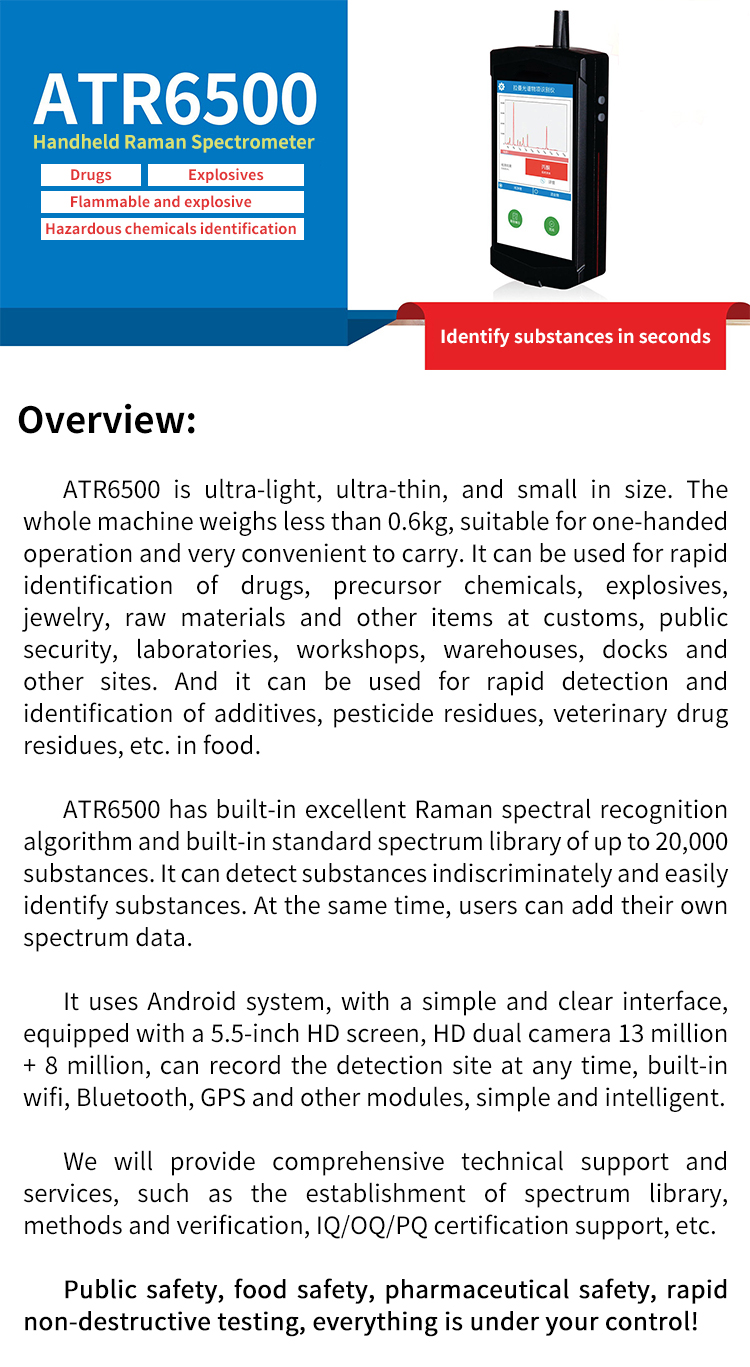

Overview
The ATR6500 is an ultra-lightweight, ultra-slim handheld Raman spectrometer weighing less than 0.6 kg (450g), designed for one-handed operation and effortless portability. Its compact size makes it ideal for rapid on-site identification of:
- Drugs and precursor chemicals
- Explosives
- Flammable and hazardous materials
- Jewelry and gemstones
- Raw materials and industrial chemicals
- Food additives, pesticide residues, and veterinary drug residues
It is widely used in customs, public security, laboratories, workshops, warehouses, docks, and other critical environments.
Equipped with a built-in AI-powered Raman spectral recognition algorithm and a comprehensive standard spectrum library of up to 20,000 substances, the ATR6500 can automatically detect and identify unknown materials with high accuracy. Users can also upload custom spectral data to expand detection capabilities.
Running on the Android operating system, the device features:
- A 5.5-inch HD touchscreen
- Dual HD cameras (13MP + 8MP) for real-time image capture
- Built-in Wi-Fi, Bluetooth, GPS, and GSM connectivity
- Support for USB Type-C charging
We provide comprehensive technical support including:
- Custom spectral library development
- Method validation and verification
- IQ/OQ/PQ certification assistance
Whether it’s public safety, food safety, or pharmaceutical quality control, the ATR6500 puts rapid, non-destructive testing under your full control.

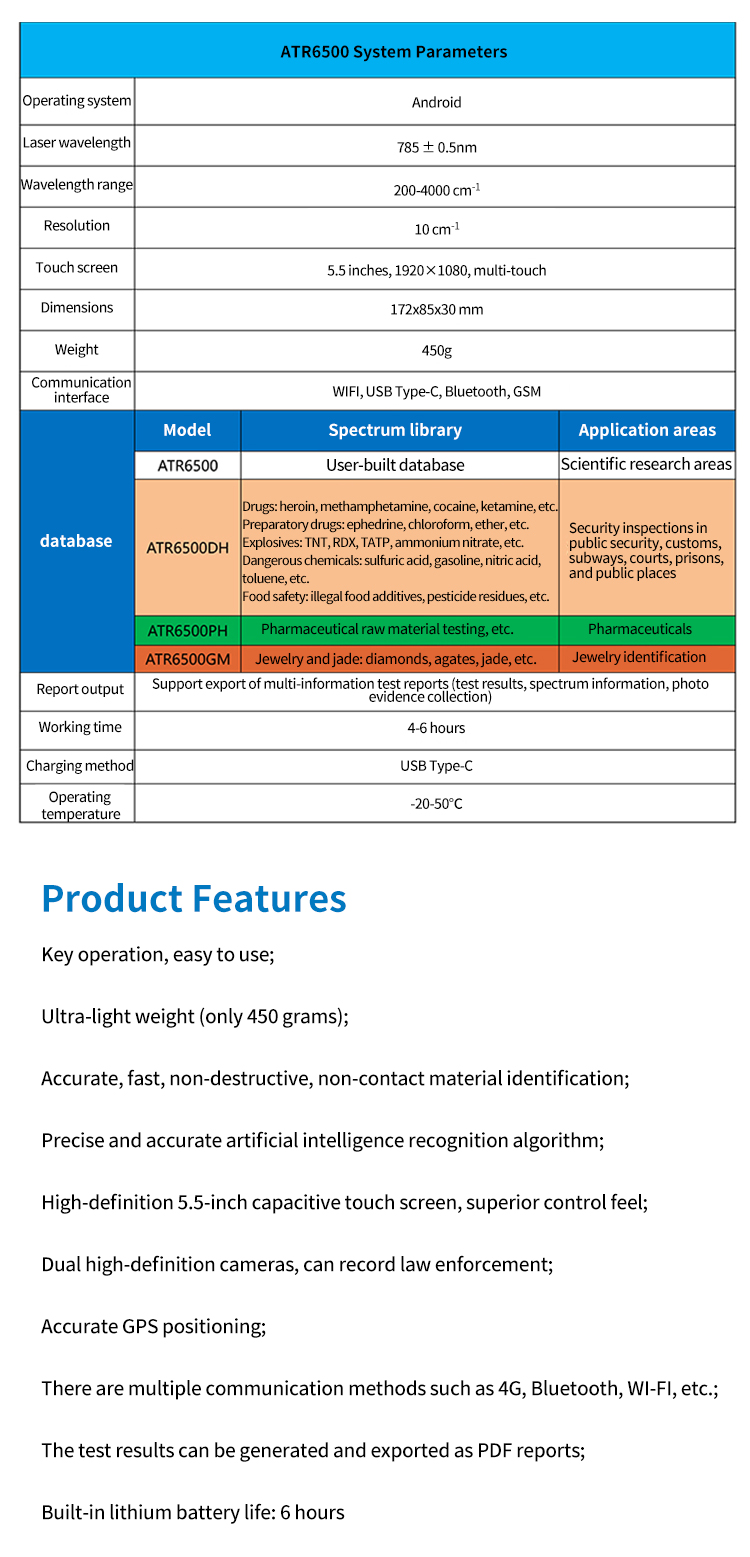

Technical Specifications
| Parameter |
Specification |
| Operating System |
Android |
| Laser Wavelength |
785 ± 0.5 nm |
| Wavenumber Range |
200–4000 cm⁻¹ |
| Spectral Resolution |
10 cm⁻¹ |
| Touch Screen |
5.5 inches, 1920×1080, multi-touch |
| Dimensions |
172 × 85 × 30 mm |
| Weight |
450 g |
| Communication Interfaces |
Wi-Fi, USB Type-C, Bluetooth, GSM |
| Working Time |
4–6 hours |
| Charging Method |
USB Type-C |
| Operating Temperature |
–20°C to +50°C |
Instrument Series & Application Areas
| Model |
Spectrum Library |
Application Areas |
| ATR6500 |
User-built database |
Scientific research, general analysis |
| ATR6500DH |
Drugs: heroin, methamphetamine, cocaine, ketamine
Preparatory drugs: ephedrine, chloroform, ether
Explosives: TNT, RDX, TATP, ammonium nitrate
Dangerous chemicals: sulfuric acid, gasoline, nitric acid, toluene
Food safety: illegal additives, pesticide residues |
Public security, customs, subways, courts, prisons, public places |
| ATR6500PH |
Pharmaceutical raw materials |
Pharmaceuticals |
| ATR6500GM |
Jewelry: diamonds, agates, jade, coral |
Jewelry identification |
Product Features
- One-button operation – Simple, intuitive interface for quick deployment
- Ultra-lightweight design – Only 450g, perfect for one-handed use
- Fast, accurate, non-destructive, non-contact analysis – No sample preparation required
- AI-powered intelligent recognition algorithm – Automatically identifies substances from a vast database
- 5.5-inch HD capacitive touchscreen – Smooth, responsive user experience
- Dual HD cameras (13MP + 8MP) – Capture visual evidence of detection sites for law enforcement
- Built-in GPS positioning – Logs location data during sampling
- Multiple communication options: Wi-Fi, Bluetooth, 4G/GSM – Enables remote data transmission and cloud integration
- PDF report generation & export – Test results can be saved and shared instantly
- Long battery life: Up to 6 hours of continuous operation
- Compact and durable – Designed for field use in challenging environments
Application Areas
🔹 Anti-terrorism and Drug Control
→ Rapid detection of narcotics and explosives at checkpoints and secure zones.
🔹 University Laboratories
→ Research-grade analysis for chemistry, biology, and materials science.
🔹 Quality Inspection and Drug Supervision
→ Ensure compliance with pharmaceutical standards and detect counterfeit drugs.
🔹 Food Testing
→ Detect pesticide residues, veterinary drug residues, and illegal food additives.
🔹 Petroleum Industry
→ Analyze crude oil components and industrial lubricants.
🔹 Archaeological Survey
→ Non-destructive identification of ancient pigments, ceramics, and artifacts.
🔹 Jewelry Appraisal
→ Authenticate diamonds, gemstones, jade, and other precious materials.

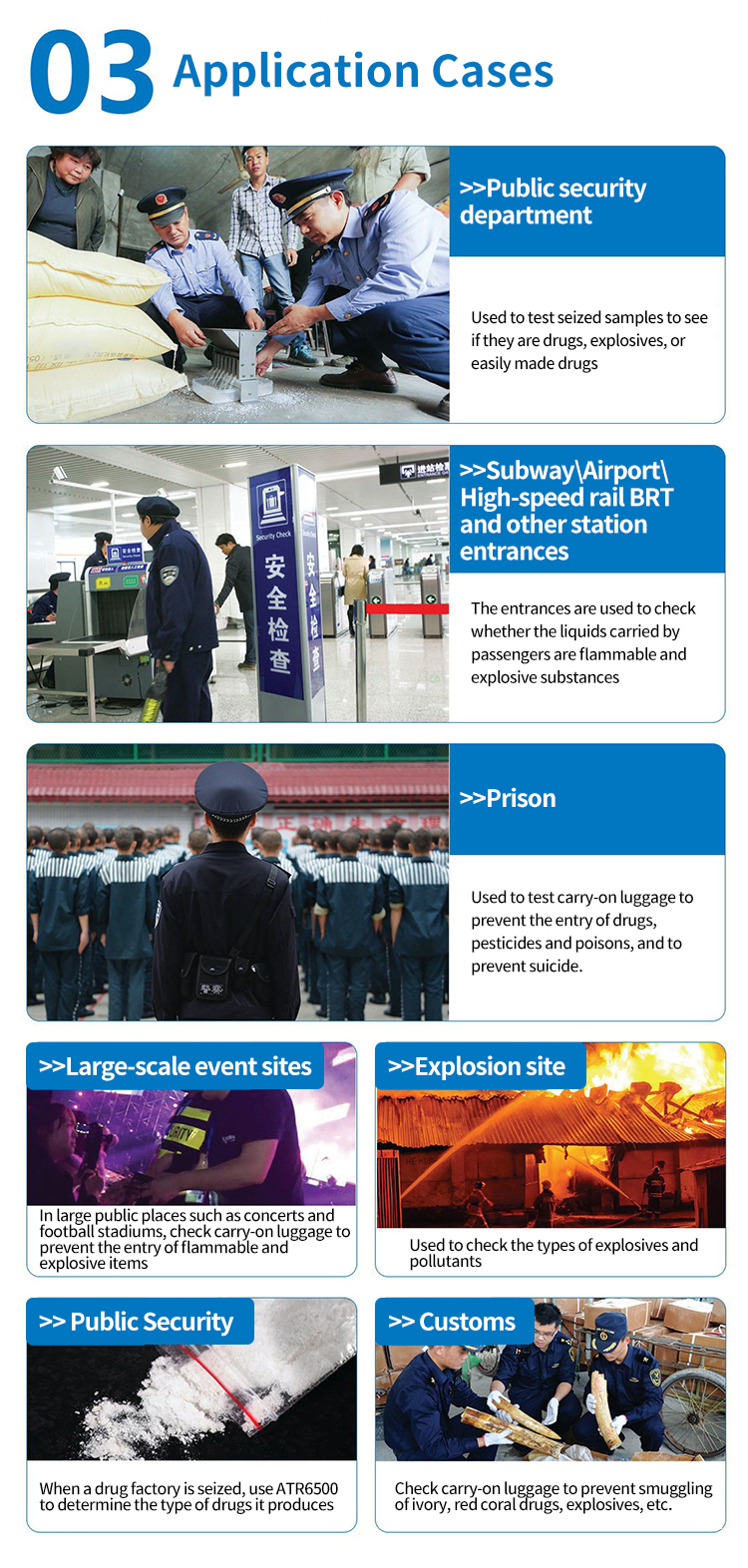

Application Cases
➤ Public Security – Drug Enforcement
- Especially suitable for rapid detection of high-fluorescence substances such as heroin, opium, fentanyl, and other controlled drugs.
- Effective in identifying illegally manufactured drugs and dangerous chemicals.
- Enables on-site forensic analysis without lab delays.
➤ Pharmaceuticals
- On-site, non-destructive testing of raw materials and auxiliary ingredients.
- Ensures product quality and production consistency.
- Supports efficient supervision in manufacturing environments.
➤ Jewelers
- Used to verify the authenticity of diamonds, gemstones, jade, agate, and coral.
- Provides reliable, instant results without damaging the specimen.
➤ Plastic Pellet Identification
- Plastic pellets often have similar appearances but different compositions.
- Raman spectroscopy precisely identifies specific chemical ingredients within each pellet.
➤ Food / Plastic / Cosmetics Factory
- Identifies chemical components such as flavors, additives, plastics, and cosmetic ingredients.
- Useful for quality control and adulteration detection.
➤ Prison
- Used for luggage inspection to prevent inmates from smuggling hazardous chemicals, drugs, or other prohibited items.
➤ Customs
- Deployed in import/export inspections to detect drugs, explosives, hazardous chemicals, and smuggled goods.
- Enhances border security and regulatory compliance.
