Product Introduction
The HS2000PRO fiber optic spectrometer adopts a high-sensitivity back-illuminated CCD and a dual scintillation grating design, offering high detection sensitivity and an extensive wavelength range. It features high quantum efficiency across UV, visible, and near-infrared regions, along with extremely fast detection speed. Suitable for applications in the 200–1100 nm spectral range, this spectrometer supports low-light detection, transmittance measurement, reflectance analysis, absorbance testing, fluorescence detection, and other advanced optical sensing tasks.
Application Areas
- Low Light Detection
Ideal for applications such as Raman spectroscopy, where signal intensity is weak.
- High Stability Instruments
Suitable for online detectors requiring long-term stable operation.
- Fluorescence Spectrum Detection
Enables fluorescent diagnosis of malignant diseases and biomedical research.
- Chlorophyll and Carotenoid Fluorescence Analysis
Used in plant physiology, agriculture, and environmental monitoring.
- Blood Oxygen Concentration Detection
Supports non-invasive medical diagnostics and physiological monitoring.
Product Features
• Feature One: Compact Design
Small size with dimensions of only 146 × 115 × 47 mm, making it ideal for integration into compact systems.
• Feature Two: High-Quality Detector
Equipped with a Hamamatsu back-illuminated CCD, delivering superior light sensitivity and minimal noise.
• Feature Three: High Sensitivity
Optimized for weak light detection, enabling reliable performance in low-light environments.
• Feature Four: Excellent Stability
Designed for long-term online testing with consistent performance and minimal drift.
Advantages
• Advantage One: High-Resolution Optical Platform
Achieves maximum resolution and sensitivity without increasing the physical size of the spectrometer.
• Advantage Two: Full-Spectrum Capability
Supports a broad spectral range up to 180–1100 nm, covering UV, visible, and NIR wavelengths.
• Advantage Three: High-Speed Control Technology
Capable of completing measurements in as little as 1 ms integration time, enabling real-time data acquisition.
• Advantage Four: Fixed Grating Design
The grating remains stationary (no scanning), ensuring enhanced optical system stability and durability.
• Advantage Five: Small Size & Lightweight
Weighing only 840 g, it’s easy to install and integrate into various analytical systems.

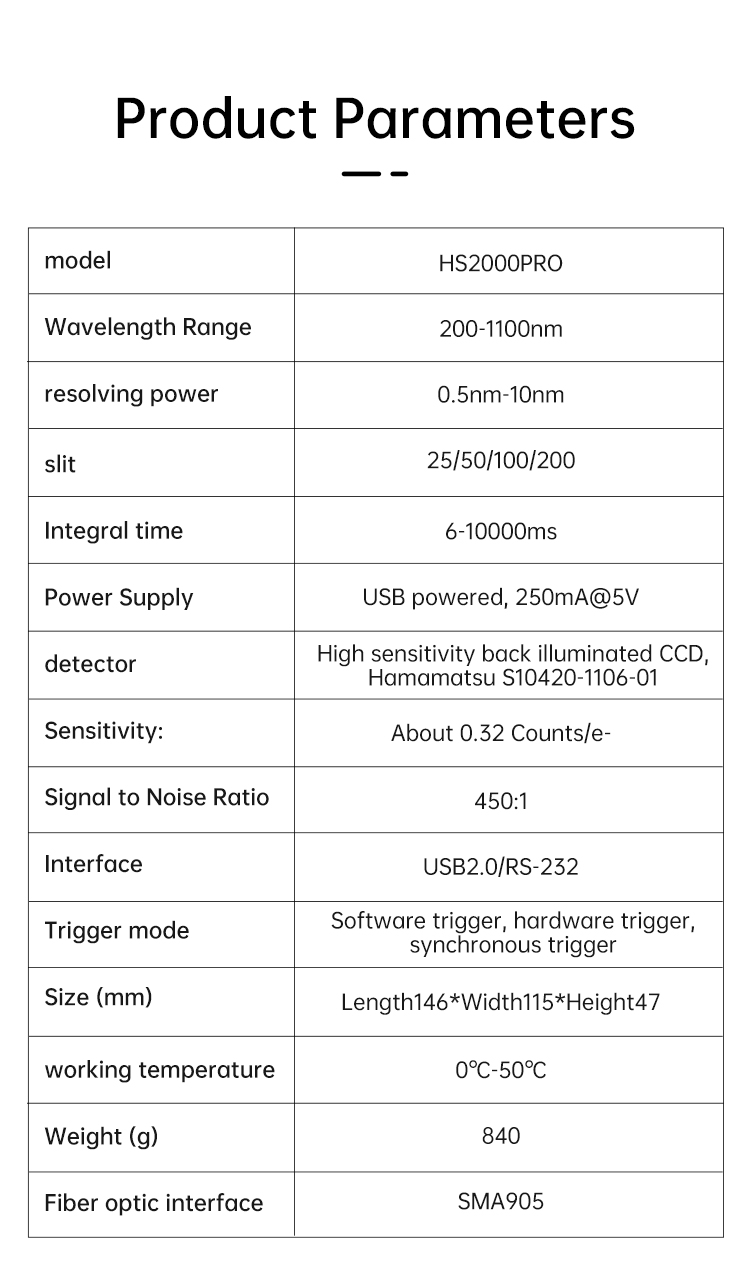

Product Parameters
| Parameter |
Specification |
| Model |
HS2000PRO |
| Wavelength Range |
200–1100 nm |
| Resolving Power |
0.5 nm – 10 nm |
| Slit Width |
25 / 50 / 100 / 200 µm |
| Integration Time |
6–10000 ms |
| Power Supply |
USB-powered, 250 mA @ 5 V |
| Detector |
High-sensitivity back-illuminated CCD, Hamamatsu S10420-1106-01 |
| Sensitivity |
～0.32 Counts/e⁻ |
| Signal-to-Noise Ratio |
450:1 |
| Interface |
USB 2.0 / RS-232 |
| Trigger Mode |
Software trigger, hardware trigger, synchronous trigger |
| Dimensions (mm) |
Length 146 × Width 115 × Height 47 |
| Operating Temperature |
0°C – 50°C |
| Weight |
840 g |
| Fiber Optic Interface |
SMA905 |
