Semi automatic transmittance tester
JING YI GUANG DIAN COMPANY
Can test the transmittance spectrum of the entire frequency band
二、Product Introduction

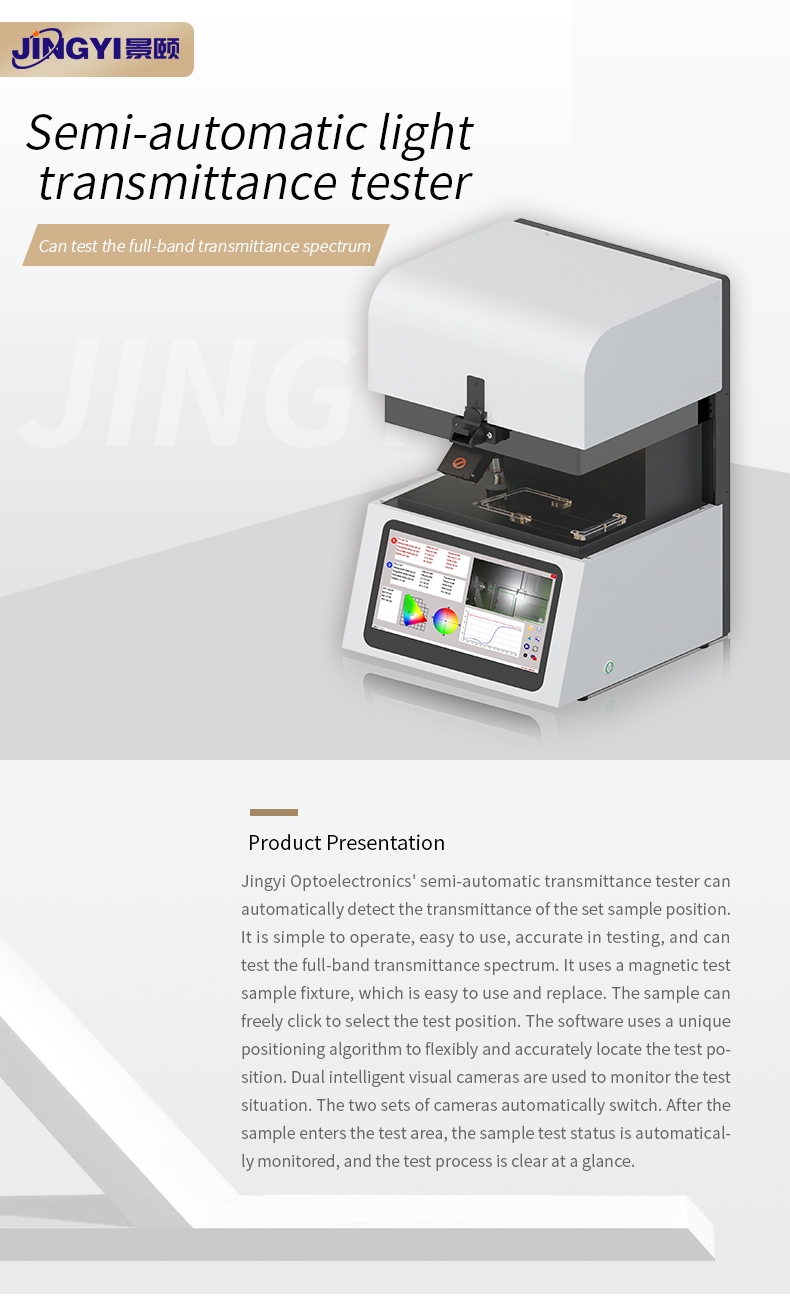

Jingyi Optoelectronics' semi-automatic transmittance detector can automatically detect the transmittance of the set sample position, with simple operation, convenient use, accurate testing, and can test the transmittance spectrum of the entire band. It uses a magnetic testing sample fixture, which is easy to use and replace. The sample can be freely clicked to select the testing location, and the software adopts a unique positioning algorithm to flexibly and accurately locate the testing location. Adopting dual intelligent visual cameras to monitor the testing situation, the two sets of cameras automatically switch, and the sample's testing status is automatically monitored after entering the testing area, providing a clear view of the testing process.
三、Product Features
Wide spectrum (380-1000NM) testing, customizable spectral range
Each sample supports 1-7 testing points, and the positioning operation is simple. Click to select
Customizable testing criteria, automatically determining OK or NG
Support comparison of transmittance data between two testing areas
Customizable display of test wavelength data
Can calculate CIE and LAB color coordinates, △ E color difference, etc
Customizable sample fixtures
Can output summary reports and data
Infrared fill light technology improves the monitoring field of view in the detection area
Third party authoritative measurement certificate
四、Application Scenarios

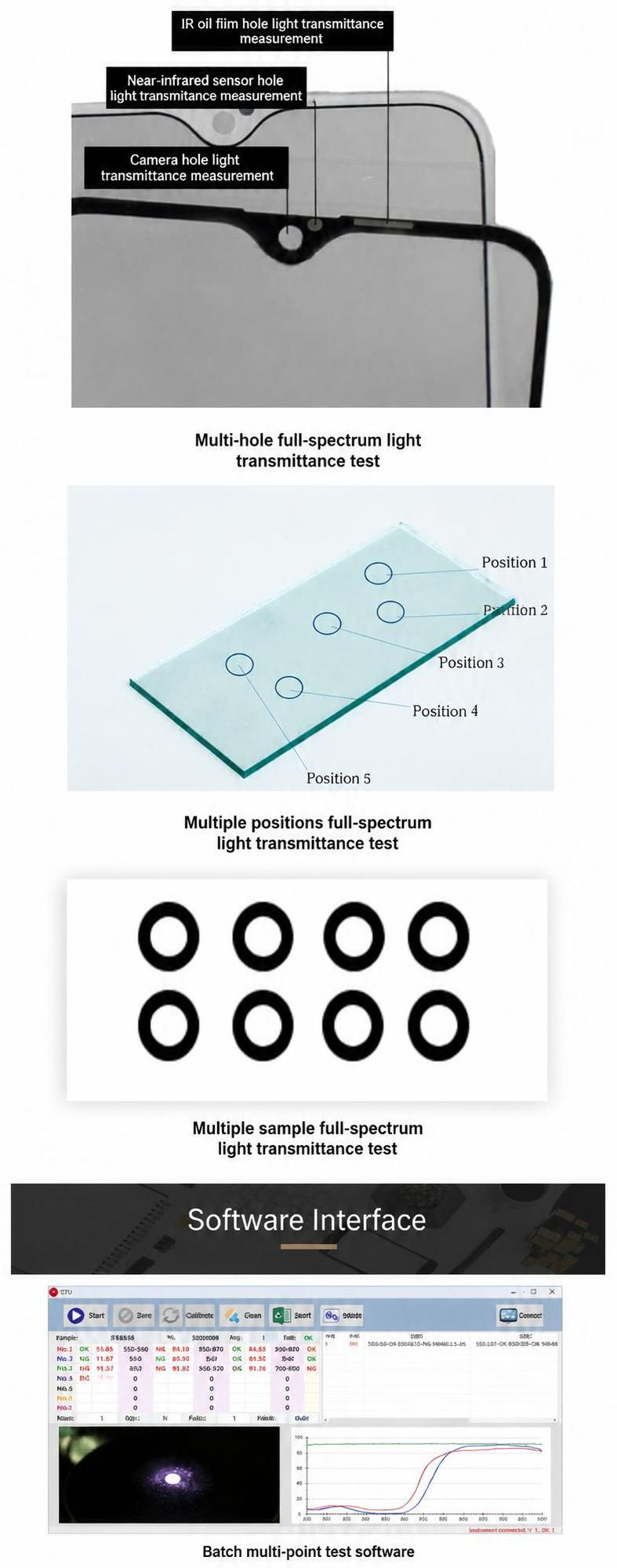

Measurement of IR ink hole transmittance
Measurement of transmittance of near-infrared sensing hole
Measurement of camera aperture transmittance
Porous full spectrum testing
Multi position point full spectrum transmittance test
Full spectrum transmittance testing of multiple samples
五、software interface

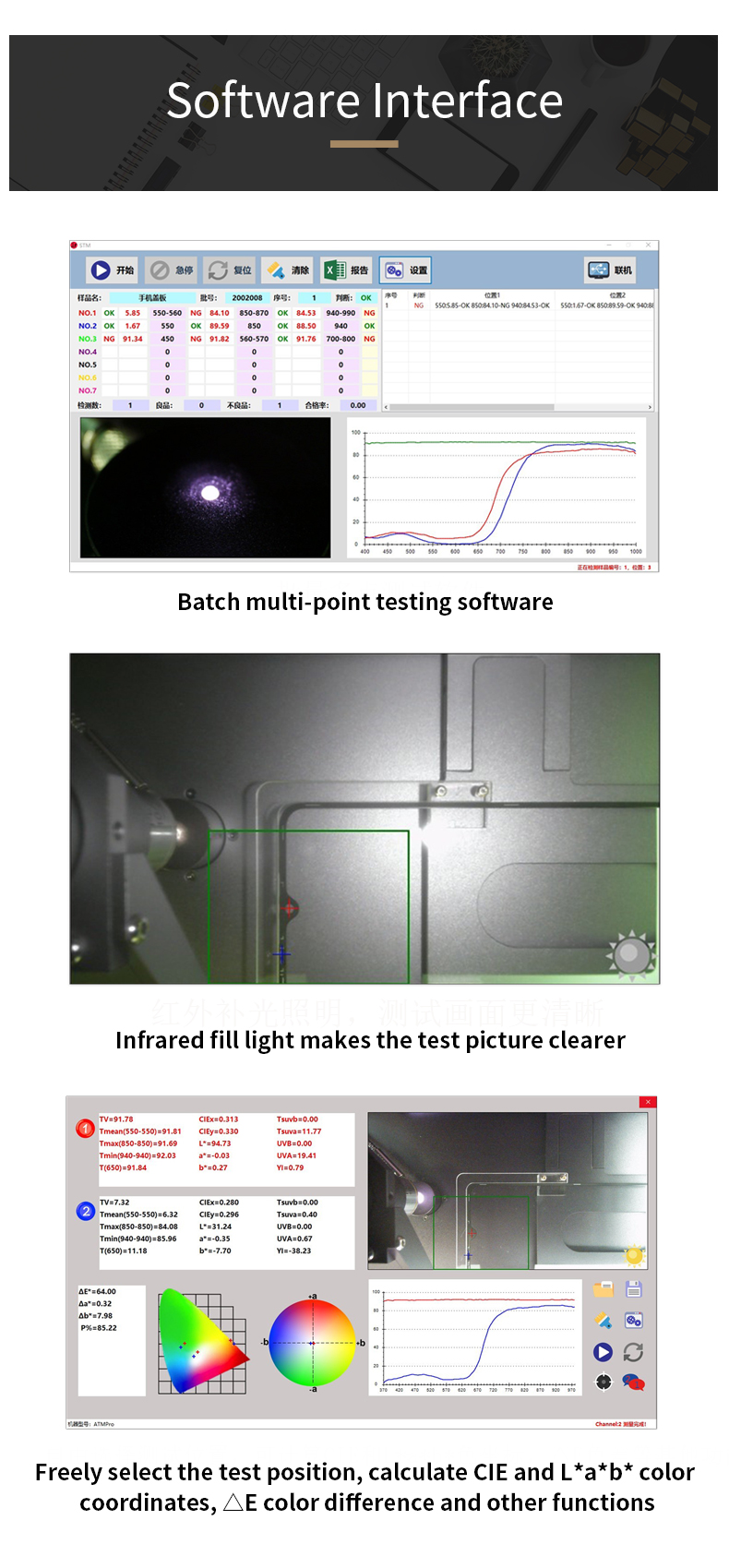

Batch multi-point testing software
Infrared supplementary lighting provides clearer test images

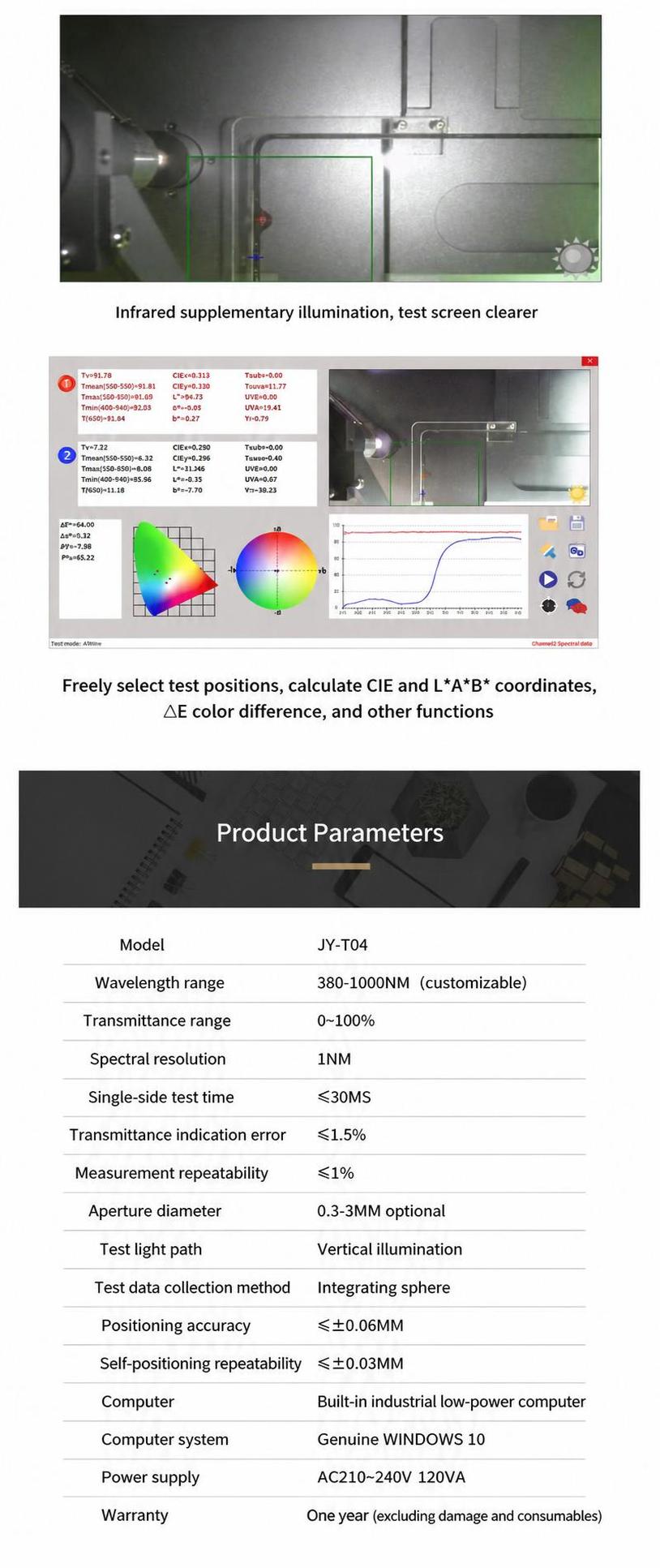

Free choice of testing location, able to calculate CIE and LAB * color coordinates, △ E color difference and other functions
六、Product Specifications
| project |
parameter |
| model |
JY-T04 |
| wavelength range |
380-1000NM（customizable） |
| Transmittance range |
0~100% |
| spectral resolution |
1NM |
| Unilateral testing time |
≤30MS |
| Transmittance indication error |
≤1.5% |
| Measurement repeatability |
≤1% |
| spot diameter |
0.3-3MM Optional |
| Test the optical path |
Vertical illumination |
| Test collection method |
integrating sphere |
| positioning accuracy |
≤±0.06MM |
| Self positioning repeatability |
≤±0.03MM |
| computer |
Built in industrial grade low-power computer |
| computer system |
Genuine WINDOWS 10 |
| electric power |
AC210~240V 120VA |
| warranty |
One year (excluding human damage and consumables) |
七、About the product
Components of the measuring instrument
Transmittance testing host: 1 standard configuration
Power cord: 1 piece
Transmittance measurement and control software: 1 set
Mouse and keyboard: 1 set
Sales Service
Pre sales service: Professional technical engineers analyze and recommend suitable solutions, and select ideal instruments.
In sales service: During the product sales process, the company will provide relevant product training and lectures to users.
After sales service: Professional technical support provided: one-on-one telephone support service, professional remote software service, on-site repair service.
After-sales service
All products come with a 1-year free warranty and lifetime service
Only a small amount of repair cost will be charged for products outside the warranty period
Products outside the warranty period will be covered by a six-month warranty from the date of repair
The software products sold by the company can be modified according to customer requirements within 1 year, and upgraded for free within 2 years
Assist users in using the purchased product correctly, ensuring that they will use it and make good use of it
Provide partial design and development services
Provide product supporting services
Product Advantages
| parameter |
Single band |
Full spectrum manual |
Full spectrum semi-automatic |
| Full spectrum |
× |
√ |
√ |
| integrating sphere |
× |
√ |
√ |
| Multi-point testing |
× |
× |
√ |
| auto-positioning |
× |
× |
√ |
| Test screen monitoring |
× |
× |
√ |
| Automatically determine OK/NG |
× |
√ |
√ |
| Automatic data comparison |
× |
× |
√ |
| precision |
poor |
Excellent |
Excellent |
八、Product Advantages
Advantage 1
This product adheres to the principle of independent innovation, and has applied for multiple patented technologies and software copyright certificates.
- Partial patent certificate for transmittance detector
- Software copyright certificate for transmittance detector
Advantage 2
This product adheres to innovation and quality as the foundation, and has the characteristics of accurate, comprehensive, fast, convenient, and wide application range of measurement results. It has been awarded the qualification certificate of high-tech products.
- High tech product certificate for transmittance detector
Advantage Three
This product has authoritative certification, has been calibrated by a metrology institute, and can be accompanied by a calibration certificate.
