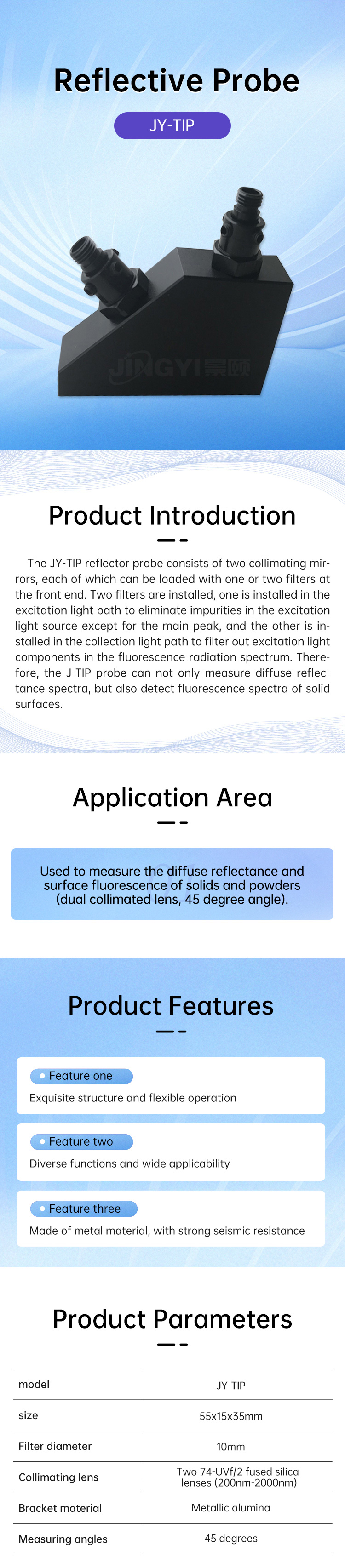

JY-TIP 反射式探头产品介绍
Reflective Probe JY-TIP
Product Introduction The JY-TIP reflector probe consists of two collimating mirrors, each of which can be loaded with one or two filters at the front end. Two filters are installed, one is installed in the excitation light path to eliminate impurities in the excitation light source except for the main peak, and the other is installed in the collection light path to filter out excitation light components in the fluorescence radiation spectrum. Therefore, the J-TIP probe can not only measure diffuse reflectance spectra, but also detect fluorescence spectra of solid surfaces.
Application Area Used to measure the diffuse reflectance and surface fluorescence of solids and powders (dual collimated lens, 45 degree angle).
Product Features Exquisite structure and flexible operation Diverse functions and wide applicability Made of metal material, with strong seismic resistance
Product Parameters
|
|
|
|
model
|
JY-TIP
|
|
size
|
55x15x35mm
|
|
Filter diameter
|
10mm
|
|
Collimating lens
|
Two 74-UVf/2 fused silica lenses (200nm-2000nm)
|
|
Bracket material
|
Metallic alumina
|
|
Measuring angles
|
45 degrees
|
