Colorimetric Dish Holder JY-CUV-VAR Product Introduction

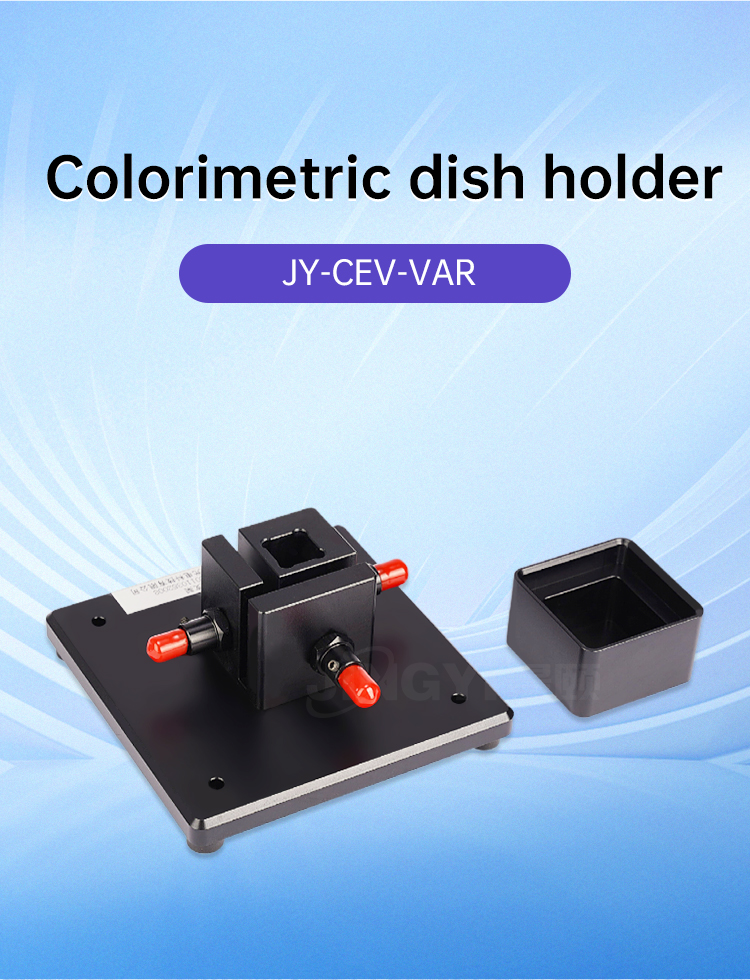

Colorimetric dish holder JY-CEV-VAR

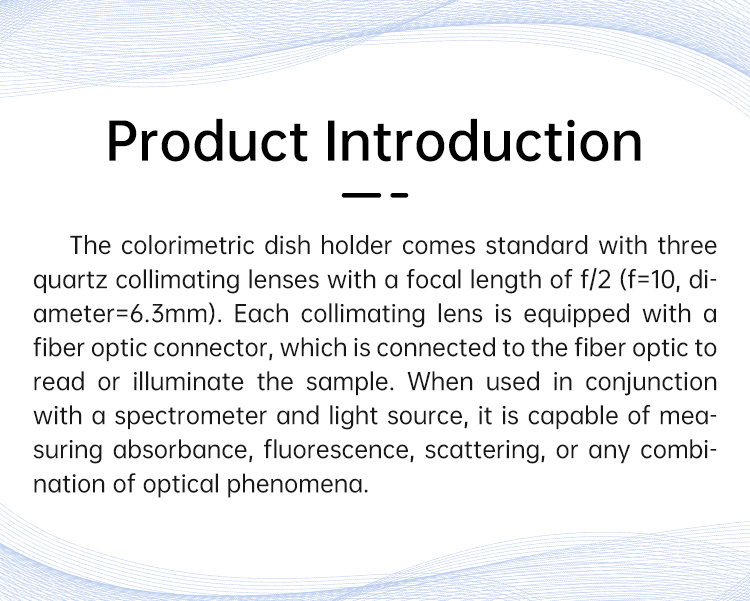

Product Introduction The colorimetric dish holder comes standard with three quartz collimating lenses with a focal length of f/2 (f=10, diameter=6.3mm). Each collimating lens is equipped with a fiber optic connector, which is connected to the fiber optic to read or illuminate the sample. When used in conjunction with a spectrometer and light source, it is capable of measuring absorbance, fluorescence, scattering, or any combination of optical phenomena.

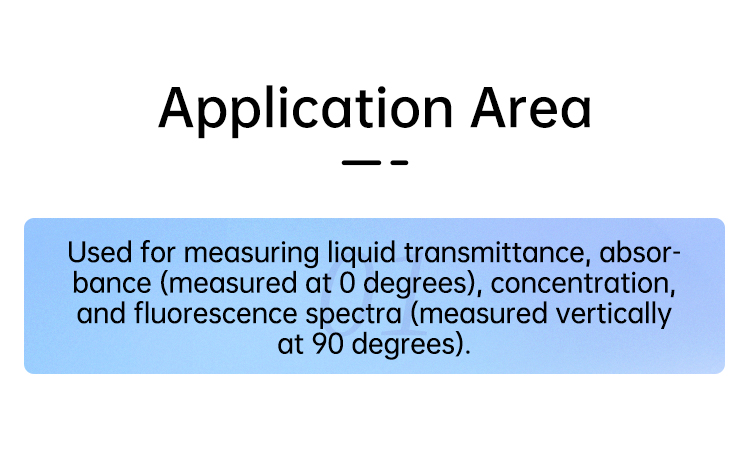

Application Area Used for measuring liquid transmittance, absorbance (measured at 0 degrees), concentration, and fluorescence spectra (measured vertically at 90 degrees).

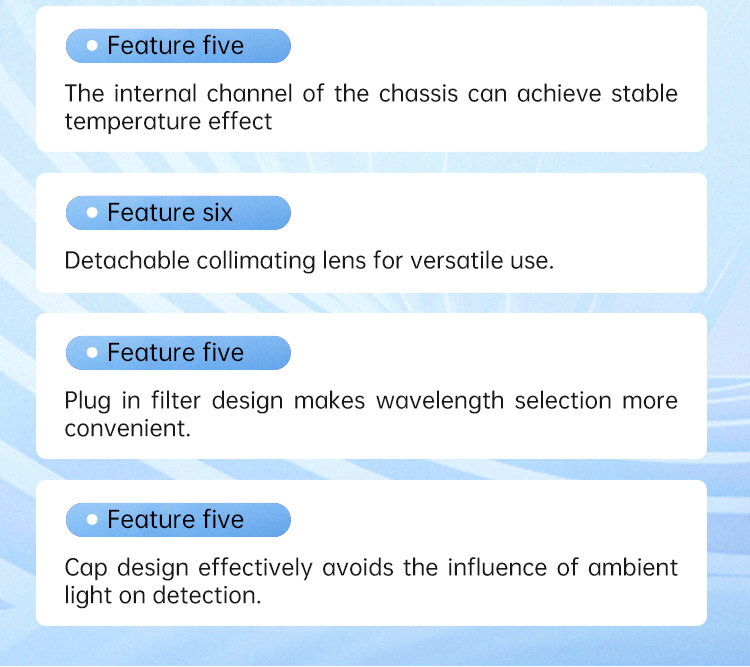

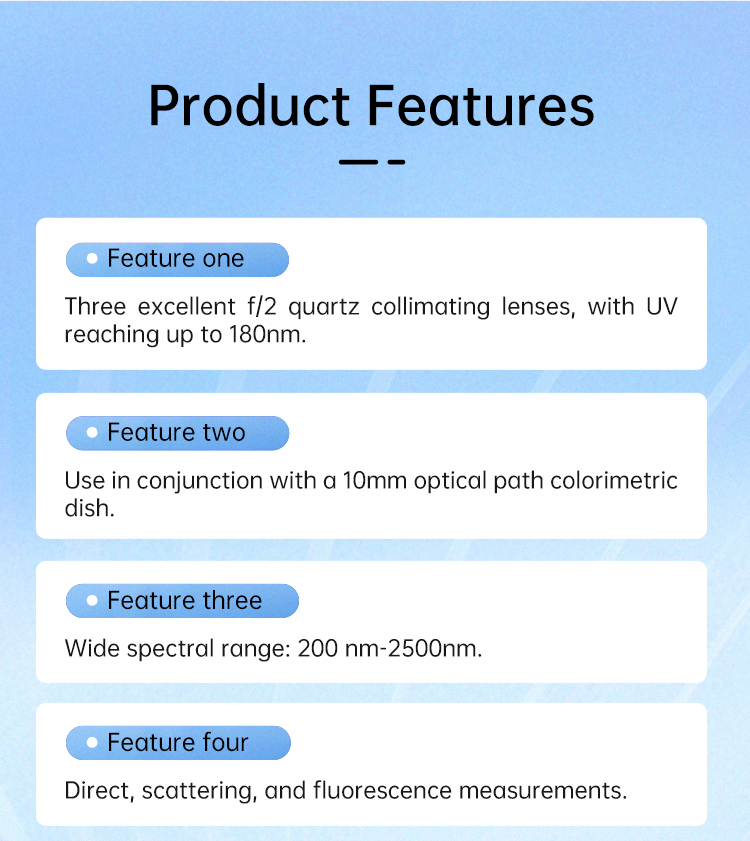

Product Features Three excellent f/2 quartz collimating lenses, with UV reaching up to 180nm. Use in conjunction with a 10mm optical path colorimetric dish. Wide spectral range: 200 nm-2500nm. Direct, scattering, and fluorescence measurements. The internal channel of the chassis can achieve stable temperature effect Detachable collimating lens for versatile use. Plug in filter design makes wavelength selection more convenient. Cap design effectively avoids the influence of ambient light on detection.

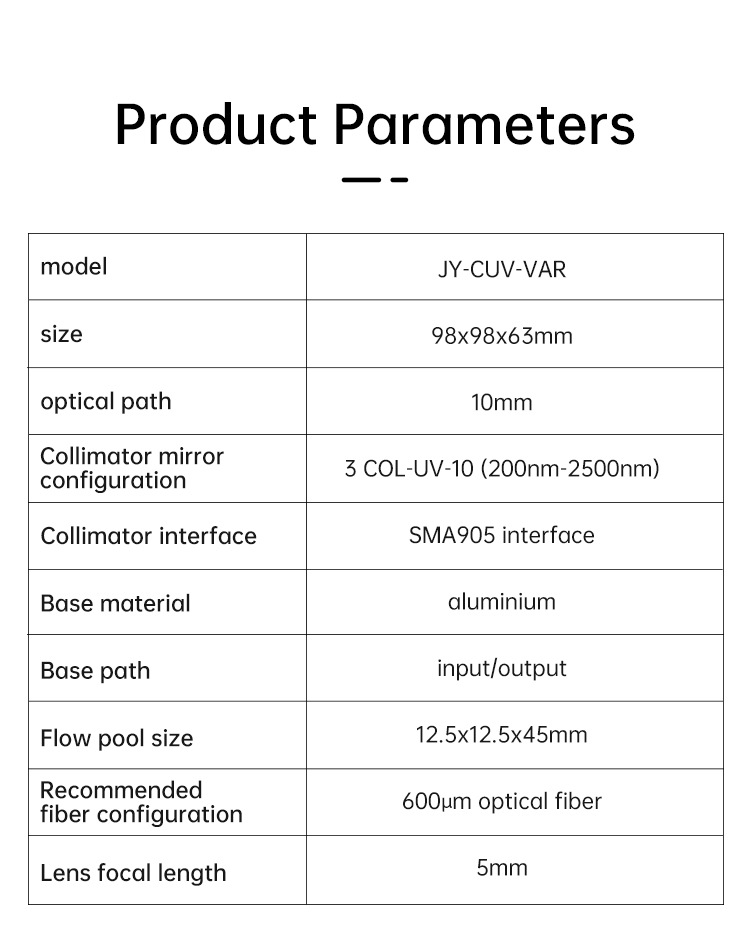

Product Parameters

model	JY-CUV-VAR
size	98x98x63mm
optical path	10mm
Collimator mirror configuration	3 COL-UV-10 (200nm-2500nm)
Collimator interface	SMA905 interface
Base material	aluminium
Base path	input/output
Flow pool size	12.5x12.5x45mm
Recommended fiber configuration	600µm optical fiber
Lens focal length	5mm
