74-TCHS 透射积分球支架产品介绍

Transmittance Integrating Sphere Bracket 74-TCHS

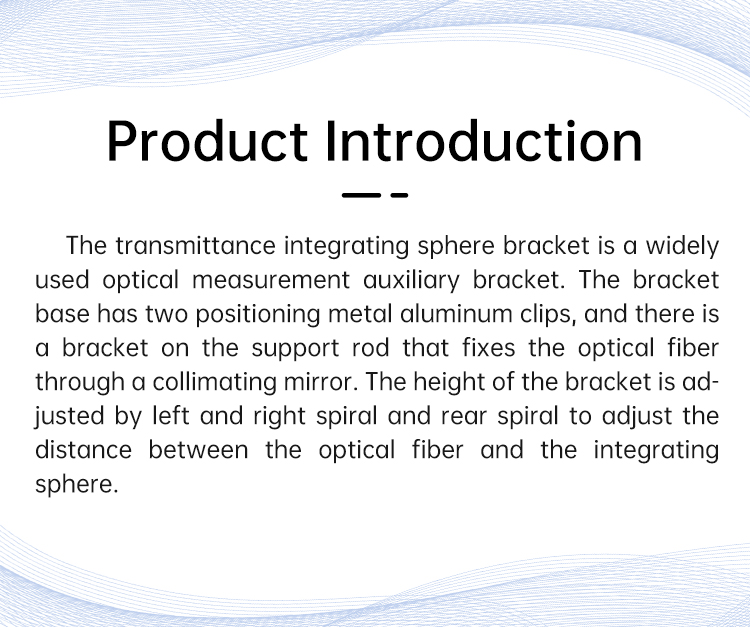

Product Introduction The transmittance integrating sphere bracket is a widely used optical measurement auxiliary bracket. The bracket base has two positioning metal aluminum clips, and there is a bracket on the support rod that fixes the optical fiber through a collimating mirror. The height of the bracket is adjusted by left and right spiral and rear spiral to adjust the distance between the optical fiber and the integrating sphere.

Application Area Transmittance testing of solids and powders using an integrating sphere collection method.

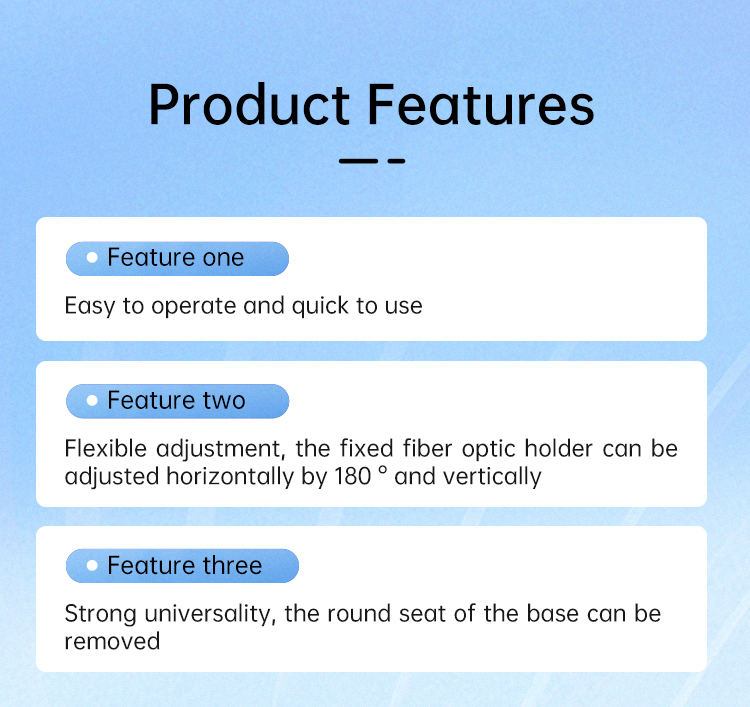

Product Features Easy to operate and quick to use Flexible adjustment, the fixed fiber optic holder can be adjusted horizontally by 180 ° and vertically Strong universality, the round seat of the base can be removed

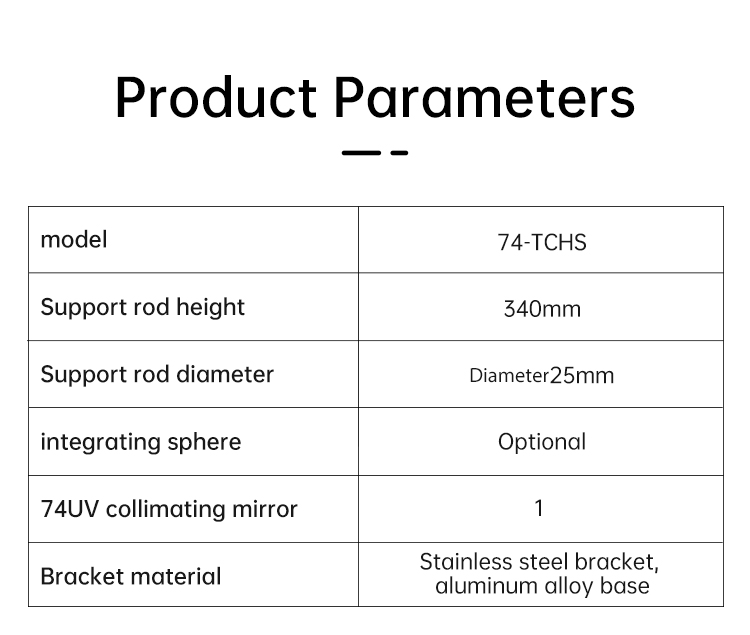

Product Parameters

model	74-TCHS
Support rod height	340mm
Support rod diameter	Diameter25mm
integrating sphere	Optional
74UV collimating mirror	1
Bracket material	Stainless steel bracket, aluminum alloy base
