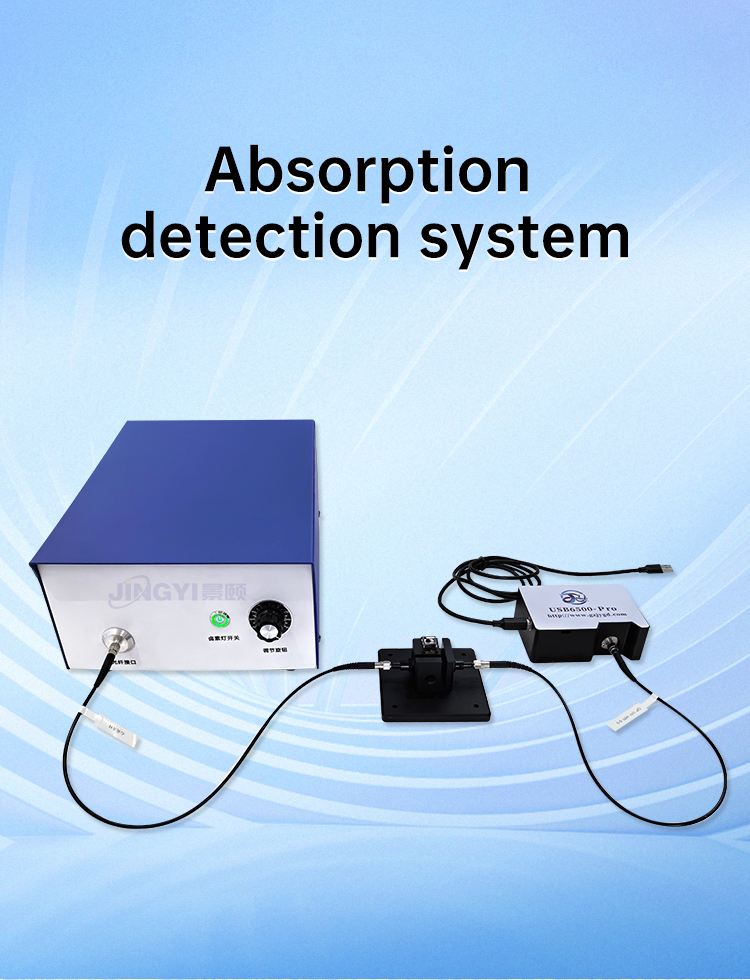

Absorption detection system

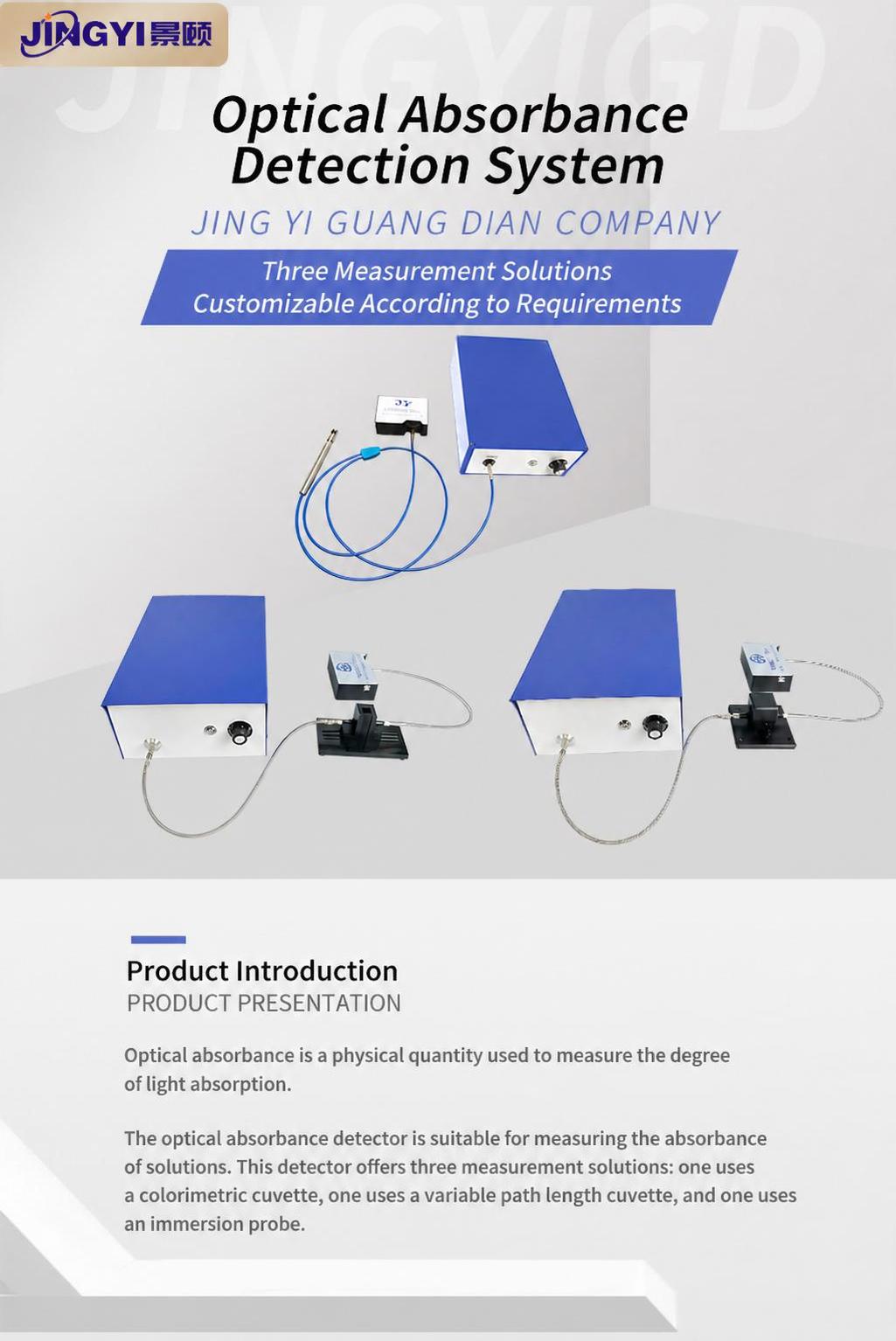

Product Introduction
Absorbance is a physical quantity used to measure the degree of absorption of light. The absorbance detector is suitable for measuring the absorbance of solutions. There are three measurement schemes for this detector:
-
- Measure using a four-way colorimetric dish
- Measurement using a variable optical path colorimetric dish
- Measurement using an immersion probe
The system can flexibly select configurations according to different application scenarios to meet diverse detection needs.

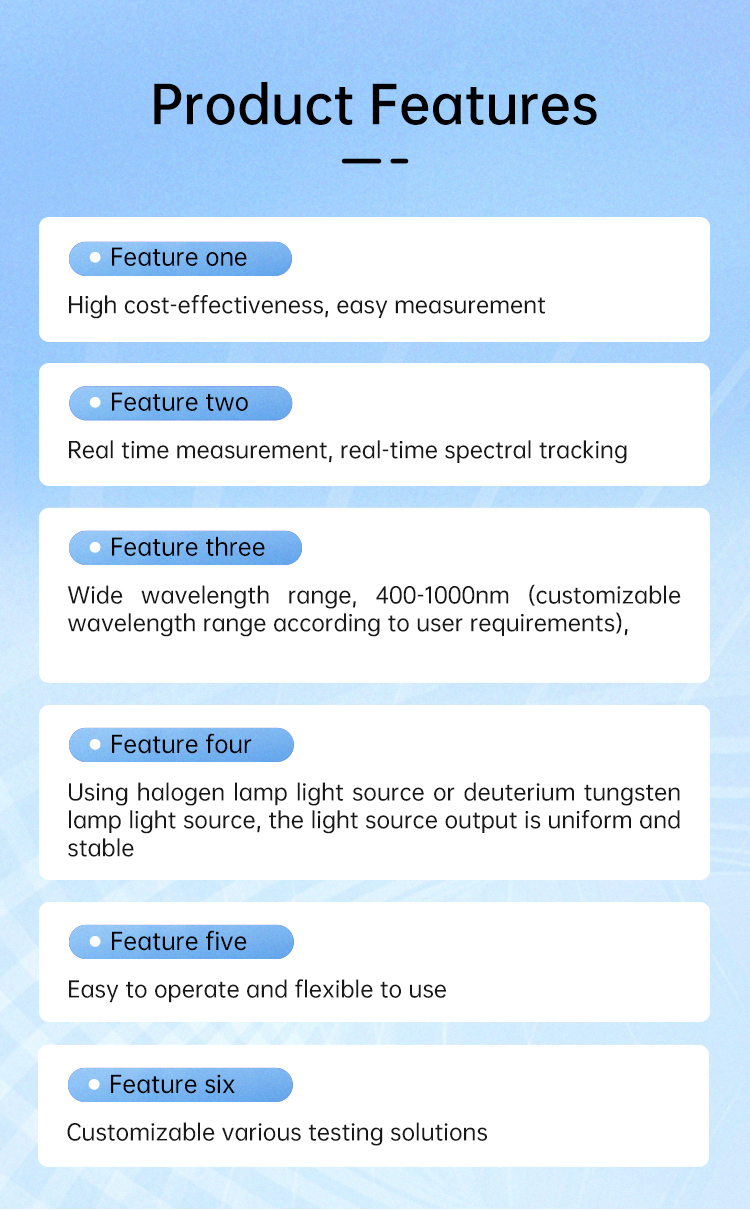

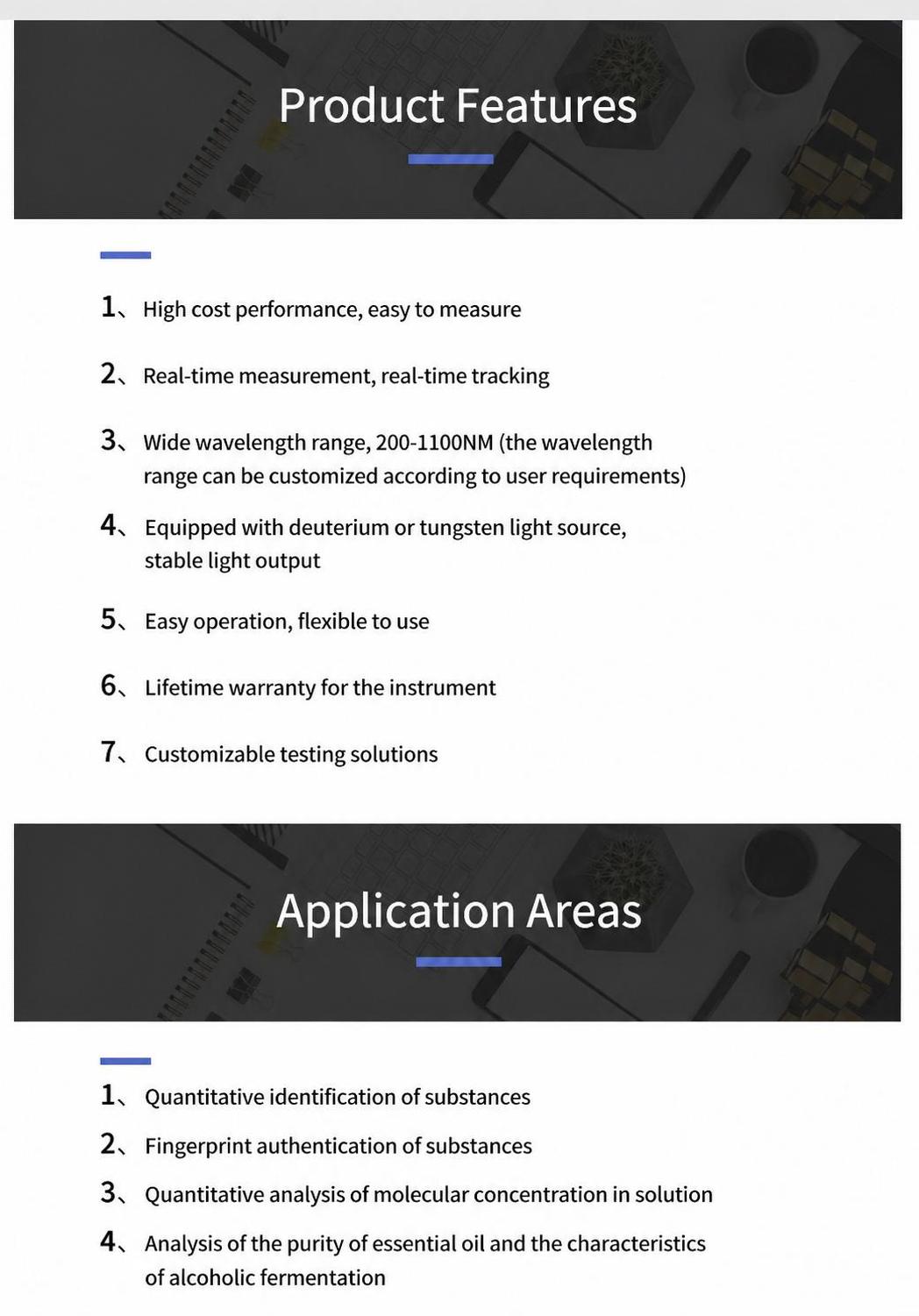

Product Features
High cost-effectiveness, easy measurement
Real time measurement, real-time spectral tracking
Wide wavelength range, 200-1100nm (customizable wavelength range according to user requirements)
Using halogen lamp light source or deuterium tungsten lamp light source, the light source output is uniform and stable
Easy to operate and flexible to use
Lifetime warranty for instruments
Customizable various testing solutions

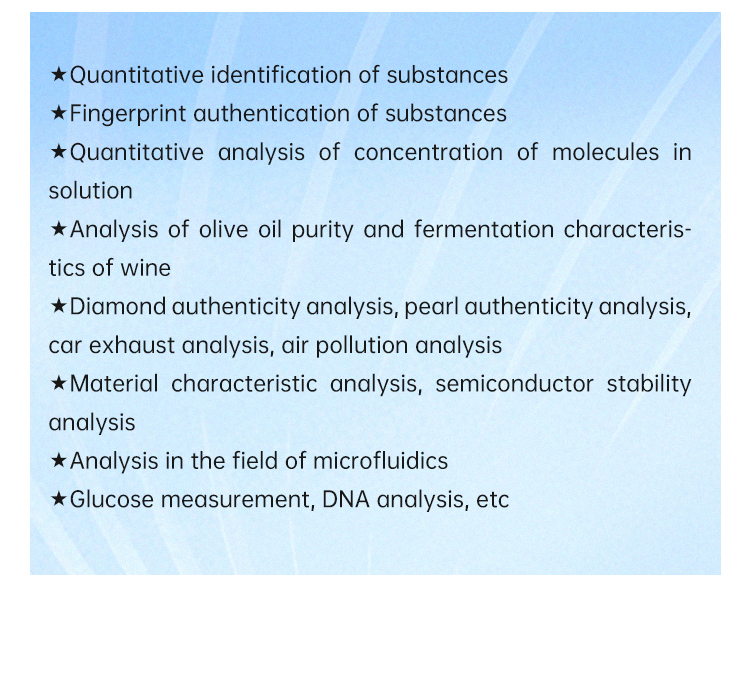

Application Fields
-
- Quantitative identification of substances
- Material fingerprint authentication
- Quantitative analysis of concentration of molecules in solution
- Analysis of olive oil purity and fermentation characteristics of wine
- Diamond authenticity analysis, pearl authenticity analysis, automobile exhaust analysis, air pollution monitoring
- Material characteristic analysis, semiconductor stability analysis
- Analysis in the field of microfluidics
- Glucose measurement, DNA analysis, etc

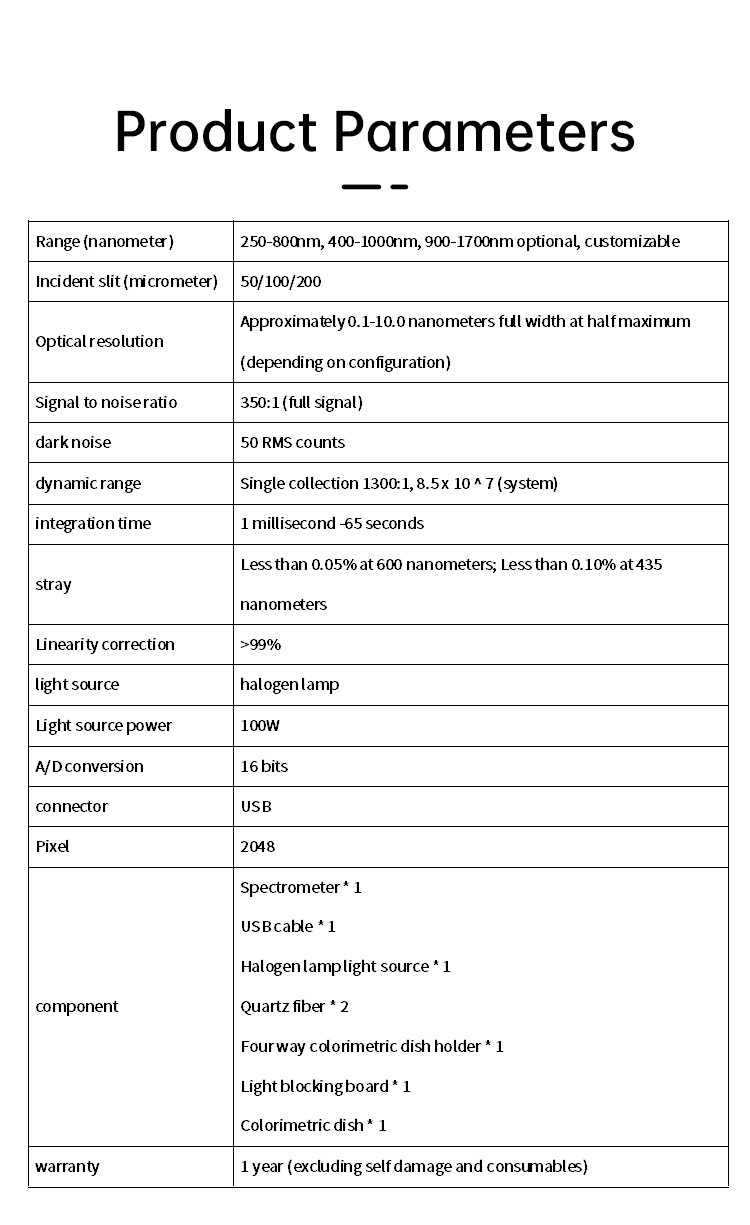

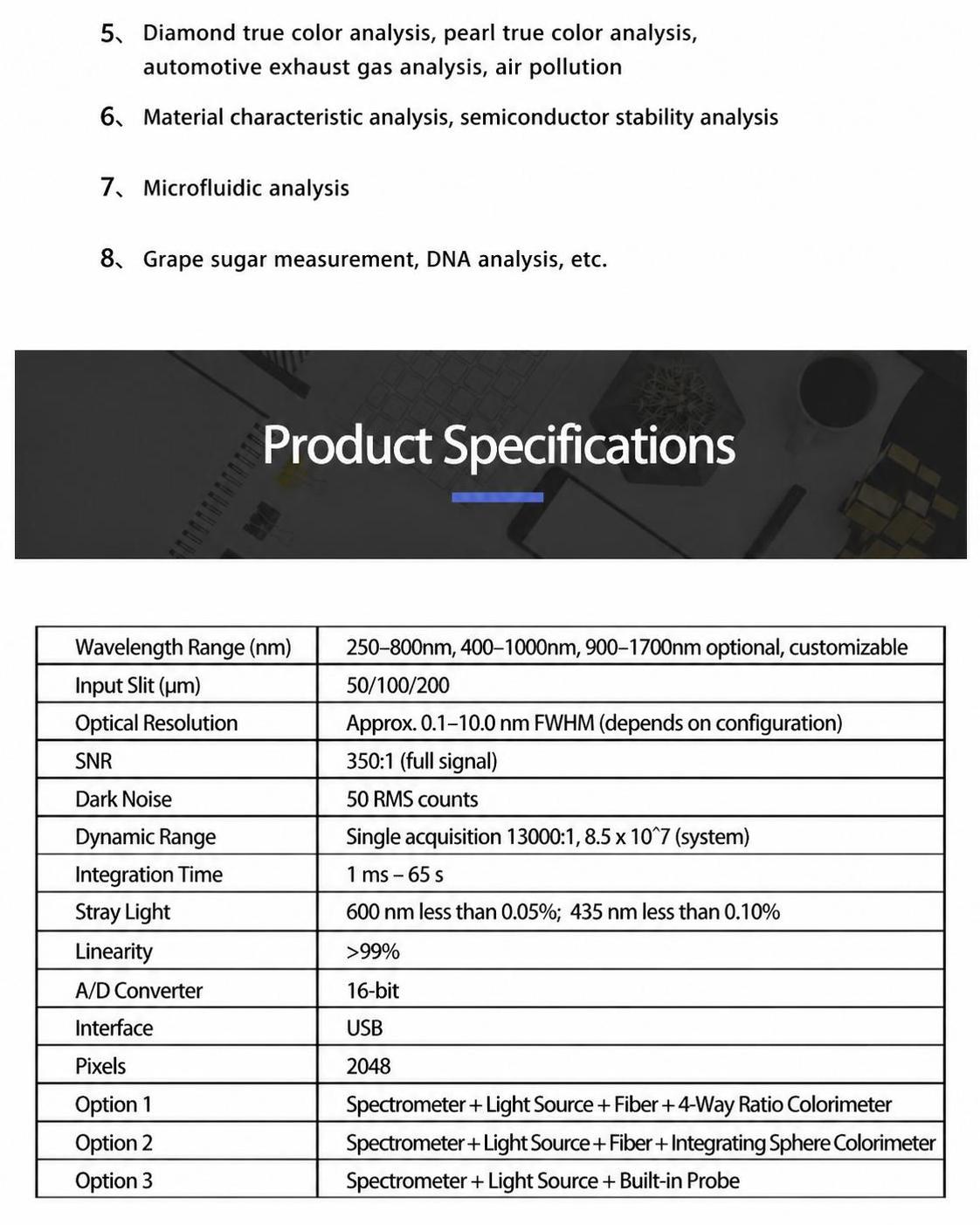

Product Specifications
| parameter |
Specification |
| Range (nanometer) |
250–800nm、400–1000nm、900–1700nm Optional, customizable |
| Incident slit (micrometer) |
50 / 100 / 200 |
| optical resolution |
Approximately 0.1-10.0 nanometers full width at half maximum (depending on configuration) |
| Signal-to-Noise Ratio |
350:1 (full signal) |
| Dark noise |
50 RMS counts |
| dynamic range |
Single collection 1300:1, 8.5 × 10 ⁷ (system) |
| integration time |
1 millisecond -65 seconds |
| stray light |
Less than 0.05% at 600 nanometers; Less than 0.10% at 435 nanometers |
| Linear correction |
>99% |
| A/D conversion |
16 bits |
| Connector |
USB |
| pixel |
2048 |
| Option One |
Spectrometer light source fiber four-way colorimetric dish |
| Option Two |
Spectrometer light source fiber variable optical path colorimetric dish |
| Option Three |
Spectrometer light source embedded probe |

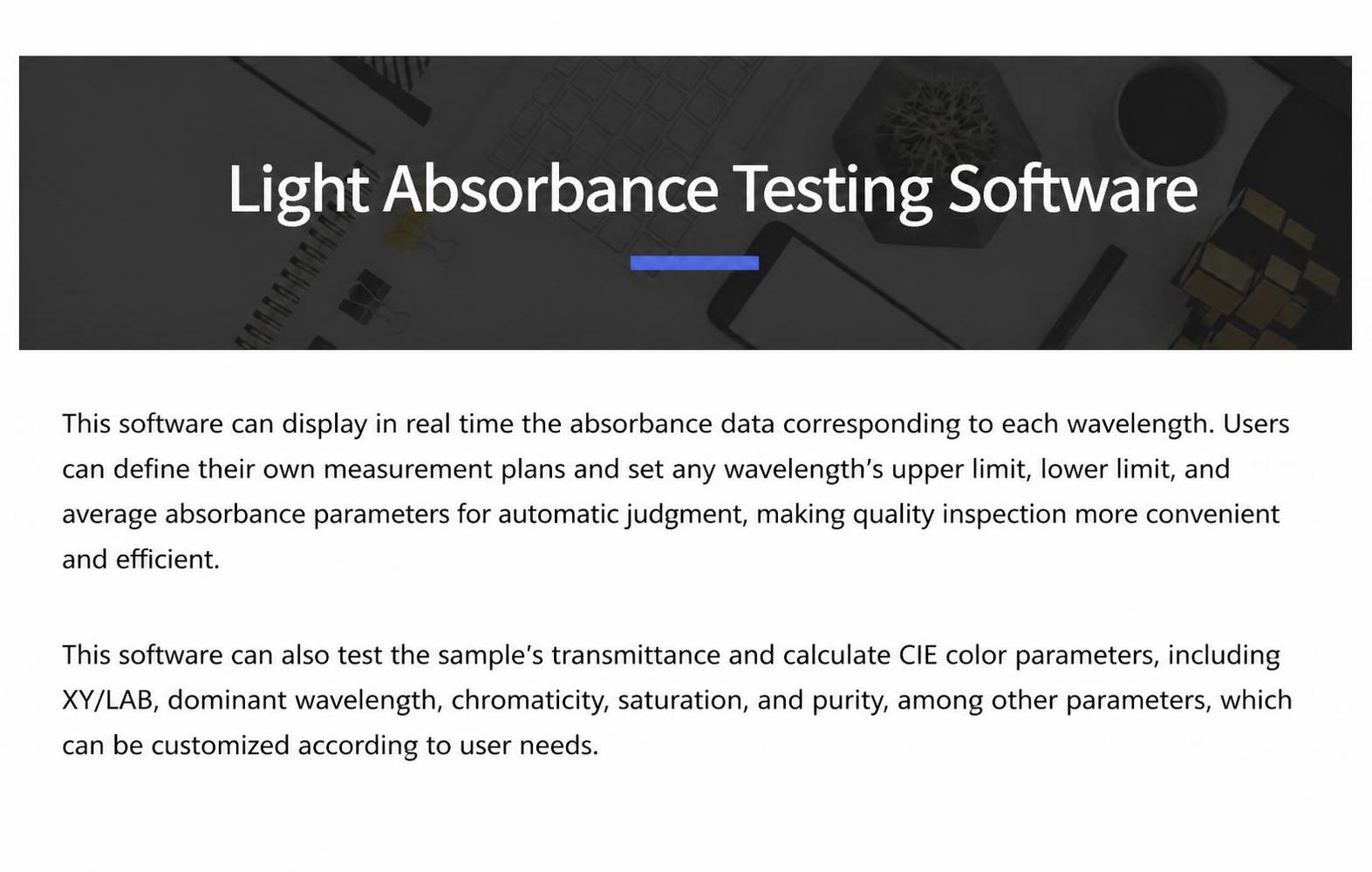

Absorbance testing software
This software can display real-time absorbance data corresponding to each wavelength. Users can customize measurement schemes and set parameters such as upper and lower limits, average absorbance, etc. for any wavelength for automatic judgment, making quality inspection more convenient and efficient.
In addition, the software can also test the transmittance and reflectance of samples, and calculate CIE color parameters (such as XY/LAB), dominant wavelength, saturation, color purity, and other parameters, with powerful and flexible functions. The software supports user customization functions to meet personalized application needs.
