JY-D2000 氘灯紫外光源产品介绍

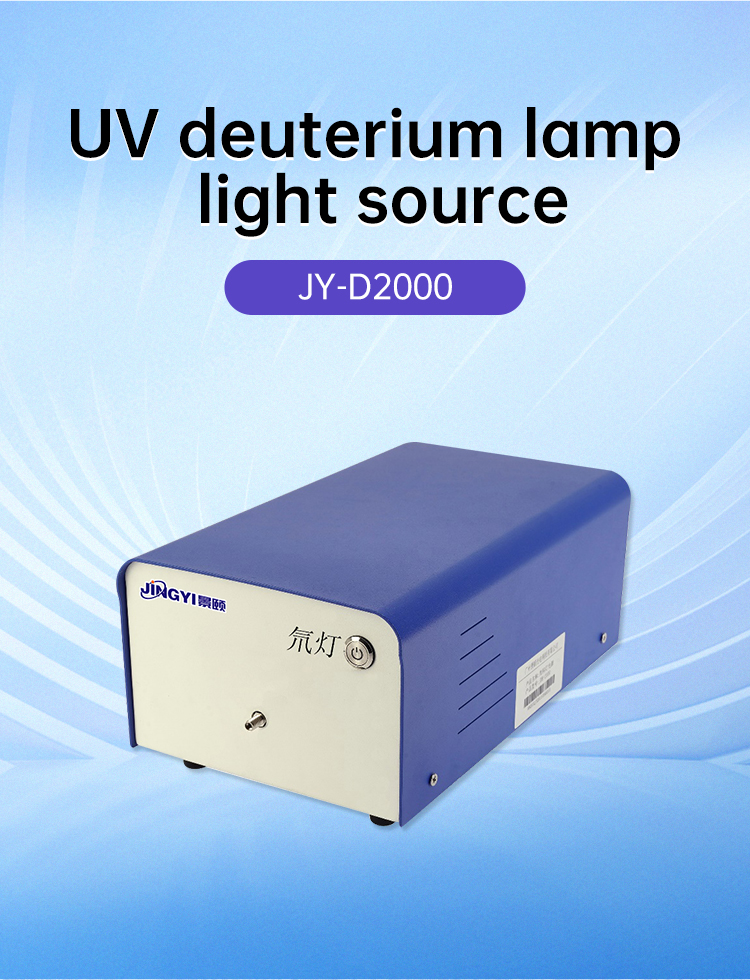

UV deuterium lamp light source JY-D2000
Product Introduction The JY-D2000 deuterium lamp can provide high-intensity ultraviolet spectral radiation from 195-600nm and output a stable 195-600nm ultraviolet spectrum, making it the most ideal choice for scientific research grade ultraviolet light sources. Its light source output port is SMA905 interface or FC interface, which can also be customized according to needs.
Application Area Suitable for a wide range of UV spectral reflectance measurements Suitable for measuring UV spectral transmittance Suitable for UV spectral absorbance measurement UV flue gas analyzer Water quality analysis, etc
Product Features Covering the deep ultraviolet spectral range of 195-600nm The light source output is stable and the measurement repeatability is high. The output port of the light source is a fiber optic interface, with interface type SMA905/FC, which can be customized according to requirements. With a lifespan of up to 2000 hours and excellent performance.

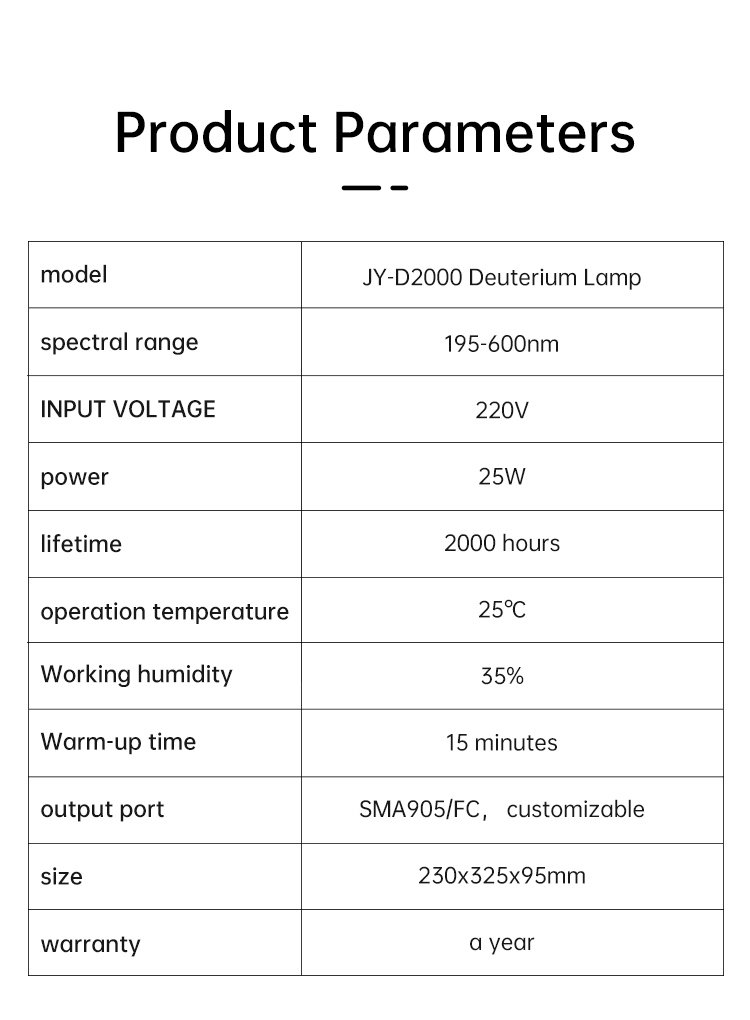

Product Parameters
|
|
|
|
model
|
JY-D2000 Deuterium Lamp
|
|
spectral range
|
195-600nm
|
|
INPUT VOLTAGE
|
220V
|
|
power
|
25W
|
|
lifetime
|
2000 hours
|
|
operation temperature
|
25℃
|
|
Working humidity
|
35%
|
|
Warm-up time
|
15 minutes
|
|
output port
|
SMA905/FC, customizable
|
|
size
|
230x325x95mm
|
|
warranty
|
a year
|
