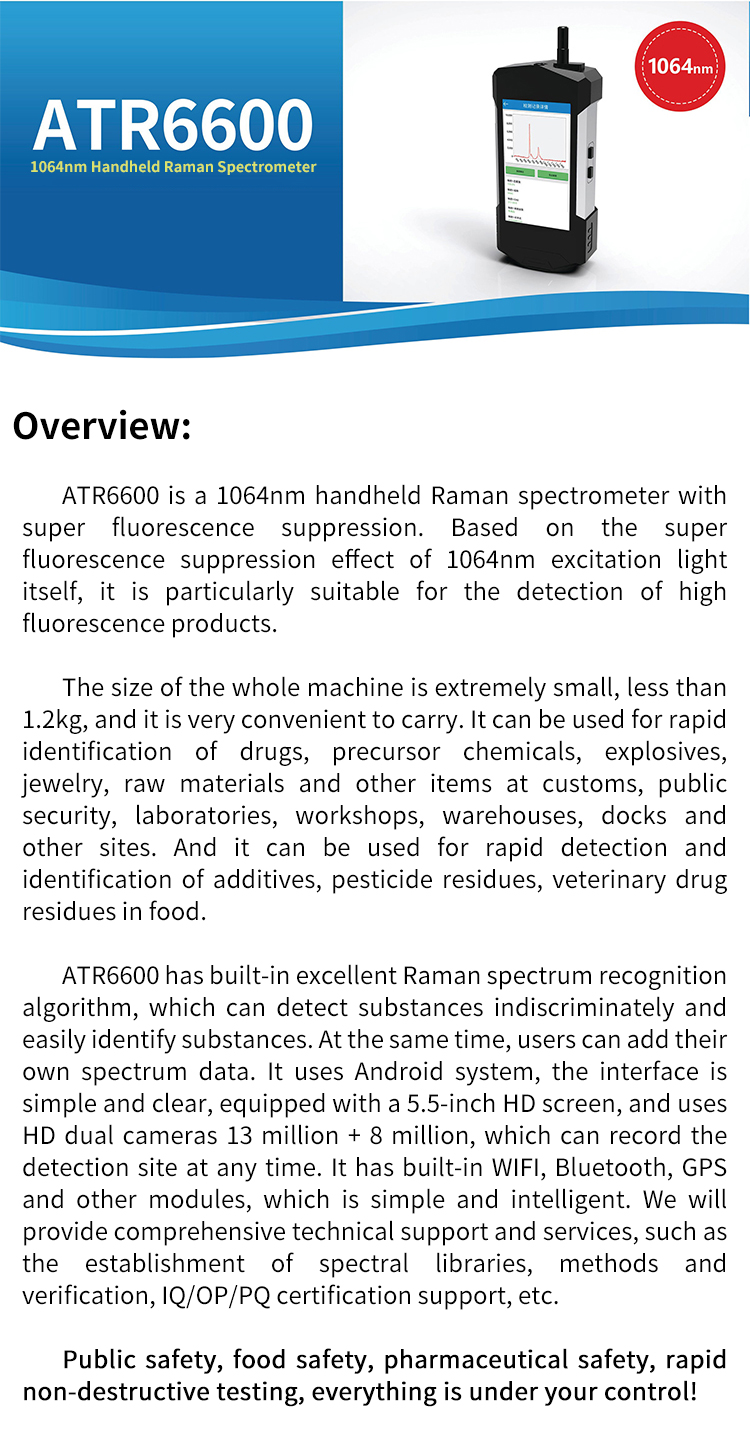

Overview

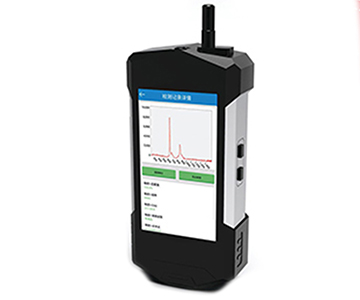

The ATR6600 is a 1064nm handheld Raman spectrometer featuring superior fluorescence suppression. Leveraging the inherent fluorescence-suppressing properties of 1064nm excitation light, this device is especially effective in analyzing samples with high fluorescence interference—such as biological tissues, pharmaceuticals, and complex organic compounds.
With its ultra-compact design (weighing less than 1.2 kg), the ATR6600 is highly portable and ideal for rapid on-site identification of:
- Drugs and precursor chemicals
- Explosives
- Jewelry and gemstones
- Raw materials and industrial chemicals
- Food additives, pesticide residues, and veterinary drug residues
It is widely used in customs, public security, laboratories, workshops, warehouses, docks, and other critical environments.
The instrument integrates an advanced built-in AI-based Raman spectrum recognition algorithm, enabling fast, accurate, and automatic substance identification—even for unknown samples. Users can also upload custom spectral libraries to expand detection capabilities.
Running on the Android operating system, the ATR6600 features a 5.5-inch HD capacitive touchscreen, dual HD cameras (13MP + 8MP) for capturing real-time images of the sample site, and supports Wi-Fi, Bluetooth, GPS, and GSM connectivity for seamless data transmission and remote operation.
Comprehensive technical support includes:
- Custom spectral library development
- Method validation and verification
- IQ/OQ/PQ certification assistance
Whether it’s public safety, food safety, or pharmaceutical quality control, the ATR6600 puts rapid, non-destructive testing under your full control.

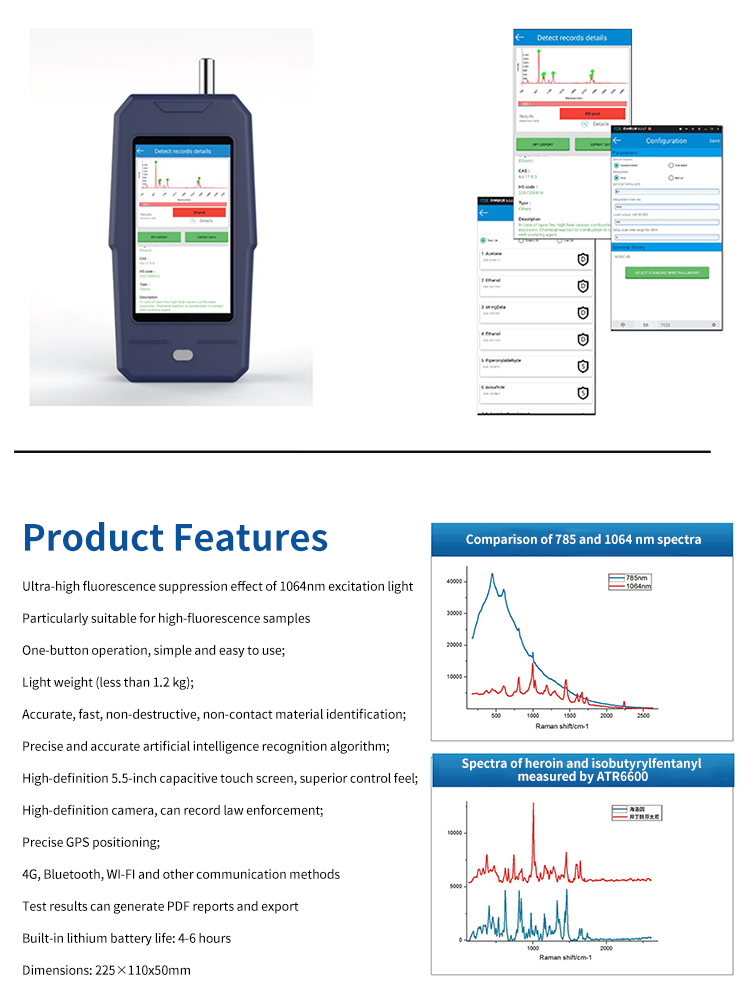

Product Features
- Ultra-high fluorescence suppression using 1064nm excitation light
→ Ideal for high-fluorescence samples that overwhelm traditional Raman systems
- One-button operation
→ Simple, intuitive interface; minimal training required
- Lightweight design (<1.2 kg)
→ Easy to carry and use in field operations
- Fast, accurate, non-destructive, non-contact analysis
→ No sample preparation needed
- AI-powered intelligent recognition algorithm
→ Automatically identifies substances with high accuracy
- 5.5-inch HD multi-touch capacitive screen
→ Responsive and user-friendly interface
- Dual HD cameras (13MP + 8MP)
→ Records visual evidence of detection sites for law enforcement and documentation
- Built-in GPS positioning
→ Logs location data during sampling
- Multiple communication options:
- Wi-Fi
- Bluetooth
- 4G/GSM (optional)
- USB Type-C
- PDF report generation & export
→ Test results can be exported as text, PDF, or image files
- Long battery life: 4–6 hours
→ Supports continuous operation in field environments
- Compact dimensions: 225 × 110 × 50 mm
→ Fits easily into bags or vests

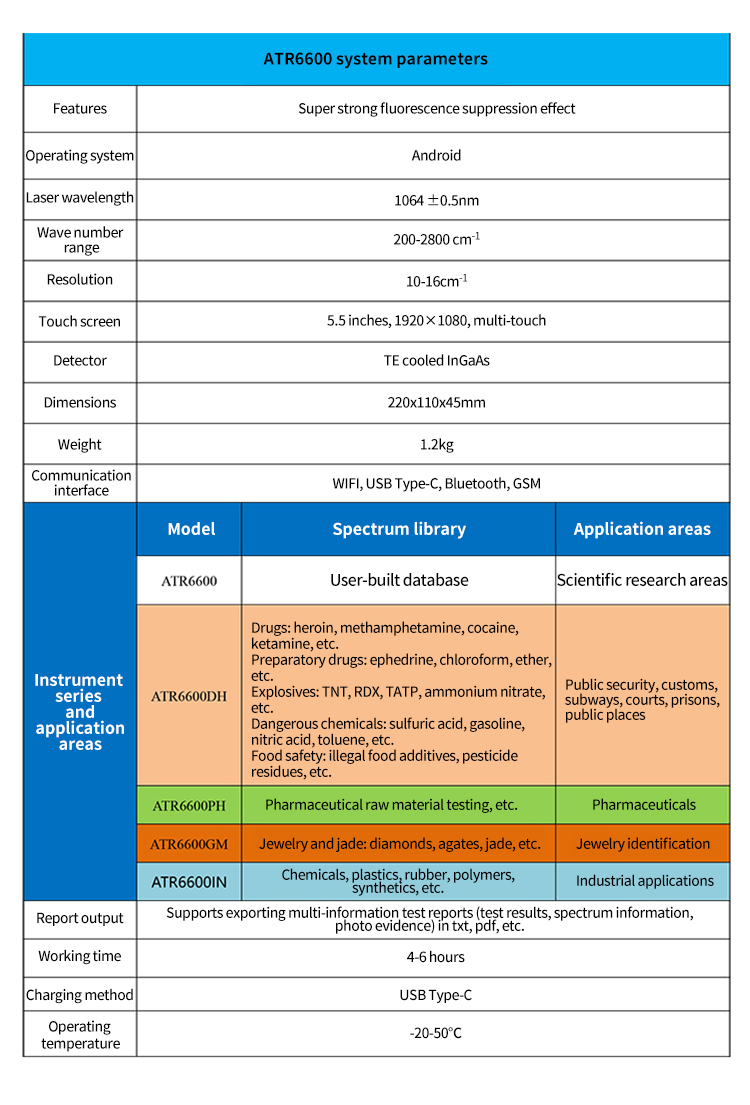

Technical Specifications
| Parameter |
Specification |
| Fluorescence Suppression |
Super strong suppression effect |
| Operating System |
Android |
| Laser Wavelength |
1064 ± 0.5 nm |
| Wave Number Range |
200–2800 cm⁻¹ |
| Spectral Resolution |
10–16 cm⁻¹ |
| Touch Screen |
5.5 inches, 1920×1080, multi-touch |
| Detector |
TE-cooled InGaAs |
| Dimensions |
220 × 110 × 45 mm |
| Weight |
1.2 kg |
| Communication Interfaces |
Wi-Fi, USB Type-C, Bluetooth, GSM |
| Working Time |
4–6 hours |
| Charging Method |
USB Type-C |
| Operating Temperature |
–20°C to +50°C |
Instrument Series & Application Areas
| Model |
Spectrum Library |
Application Areas |
| ATR6600 |
User-built database |
Scientific research, general analysis |
| ATR6600DH |
Drugs: heroin, methamphetamine, cocaine, ketamine
Preparatory drugs: ephedrine, chloroform, ether
Explosives: TNT, RDX, TATP, ammonium nitrate
Dangerous chemicals: sulfuric acid, gasoline, nitric acid, toluene
Food safety: illegal additives, pesticide residues |
Public security, customs, subways, courts, prisons, public places |
| ATR6600PH |
Pharmaceutical raw materials |
Pharmaceuticals |
| ATR6600GM |
Jewelry: diamonds, agates, jade, coral |
Jewelry identification |
| ATR6600IN |
Chemicals, plastics, rubber, polymers, synthetics |
Industrial applications |
✅ Report Output: Supports export of multi-information test reports (test results, spectra, photos) in txt, pdf, jpg, etc.
Application Areas
- Anti-terrorism and Drug Control
→ Rapid detection of narcotics and explosives at checkpoints and secure zones.
- University Laboratories
→ Research-grade analysis for chemistry, biology, and materials science.
- Quality Inspection and Drug Supervision
→ Ensure compliance with pharmaceutical standards and detect counterfeit drugs.
- Food Testing
→ Detect pesticide residues, veterinary drug residues, and illegal food additives.
- Petroleum Industry
→ Analyze crude oil components and industrial lubricants.
- Archaeological Survey
→ Non-destructive identification of ancient pigments, ceramics, and artifacts.
- Jewelry Appraisal
→ Authenticate diamonds, gemstones, jade, and other precious materials.

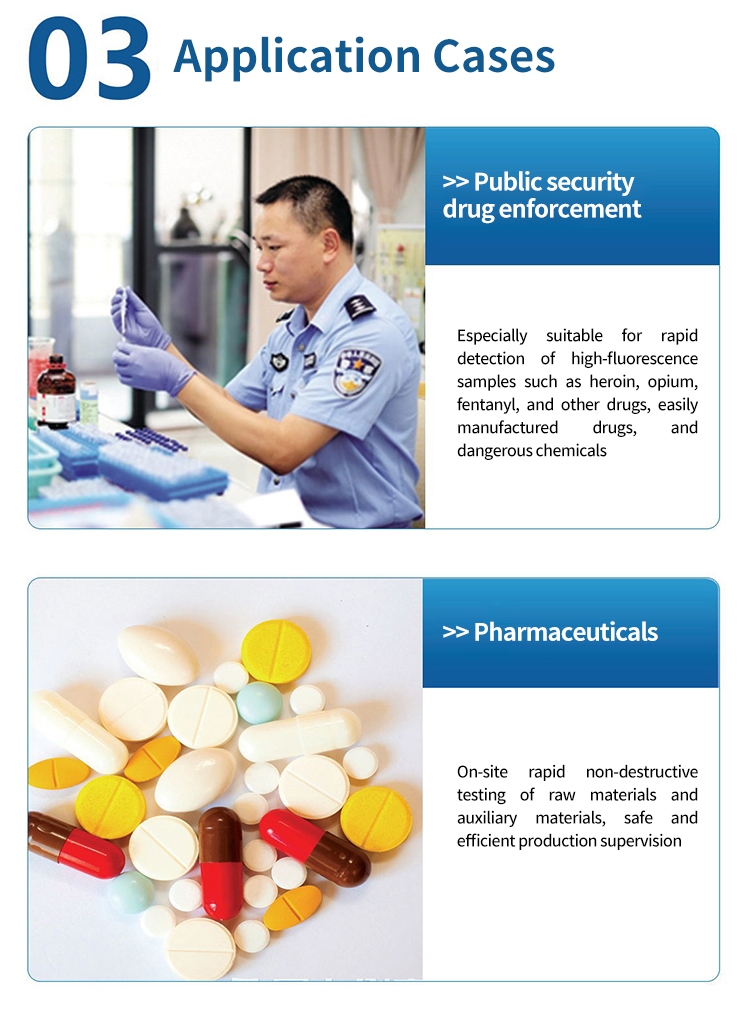

Application Cases
➤ Public Security – Drug Enforcement
Especially suitable for rapid detection of high-fluorescence substances such as heroin, opium, fentanyl, and other controlled drugs.
Effective in identifying illegally manufactured drugs and dangerous chemicals.
Enables on-site forensic analysis without lab delays.
➤ Pharmaceuticals
On-site, non-destructive testing of raw materials and auxiliary ingredients.
Ensures product quality and production consistency.
Supports efficient supervision in manufacturing environments.

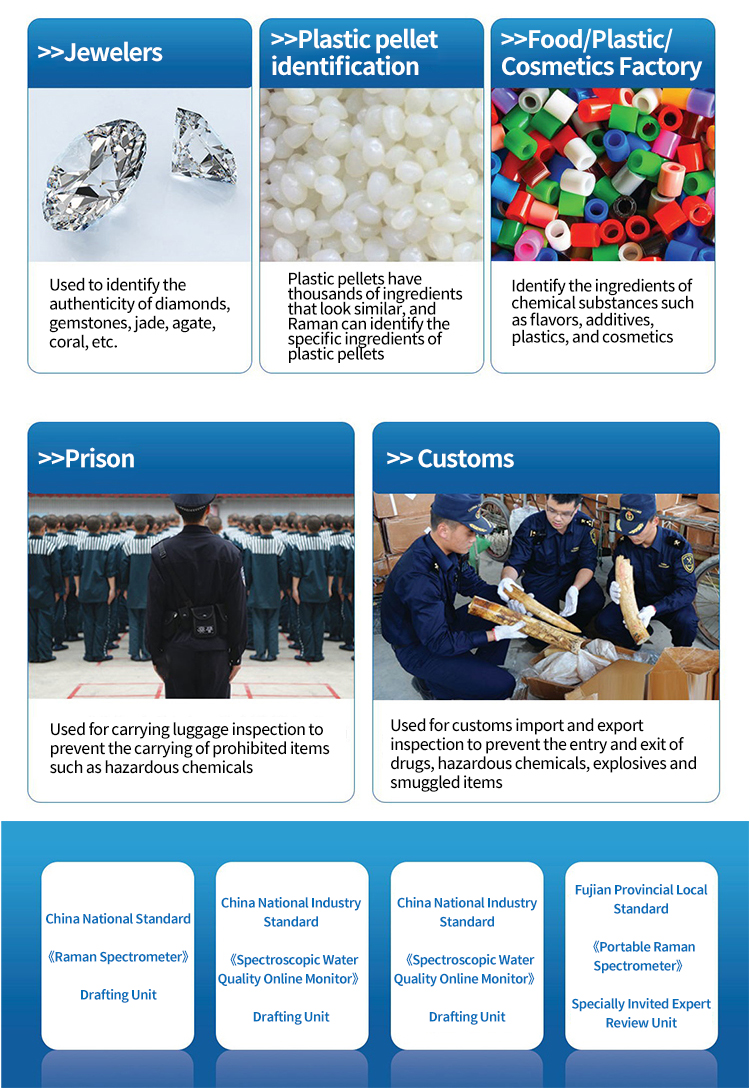

➤ Jewelers
Used to verify the authenticity of diamonds, gemstones, jade, agate, and coral.
Provides reliable, instant results without damaging the specimen.
➤ Plastic Pellet Identification
Plastic pellets often have similar appearances but different compositions.
Raman spectroscopy precisely identifies specific chemical ingredients within each pellet.
➤ Food / Plastic / Cosmetics Factory
Identifies chemical components such as flavors, additives, plastics, and cosmetic ingredients.
Useful for quality control and adulteration detection.
➤ Prison
Used for luggage inspection to prevent inmates from smuggling hazardous chemicals, drugs, or other prohibited items.
➤ Customs
Deployed in import/export inspections to detect drugs, explosives, hazardous chemicals, and smuggled goods.
Enhances border security and regulatory compliance.
