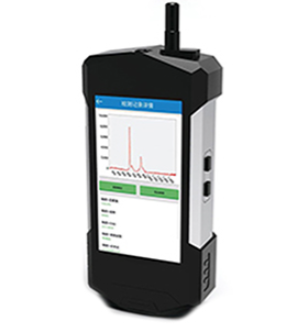

ATR6600 is a 1064nm handheld Raman spectrometer with super fluorescence suppression. Based on the super fluorescence suppression effect of 1064nm excitation light itself, it is particularly suitable for the detection of high fluorescence products. The size of the whole machine is extremely small, less than 1.2kg, and it is very convenient to carry. It can be used for rapid identification of drugs, precursor chemicals, explosives, jewelry, raw materials and other items at customs, public security, laboratories, workshops, warehouses, docks and other sites. And it can be used for rapid detection and identification of additives, pesticide residues, veterinary drug residues in food. ATR6600 has built-in excellent Raman spectrum recognition algorithm, which can detect substances indiscriminately and easily identify substances. At the same time, users can add their own spectrum data. It uses Android system, the interface is simple and clear, equipped with a 5.5-inch HD screen, and uses HD dual cameras 13 million + 8 million, which can record the detection site at any time. It has built-in WIFI, Bluetooth, GPS and other modules, which is simple and intelligent. We will provide comprehensive technical support and services, such as the establishment of spectral libraries, methods and verification, IQ/OP/PQ certification support, etc. Public safety, food safety, pharmaceutical safety, rapid non-destructive testing, everything is under your control!
Product Features
Ultra-high fluorescence suppression effect of 1064nm excitation light
It is particularly suitable for high fluorescence samples
One-click operation, simple and easy to use;
Light weight (less than 1.2 kilograms);
Accurate, rapid, non-destructive, and non-contact material identification;
Sophisticated and precise artificial intelligence recognition algorithm;
High-definition 5.5-inch capacitive touch screen, providing superior control experience;
High-definition camera, capable of recording law enforcement activities;
Accurate GPS positioning;
There are multiple communication methods available, including 4G, Bluetooth, Wi-Fi, and others;
The test results can be generated into a PDF report and exported;
Built-in lithium battery endurance: 4-6 hours;
Size: 225 × 110 × 50 mm
01 Application Fields
Counter-terrorism and anti-drug enforcement
university laboratory
Quality inspection and drug supervision
food testing
Oil industry
Archaeological survey
Gem appraisal
02 Application Cases
Public Security Drug Enforcement
Specially suitable for rapid detection of high fluorescence samples such as heroin, opium, fentanyl and other drugs, precursor drugs, and hazardous chemicals.
pharmaceutical factory
On site rapid non-destructive testing of raw materials for safe and efficient production supervision.
jeweler
Used to identify the authenticity of diamonds, gemstones, jade stones, agates, corals, etc.
Plastic particle identification
There are thousands of components in plastic pellets, and their appearance is similar. Raman spectroscopy can identify the specific composition of plastic pellets.
Food/Plastic/Cosmetics Factory
Identify the ingredients of chemical substances such as essence, additives, plastics and cosmetics.
prison
Used for carry on luggage inspection to prevent the carrying of prohibited items such as hazardous chemicals.
Customs
Used for customs inspection of imported and exported goods to prevent the entry and exit of drugs, hazardous chemicals, explosives, and smuggled items.
Consult customer service to obtain detailed materials and exclusive solutions.
