JY4095 Plant Spectral Analyzer: A New Benchmark for Non destructive Measurement
Full spectrum plant spectral analyzer
Can non destructively measure the reflectance spectrum of blades

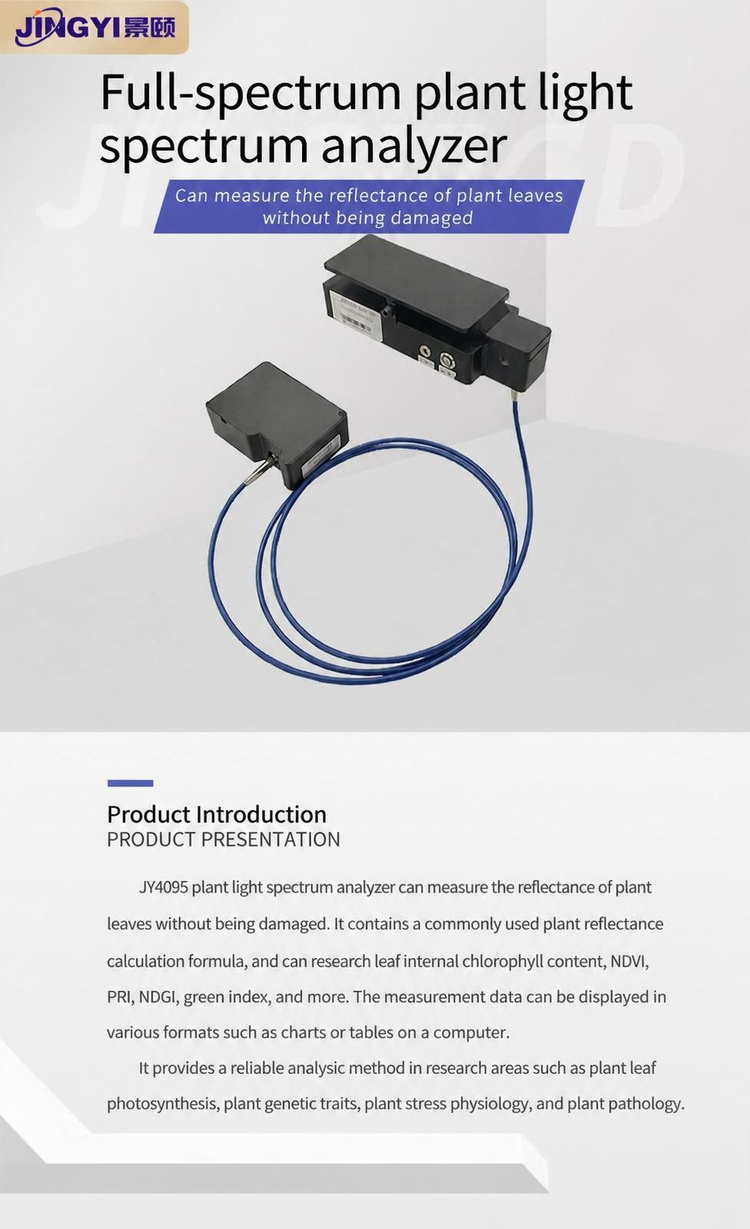

Product Introduction
The jy4095 plant spectral analyzer can non destructively measure the reflectance spectra of leaves, and has built-in commonly used formulas for calculating plant reflectance spectra. Through spectral data, the chlorophyll content ndvi、pri、ndgi、 Greenness index, etc. The measured data is displayed in the form of graphics or data tables on the computer. Provide reliable analytical methods for research on plant leaf photosynthesis, plant genetic characteristics, plant stress physiology, plant pathology, and other aspects.
Product Features
Built in over 20 plant index calculation formulas
ndvi、pri、sr、sg、psri、ndvi 705、msr 705、mndvi 705、vog1、vog2、vog3、rep、sipi、rg、cri1、cri2、ari1、ari2、wbi、ndwiIndex, etc
No need for chemical agents
Using spectral data to invert plant physiological, pathological, and genetic characteristics
Handheld design
Convenient to carry, one click measurement, quick testing of light source spectral distribution and reflection coefficient, suitable for indoor or outdoor use
Non-destructive testing
Non destructive measurement of multiple plant indices in leaves
Fast measurement speed
Fast measurement speed, capable of recording spectral data at different times and spaces
High measurement accuracy
Contains standard calibration plates for calibration of light sources and sensors
Lithium battery powered
No need for external power supply to the light source, suitable for field measurement
Reliability Analysis
USB data transfer to a computer to provide reliable analysis data for plant research.
Application Fields
Photosynthesis of plant leaves
Plant genetic characteristics
Plant stress physiology
Plant Pathology

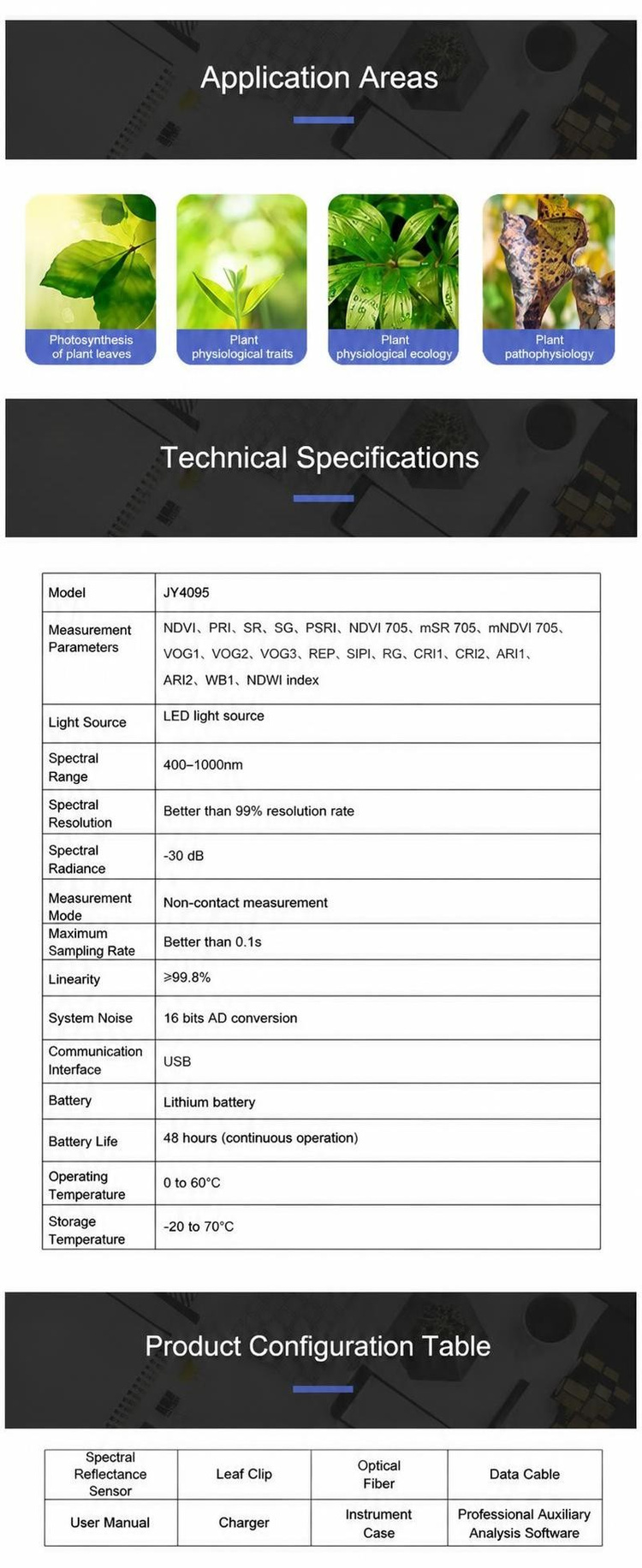

Technical Specifications
|
project
|
parameter
|
|
model
|
jy4095
|
|
measurement parameters
|
ndvi、pri、sr、sg、psri、ndvi 705、msr 705、mndvi 705、vog1、vog2、vog3、rep、sipi、rg、cri1、cri2、ari1、ari2、wbi、ndwiindex
|
|
light source
|
tungsten-halogen lamp
|
|
Spectral response range
|
400-1000nm
|
|
Standard reflector plate
|
Better than 99% reflectance
|
|
Spectral Stray
|
-30 db
|
|
measurement method
|
Non-destructive measurement
|
|
Single scan speed
|
Better than 0.1s
|
|
Linear correction
|
>99.8%
|
|
system data
|
16 bit AD conversion
|
|
contact method
|
usb
|
|
battery
|
Lithium battery
|
|
battery life
|
48 hours (continuous work)
|
|
Operating Temperature
|
0 to 60 ℃
|
|
Storage temperature
|
-20 to 70 ℃
|
Product Configuration Sheet
Spectral detector
Leaf clip
Optical fiber
data cable
Instruction Manual
Charger
Portable instrument box
Professional plant spectral analysis software
