Introduction to Jingyi Optoelectronics Fiber Optic Products
Jingyi Optoelectronics Direct Fiber Optic

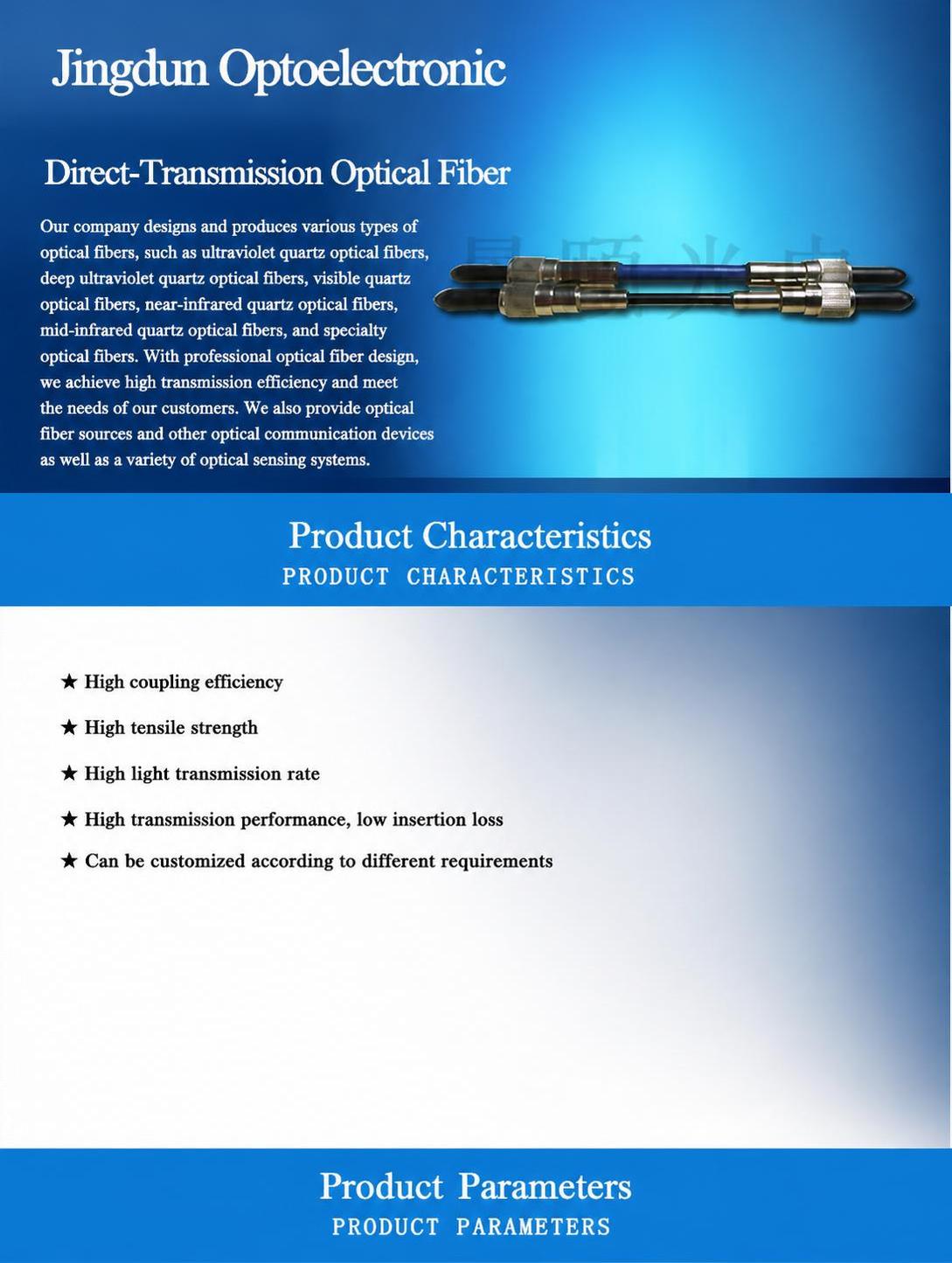

Product Introduction: Our company designs and produces various optical fibers, such as anti UV quartz fiber, deep UV quartz fiber, visible light glass quartz fiber, near-infrared quartz fiber, mid infrared quartz fiber, etc. Specialized fiber optic design achieves high-throughput characteristics, and can be combined with our company's miniature spectrometer, fiber optic light source, and other spectral accessories to build multiple spectral measurement systems.
Product features: high coupling efficiency, high fatigue resistance, high light source compatibility, high transparency, and extremely low loss. Customization can be made according to different needs

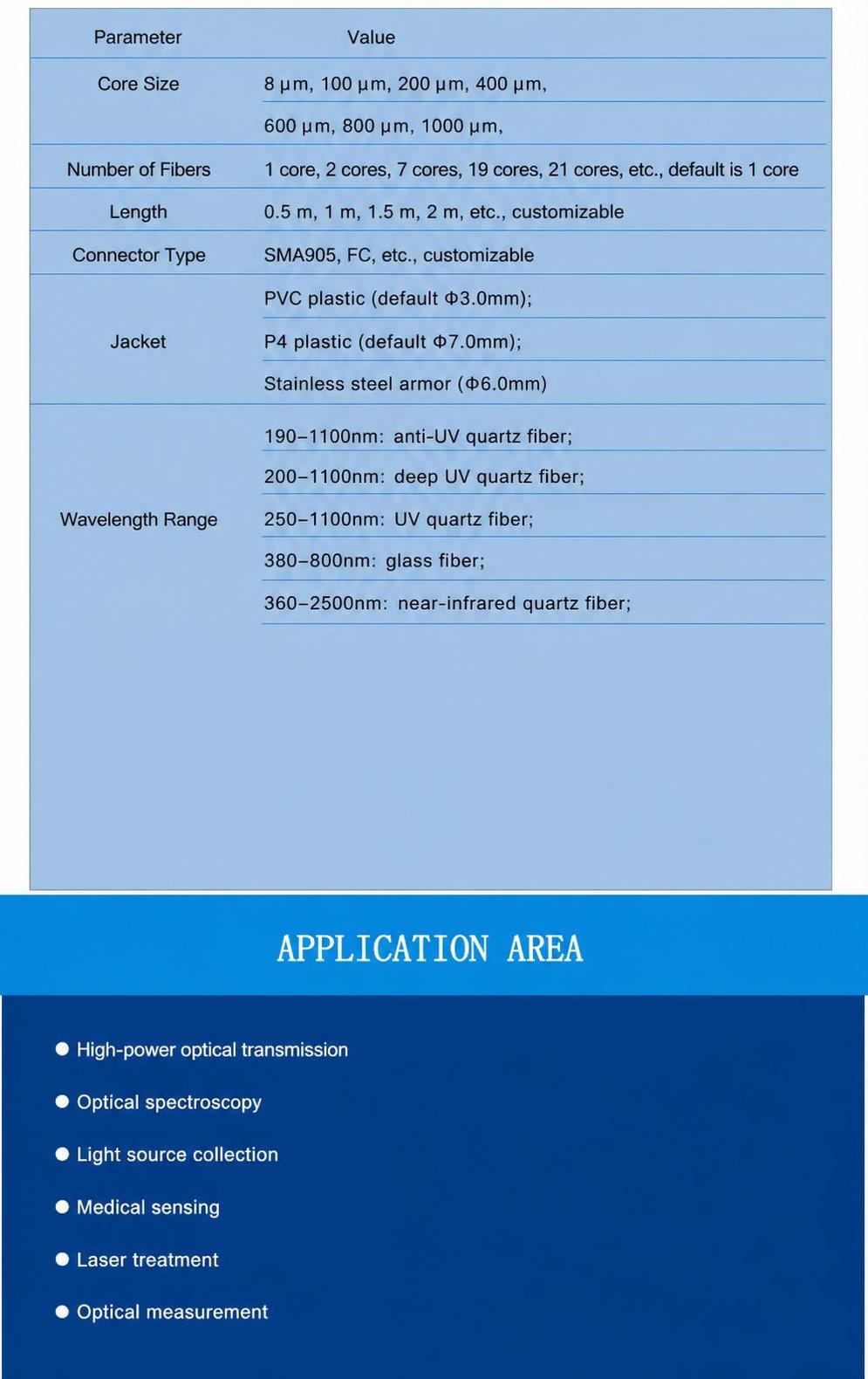

Product Specifications
|
parameter
|
value
|
|
Core diameter size
|
8μm、100μm、200μm、400μm、600μm、800μm、1000μm、
|
|
Number of optical cores
|
1-core, 2-core, 7-core, 19-core, 21-core, etc., default is 1-core
|
|
length
|
0.5m, 1m, 1.5m, 2m, etc., customizable
|
|
Connector Type
|
SMA905, FC, etc., customizable
|
|
Encapsulation
|
PVC plastic (default φ3.0mm); P4 plastic (default φ7.0mm); stainless steel armor (φ6.0mm)
|
|
Frequency band range
|
190-1100nm: UV-resistant quartz fiber; 200-1100nm: deep UV quartz fiber; 250-1100nm: UV quartz fiber; 380-800nm: glass fiber; 360-2500nm: near-infrared quartz fiber;
|
Application Fields: High-Energy Light Source Transmission, Spectral Construction, Light Source Acquisition, Medical Sensing, Laser Therapy, Optical Thermometry

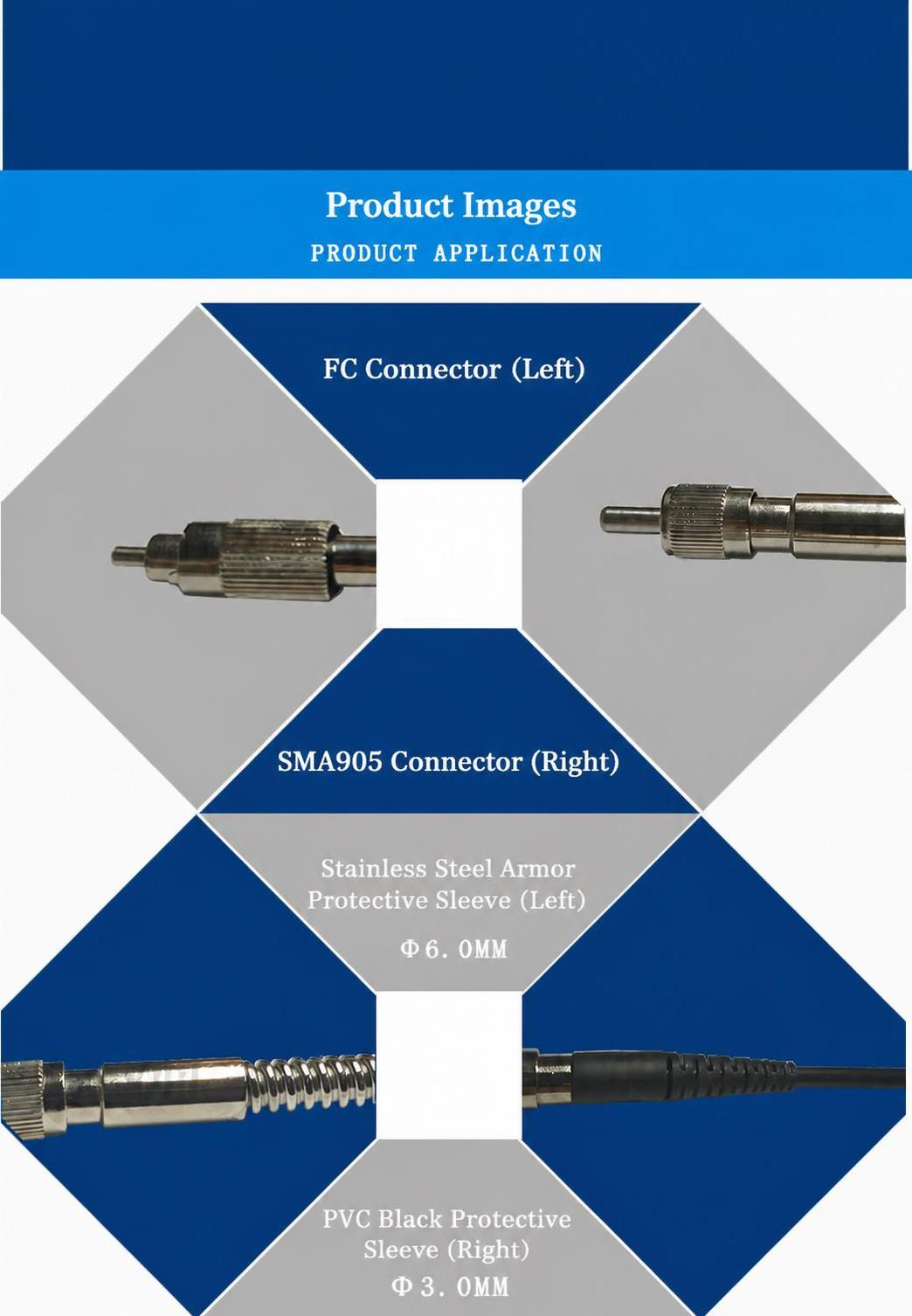

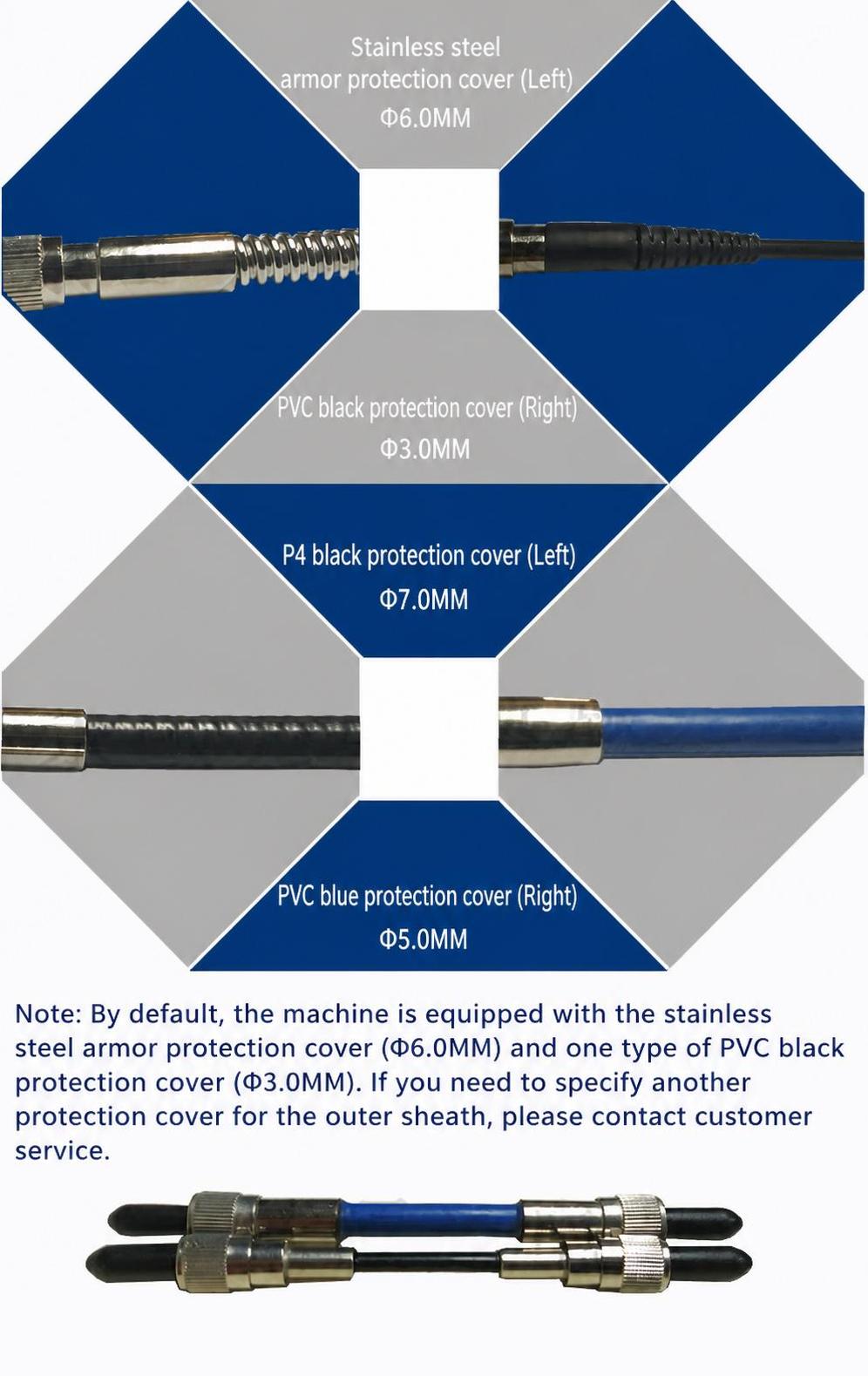

Product Images: FC Connector (Left) SMA905 Connector (Right) Stainless Steel Armor Protective Cover (Left) Φ6.0MM PVC Black Protective Cover (Right) Φ3.0MM P4 Black Protective Cover (Left) Φ7.0MM PVC Blue Protective Cover (Right) Φ5.0MM Note: By default, one of the stainless steel armor (Φ6.0MM) and PVC black protective cover (Φ3.0MM) will be randomly sent. If you need to specify a protective shell, please contact customer service.

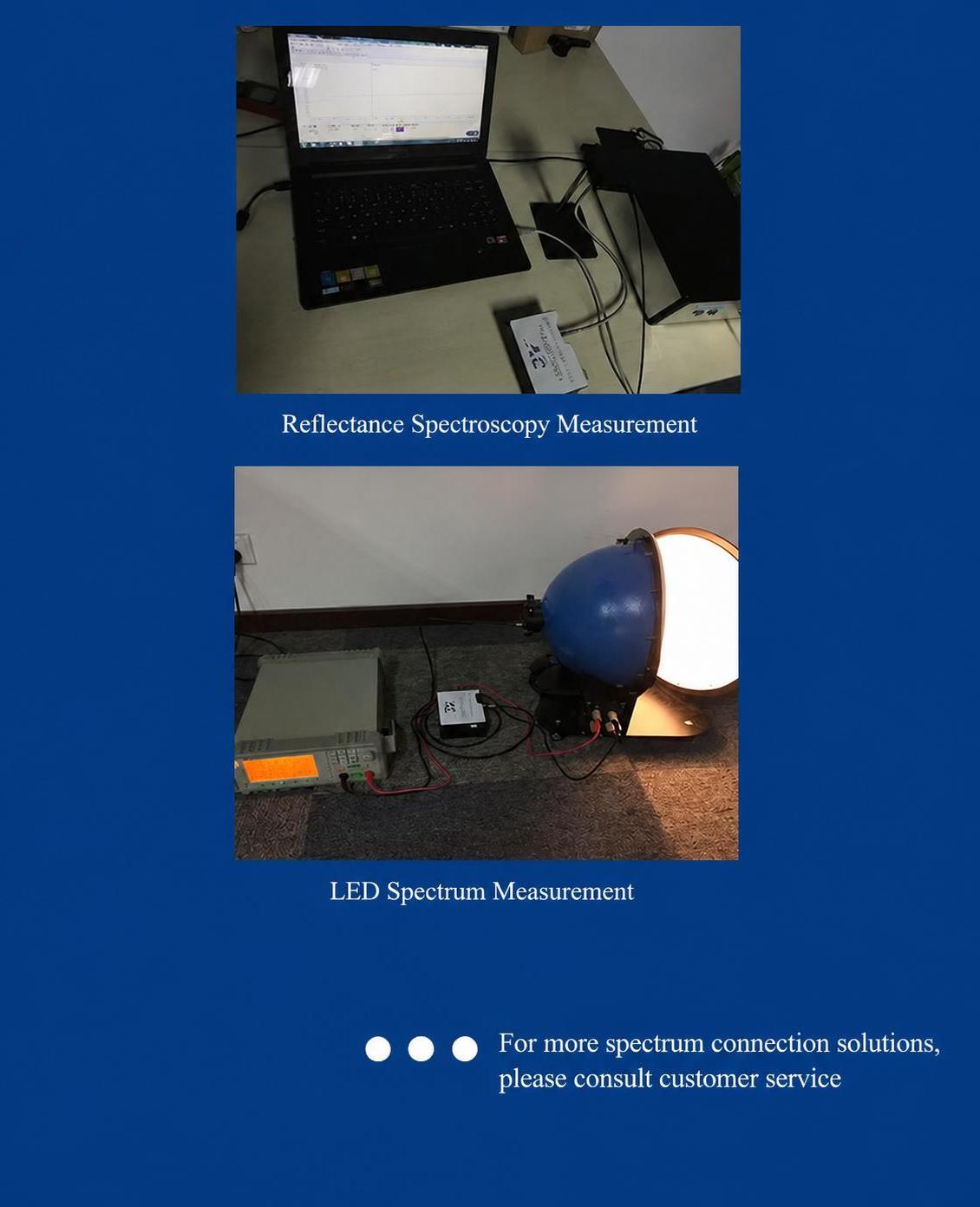

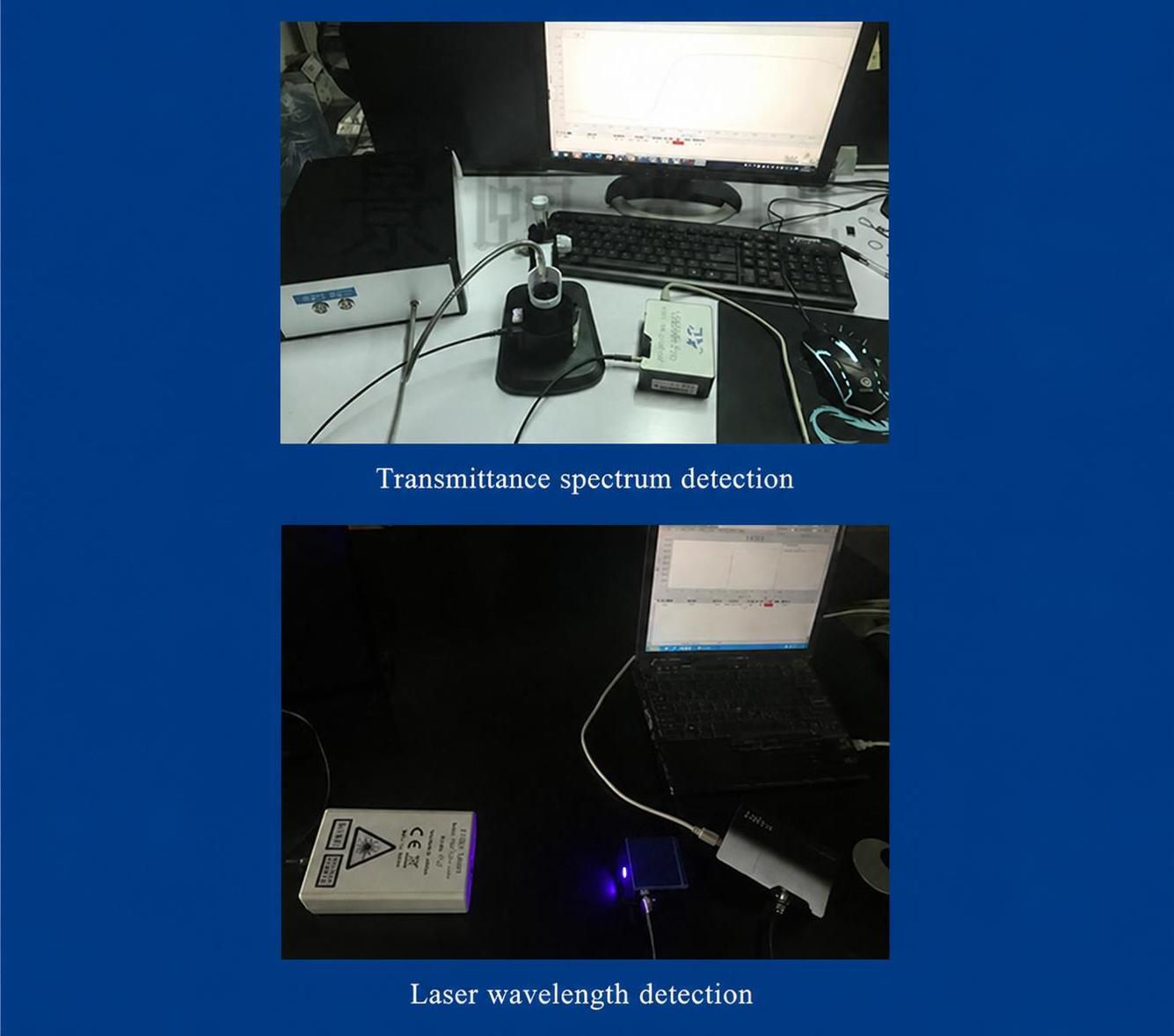

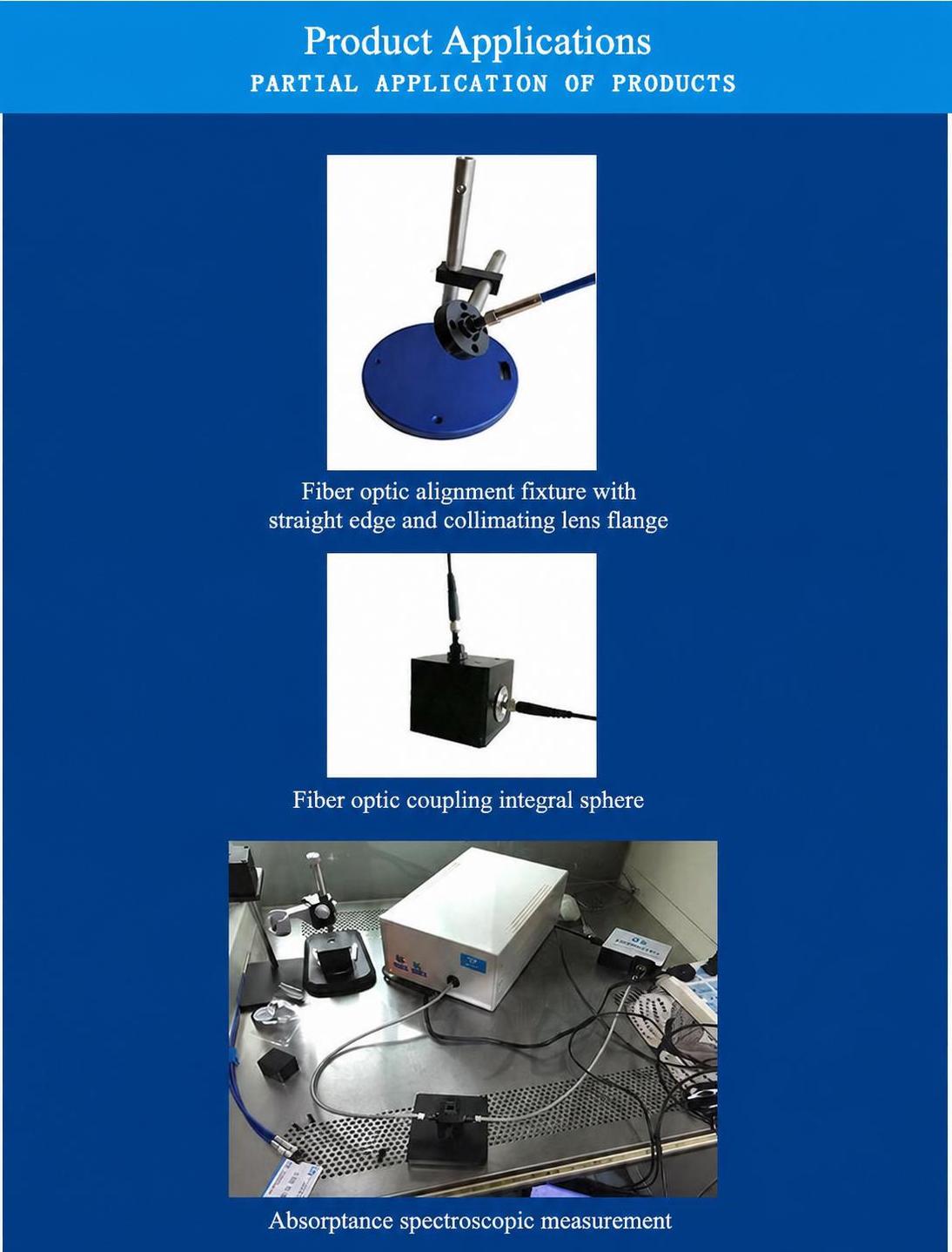

Product Applications: Fiber-to-Collimator and Collimator Flange, Fiber-to-Integrating Sphere, Absorbance Spectral Detection, Transmittance Spectral Detection, Laser Wavelength Detection, Reflectance Spectral Detection, LED Spectral Detection. For more spectral connection solutions, please consult customer service

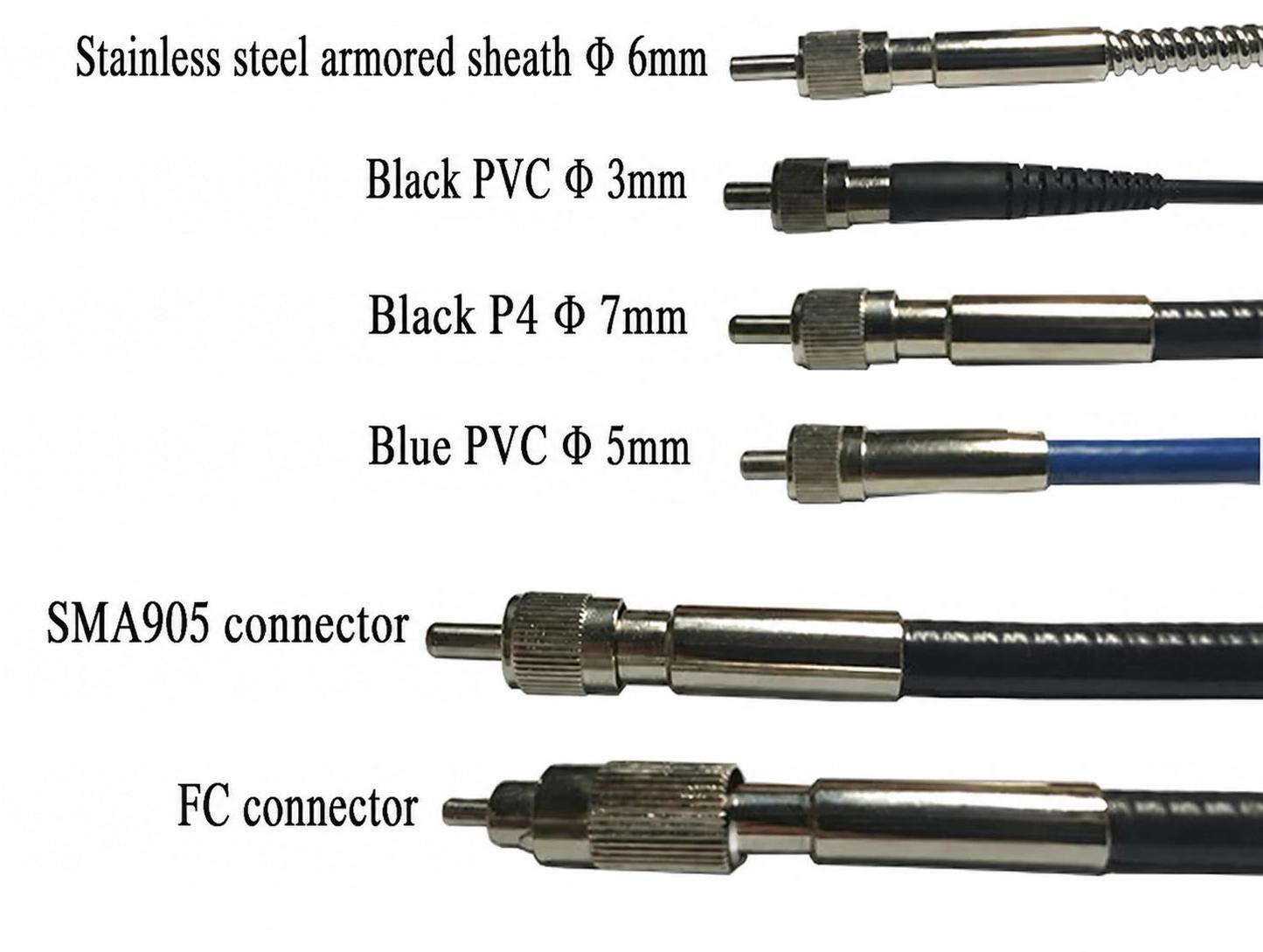

Stainless steel armor, φ6mm, black PVC, φ3mm, black P4, φ7mm, blue PVC, φ5mm SMA905 connector, FC connector
