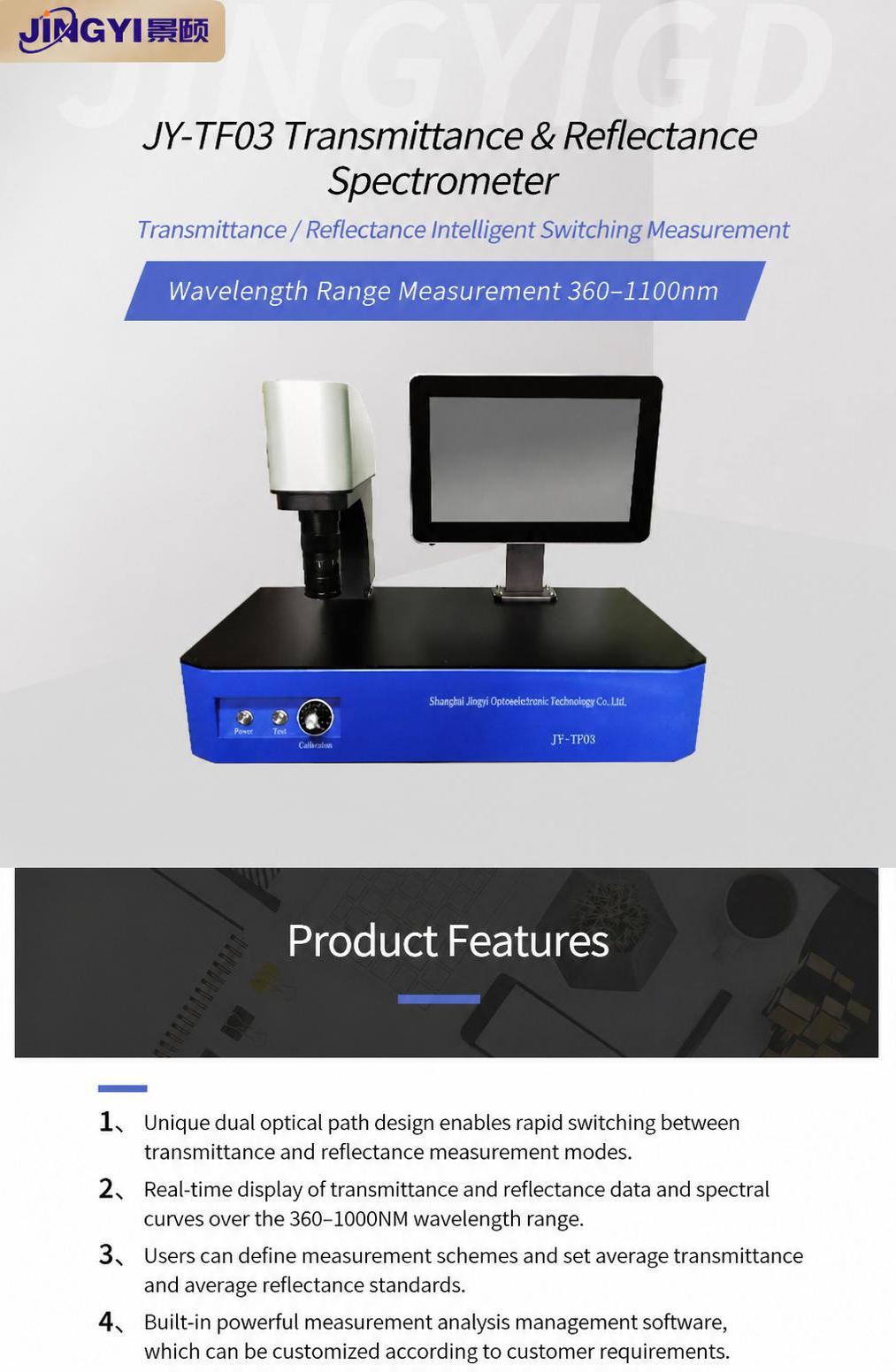

JY-TF03 Transmittance and Reflectivity Detector

1. Unique dual light path design allows for quick switching between transmittance and reflectance measurement modes.
2. Real time display of transmittance and reflection data and spectral curves for each band of 360-1000NM.
3. Users can customize the measurement scheme, set the average transmittance and average reflectance according to the calibration standards.
4. The software is equipped with powerful measurement and analysis management software, which can customize measurement schemes, spectral data processing, quality inspection functions, CIE color measurement functions, development databases, and print reports according to customer requirements.
5. Compliant with domestic and international measurement standards and specifications
6. Zhuan Li Technology Products
7. Third party authoritative testing by Zheng Shu
8. Customizable industrial online automatic detection solution
9. Adopting imported halogen lamp light source or deuterium tungsten lamp light source, the light source output is uniform and stable

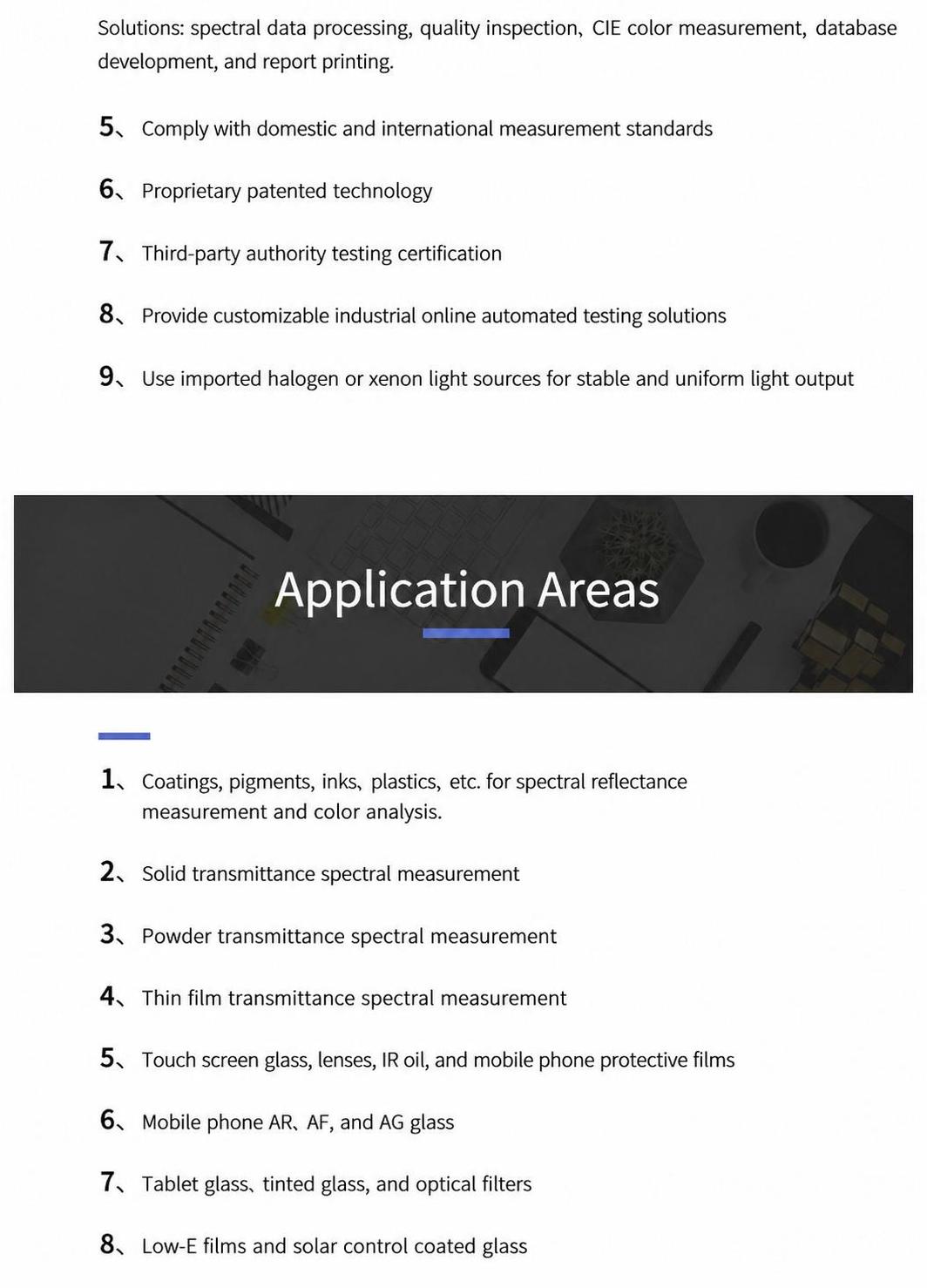

1. Measurement of reflectance spectra and color sorting of coatings, pigments, inks, plastics, and other materials.
2. Measurement of Solid State Transmittance and Reflectance Spectroscopy
3. Measurement of powder transmittance and reflectance spectra
4. Measurement of thin film transmittance and reflectance
5. Touch screen glass, lenses, IR ink, phone protective film
6. Mobile AR, AF, AG glass
7. Flat glass, colored glass, filter
8. LOW-E film, sunlight control film coated glass

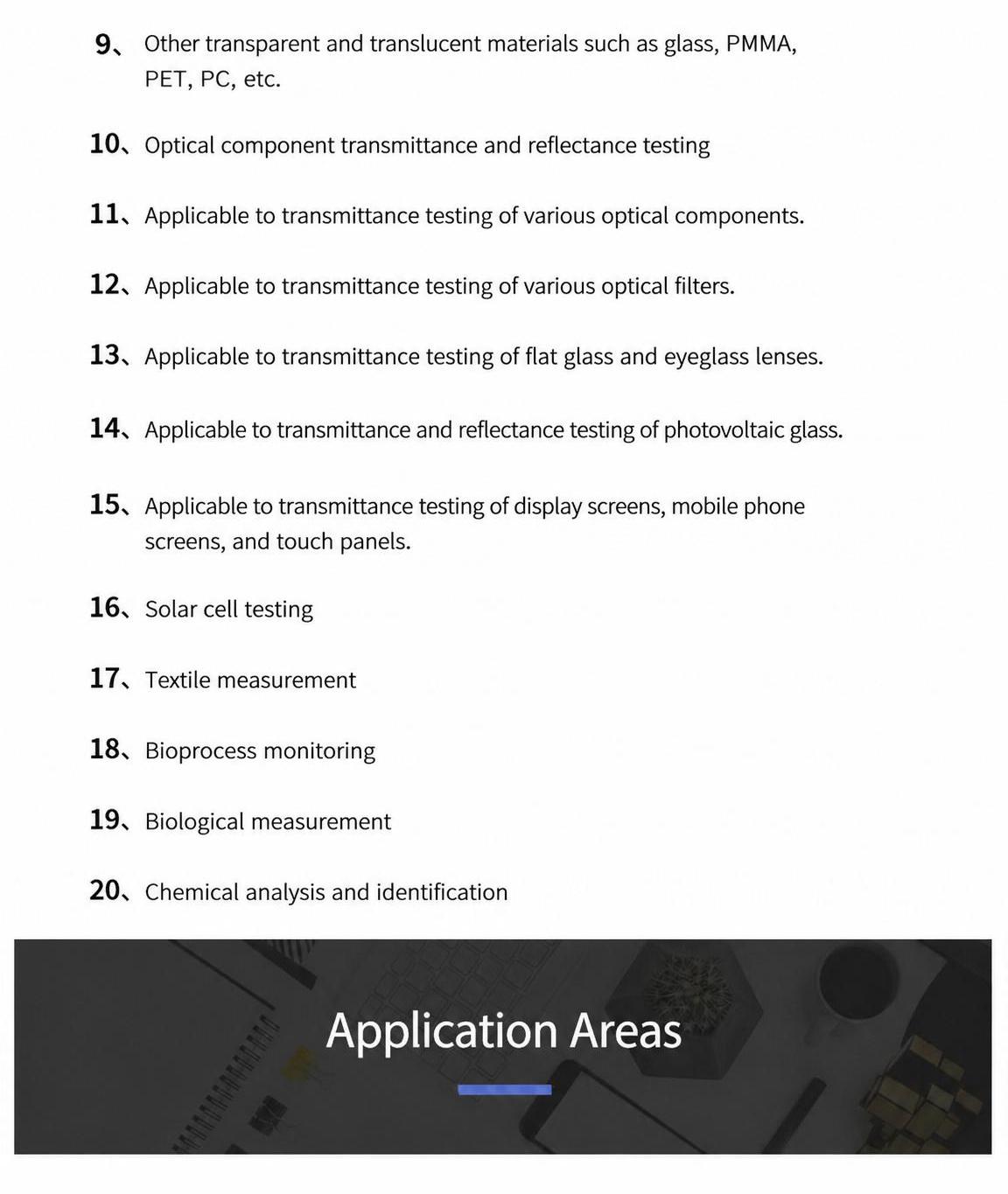

9. Other transparent flat materials such as translucent glass, PMMA, PET, PC, etc
10. Optical component transmittance and reflectance detection
11. Suitable for detecting the transmittance of various optical components.
12. Suitable for detecting the transmittance of various filters.
13. Suitable for detecting the transmittance of flat glass and eyeglass lenses.
14. Suitable for detecting the transmittance and reflectance of photovoltaic glass.
15. Transparency detection of display screens, mobile phone screens, and touch panels.
16. Solar silicon wafer testing
17. Fabric measurement
18. Biochemical process monitoring
19. Biometric measurement
20. Chemical analysis and identification

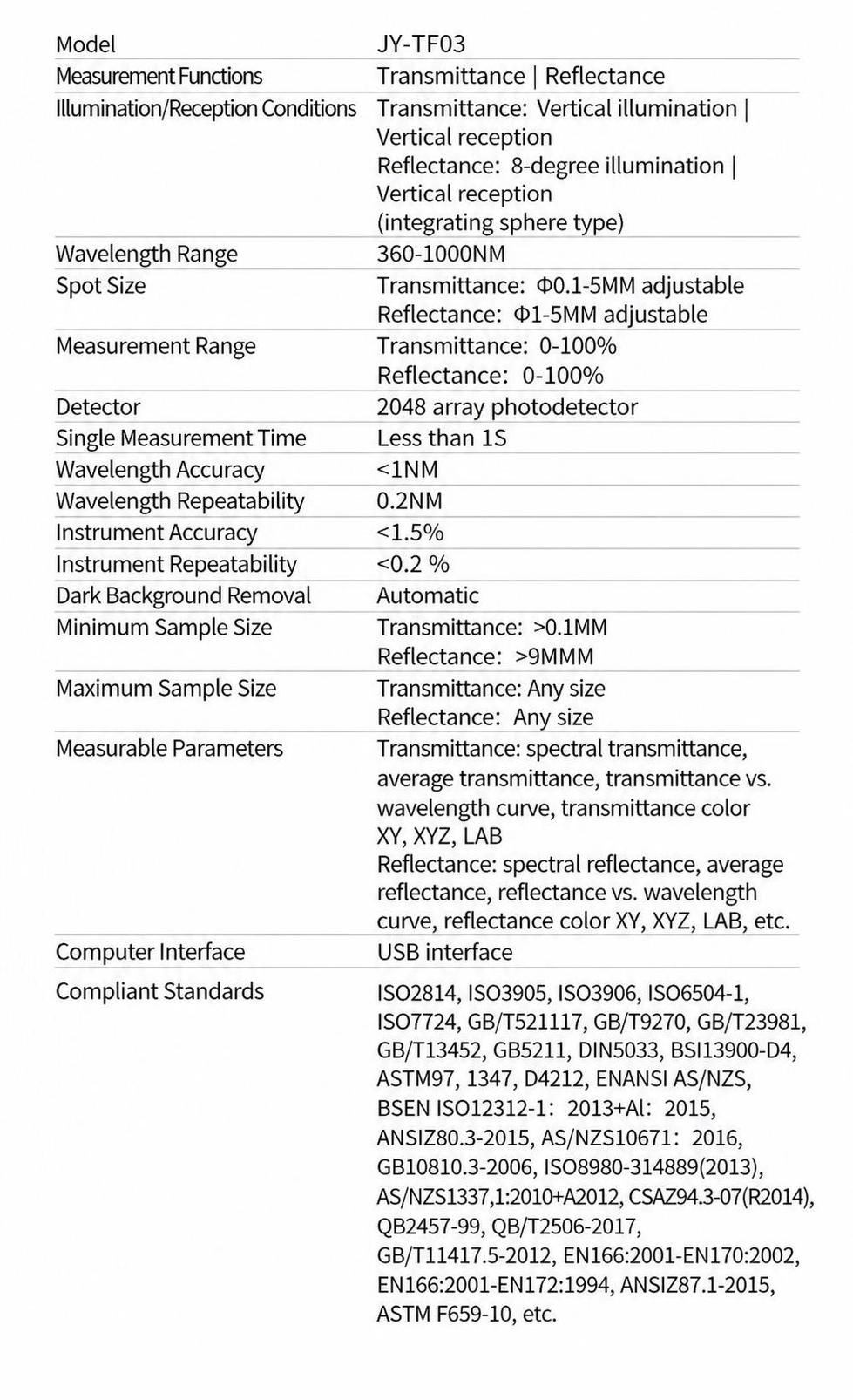

parameter	Content
model	jy-tf03
Measurement function	Transmission/Reflection
Lighting reception conditions	Transmission: vertical illumination/vertical reception<br>Reflection: 8-degree illumination/vertical reception (integrating sphere method)
wavelength range	360-1000nm
Spot size	transmission：Φ0.1-5mmadjustable<br>reflection：Φ1-5mmadjustable
measurement range	transmittance：0-100%<br>reflectance：0-100%
detector	2048 array photodetector
Single sampling time	Better than 1 second
Wavelength accuracy	<1nm
Wavelength repeatability	0.2nm
Instrument accuracy	<1.5%
Instrument repeatability	<0.2%
Deducting dark background	Automatic
Minimum size of measurable sample shape	transmission：>0.1mm<br>reflection：>9mmm
Maximum size of measurable sample shape	Transmission: any size<br>Reflection: any size
Measurable parameters	Transmission: wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, transmittance color XY, XYZ, LAB<br>Reflection: wavelength reflectance, average reflectance, reflectance spectral curve, reflectance over time curve, reflectance color XY, XYZ, LAB, etc
Computer operating system	USB port
meet the standard	ISO2814、ISO3905、ISO3906、ISO6504-1、ISO7724、GB/T521117、GB/T9270、GB/T23981、GB/T13452、GB5211、DIN5033、BSI13900-D4、ASTM97、1347、D4212、ENANSI AS/NZS、BSEN ISO12312-1：2013+A1：2015、ANSIZ80.3-2015、AS/NZS10671：2016、GB10810.3-2006、ISO8980-314889(2013)、AS/NZS1337,1:2010+A2012、CSAZ94.3-07(R2014)、QB2457-99、QB/T2506-2017、GB/T11417.5-2012、EN166:2001-EN170:2002、EN166:2001-EN172:1994、ANSI Z87.1-2015、ASTM F659-10等
