Product Introduction of J-TIP Reflective Probe

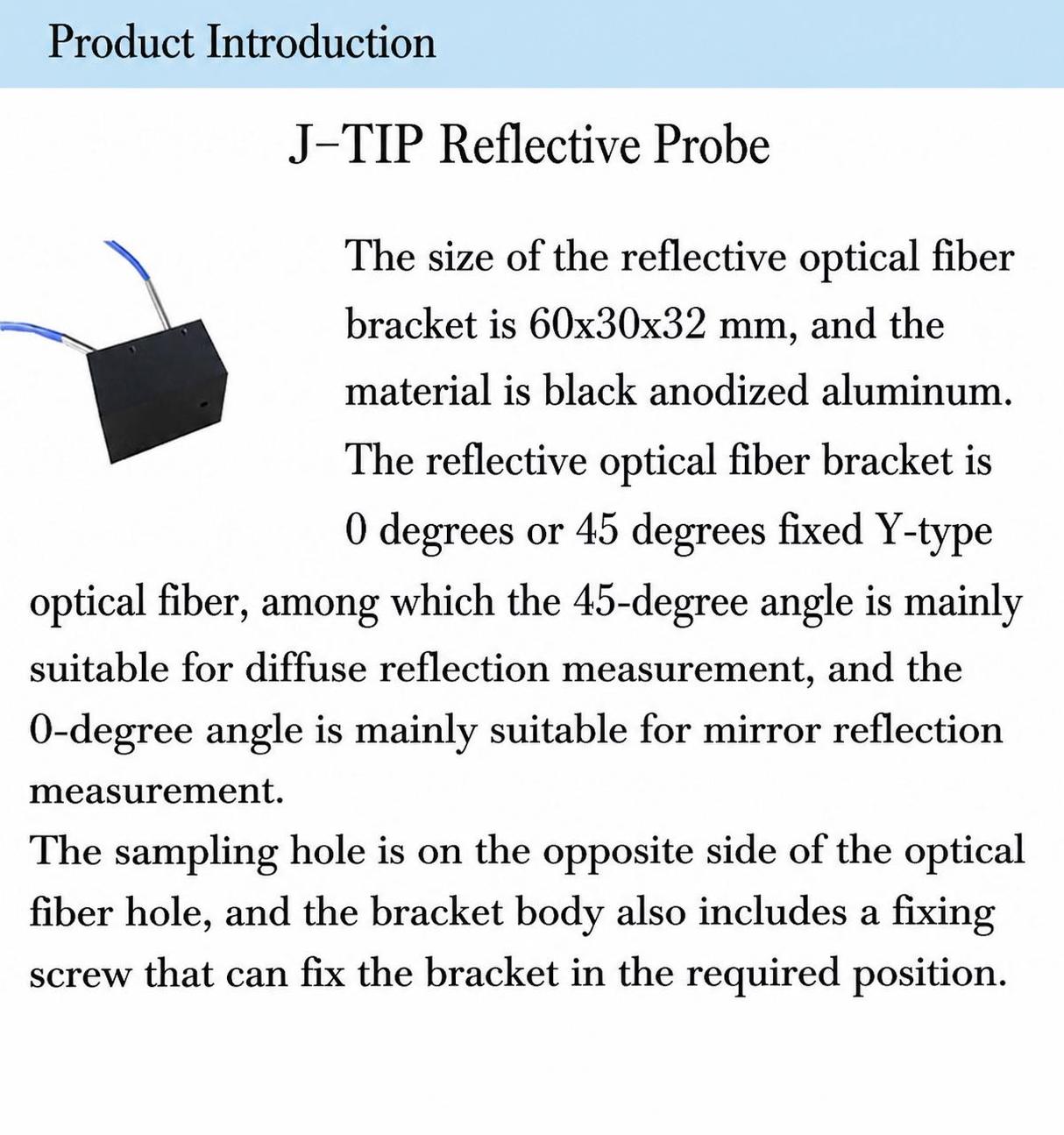

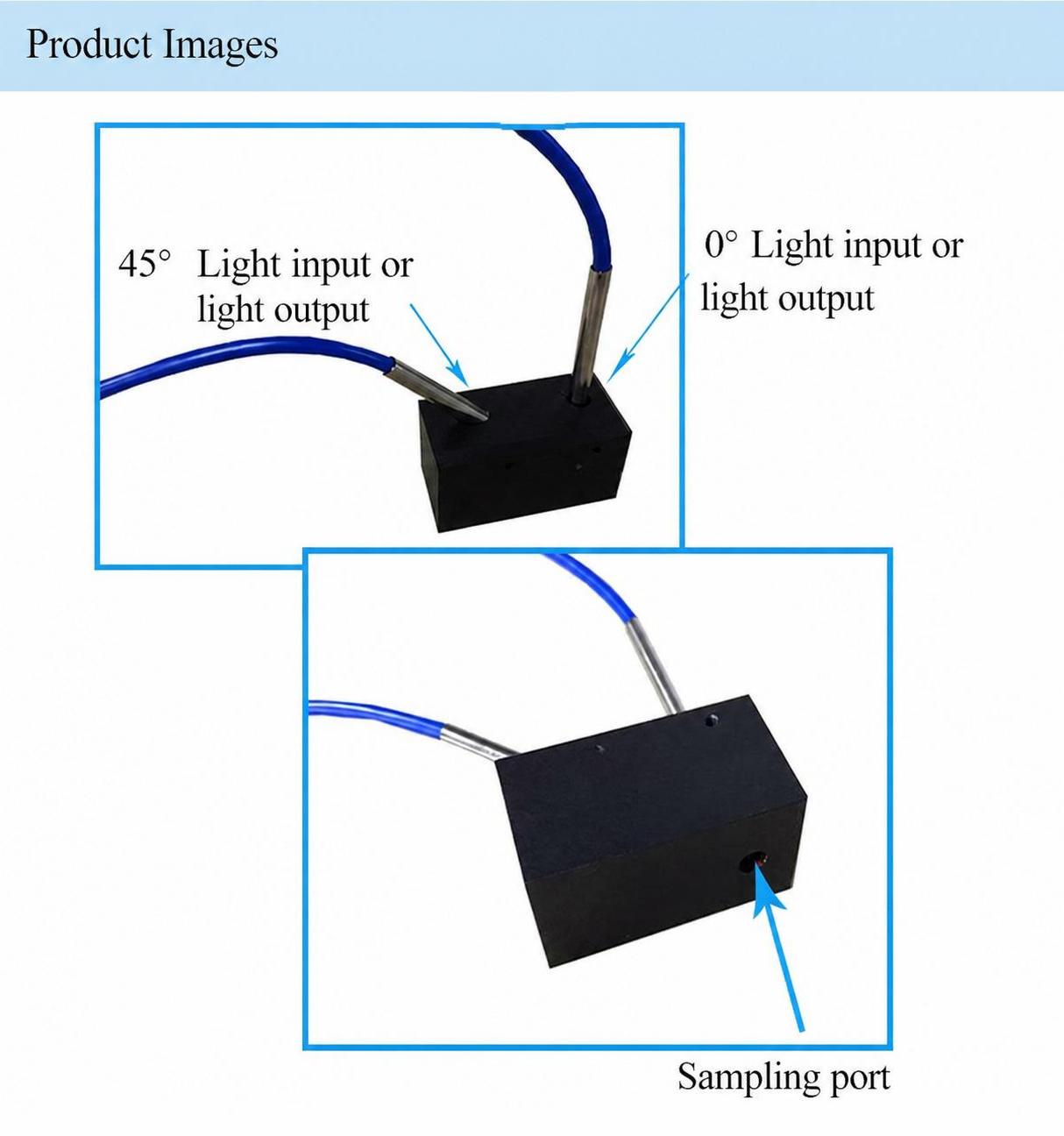

J-TIP Reflective Probe Product Introduction The reflective fiber optic holder measures 60x30x32 mm and is made of blackened alumina. The reflective fiber optic holder is designed to secure Y-shaped fibers at either a 0-degree or 45-degree angle. Specifically, the 45-degree angle is primarily suitable for diffuse reflection experimental measurements, while the 0-degree angle is mainly applicable to specular reflection experimental measurements. The sampling hole is positioned opposite the fiber optic hole, and the holder body also includes a fixing screw to secure the holder in the desired position.

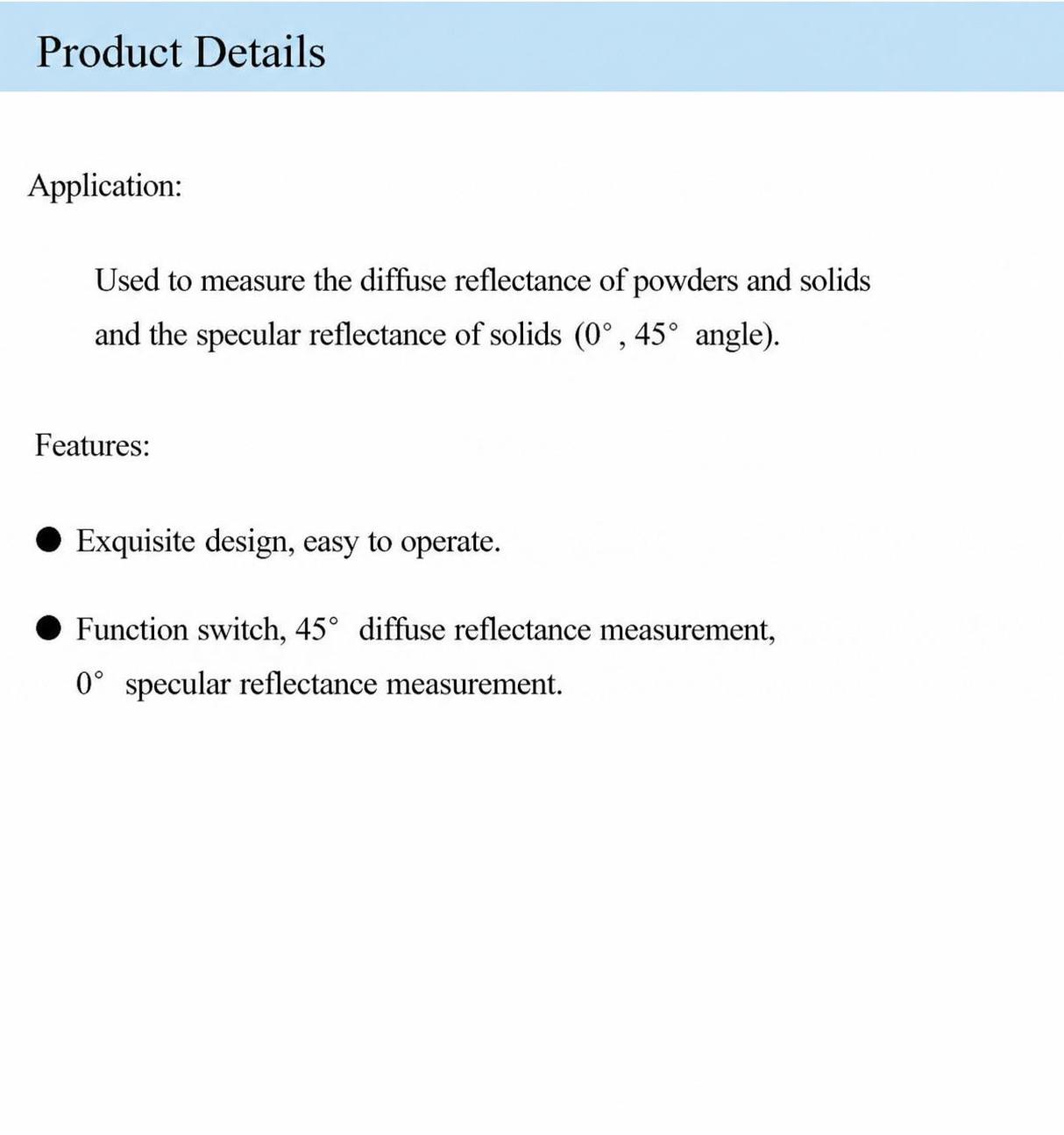

Application areas: Used for measuring the diffuse reflectance of solids and powders, as well as the specular reflectance of solids (at 0 and 45 degrees).
Features: ingenious design, flexible use. Function conversion, 45° diffuse reflection measurement, 0° specular reflection measurement.

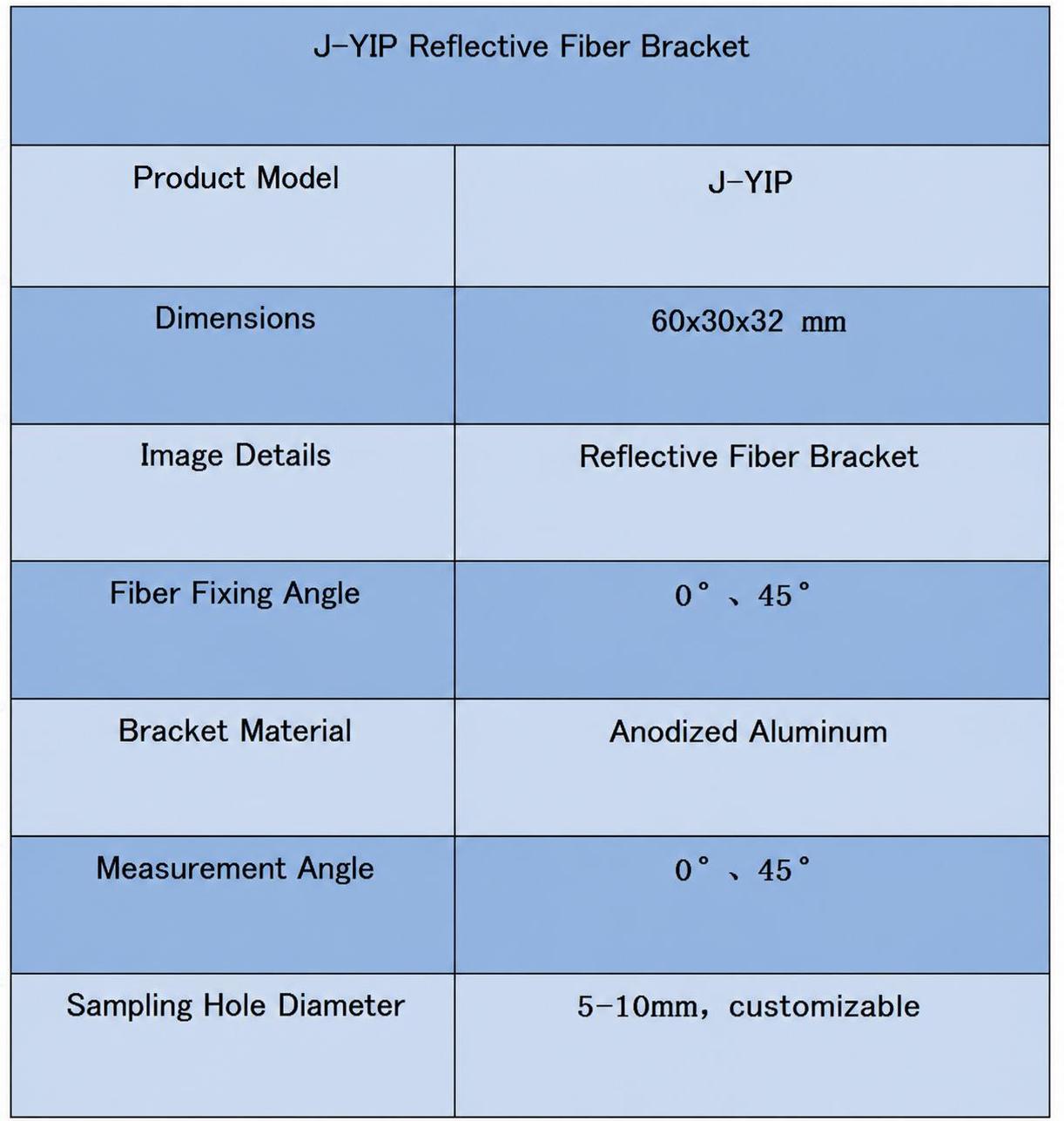

Product Specifications

project	parameter
Product Model	J-YIP

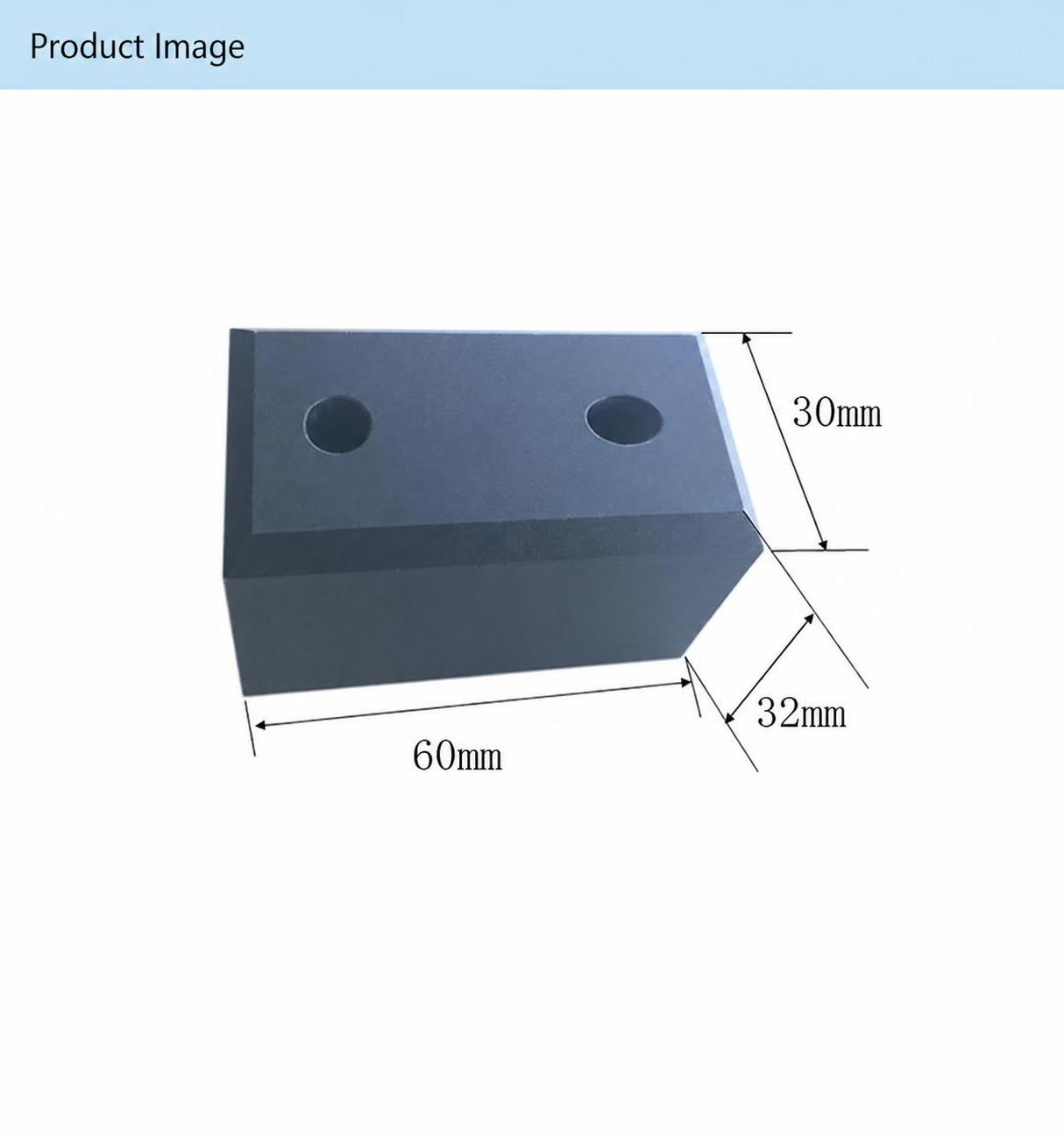

size	60x30x32 mm
image details	Reflective fiber optic bracket

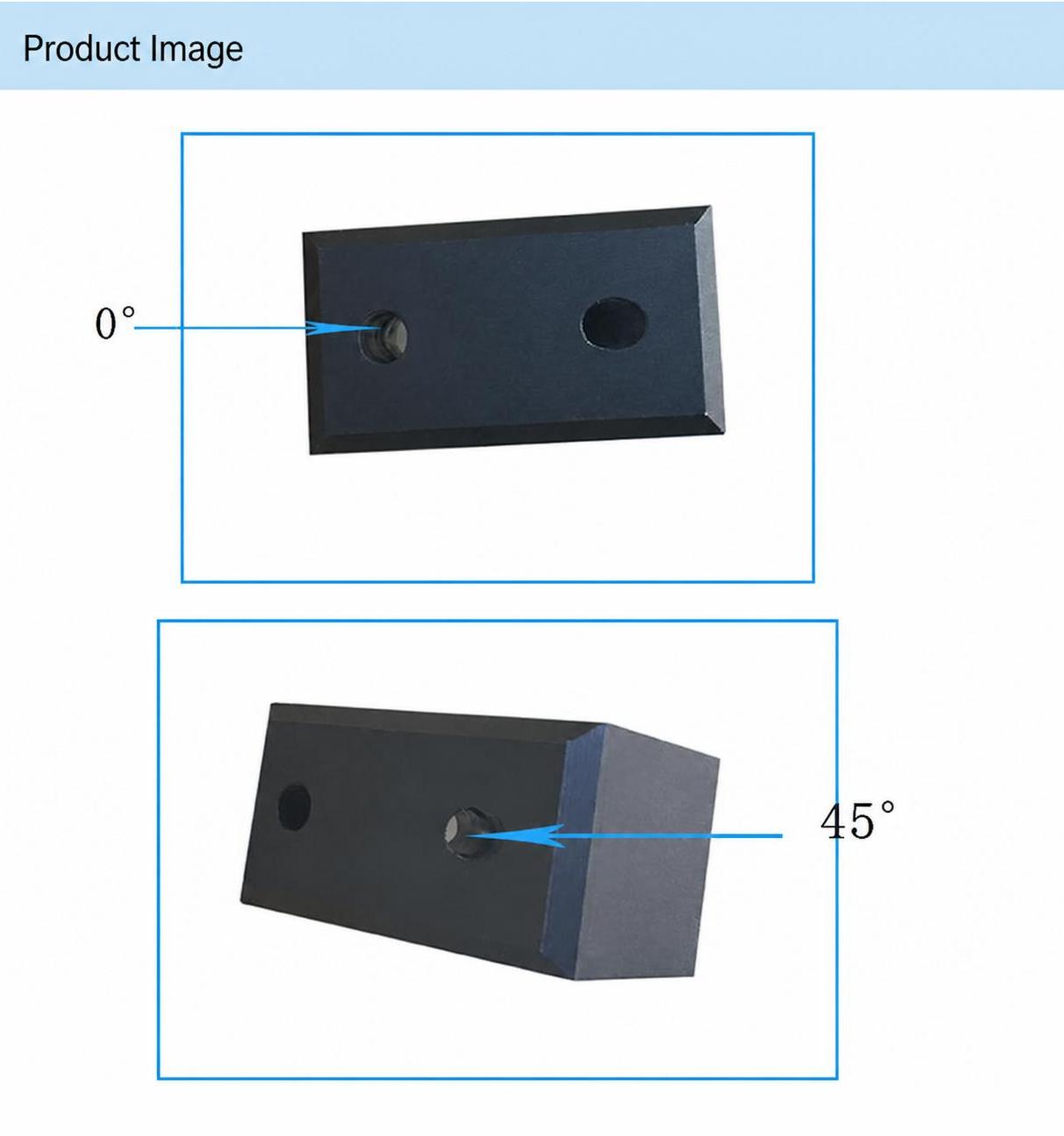

Fiber fixed angle	0°、45°
Scaffold materials	Metallic alumina
Measuring angle	0°、45°
Sampling hole diameter	5-10mm， customizable
