ProductIntroduction

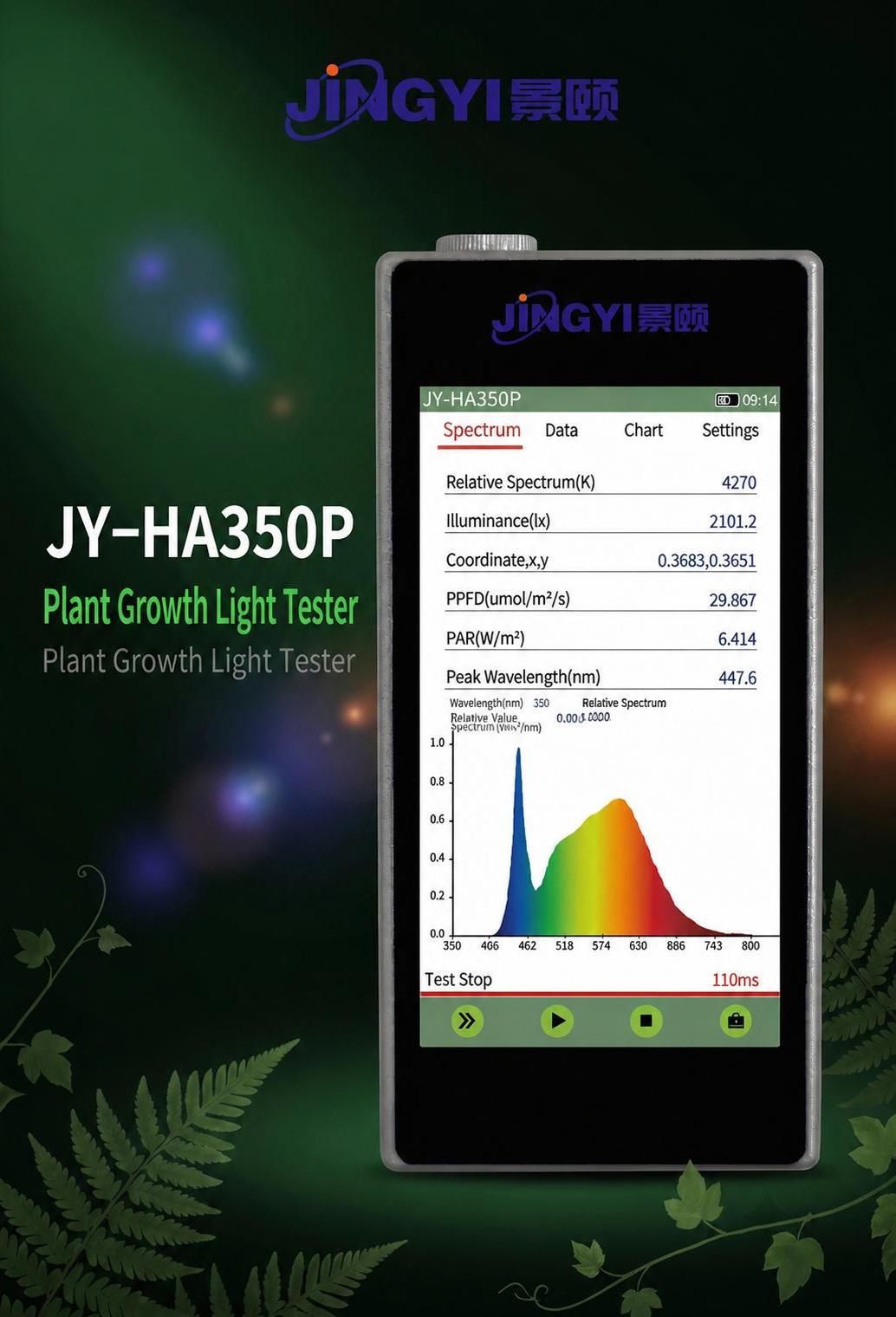

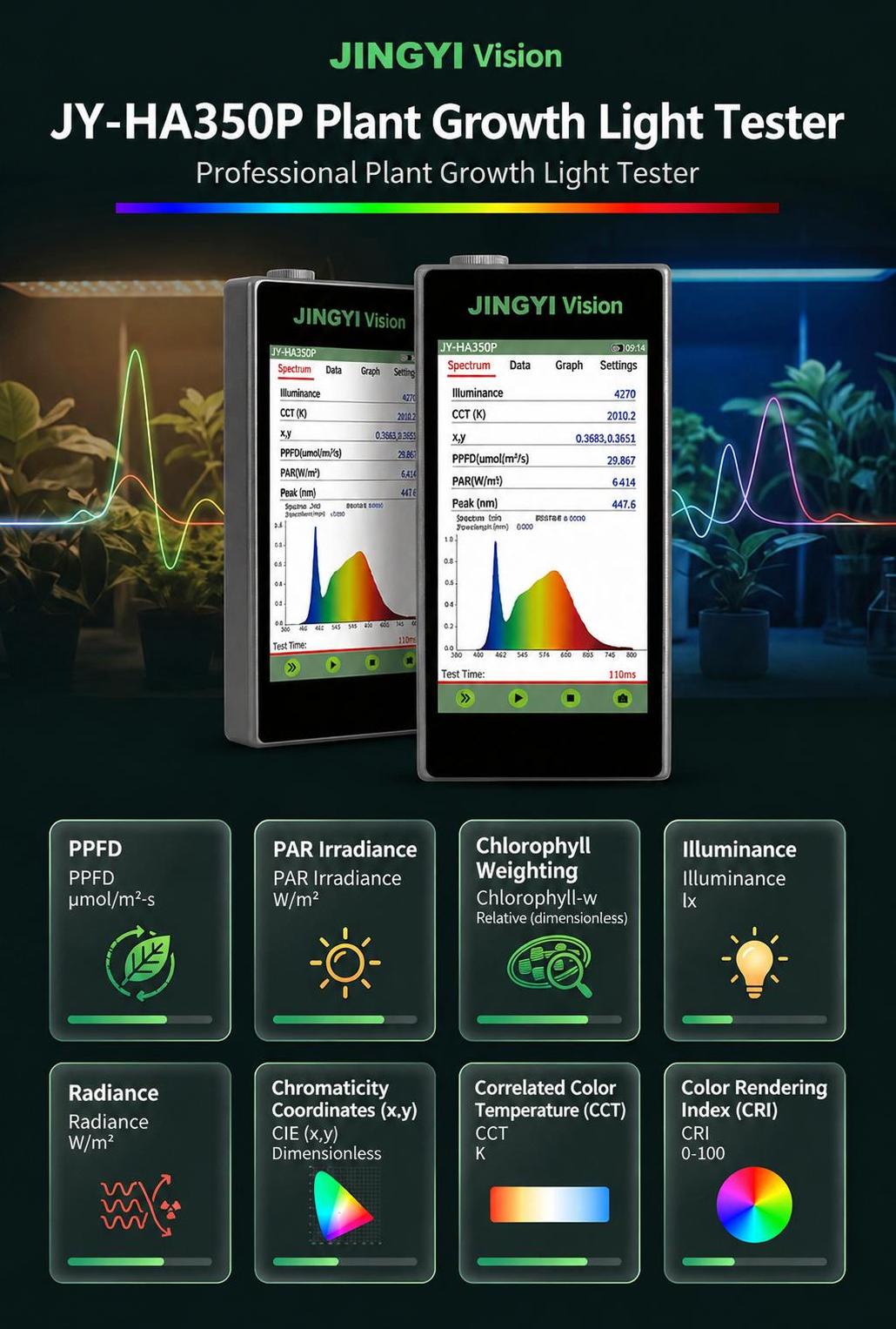

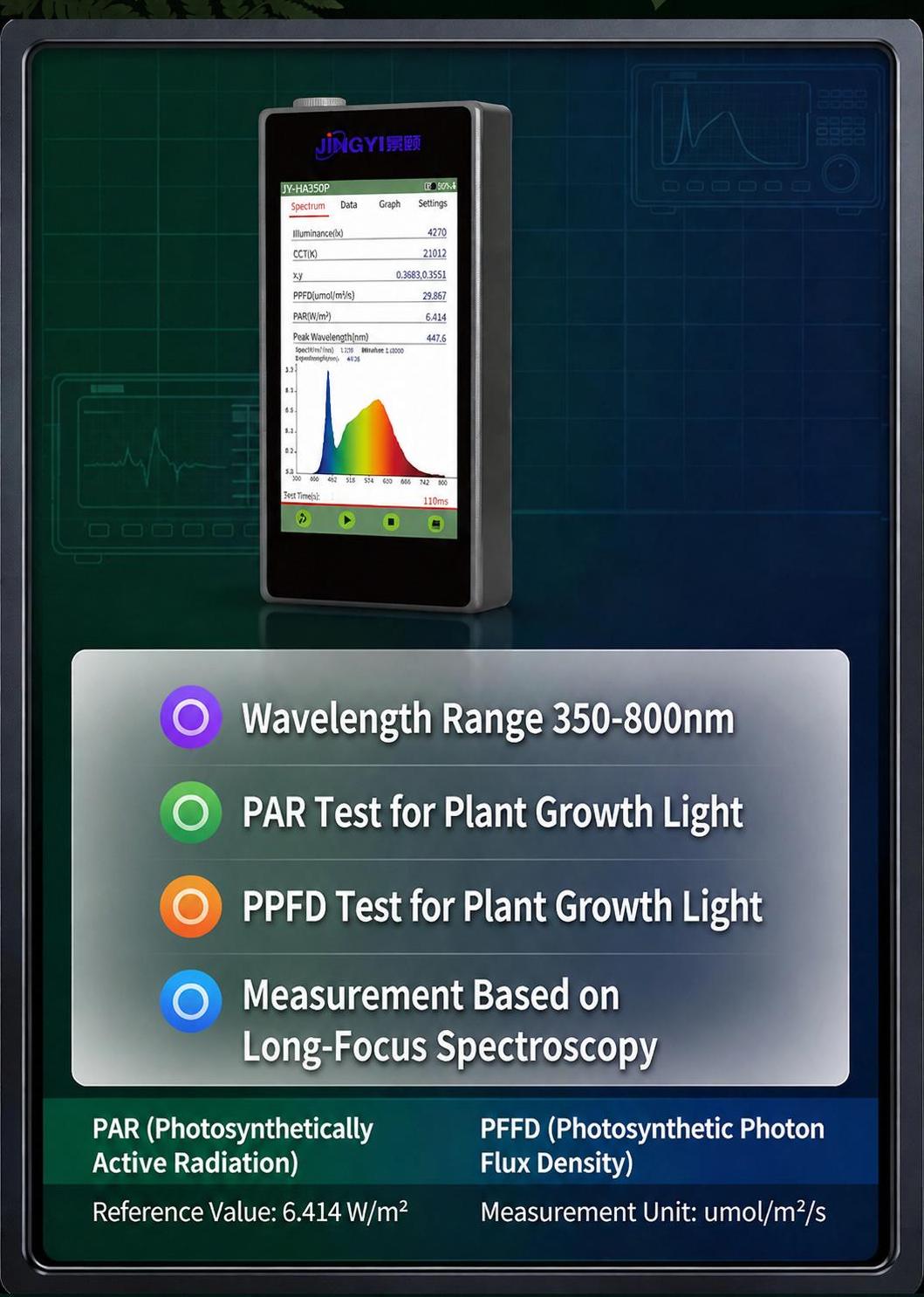

JY-HA350P plant growth lamp tester from Jingyi Optoelectronics, with a wavelength range of 350-800nm, is used to measure the PAR and PPFD parameters of plant growth lamps based on long focal length spectroscopy. In addition to measuring parameters such as PPFD, photosynthetic irradiance, chlorophyll weighting, illuminance, radiance, chromaticity coordinates, color temperature, and color rendering index, parameters such as photosynthetic photon flux density, photosynthetic irradiance, and far red light irradiance can also be measured. Widely used for on-site monitoring of light radiation during plant growth in plant lamp manufacturers, soilless cultivation of plants, greenhouses, and other areas.
Product Specifications
|
wavelength range
|
350-800nm
|
|
Related Colors (CCT)
|
Tc (K)
|
|
Blackbody deviation
|
Duv
|
|
illuminance
|
E (lx)
|
|
candlelight
|
E (Fc)
|
|
Radiant illuminance
|
Ee (W/m²)
|
|
Color coordinates
|
(x,y)(u,v)(u',v')
|
|
Color Rendering Index
|
Index (CRI) Ra, Ri (i=1～15) A
|
|

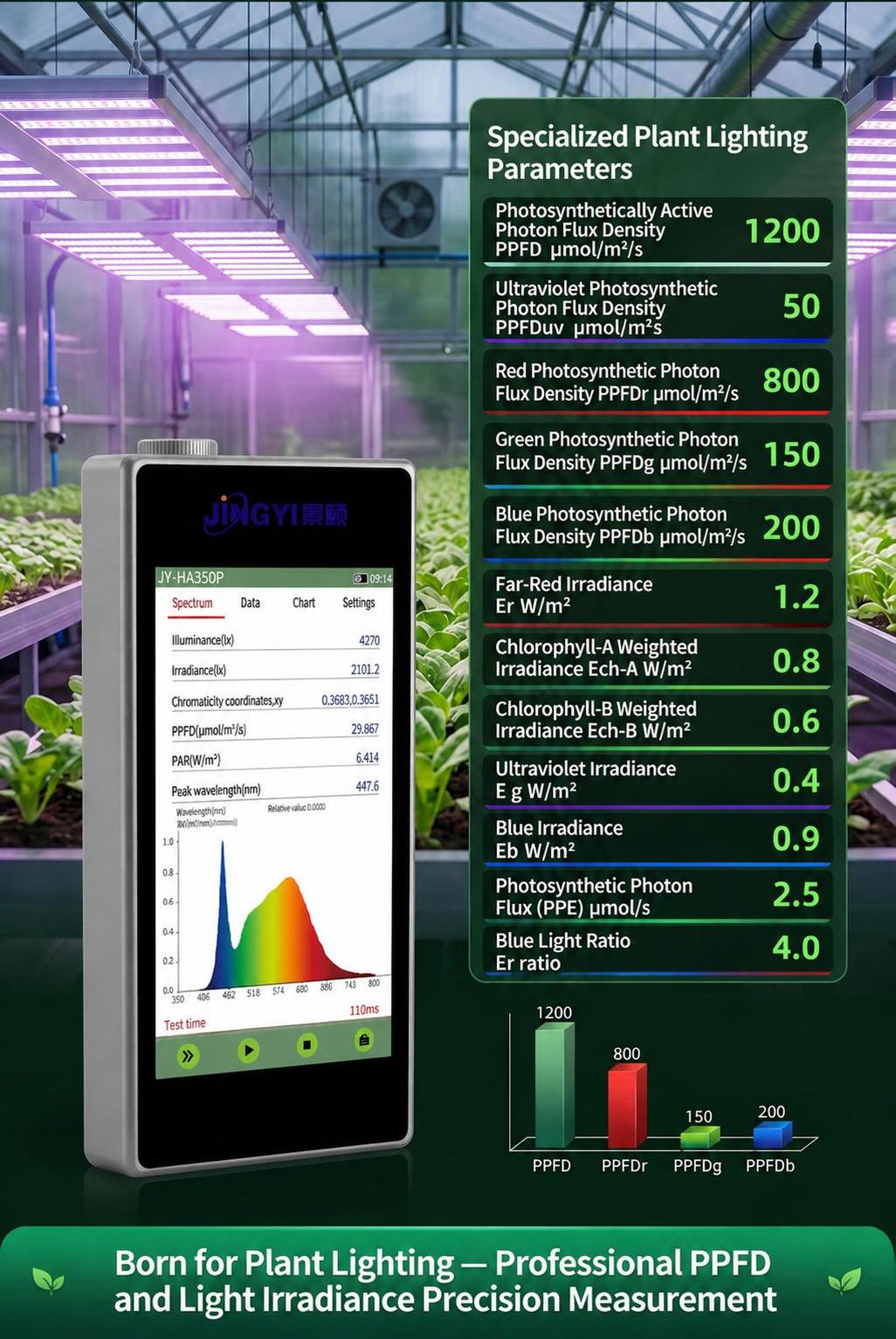

Photosynthetic photon flux density
|
|
(PPFD)(μ mol/m²s)
|
|
PPFDuv (μ mol/m²s)
|
|
PPFDr (μ mol/m²s)
|
|
PPFDg (μ mol/m²s)
|
|
PPFDb (μ mol/m²s)
|
|
Erb ratio Ech-A (W/m²) Ech-B (W/m²)
|
|
Er (W/m²) Eg (W/m²) Eb (W/m²)
|
|
PPE (μ mol/S )
|
