Jingyi Optoelectronics Integral Sphere Uniform Light Source: 99% High Uniformity Output

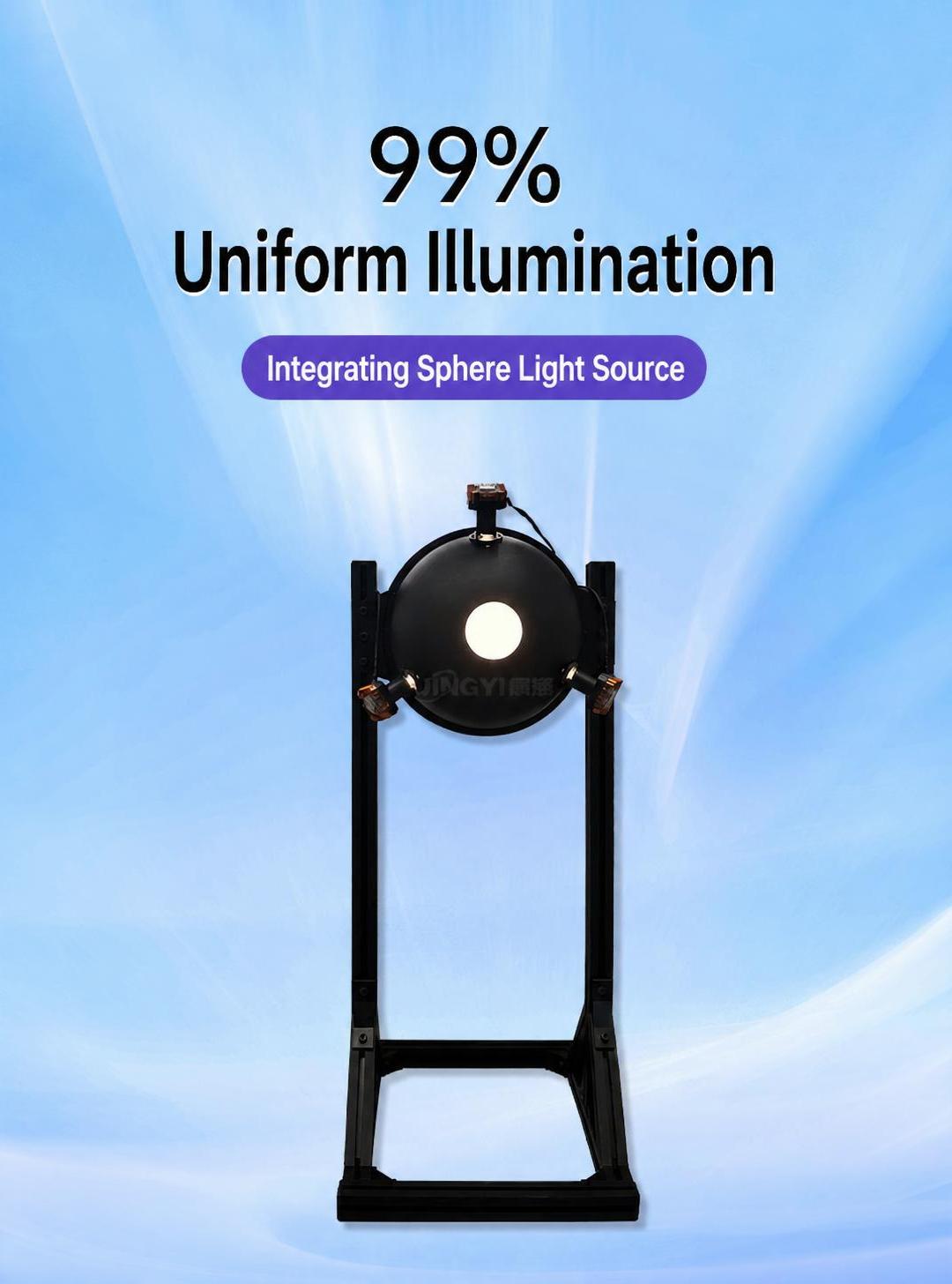

99% high uniformity integrated sphere uniform light source
Product Introduction: Jingyi Optoelectronics. This universal integrating sphere uniform light source has a uniform light outlet that can reach 99%. The installed light source is a halogen lamp light source, and the light source can also be customized according to specific needs. The diameter of the light outlet is 80mm, located horizontally at the center line of the sphere for output, and flange installation calibration devices can be customized.
Application areas: Digital cameras, cameras, remote sensing instruments, biology, low light imaging and quantitative measurement simulation of starlight and moonlight. Imaging systems in the laboratory for large and small aperture space remote sensing detection systems, imaging systems in the device laboratory, calibration films for devices, digital cameras, camera uniformity correction, spectral response characteristics suitable for calibration of remote sensing instruments, CCD cameras, image arrays, and other detectors. Biology, low light imaging, and quantitative measurement calibration are used for uniform output in low light, such as simulating starlight and moonlight for calibration of low light measurement cameras, such as fluorescence measurement systems for calibration of large and small aperture space remote sensing detection systems for uniformity correction

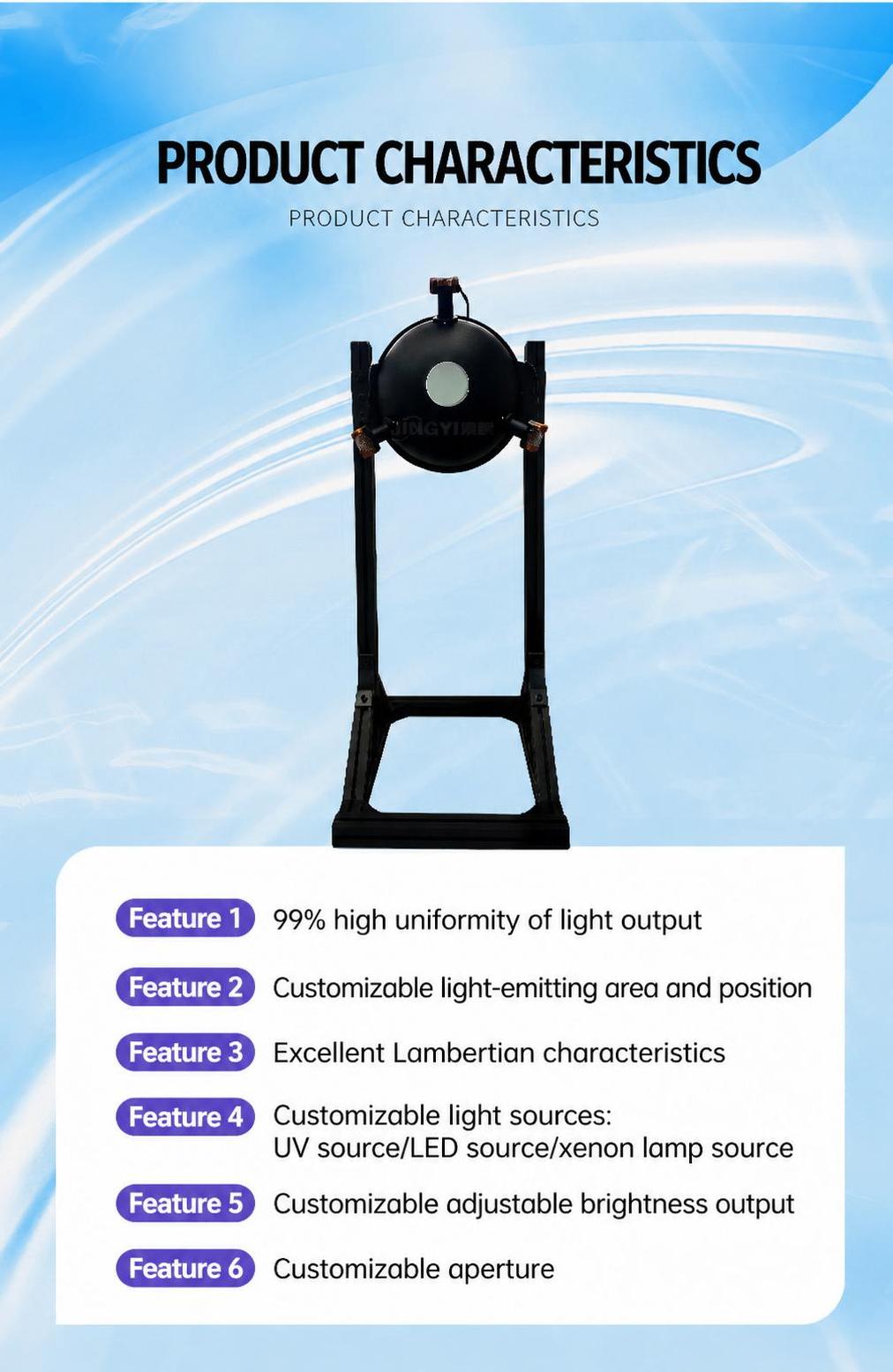

Product characteristics: 1. High uniformity of 99%, light output characteristics. 2. Customizable light outlet area and position. 3. Excellent Lambertian characteristics. 4. Customizable halogen/LED/xenon light sources. 5. Customizable brightness output characteristics. 6. Customizable open flange

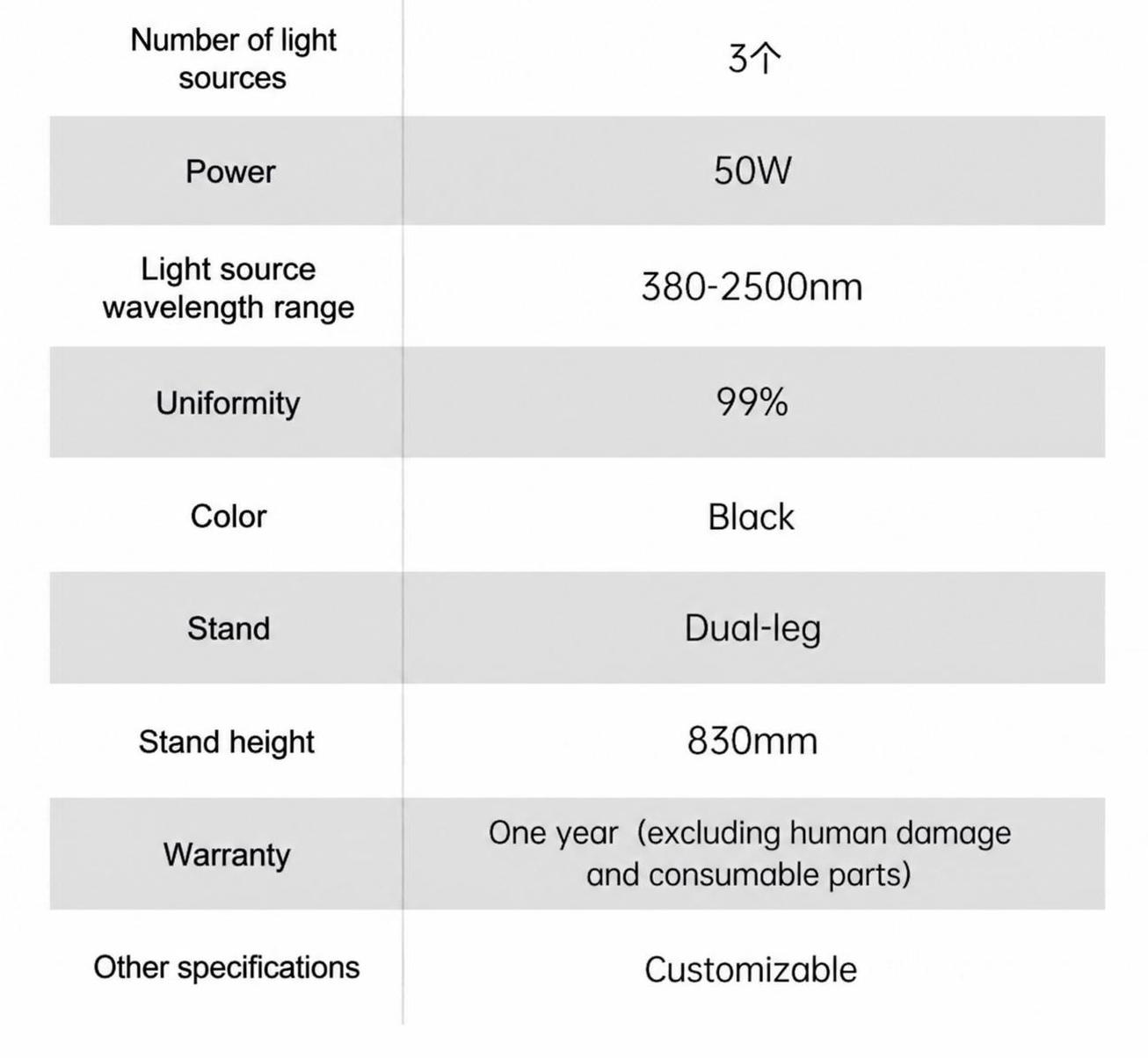

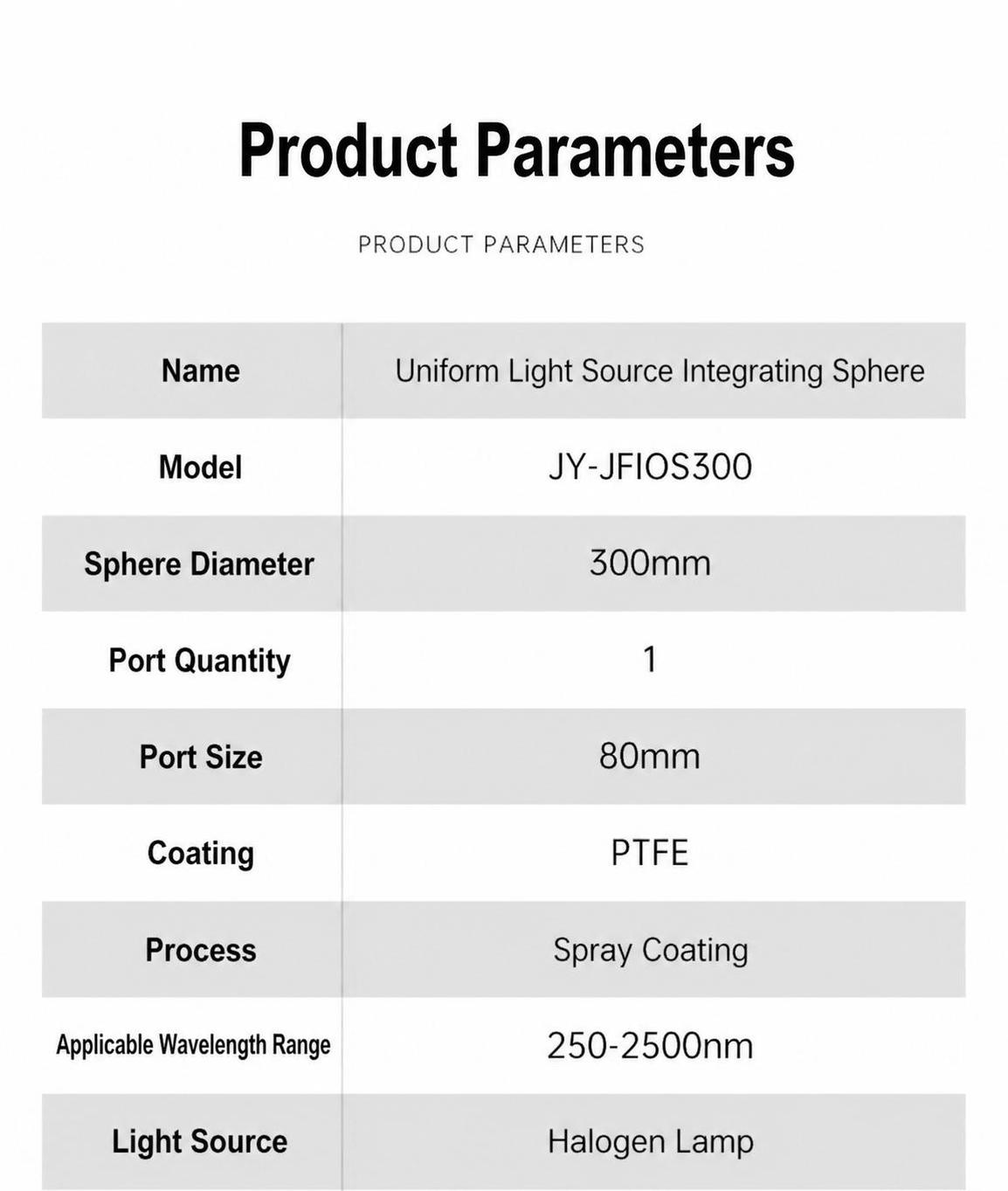

Product Specifications
