JY-CEV-VAR quartz collimating lens colorimetric dish product introduction

JY-CEV-VAR Four way Colorimeter

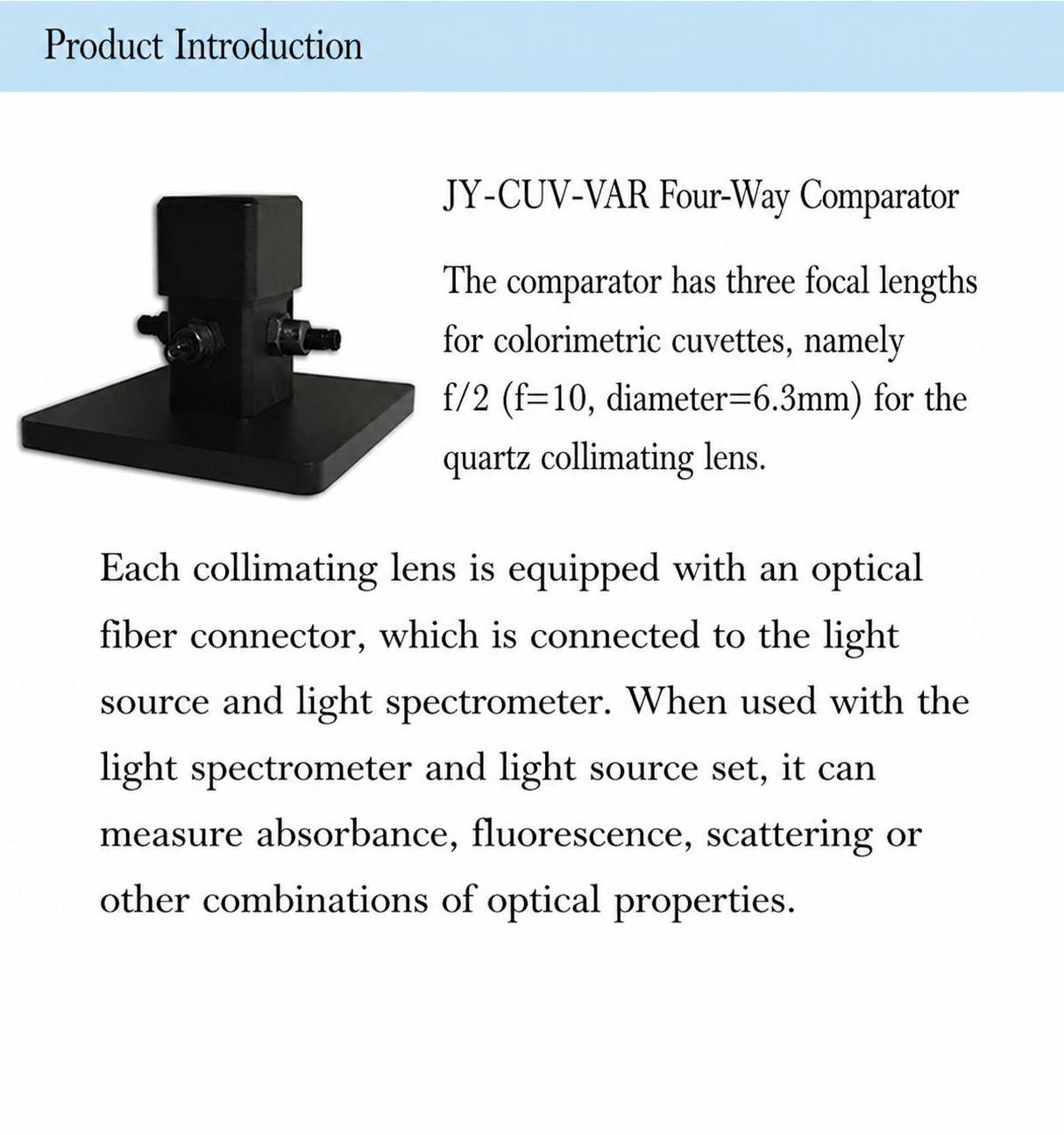

Product Introduction: The colorimetric dish holder is equipped with three quartz collimating lenses with a focal length of f/2 (f=10, diameter=6.3mm). Each collimating lens is equipped with a fiber optic connector, which is connected to the fiber optic to read or illuminate the sample. When used in conjunction with a spectrometer and light source, it is capable of measuring absorbance, fluorescence, scattering, or any combination of optical phenomena.

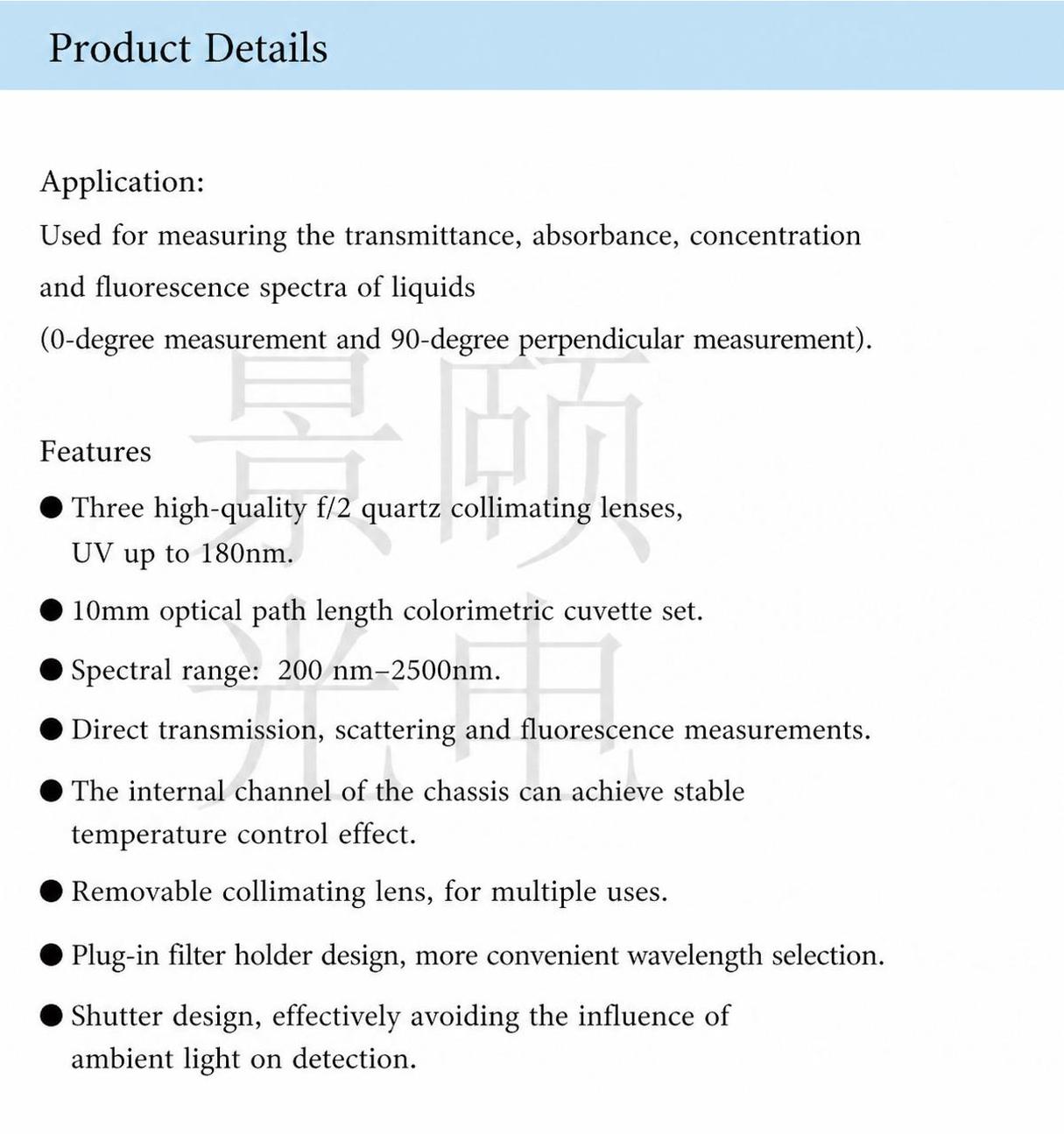

Application areas: Used for measuring liquid transmittance, absorbance, concentration, and fluorescence spectra (0-degree measurement and 90 degree vertical measurement).

Features: Three excellent f/2 quartz collimating lenses, UV can reach 180nm. Used in conjunction with a 10mm optical path colorimetric dish. Wide spectral range: 200nm-2500nm. Direct, scattering, and fluorescence measurements. The internal channels of the chassis can achieve a stable temperature effect. Detachable collimating lens for versatile use. Plug in filter design makes wavelength selection more convenient. Cap design effectively avoids the influence of ambient light on detection.

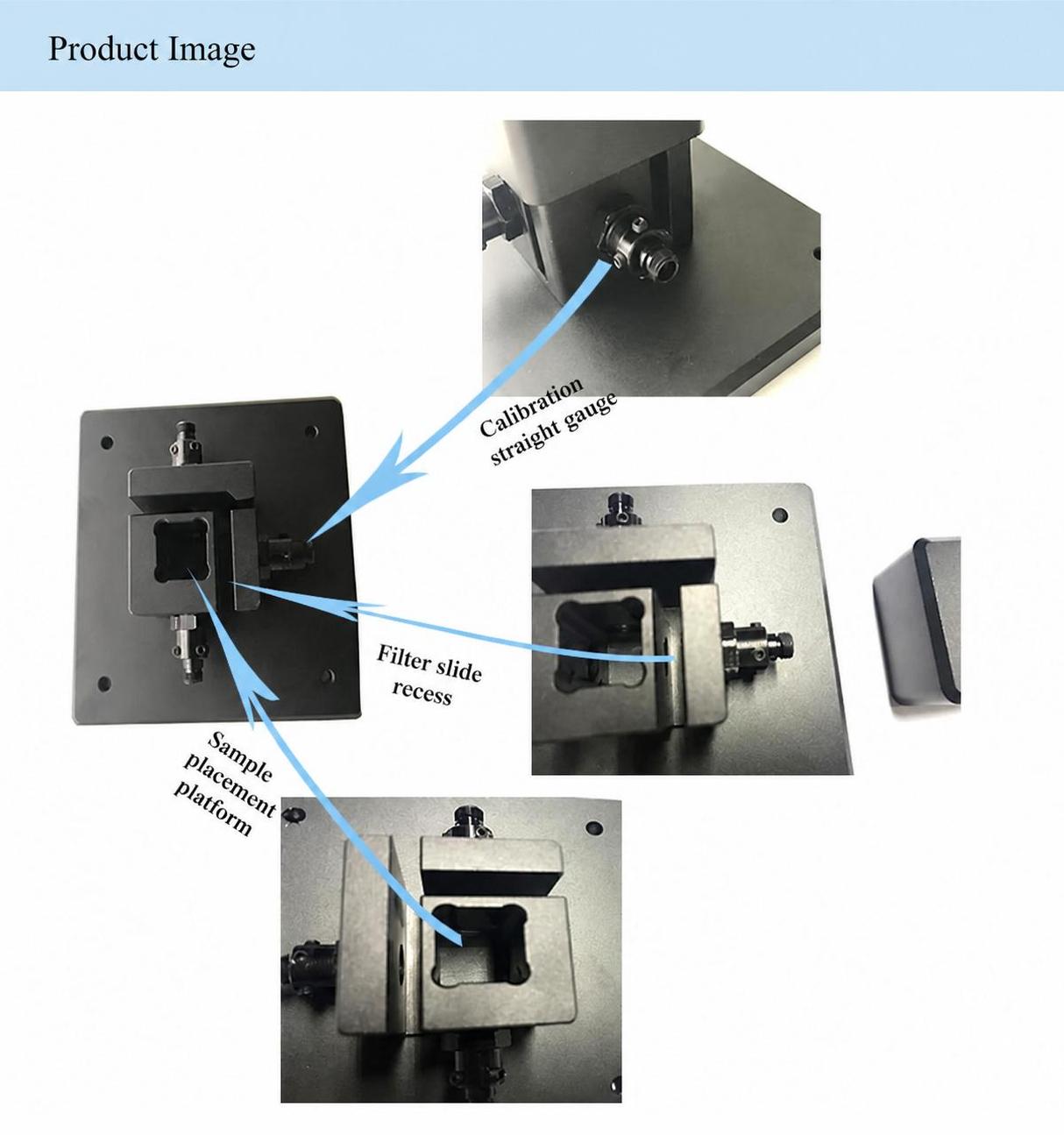

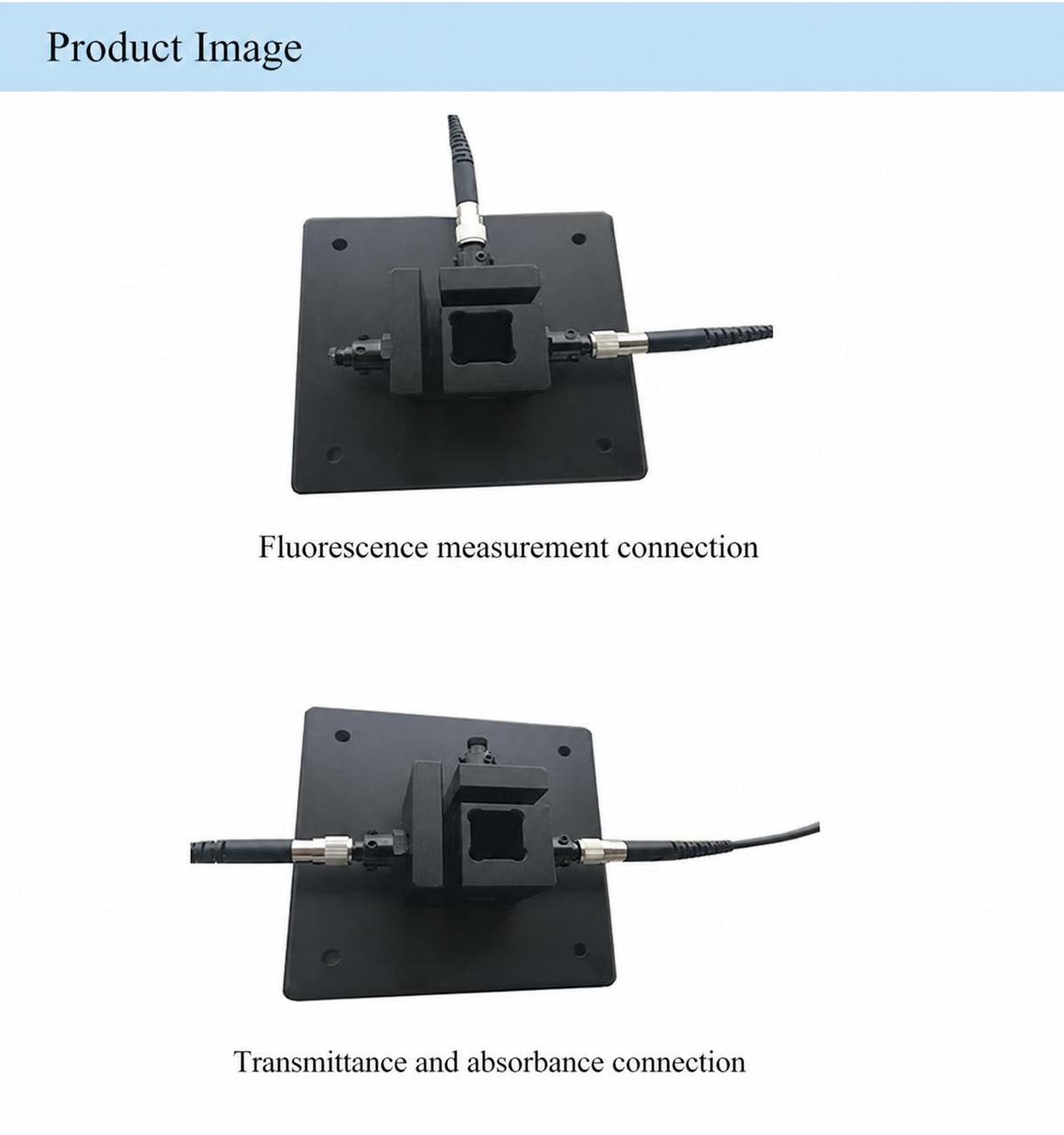

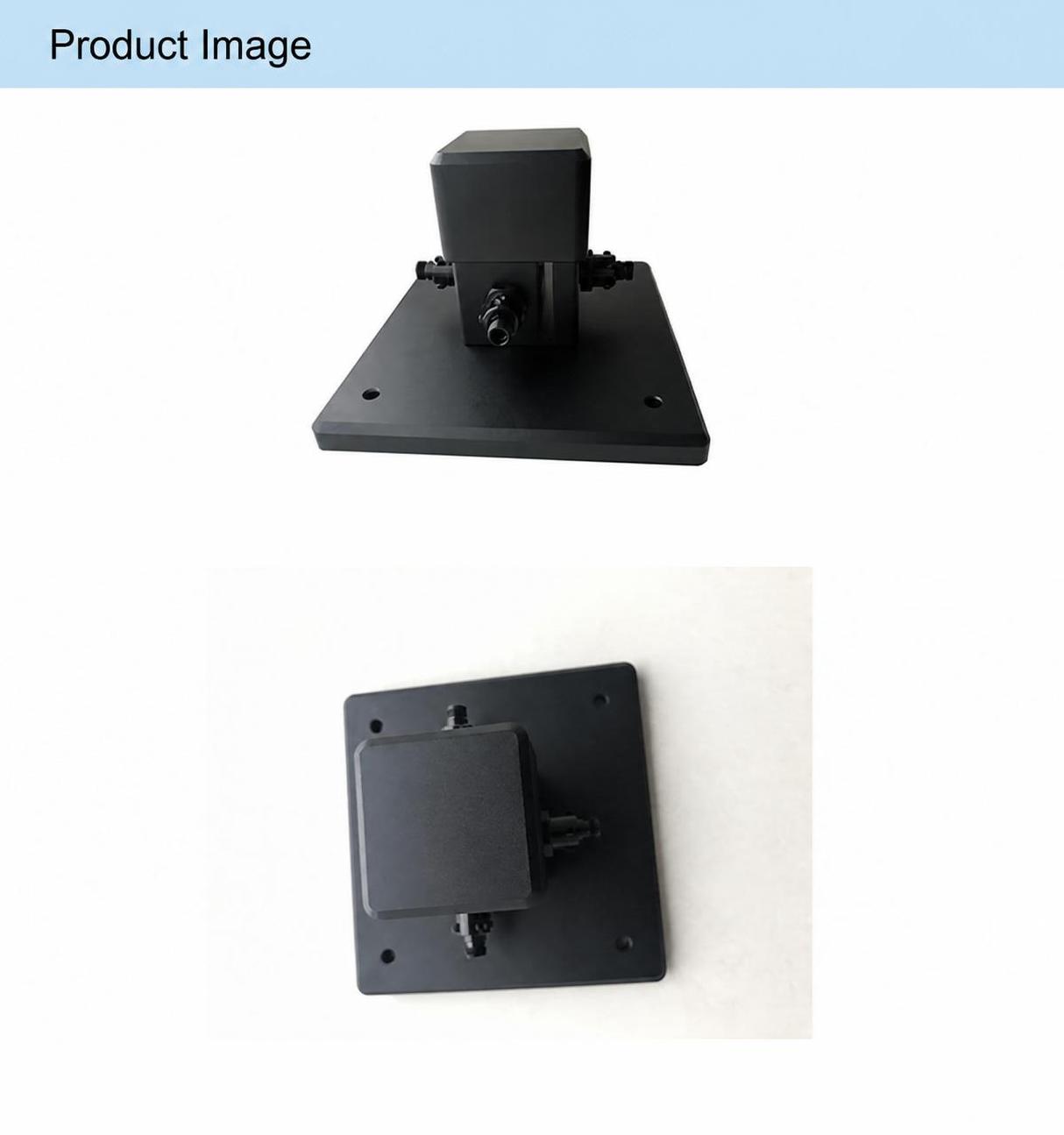

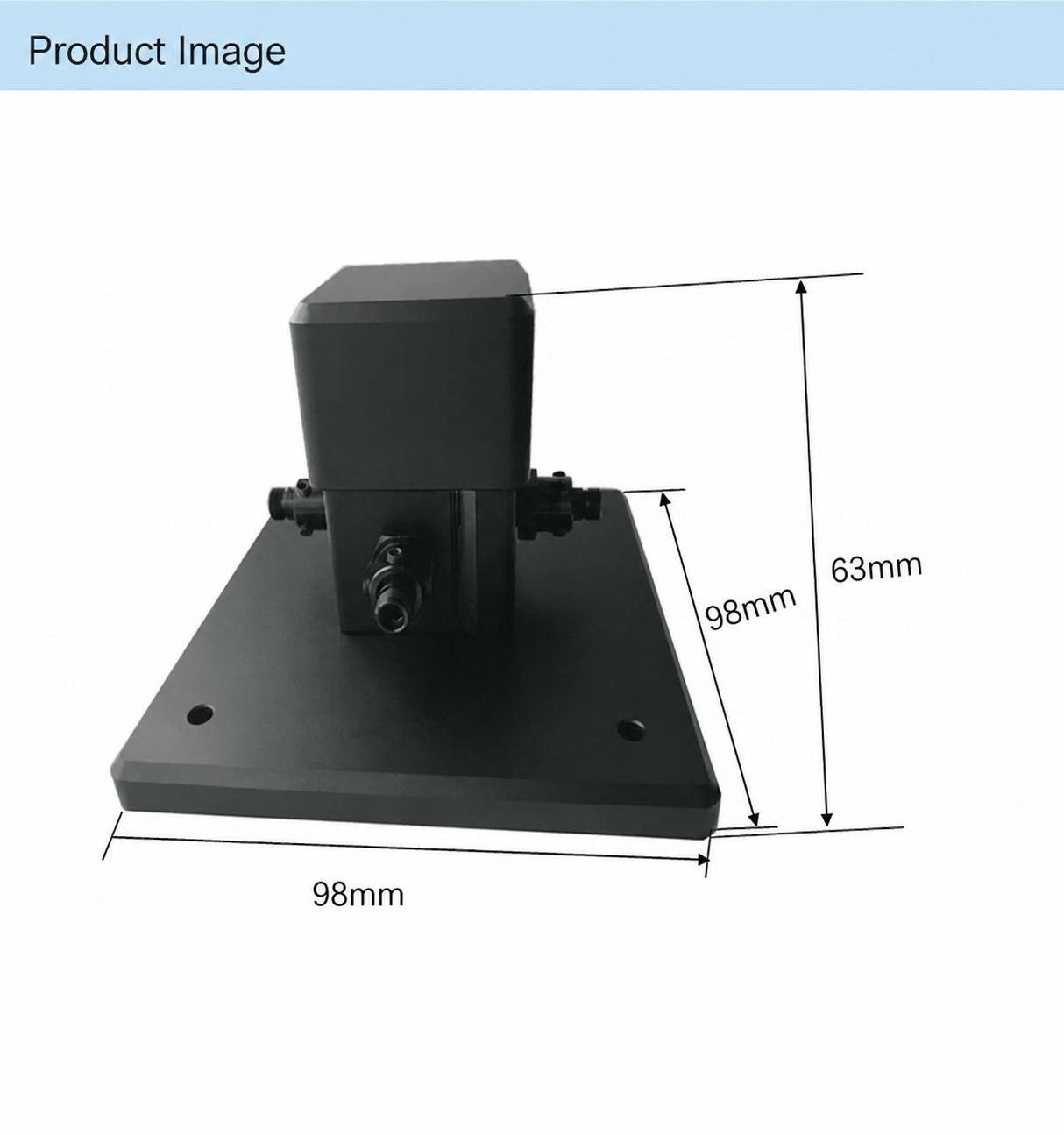

Product image: Collimator, filter, groove, sample placement dish, fluorescence measurement connection, transmittance, absorbance connection

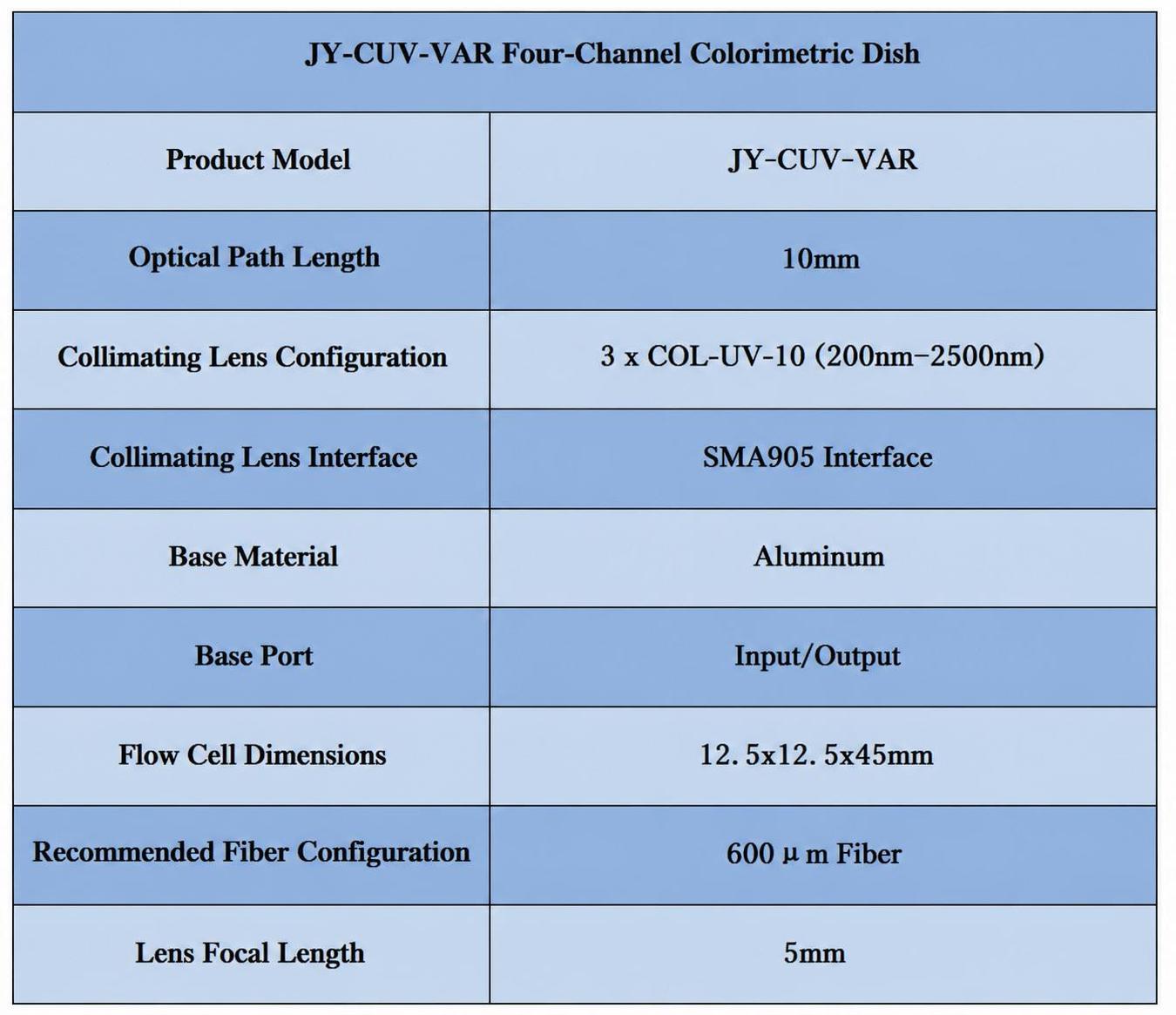

Product Specifications
