Product Introduction

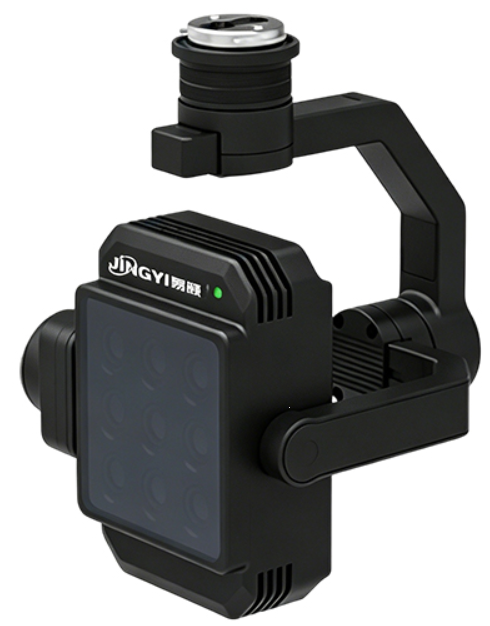

Jingyi OptoelectronicsofJY-MAX-S series airborne multispectral cameraIt can collect image data from 7 spectral channels and 1 visible light channel in parallel, transmit real-time images, view calculation results in real-time, and make targeted decisions quickly for abnormal situations. Mainly used in high-definition airborne scenes, such as ecological environment, precision agriculture, smart forestry, resource exploration and other fields.
Product Features
8-channel parallel, multi band optional, supporting the collection of more vegetation indices and spectral features to meet more diverse application scenarios
• Supports simultaneous imaging of multispectral and color RGB, with high-definition image resolution
• Support real-time image transmission and built-in multi vegetation indices (NDVI/NDRE/EVI, etc.) and monitoring model algorithms (pine forest nematode disease/oil pond dew, etc.)
High precision radiometric calibration combined with real-time correction of ambient light radiation for more accurate acquisition of spectral data
Perfectly matched with DJI Jingwei series drones, achieving plug and play functionality
Drones carrying monitoring
Application Scenarios
Smart Agriculture
Vegetation index monitoring
Crop growth monitoring
Monitoring of pest and disease trends
Crop classification monitoring
Crop area calculation
water environment
Monitoring of algal blooms
Coastal ecological monitoring
Monitoring of eutrophication in water bodies
Monitoring of black and odorous water bodies
Chlorophyll monitoring
Smart Forestry
Monitoring of forest coverage area
Monitoring of tree species and quantity
Monitoring of Pine Wood Nematode Disease
Intelligent monitoring of birds
Forest area monitoring
ecological environment
Ecological element monitoring
Ecological Red Line Monitoring
Monitoring of Alien Species
Ecological disaster monitoring
Ecological condition monitoring
other
playPiece recognition
Poppy patrol
Customs inspection
Disguise recognition
Product Specifications
|
Product Model
|
JY-MAX-S810
|
|
PTZ parameters
|
|
Installation Method
|
detachable
|
|
Angle jitter amount
|
±0.01°
|
|
Controllable rotation range
|
pitch: -120° ~ +30°
|
|
Structural allowable range
|
Yaw: ±320° pitch: -120° ~ +30° roll:-55° ~ +55°
|
|
Maximum control speed
|
90°/s
|
|
camera parameters
|
|
Multispectral imaging
|
7+RGB
|
|
Multispectral band
|
Standard Configuration：450nm、550nm、650nm、720nm(narrowband)、750nm(narrowband)、800nm、850nm
Optional： 410nm、490nm、530nm、570mm、600nm、660nm、680nm、720nm、750nm、780nm、900nm
|
|
image sensor
|
1 / 3.1 inch CMOS , global shutter , 3.2 million pixels
|
|
image resolution
|
2048 * 1536
|
|
Data Depth
|
12 bit
|
|
optical lens
|
focal length f=5.35mm apertureF/2.0
|
|
field of view
|
HF0V：46.6° , VFOV：35.8°
|
|
Typical Width
|
103.3 m * 77.5 m @h=120 m
|
|
Ground spatial resolution
|
5.05cm @h=120m
|
|
Preview
|
The camera supports real-time preview function
|
|
Capture frame rate
|
Trigger acquisition, maximum 1 frame/second (full channel)
|
|
trigger mode
|
Single trigger, timed trigger, overlap rate trigger
|
|
Spectral image format
|
16 bit TIFF
|
|
Data calibration and correction
|
Spectral calibration, radiometric calibration, illuminance correction, distortion correction
|
|
storage capacity
|
Micro SD card, standard capacity of 128 GB, transmission speed requirement level of Class 10 or above
Mode U3 or above, video speed V30 or above
|
|
device interface
|
DJI X-Port、 6-core communication interface
|
|
flight control
|
|
UAV platform
|
Support DJI X-Port interface, compatible with DJI Jingwei series drones(M200 V2 / M210 V2 / M210 RTK V2 / M300 RTK / M350 RTK)
|
|
Other flight platforms
|
According to customer needs, customized development can be carried out to match other flight platforms
(rotary wing unmanned aerial vehicles, fixed wing unmanned aerial vehicles, unmanned airships, etc.)
|
|
Control method
|
DJI Pilot App
|
|
Shooting method
|
No need to hover, real-time collection is possible
|
|
Other parameters
|
|
Dimensions (width x height x depth)
|
PTZ camera: 129 x 145 x 177mm, downward light sensor: 75 x 47 x 31 mm
|
|
weight
|
PTZ camera: 780g, downward light sensor: 54g
|
|
Operating Temperature
|
-20℃ to 50℃
|
|
Storage temperature
|
-20℃ to 60℃
|
Consult customer service to obtain detailed materials and exclusive solutions.
Tel: 400-1800-685
Email:info@gzjygd.com
