Product Introduction of Photovoltaic Glass Transmittance Tester
Photovoltaic glass transmittance tester

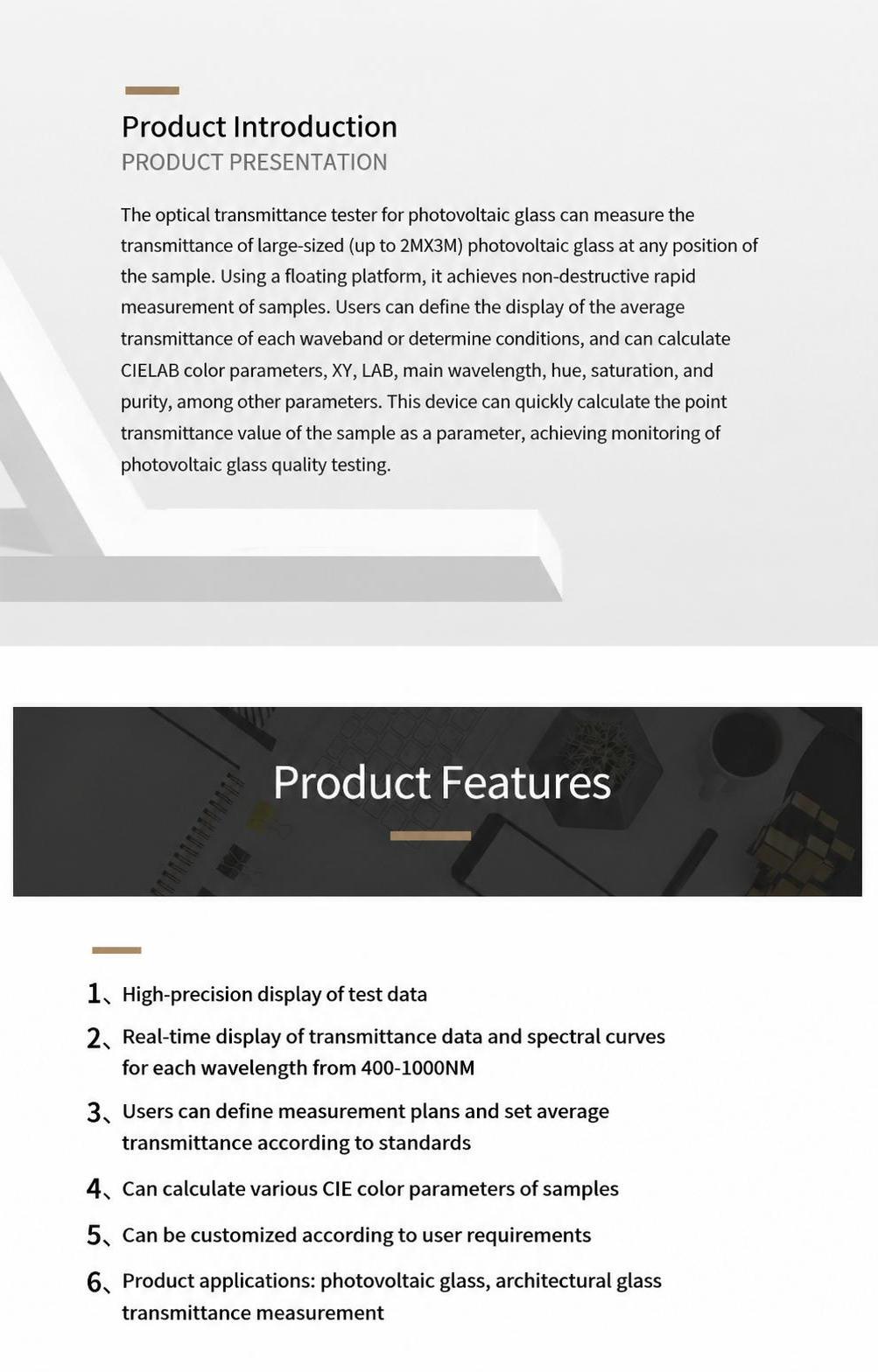

Product Introduction
The photovoltaic glass transmittance detector can measure the transmittance of large-sized tempered glass up to 2mx3m, and can measure any position of the sample. Using a gas floating platform, non-destructive and rapid measurement of samples can be achieved. Users can customize the average value or judgment conditions of the display band, and calculate CIE color parameters such as xy, lab/main wavelength, saturation, color purity, etc. This device can quickly calculate parameters such as the difference in transmittance values of individual points, achieving monitoring of glass quality testing.
Product Features
1. Display test data within milliseconds
2. Real time display of transmittance data and spectral curves for various bands ranging from 400 to 1000nm
3. Users can customize measurement schemes, set average transmittance and judgment criteria
4. Can calculate various CIE color parameters of the sample
5. Customized solutions can be provided according to user requirements
6. Product application: Measurement of transmittance of photovoltaic glass and photovoltaic glass

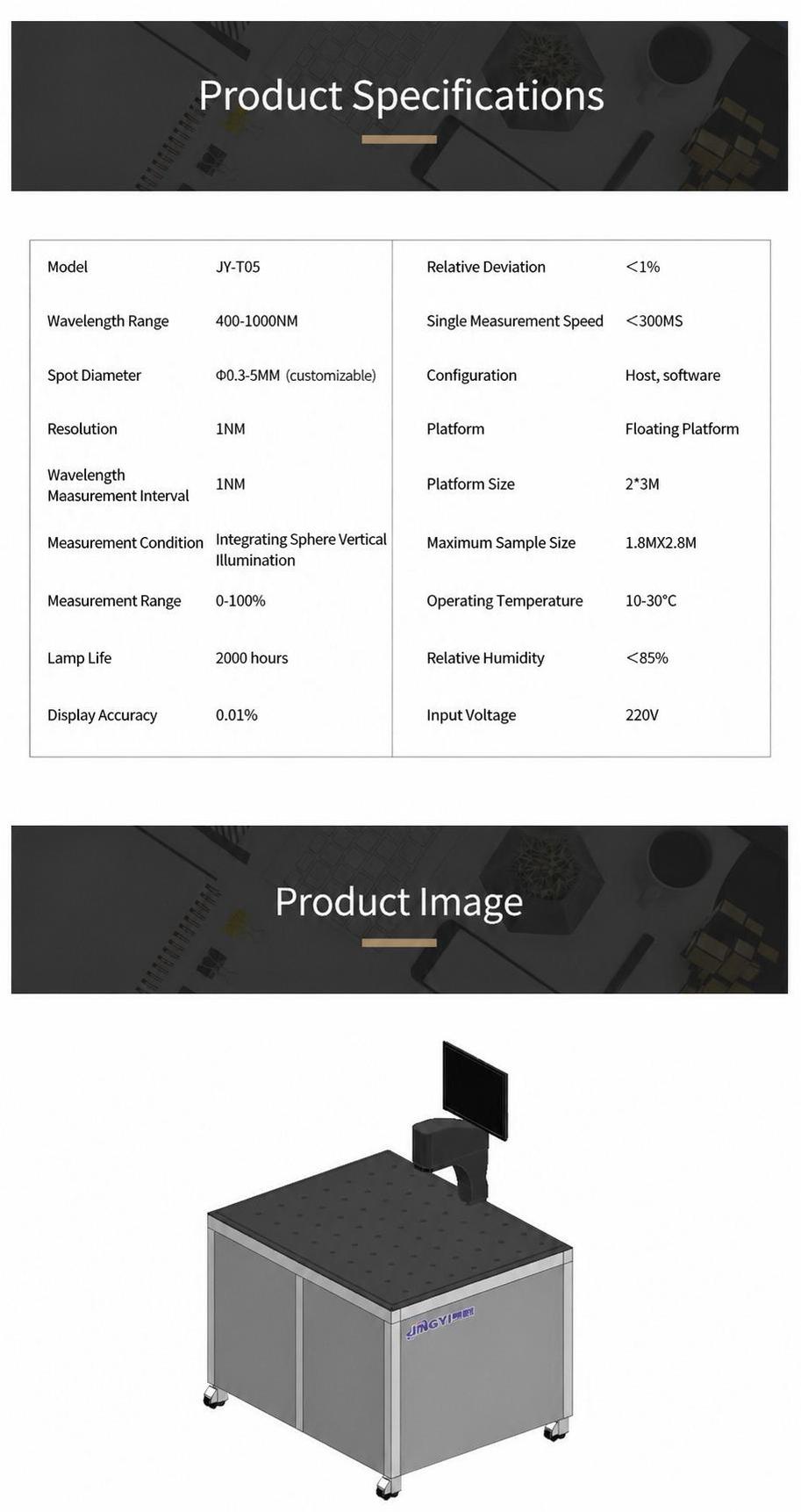

Product Specifications
|
project
|
parameter
|
|
model
|
jy-t05
|
|
spectral range
|
400-1000nm
|
|
spot diameter
|
φ0.3-5mm（customizable）
|
|
resolution
|
1nm
|
|
Spectral measurement interval
|
1nm
|
|
measurement conditions
|
Integral sphere vertical illumination
|
|
measurement range
|
0-100%
|
|
Lamp lifespan
|
2000 hours
|
|
display precision
|
0.01%
|
|
relative error
|
<1%
|
|
Single speed
|
<300ms
|
|
Configuration
|
Host, software
|
|
Platform
|
Floating platform
|
|
platform dimensions
|
2*3m
|
|
Maximum sample size
|
1.8mx2.8m
|
|
test temperature
|
10-30℃
|
|
relative humidity
|
<85%
|
|
input voltage
|
220v
|

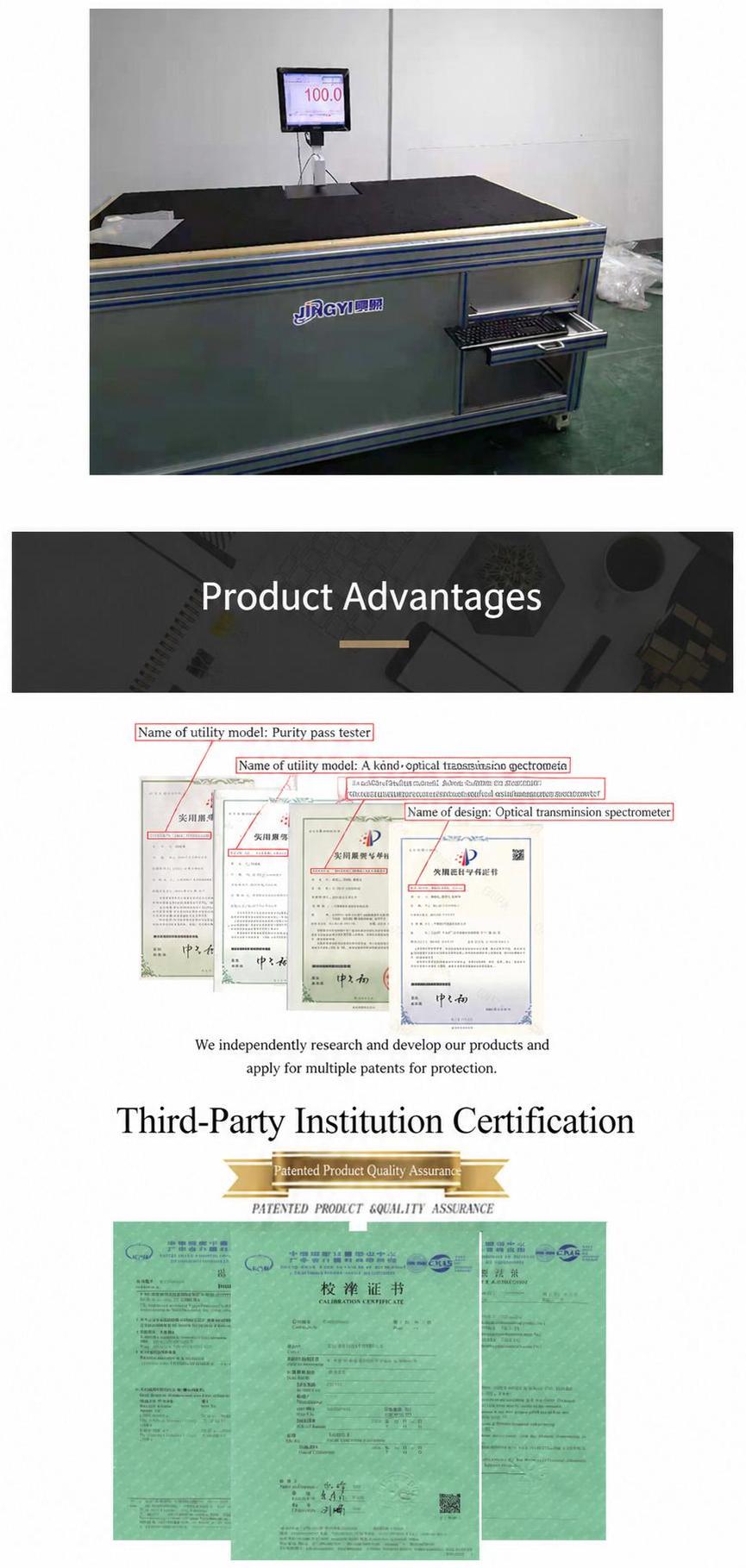

product image
Product Advantages
Independently developed products, applying for multiple patent protections
Third party organization certification
Patent Products&Quality Assurance
High tech product certificate for transmittance detector
Guangzhou Jingyi Optoelectronics Technology Full Spectrum Transmittance Detector is a high-tech product.
About the product

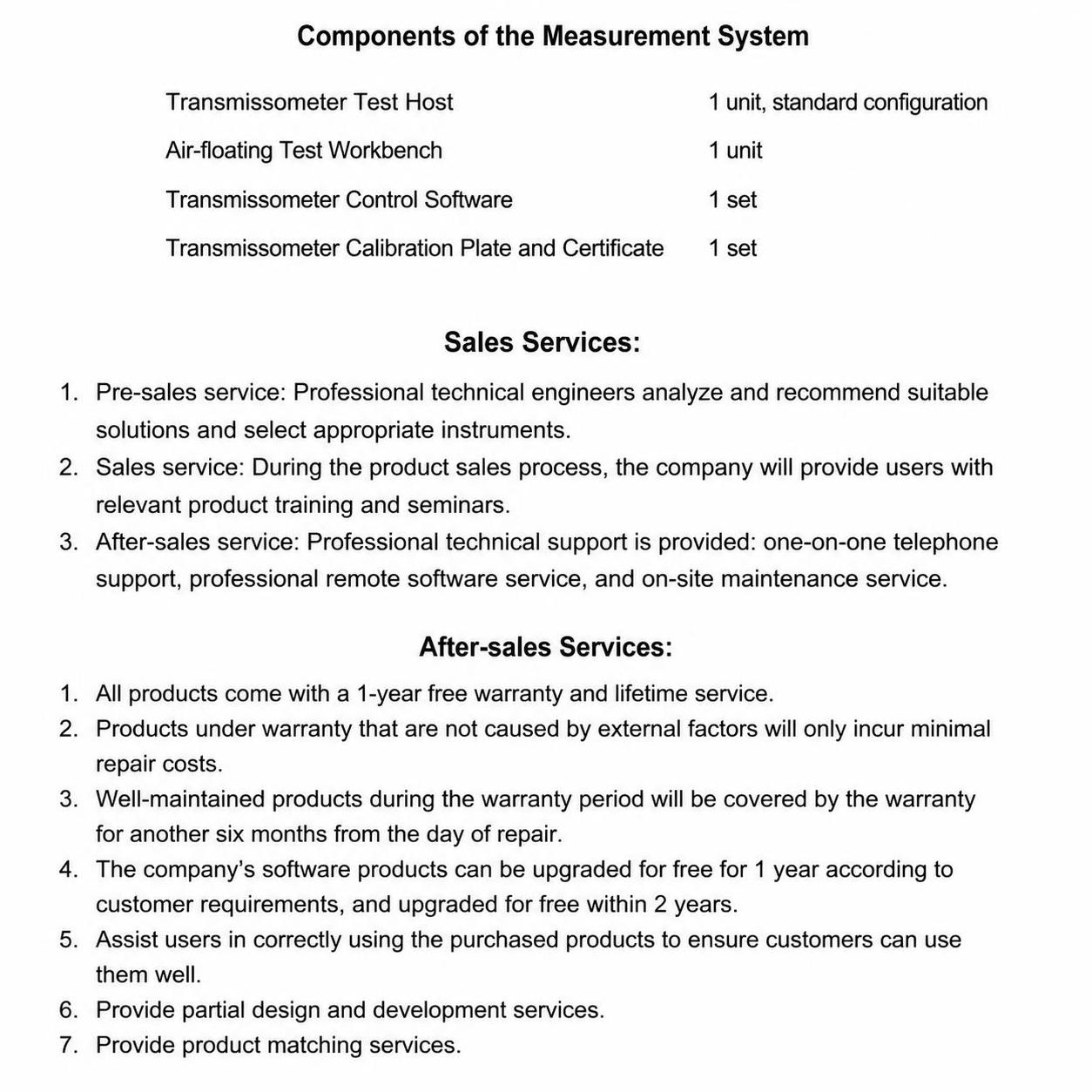

Components of the measuring instrument
One transmittance testing host is standard equipment
One air flotation testing workbench
1 set of transmittance measurement and control software
Transmittance standard board and certificate set 1
Sales Service:
1. Pre sales service professional technical engineers analyze and recommend suitable solutions, and select ideal instruments.
2. During the sales process of service products, the company will provide relevant product training and lectures to users.
3. Professional technical support for after-sales service includes one-on-one telephone support, professional remote software services, and on-site repair services.
After-sales service
1. All products come with a 1-year free warranty and lifetime service
2. Only a small amount of repair cost will be charged for products outside the warranty period
3. Products outside the warranty period will be covered by a six-month warranty from the date of repair
4. The software products sold by the company can be modified according to customer requirements within 1 year, and upgraded for free within 2 years
5. Assist users in using the purchased product correctly, ensuring that they will use it and make good use of it
6. Provide partial design and development services
7. Provide product supporting services
