Mercury argon lamp: the ideal choice for efficient wavelength calibration
Mercury lamp can be used for fast and reliable wavelength calibration

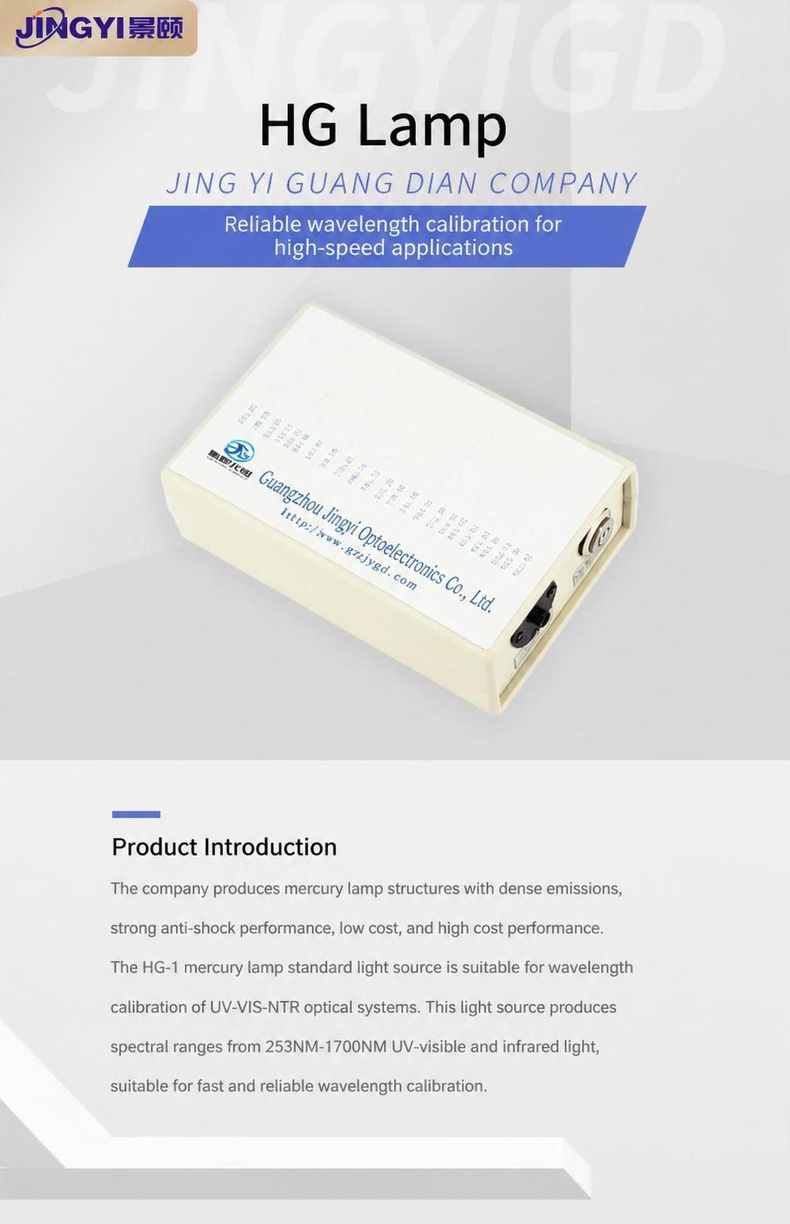

Product Introduction: The mercury argon lamp produced by the company has a compact structure, excellent seismic resistance, low cost, and high cost-effectiveness. This HG-1 mercury argon calibration light source is suitable for wavelength calibration of UV-VIS-NTR spectroscopy systems. The spectral band range generated by this light source is 253NM-1700NM ultraviolet visible infrared spectrum, which can be used for fast and reliable wavelength calibration.

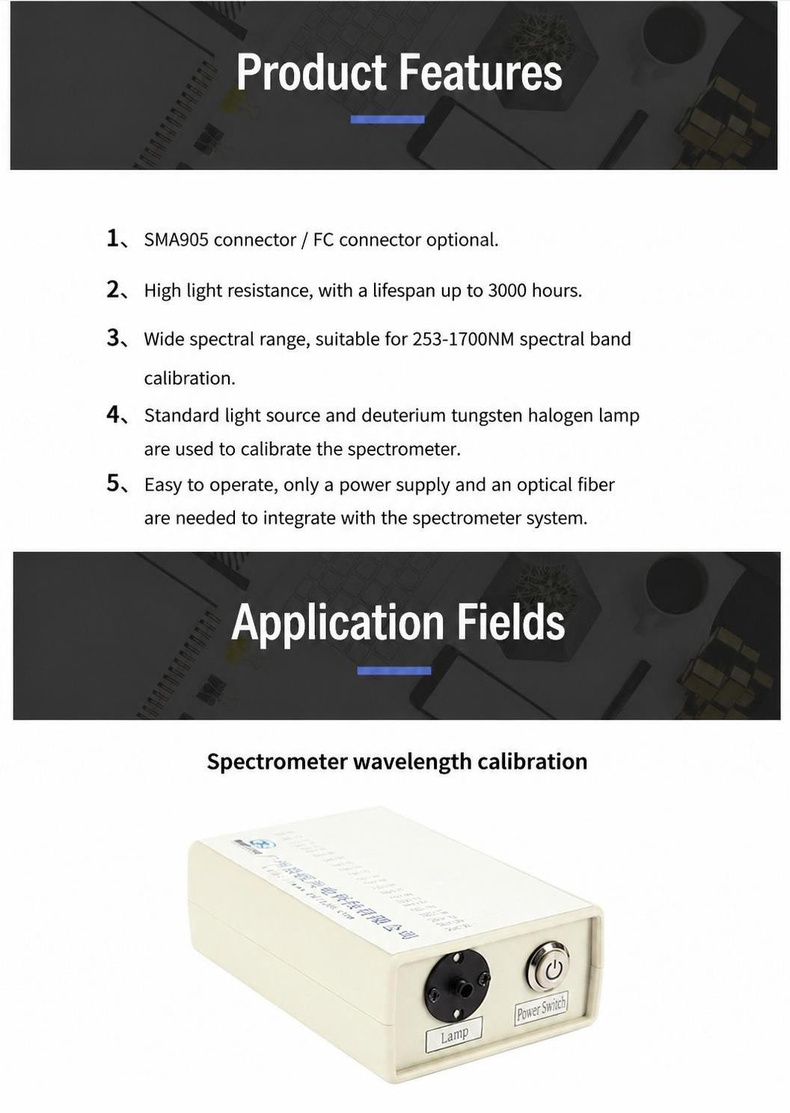

Product feature 1: SMA905 connector/FC connector is optional. 2. The light source is durable and has a lifespan of up to 3000 hours. 3. Wide spectral range, suitable for spectral band calibration from 253-1700NM. 4. Generate mercury and argon atomic emission lines to calibrate the spectrometer. 5. Easy to operate, only a power supply and optical fiber are needed to integrate with the spectrometer system.
Application areas: Spectral system wavelength calibration

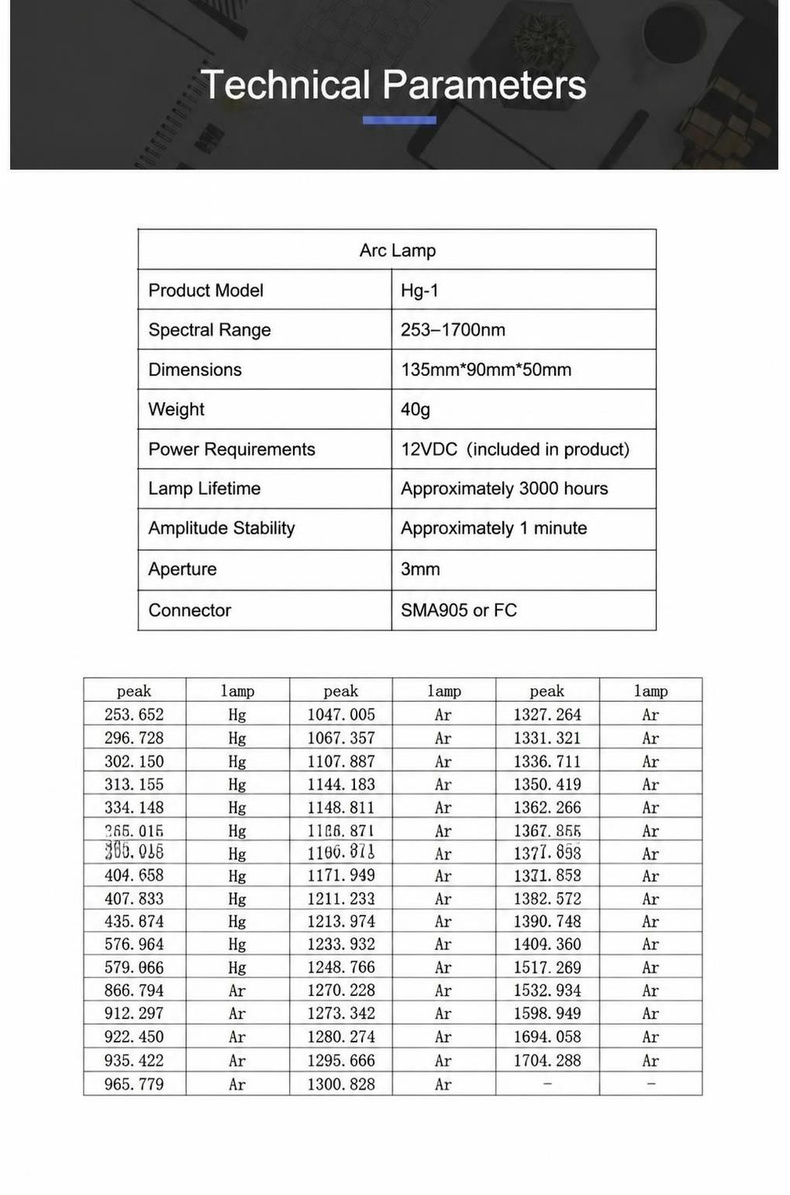

Launch line data：peak 253.652 lamp Hg peak 296.728 lamp Hg peak 302.150 lamp Hg peak 313.155 lamp Hg peak 334.148 lamp Hg peak 364.015 lamp Hg peak 404.658 lamp Hg peak 407.783 lamp Hg peak 435.833 lamp Hg peak 546.074 lamp Hg peak 576.960 lamp Hg peak 579.066 lamp Hg peak 866.297 lamp Ar peak 912.794 lamp Ar peak 922.450 lamp Ar peak 935.422 lamp Ar peak 965.779 lamp Ar peak 1047.005 lamp Ar peak 1067.357 lamp Ar peak 1107.887 lamp Ar peak 1144.183 lamp Ar peak 1148.811 lamp Ar peak 1171.871 lamp Ar peak 1266.233 lamp Ar peak 1171.949 lamp Ar peak 1213.974 lamp Ar peak 1234.239 lamp Ar peak 1243.932 lamp Ar peak 1248.766 lamp Ar peak 1273.238 lamp Ar peak 1270.228 lamp Ar peak 1280.274 lamp Ar peak 1295.266 lamp Ar peak 1300.828 lamp Ar peak 1327.264 lamp Ar peak 1331.321 lamp Ar peak 1336.711 lamp Ar peak 1350.419 lamp Ar peak 1362.266 lamp Ar peak 1367.858 lamp Ar peak 1371.852 lamp Ar peak 1382.572 lamp Ar peak 1390.748 lamp Ar peak 1409.364 lamp Ar peak 1504.650 lamp Ar peak 1517.269 lamp Ar peak 1532.939 lamp Ar peak 1598.949 lamp Ar peak 1694.058 lamp Ar peak 1704.288 lamp Ar
