Product Introduction: 74-FCH Reflectance Integrating Sphere Stand

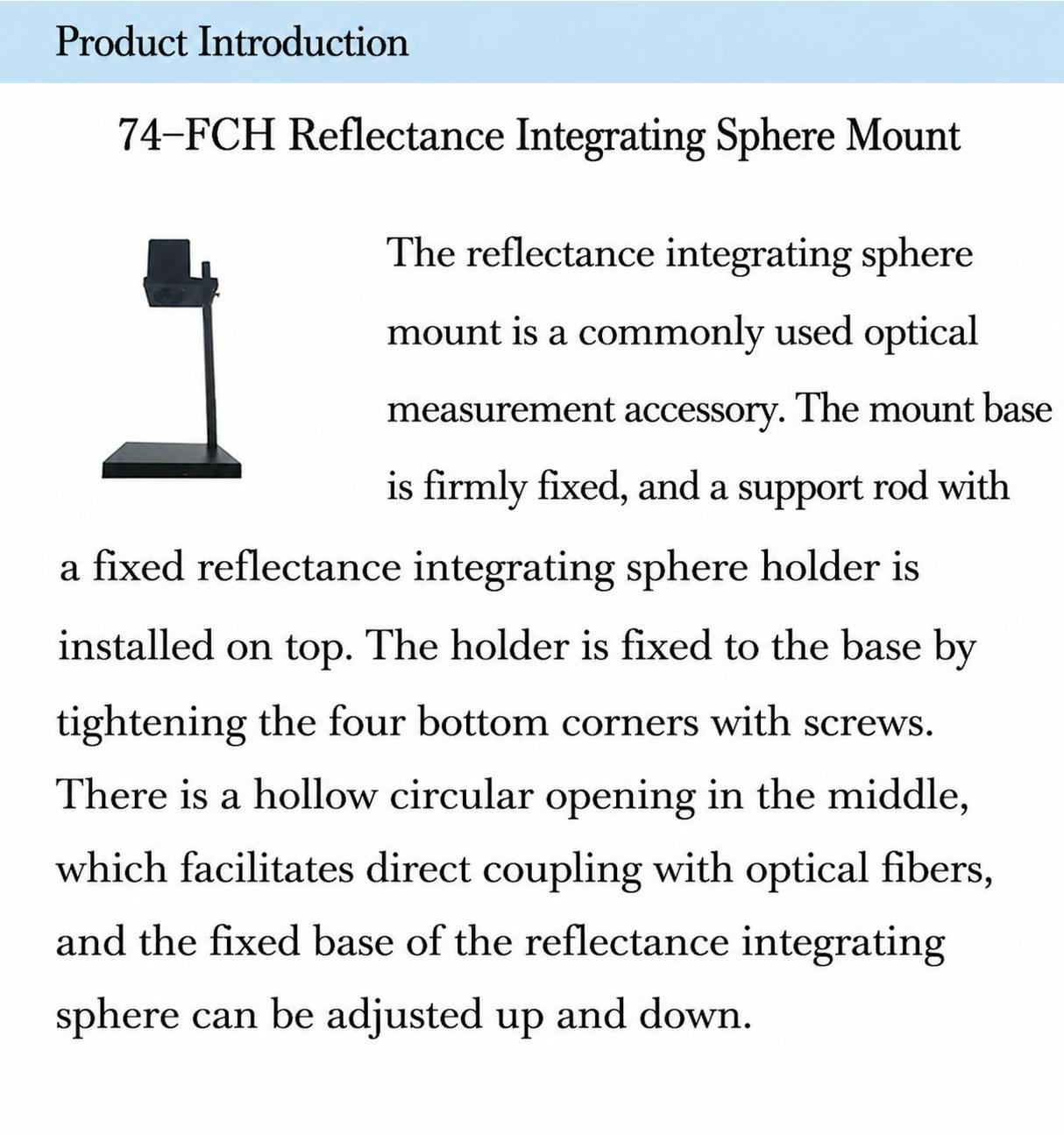

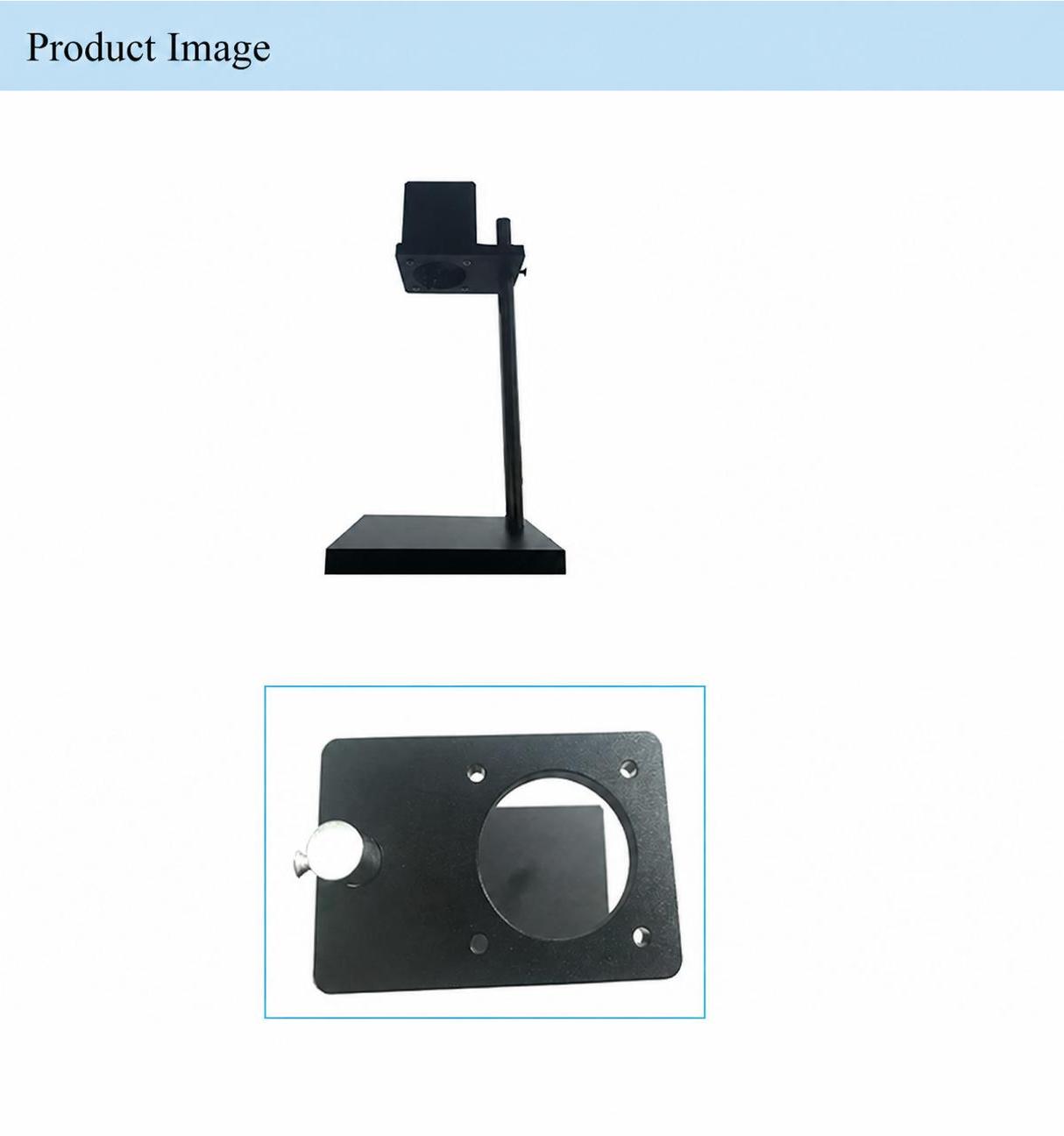

74-FCH Reflectance Integrating Sphere Mount Product Introduction The reflectance integrating sphere mount is a commonly used optical measurement accessory. The base of the mount is sturdy and solid, and the support rod features a fixed seat for securing the reflectance integrating sphere. The fixed seat is secured to the four bottom corners of the integrating sphere using screws, with a hollow circular center for connecting the collimating lens to the fiber. The fixed seat of the reflectance integrating sphere can be adjusted up and down.

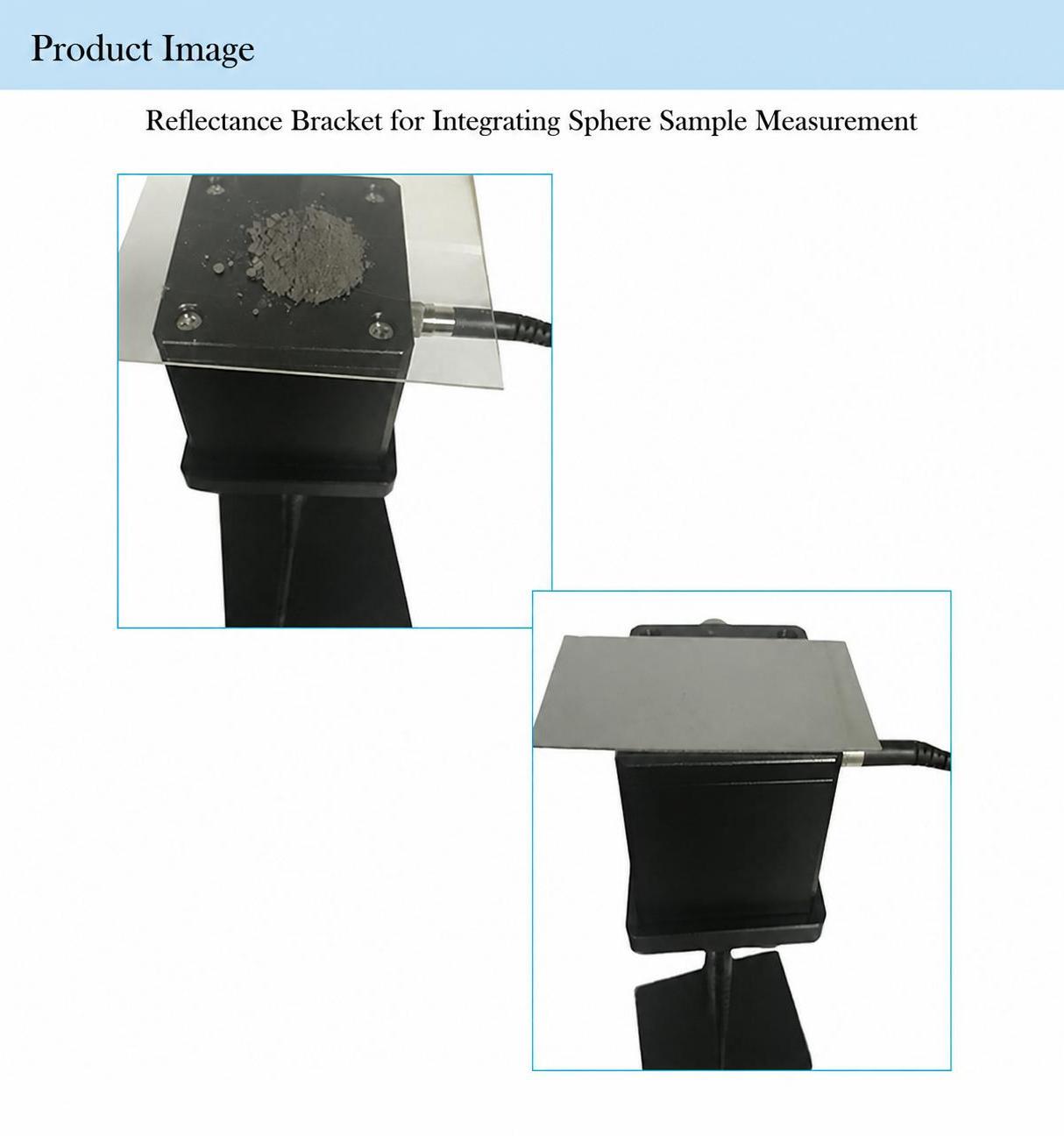

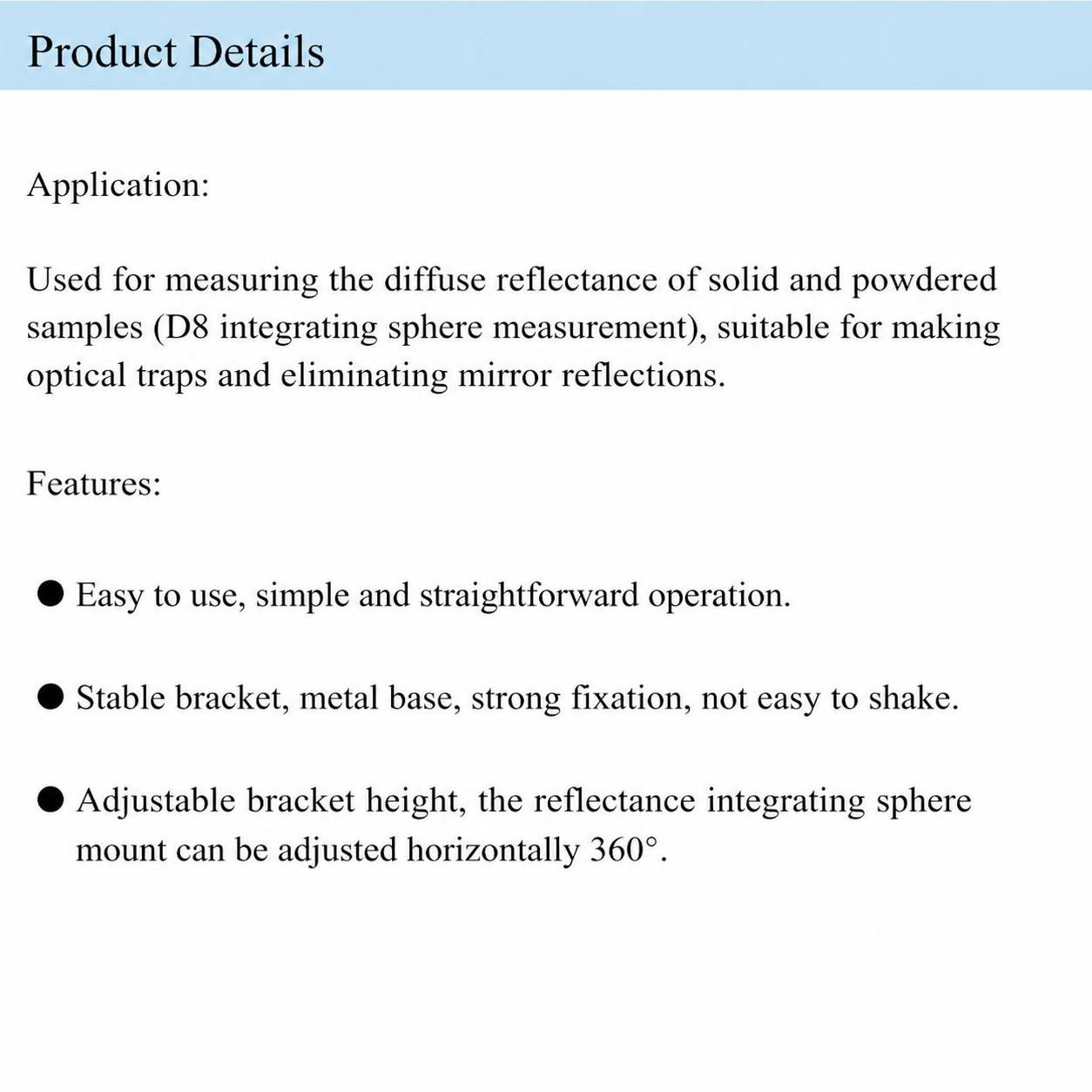

Application area: Used for measuring the diffuse reflectance of solids and powders (D8 degree angular integrating sphere measurement method, which can eliminate specular reflection by acting as a light trap).

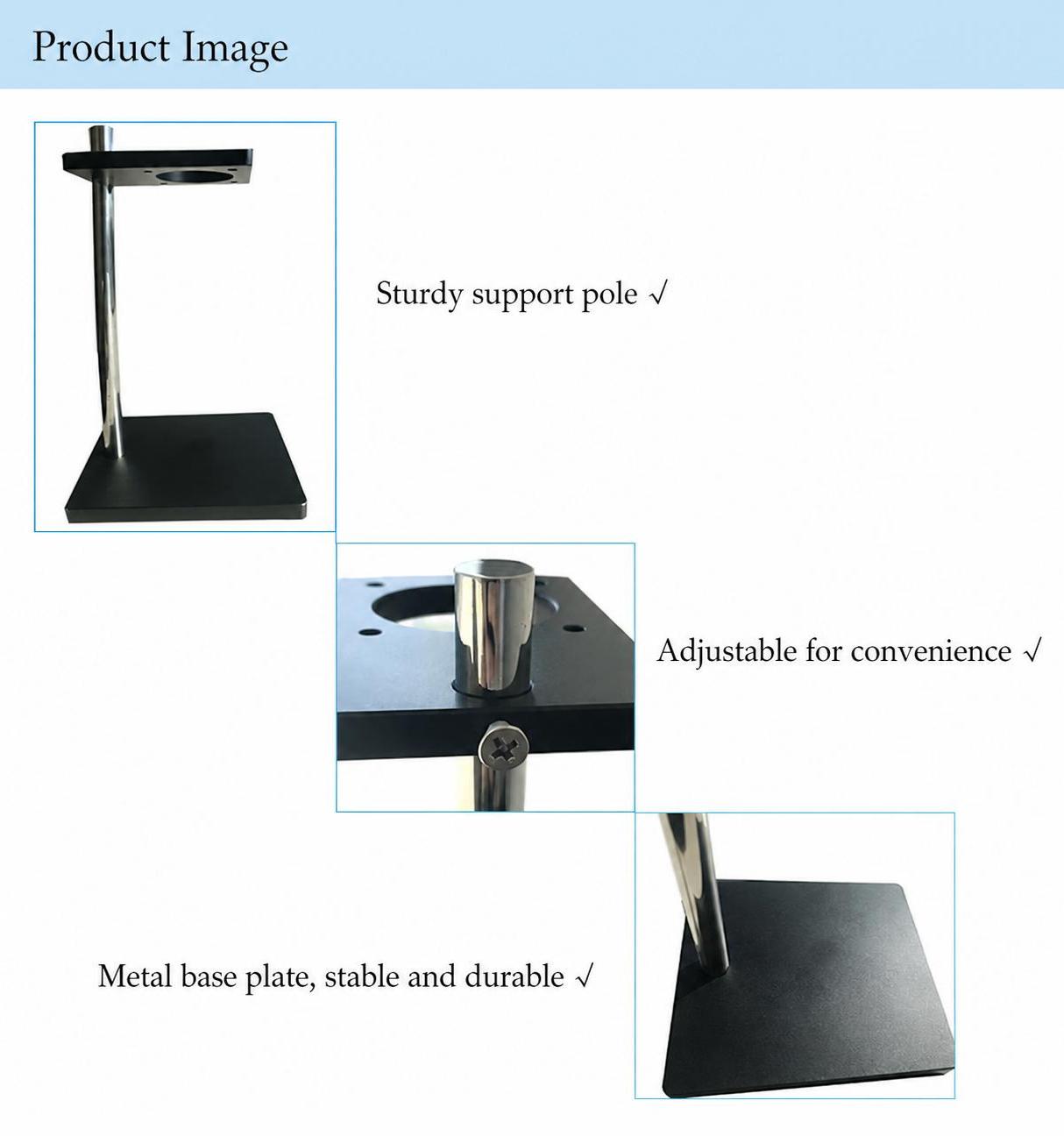

Features: Easy to use and operate. Stable stand with metal base, strong fixation and less shaking. Adjustable stand height, and the reflectance integrating sphere mount can be adjusted horizontally by 360°.

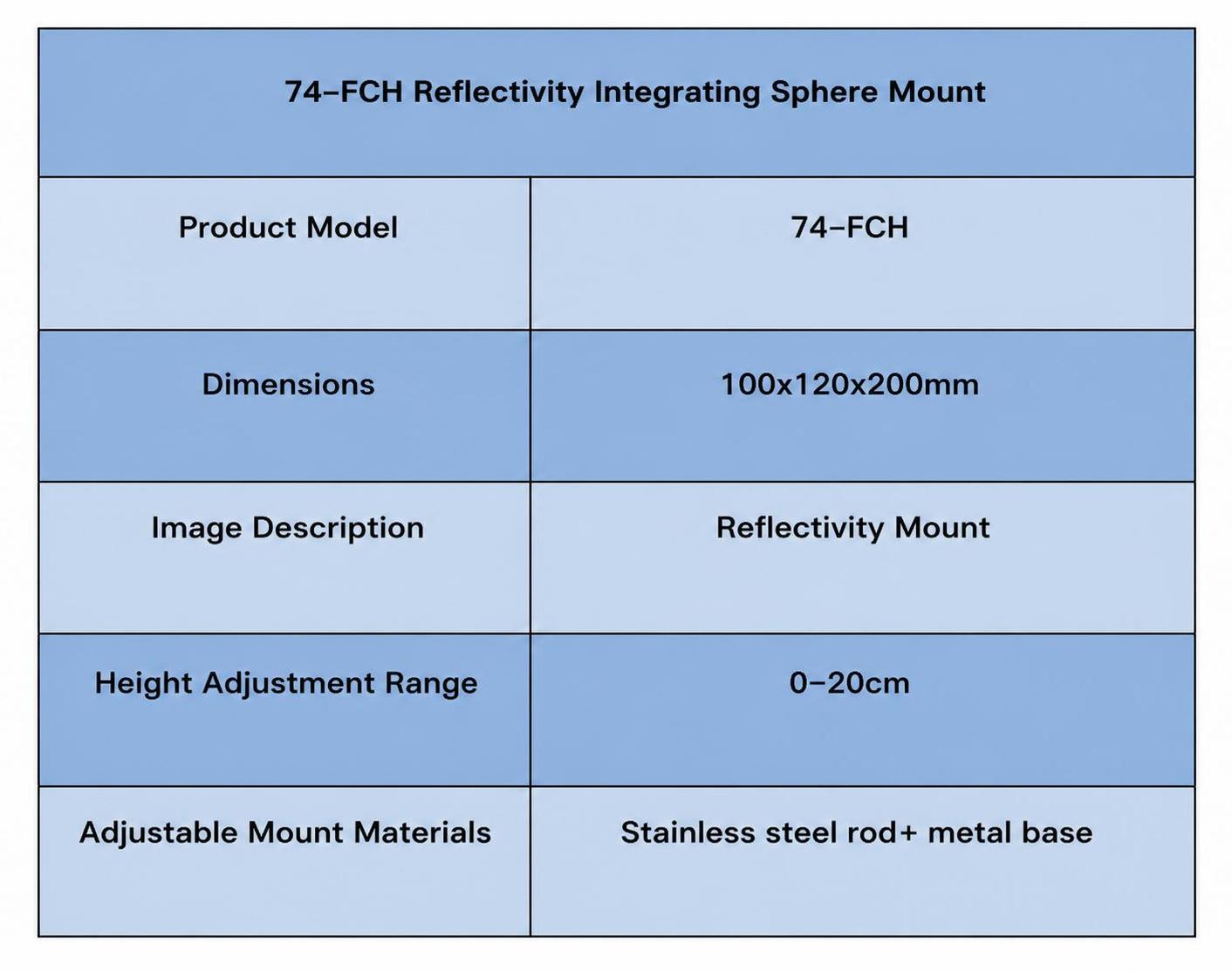

Product Specifications

project	parameter
Product Model	74-FCH

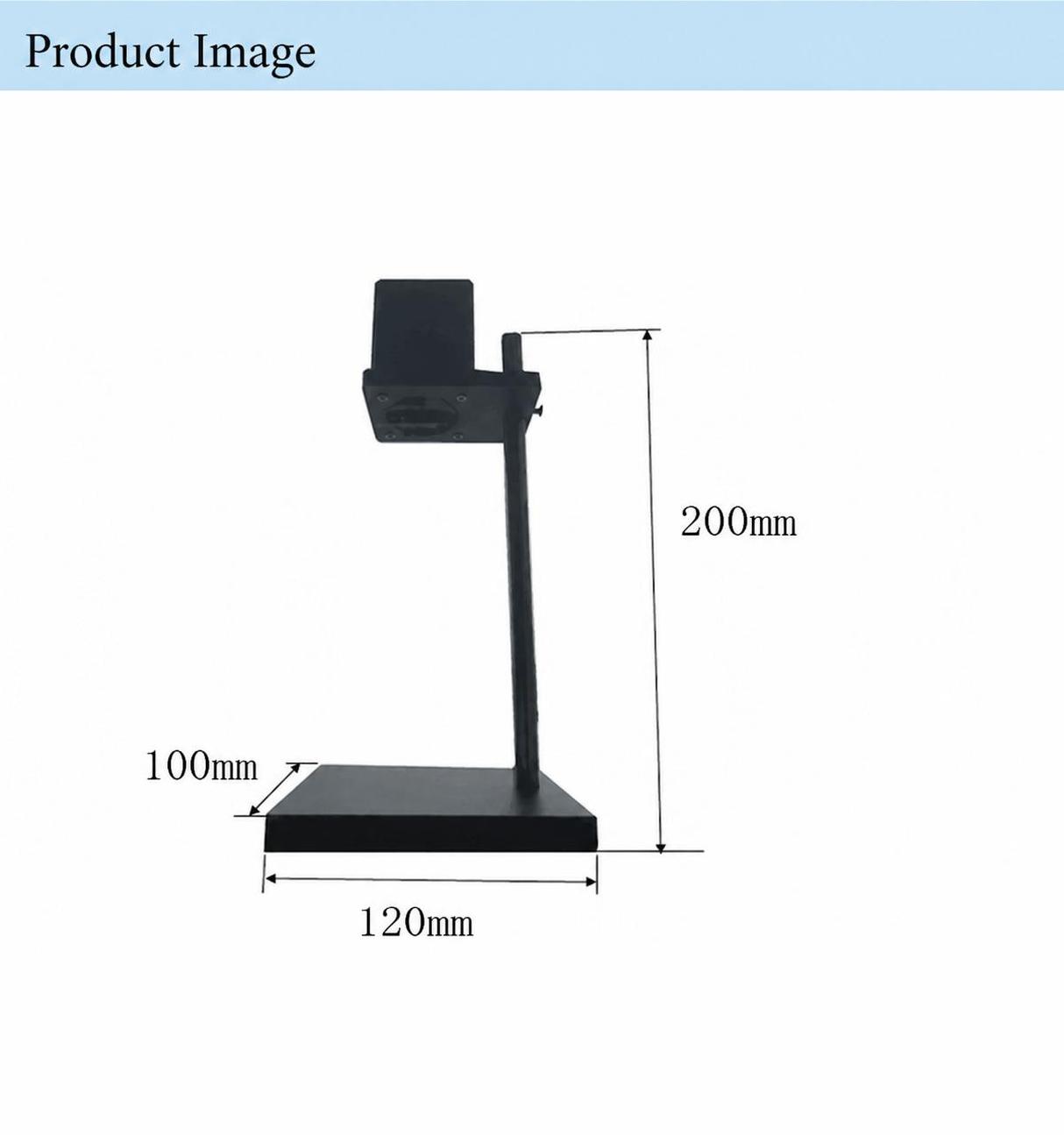

size	100x120x200mm
image details	Reflectivity bracket
Height adjustment range	0-20cm
Adjustable bracket material	Stainless steel rod metal base
