Product Introduction: 74-TCHS Optical Measurement Bracket
Transmittance integrating sphere bracket 74-TCHS, flexible adjustment, strong universality, easy to operate

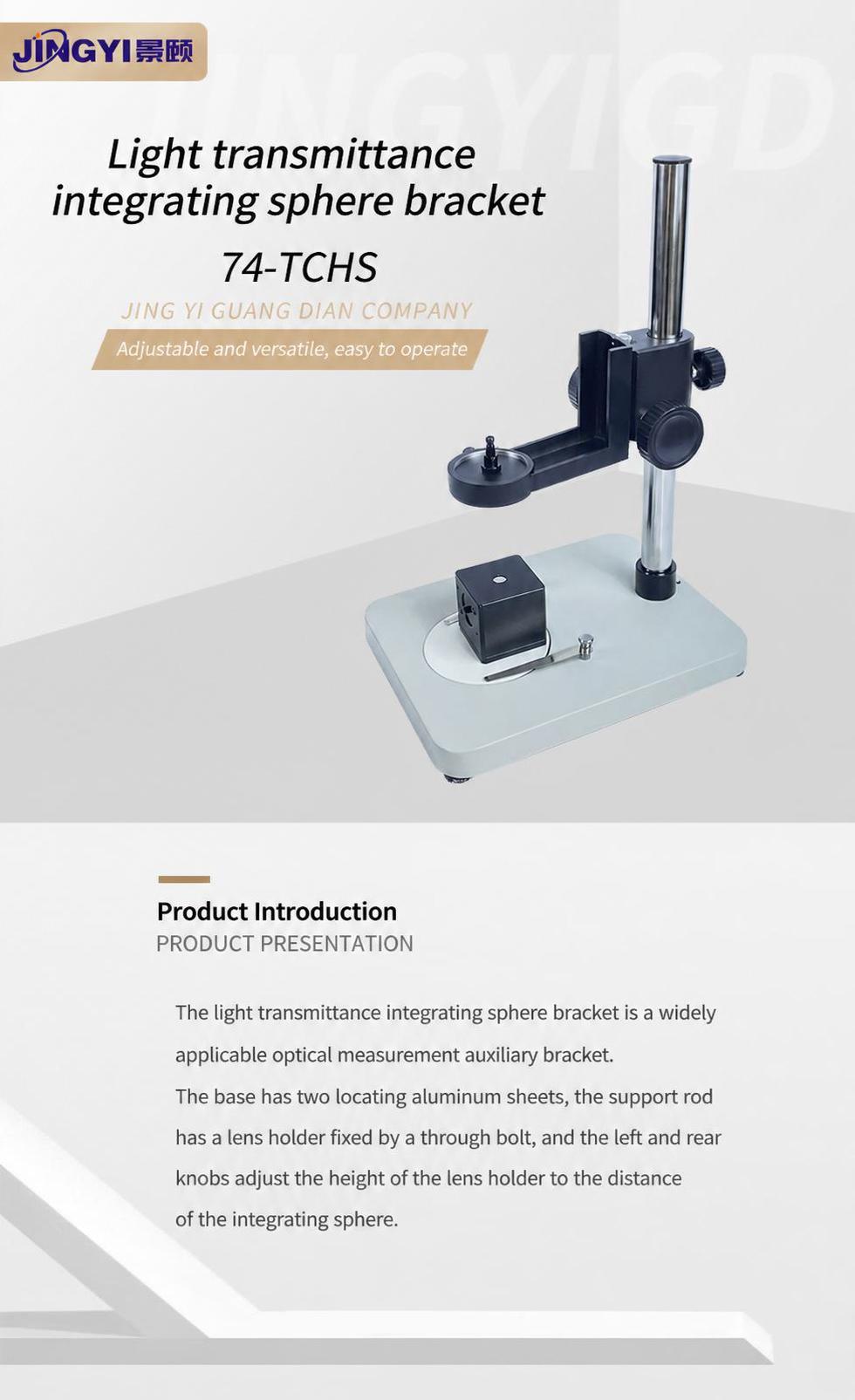

Product Introduction The transmittance integrating sphere holder is a widely used auxiliary holder for optical measurements. The base of the holder features two positioning metal aluminum clips, and the support rod is equipped with a mount for securing optical fibers through a collimating lens. The height of the mount can be adjusted by turning the left and right screws as well as the rear screw, thereby adjusting the distance from the optical fiber to the integrating sphere.

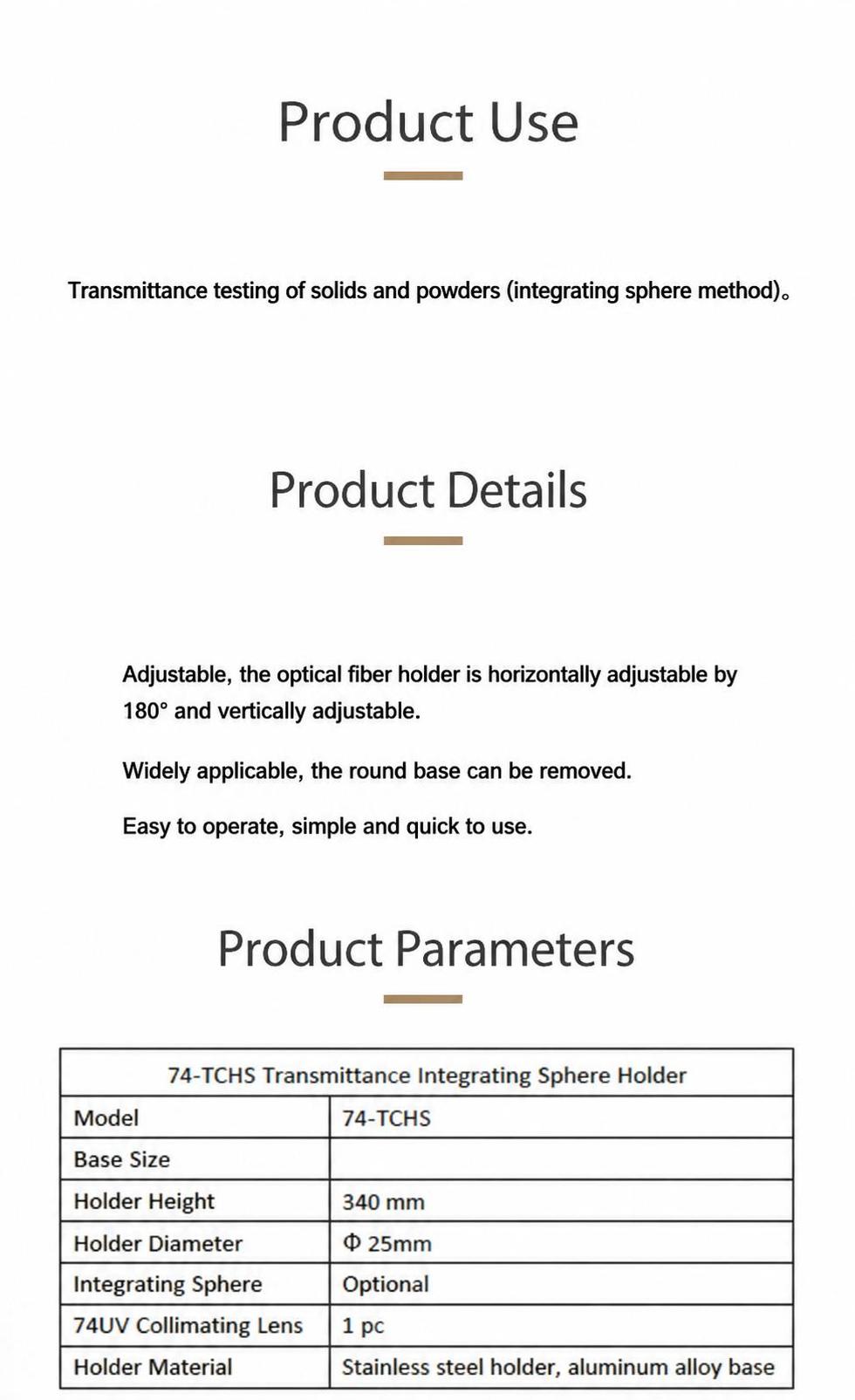

Product usage: Transmittance testing of solids and powders (integrating sphere collection method).
Product Details: Flexible adjustment, with the fixed fiber optic mount adjustable horizontally by 180° and vertically. High universality, with the round base of the mount removable. Easy to operate, simple and quick to use.
Product Specifications
|
project
|
parameter
|
|
Product Model
|
74-TCHS
|
|
Chassis size
|
|
|
Support rod height
|
340mm
|
|
Support rod diameter
|
Φ25mm
|
|
integrating sphere
|
optional
|
|
74UV collimating mirror
|
1 piece
|
|
|
Stainless steel bracket, aluminum alloy base
|
