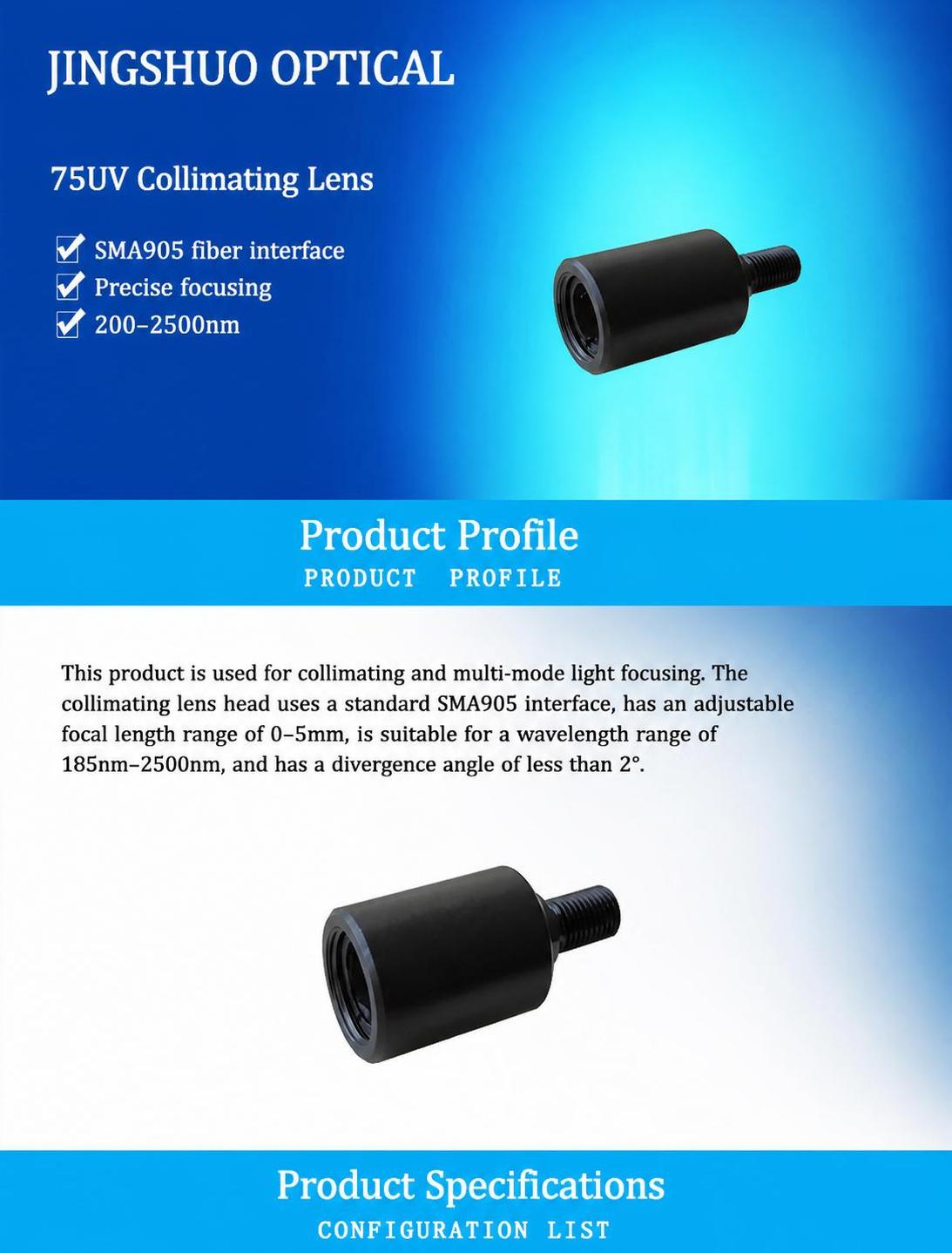

Product Introduction: 75UV Black Oxide Alumina - SMA905 Collimating Lens
Jingyi Optoelectronics 75UV collimator, SMA905 fiber optic interface, collimation and focusing, 200-2500nm
Product Introduction This product is designed for collimating fiber-emitted light and coupling and focusing multimode light sources. The fiber connector type is a standard SMA905 connector, with an adjustable focal length ranging from 0 to 5mm. It covers a spectral range of 185nm to 2500nm and features a divergence angle of less than 2°.
Product Specifications
|
model
|
75UV
|
|
wavelength range
|
185-2500nm
|
|
Light source collimation and focusing
|
Connect to multimode or single-mode
|
|
Focusing on coupling
|
Connect to multiple modes
|
|
Lens diameter
|
10mm
|
|
focal length
|
15mm
|
|
interface type
|
SMA905
|
|
Material
|
Blackening of alumina
|

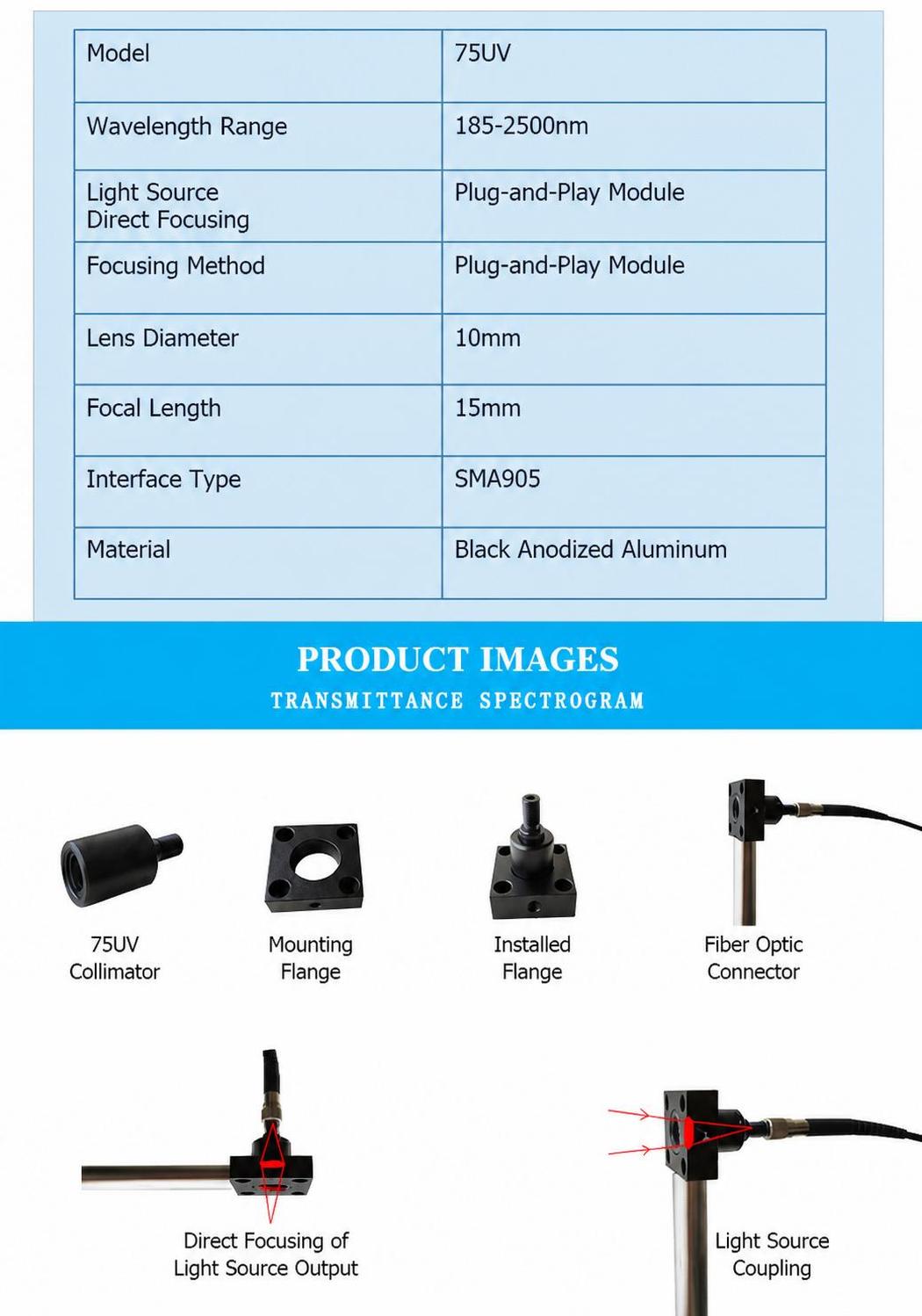

Product image: 75UV collimating mirror with flange assembly, flange connection, fiber optic light source, output, collimation, focusing, light source coupling
