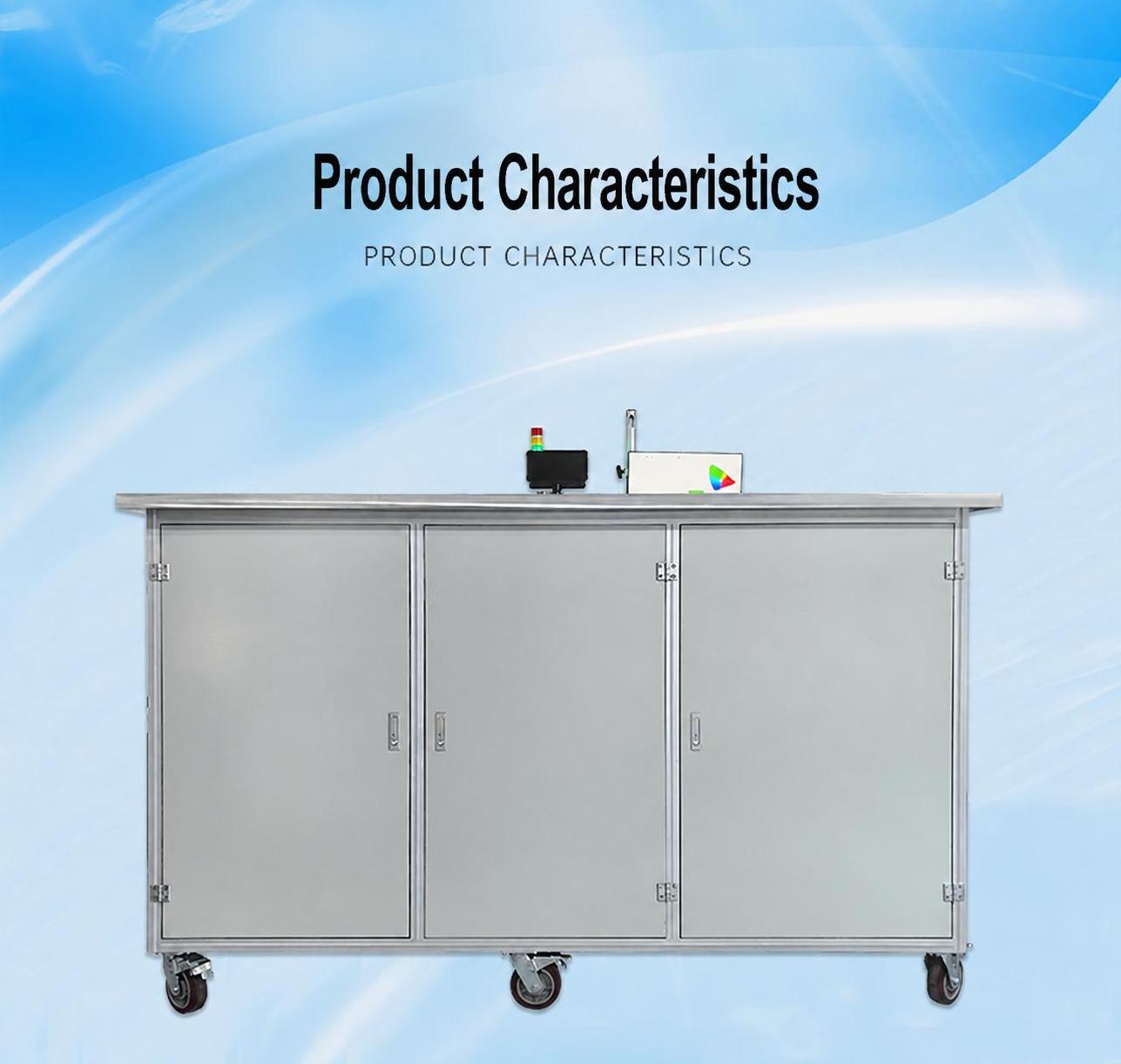

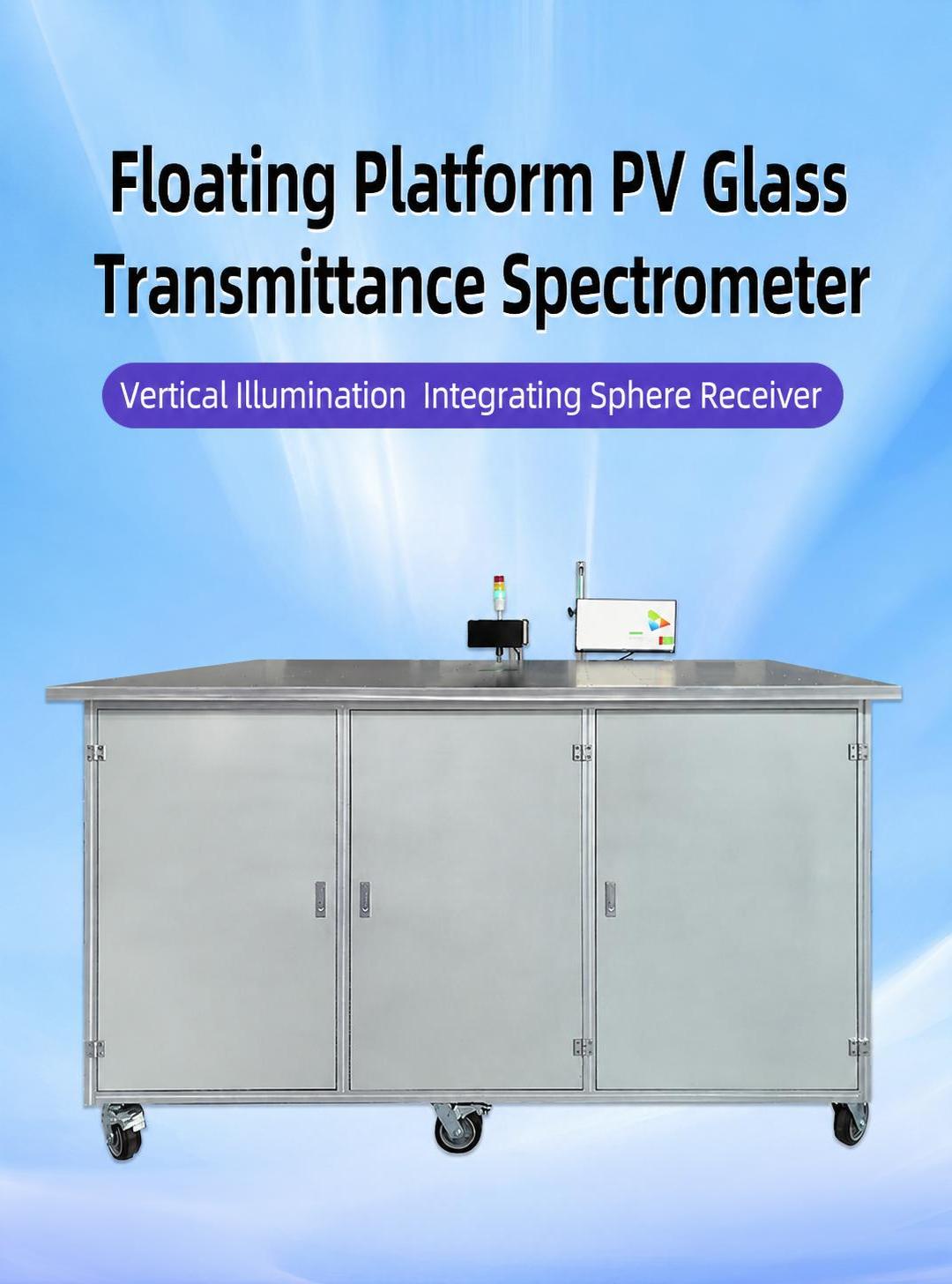

JY-07 Air floating desktop photovoltaic glass transmission spectrometer
Air floating desktop photovoltaic glass transmission spectrometer
Vertical illumination integrating sphere receiver

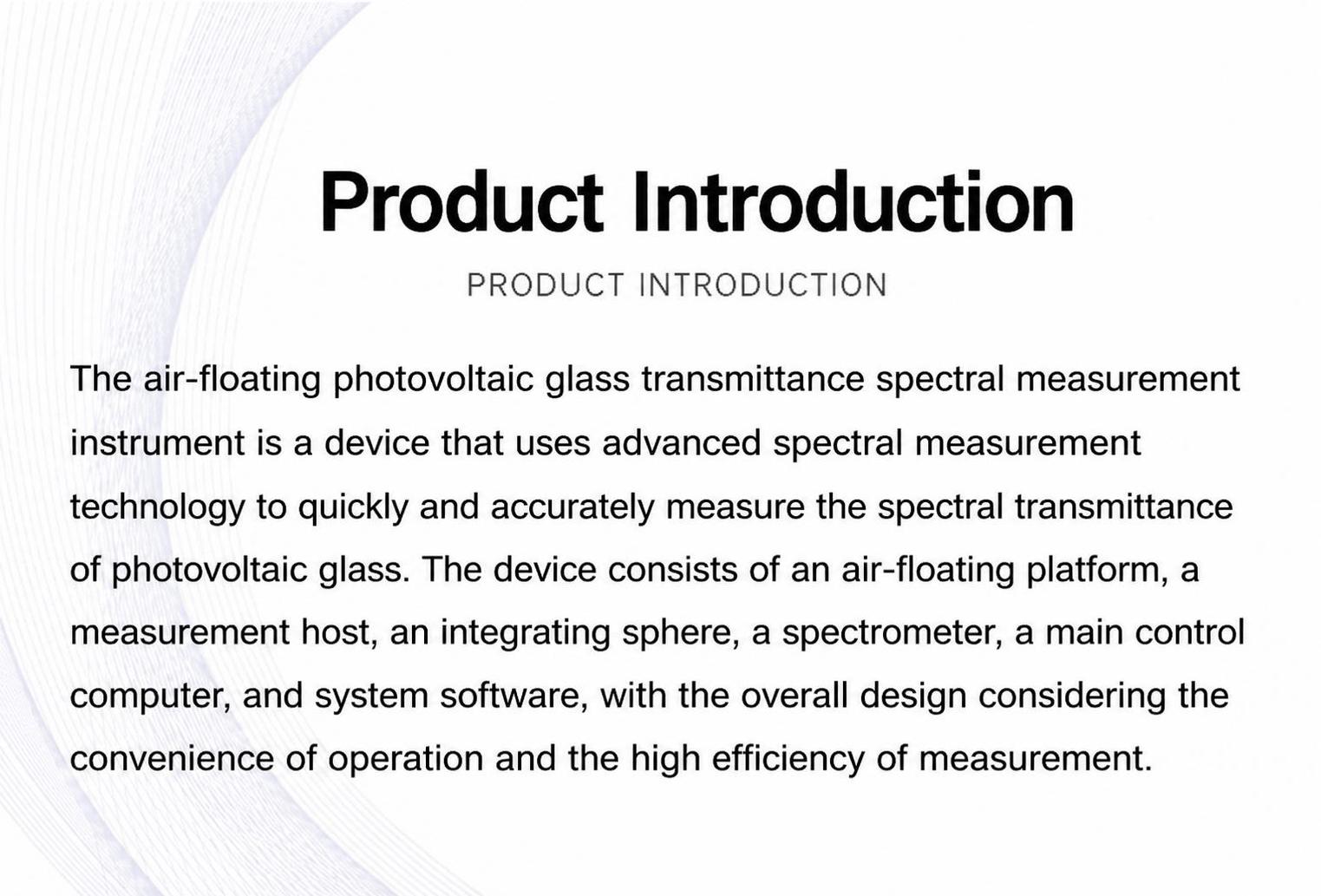

Product Introduction
The air floating desktop photovoltaic glass transmission spectrometer is a device that uses advanced spectral measurement technology to quickly and accurately measure the spectral transmittance of photovoltaic glass. The equipment consists of an air flotation table, a measuring host, an integrating sphere, a spectrometer, a main control computer, and system software. The overall design considers the convenience of operation and the efficiency of measurement.
Application Fields
Solar energy industry
Mainly used for solar ultra white embossed glass
Ultra white embossed glass AR coating and solar photovoltaic module
Automotive and Aerospace
Used to test the transparency performance of transparent materials such as car windows and windshields, ensuring that they meet safety standards and design requirements

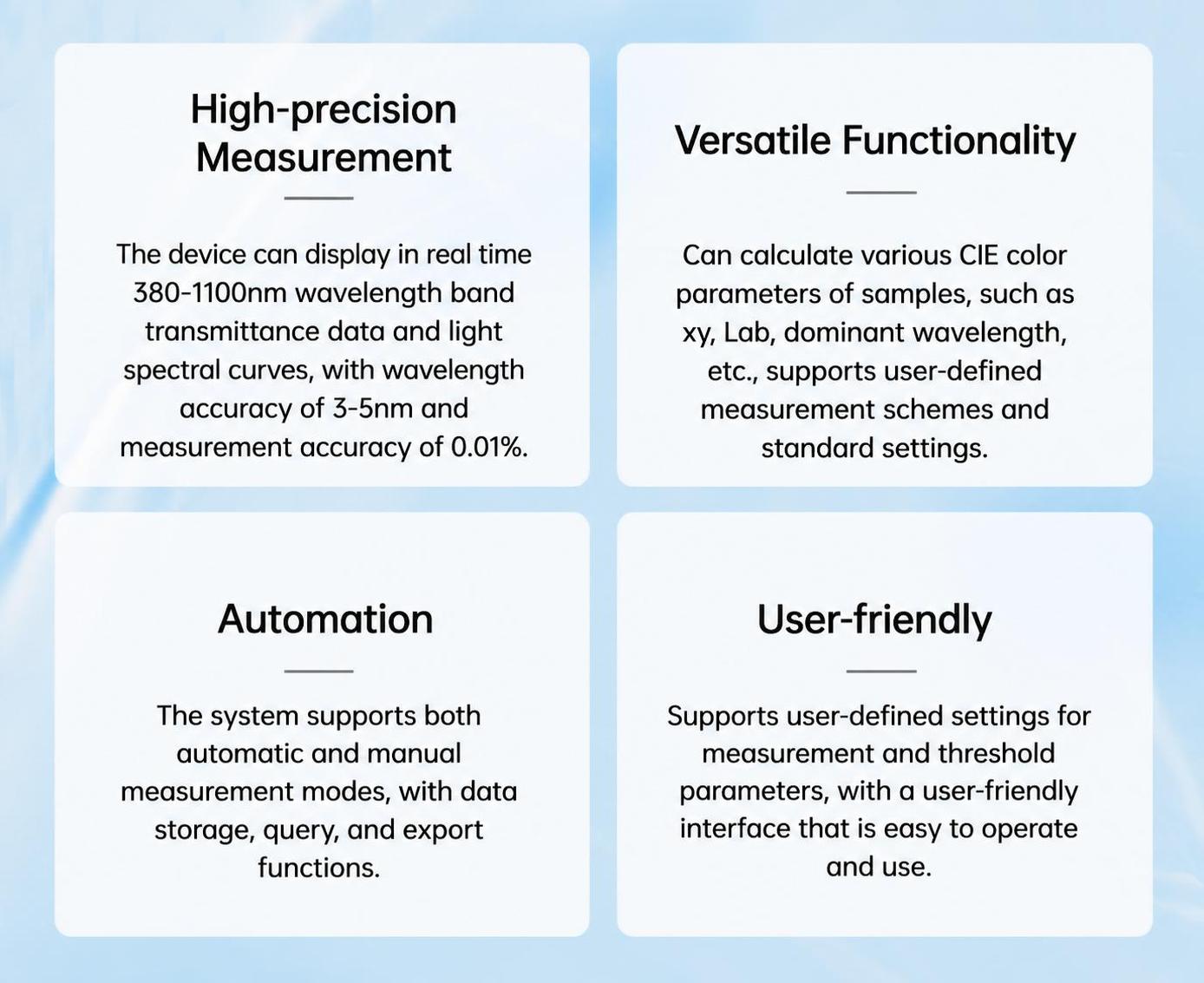

Product Features
high-precision measurement
The device is capable of displaying real-time transmittance data and spectral curves for each band of 380-1100nm, with a wavelength accuracy of 3-5nm and a measurement accuracy of 0.01%
versatility
Can calculate various CIE color parameters of the sample, such as xy, lab, dominant wavelength, etc., supporting user-defined measurement schemes and calibration standards
Automation
The system supports both automatic and manual measurement modes, with data storage, query, and export functions
user-friendly
Support user-defined settings and threshold settings, user-friendly interface, easy to use

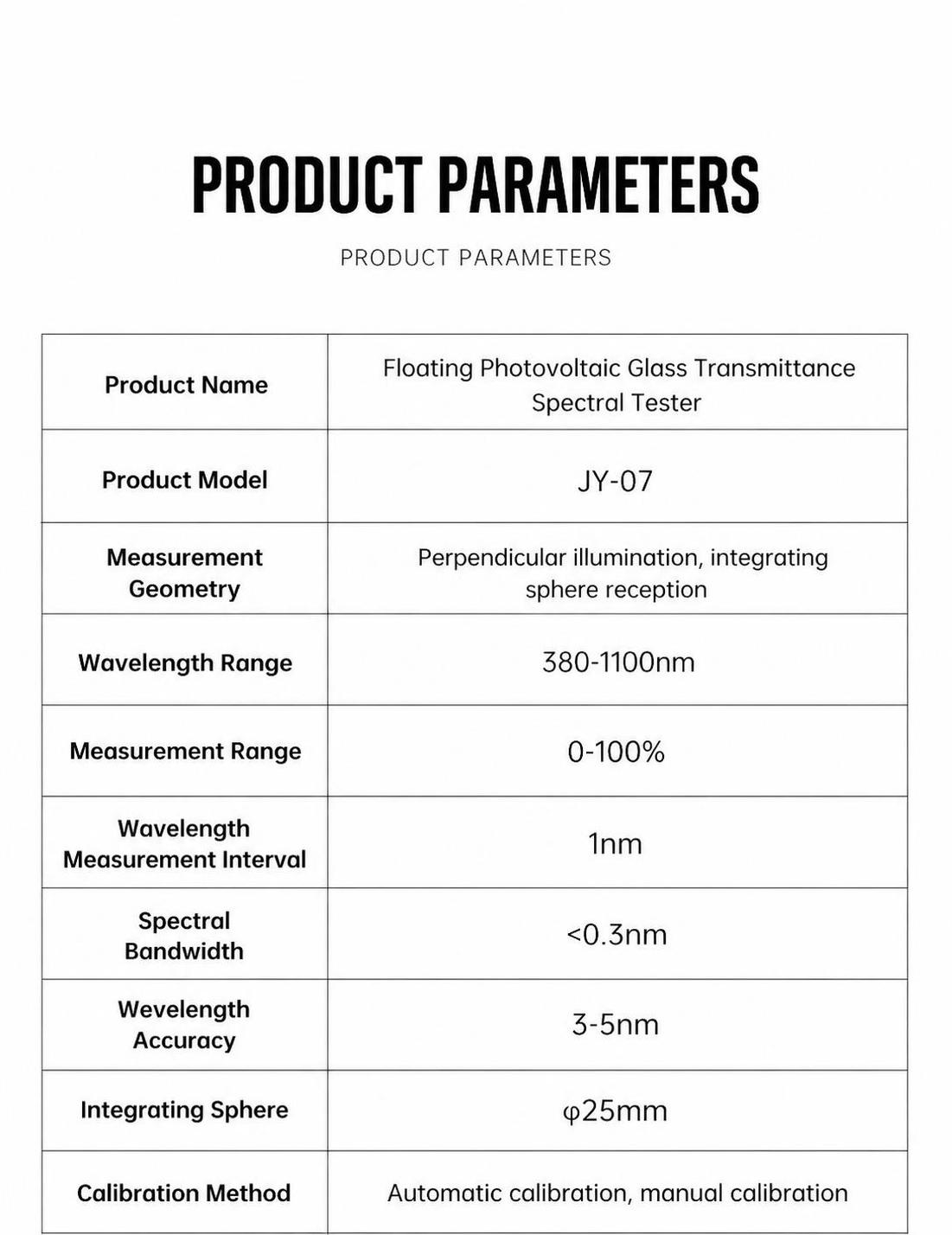

Product Specifications
|
project
|
parameter
|
|
Product Name
|
Air floating desktop photovoltaic glass transmission spectrometer
|
|
Product Model
|
jy-07
|
|
Measuring geometric conditions
|
Vertical illumination, integrating sphere receiving
|
|
spectral range
|
380-1100nm
|
|
measurement range
|
0-100%
|
|
Spectral measurement interval
|
1nm
|
|
Spectral half width
|
<0.3nm
|
|
Wavelength accuracy
|
3-5nm
|
|
integrating sphere
|
φ25mm
|
|
calibration method
|
Automatic calibration, manual calibration
|
|

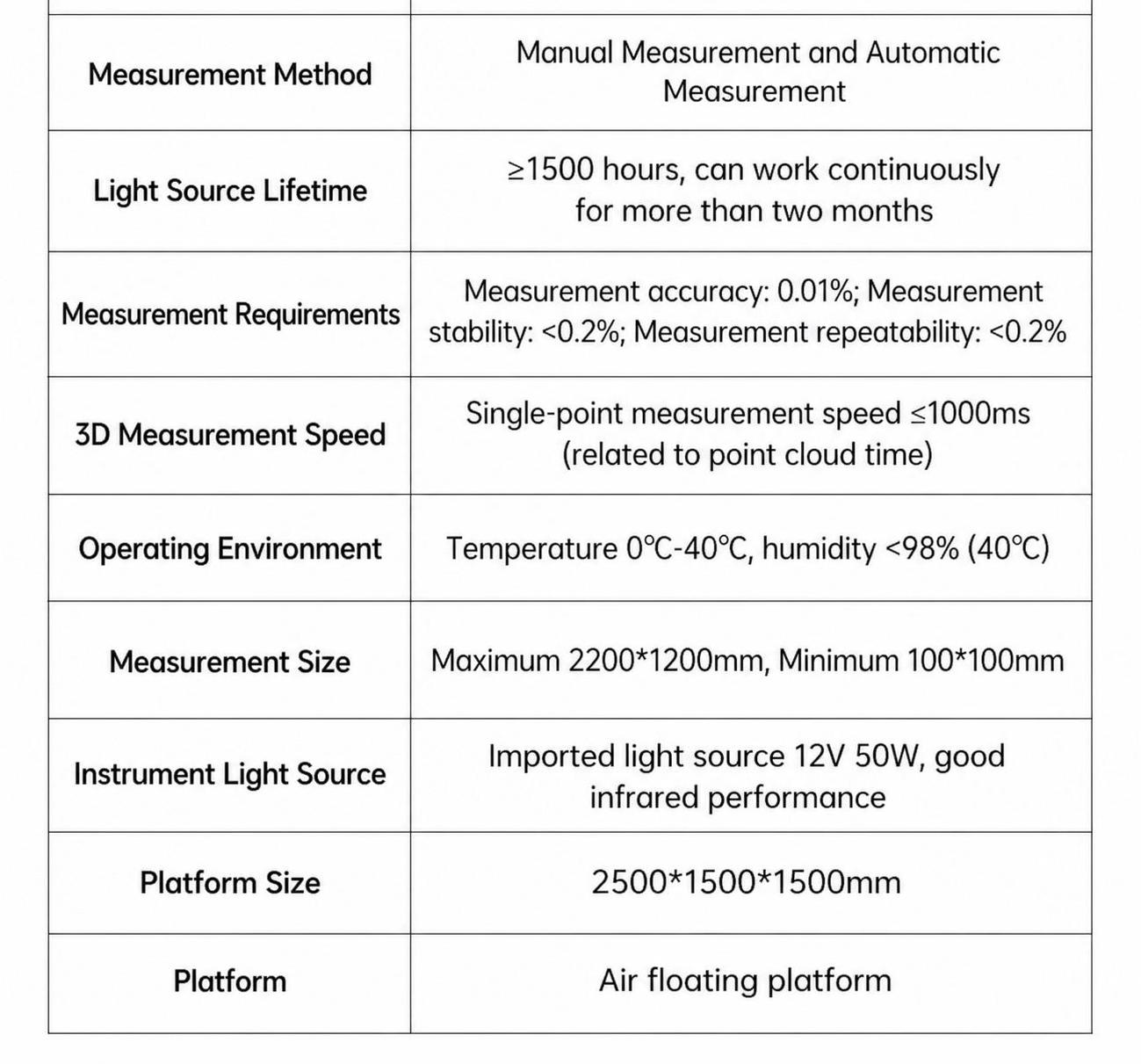

measurement method
|
Manual measurement and automatic measurement
|
|
light source lifetime
|
≥ 1500 hours, able to work continuously for more than two months
|
|
Measurement requirements
|
Measurement accuracy: 0.01%; Measurement stability:<0.2%; Measurement repeatability:<0.2%
|
|
3 Measurement speed
|
Single point single measurement speed ≤ 1000ms (related to integration time)
|
|
Usage environment
|
Temperature 0 ℃ -40 ℃, humidity<98% (40 ℃)
|
|
measure dimensions
|
Maximum 22001200mm, Minimum 100100mm
|
|
Instrument light source
|
Imported light source 12v 50w, good infrared performance
|
|
platform dimensions
|
250015001500mm
|
|
Platform
|
Air floating platform
|
