JT-TMRT500 Transmission Visual Calibration Board Detailed Parameters

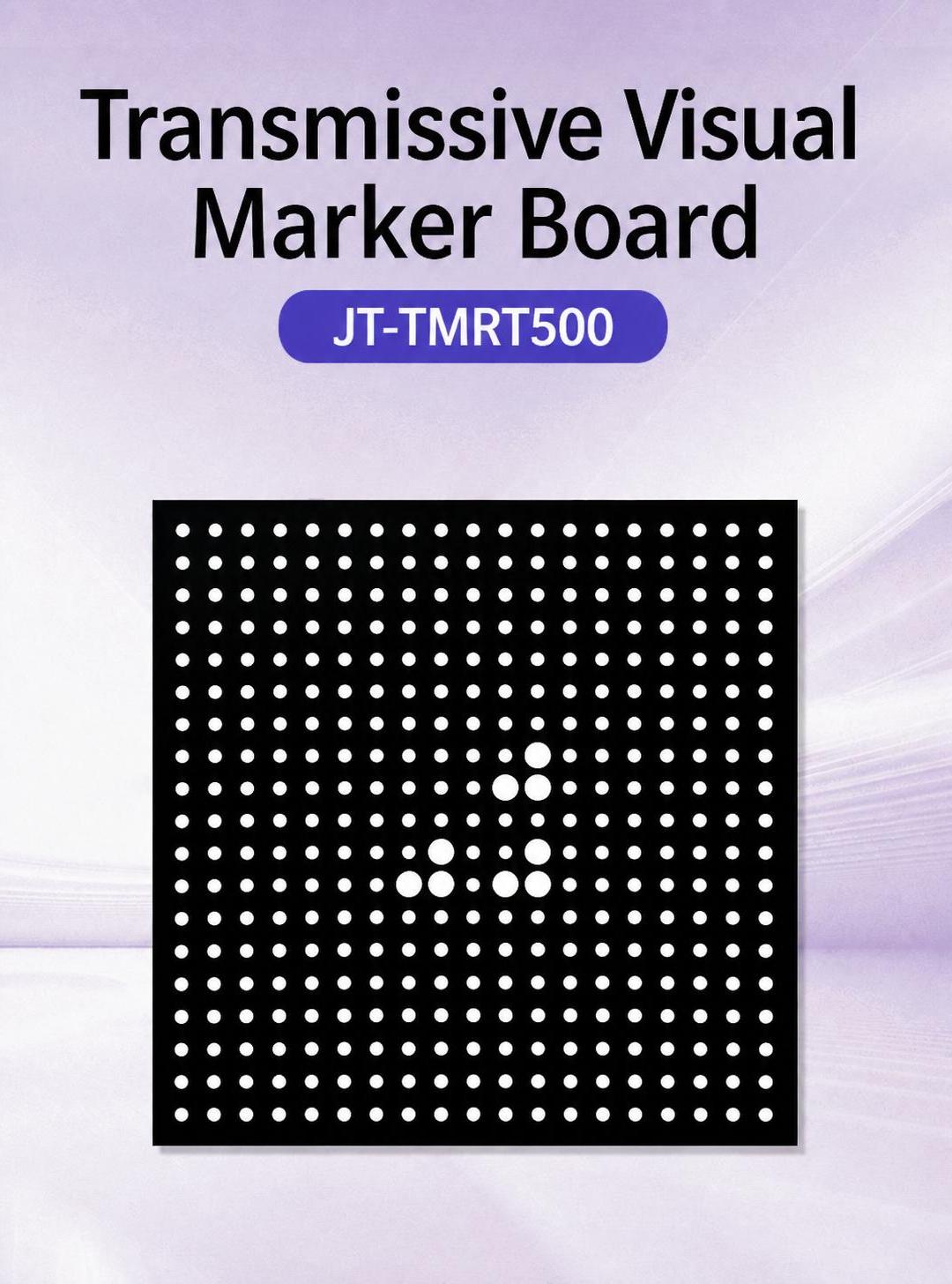

Transmission Visual Calibration Board JT-TMRT500

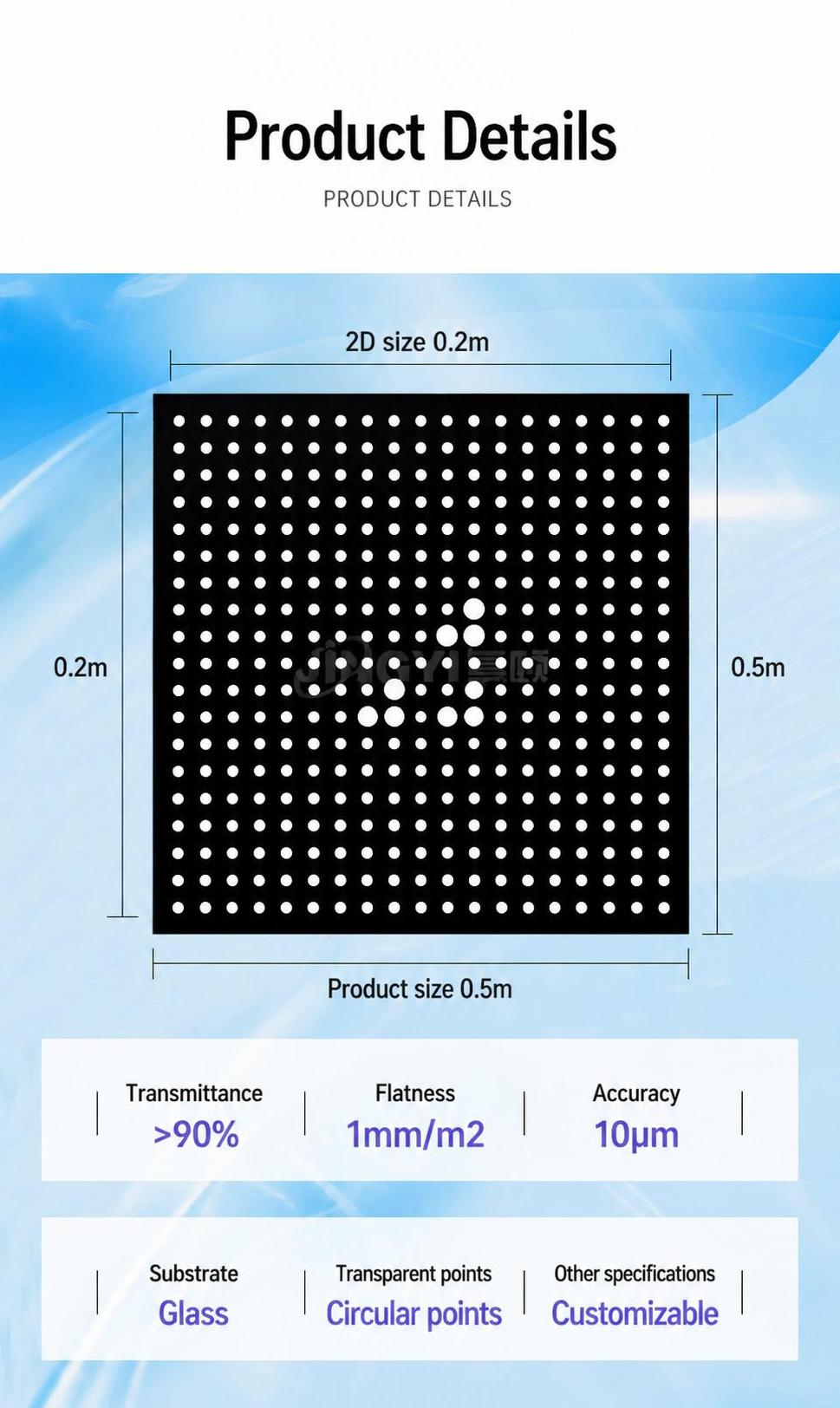

Product Details QR Code Size 0.2m Product Size 0.5m Transmittance>90% Flatness better than 1mm/m2 Accuracy better than 10 μ m Substrate Glass Transmittance Points Dots Other specifications can be customized

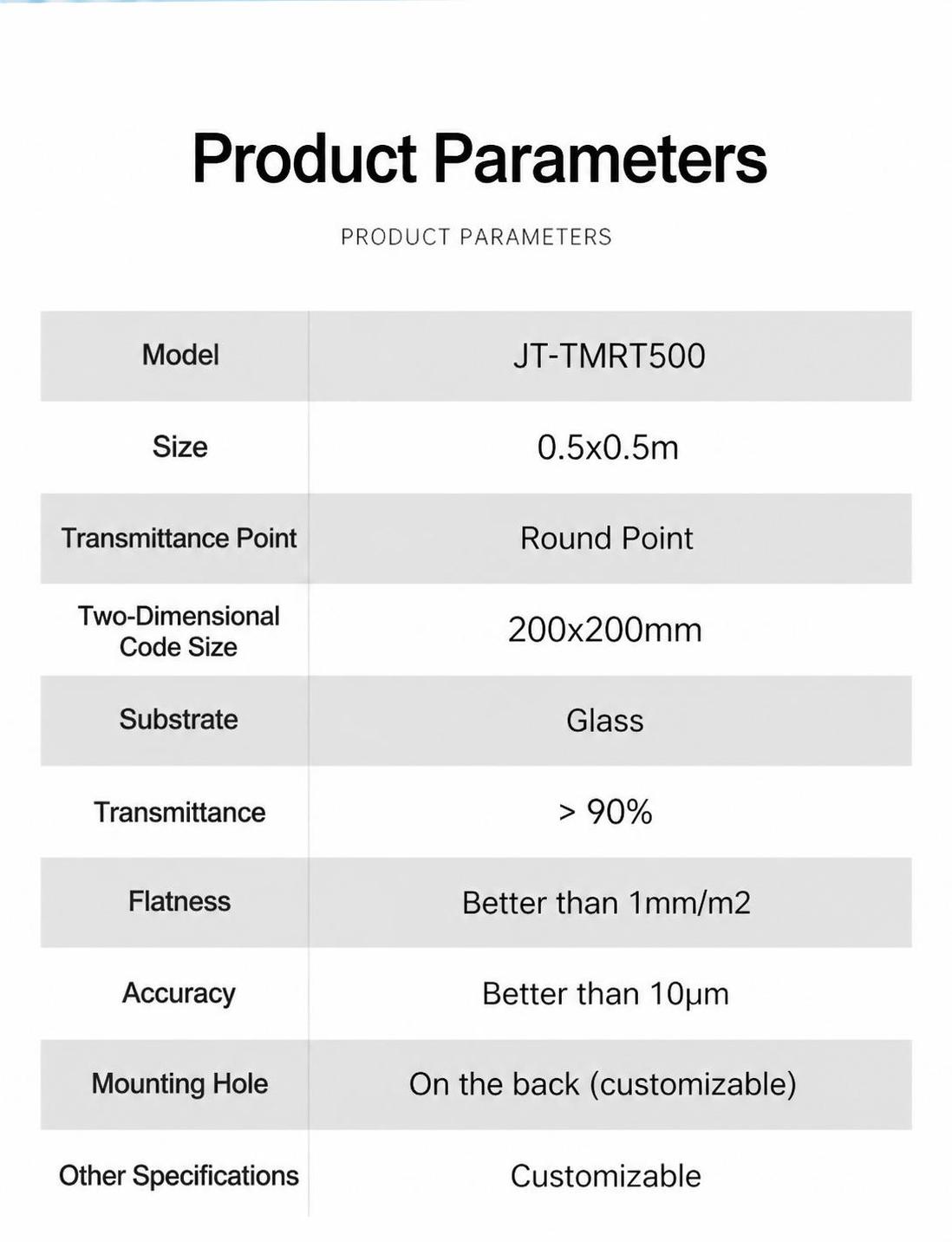

Product Specifications

model	JT-TMRT500
size	0.5x0.5m
Transmission point	dot
QR code size	200x200mm
substrate	Glass
transmittance	>90%
flatness	Better than 1mm/m2
precision	Better than 10 μ m
Fixed hole positions	Back (customizable)
Other Specifications	customizable
