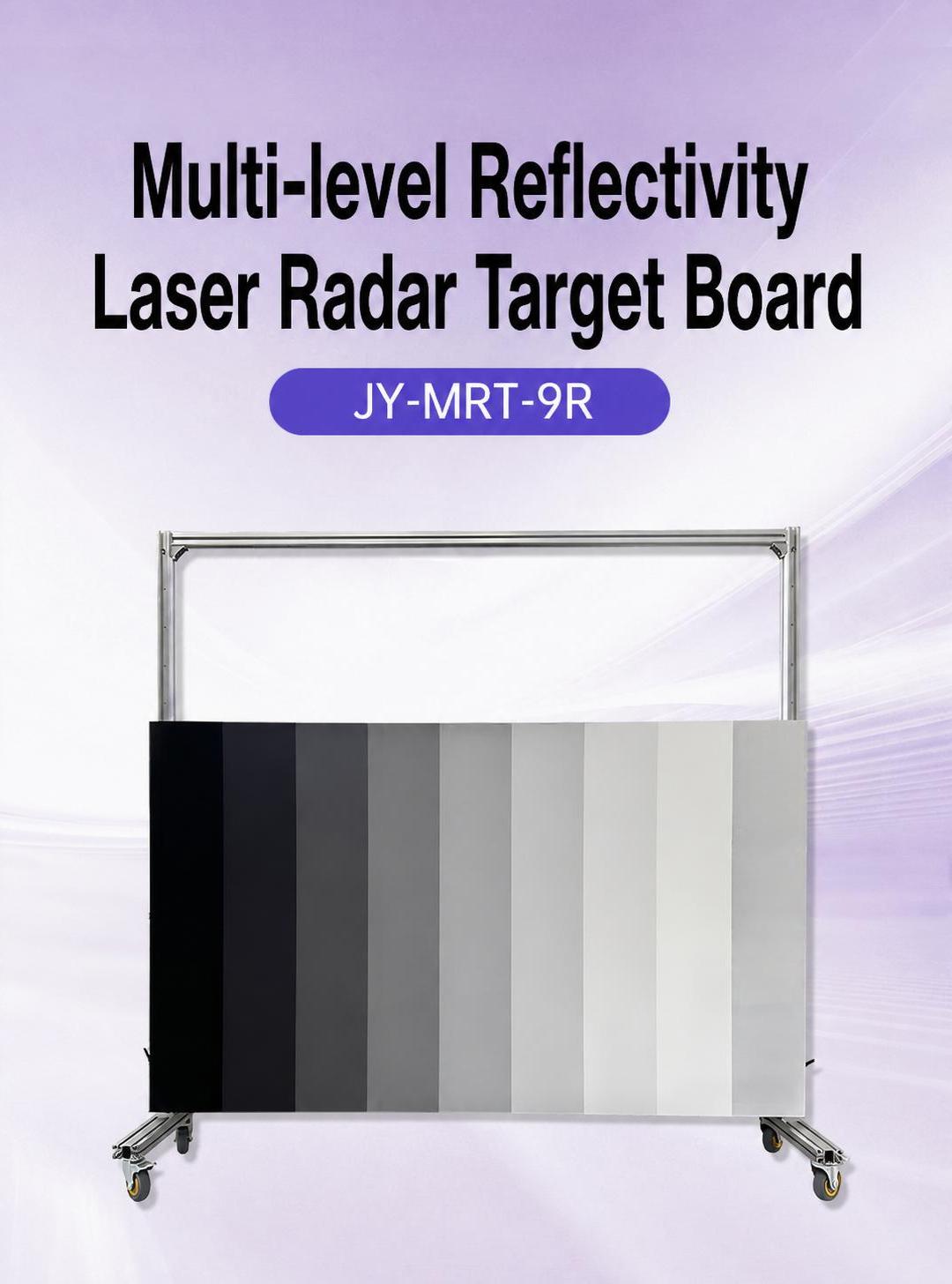

Multi class Reflectivity Splicing Lidar Calibration Board

JY-MRT-9R Multi class Reflectivity Lidar Calibration Board

Multi class Reflectivity Lidar Calibration Board
JY-MRT-9R

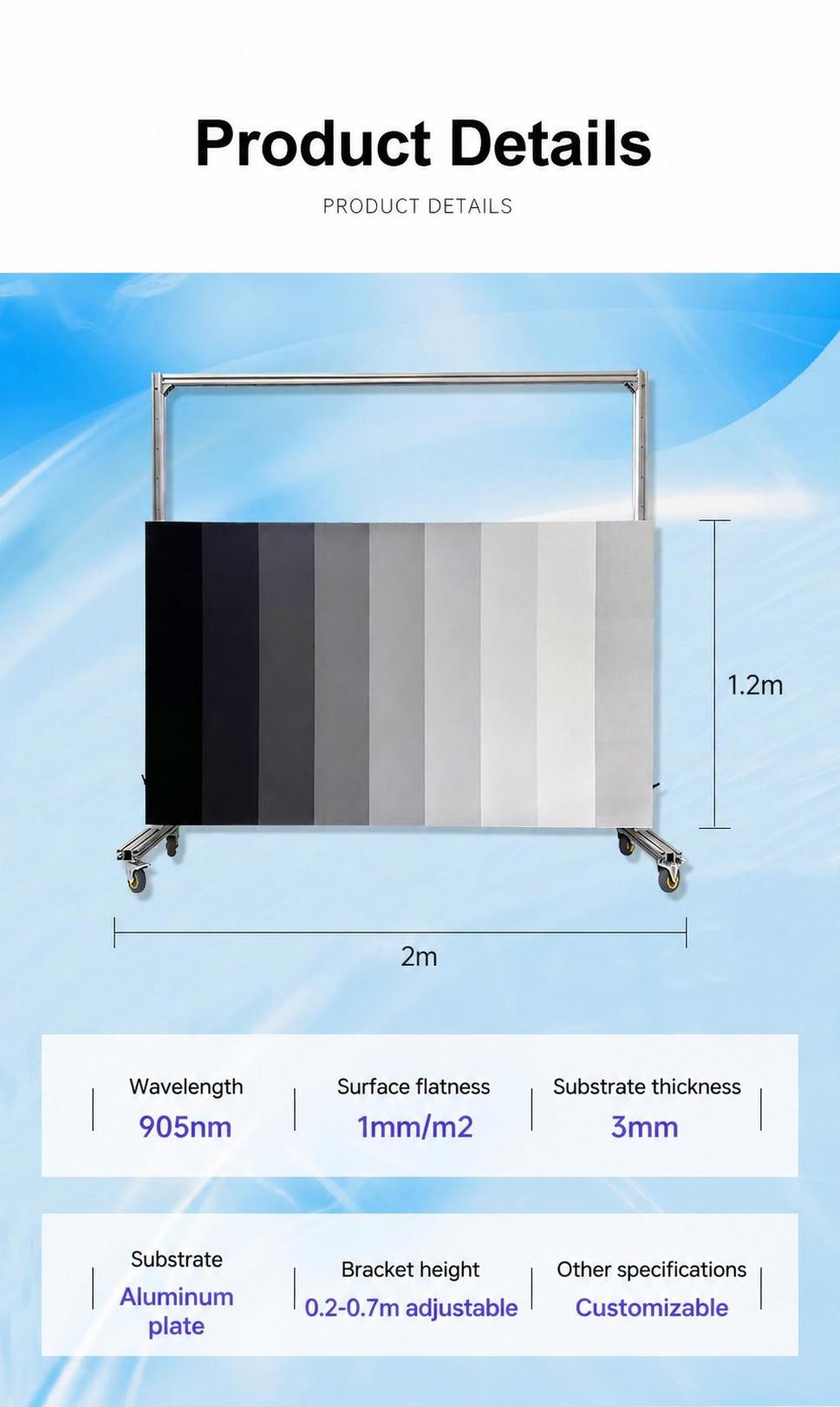

Product Details
Wavelength: 905nm
Flatness better than 1mm/m2
Substrate thickness: 3mm
Substrate: Aluminum Plate
Bracket height: adjustable from 0.2-0.7m
Other specifications: customizable

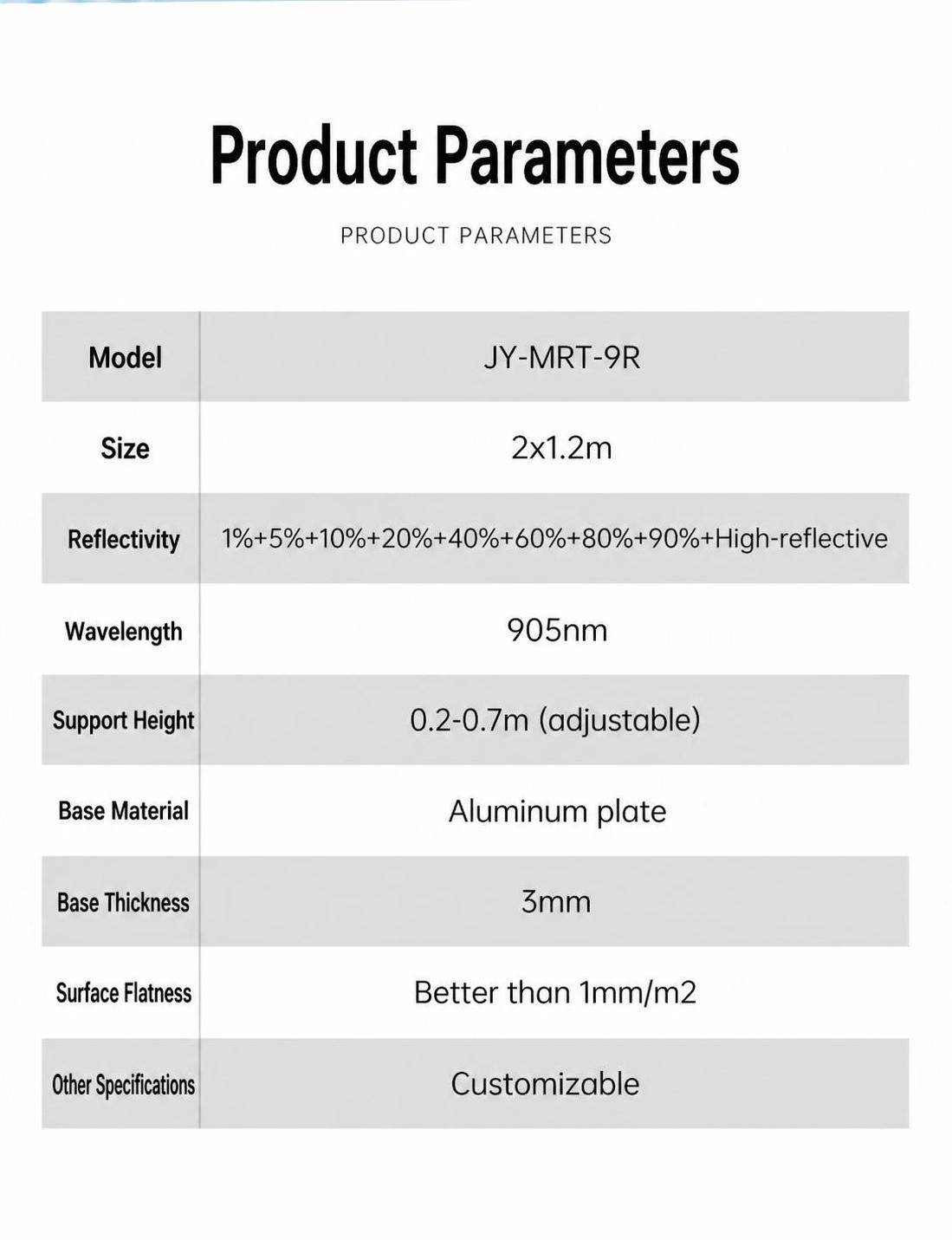

Product Specifications

project	parameter
model	JY-MRT-9R
size	2x1.2m
reflectance	1%+5%+10%+20%+40%+60%+80%+90%+high reflectivity
wavelength	905nm
Scaffold Height	0.2-0.7m (adjustable)
substrate	aluminum plate
Substrate thickness	3mm
flatness	Better than 1mm/m2
Other Specifications	customizable

Product Features

Multi class reflectance

Regions with multiple different reflectivity, whose reflectivity is accurately calculated and manufactured

Seamless splicing design

Designed in a spliceable form, it can be combined into different sizes and shapes as needed

Lambert characteristic

Has nearly perfect Lambertian characteristics, and its reflection characteristics are very close to ideal diffuse reflectors

Customization Supported

We provide customized services for reflectivity, size, shape, and other aspects

Product Specifications

project	parameter
model	JYMRT
reflectance	50%+10+90%
wavelength	905nm
substrate	aluminum plate
Substrate size	1500*1000mm
Substrate thickness	3mm
precision	±1%
flatness	Better than 1mm/m
Bracket	with wheels
Other Specifications	customizable
warranty	One year (excluding human damage and consumables)

product image
