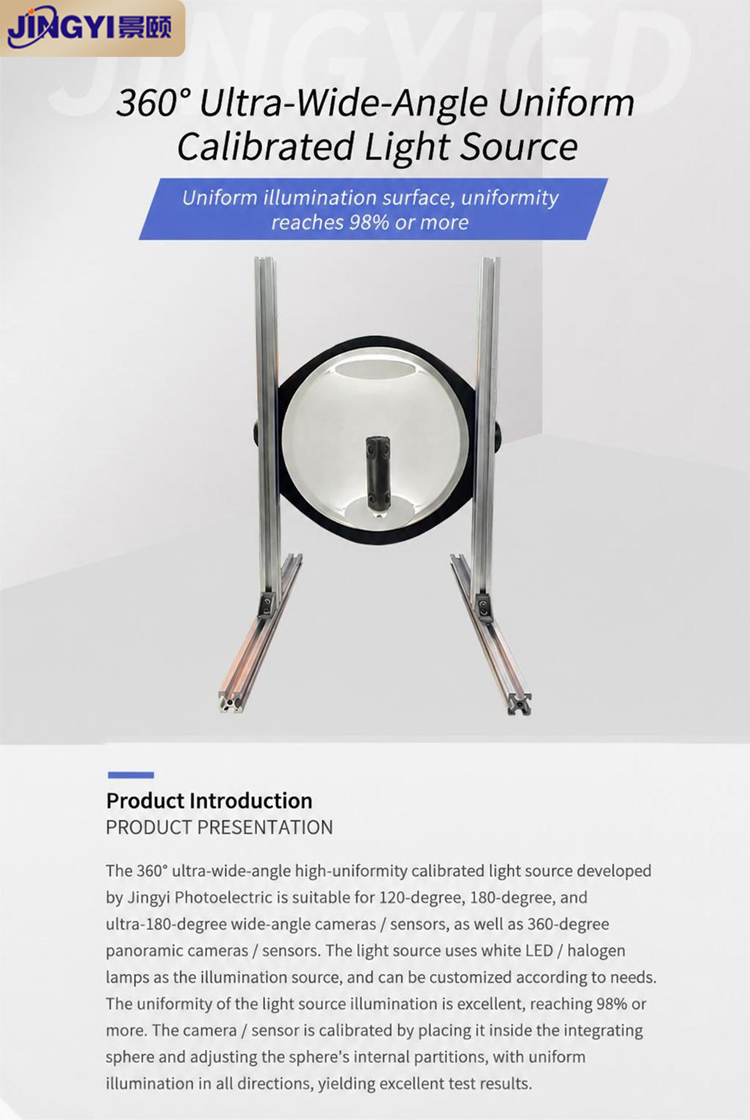

Introduction to 360 degree ultra wide angle high uniformity calibration light source
360 ° ultra wide angle uniformly calibrated light source with high uniformity illumination surface, achieving uniformity of over 98%

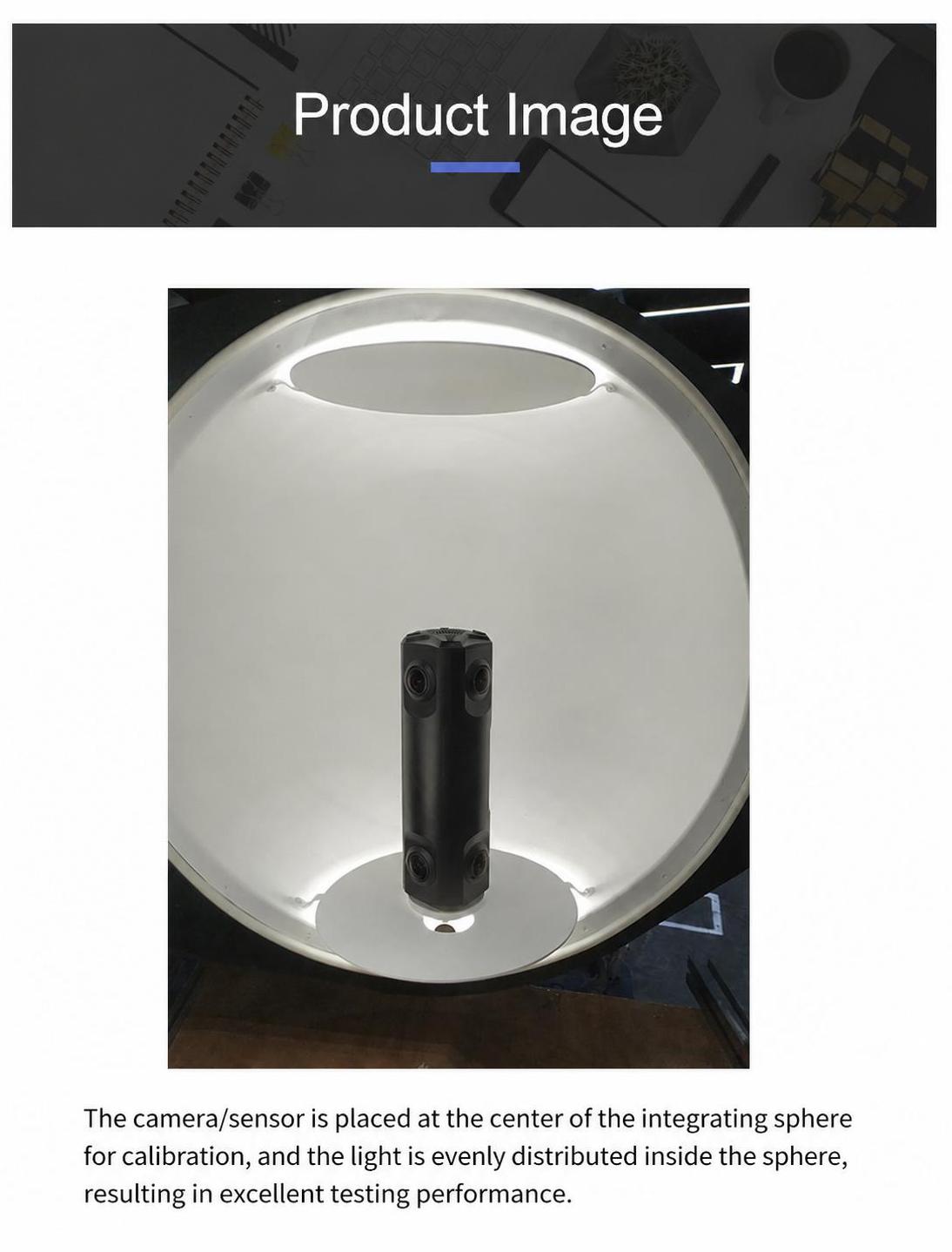

Product Introduction: Jingyi Optoelectronics' 360 ° ultra wide angle high uniformity calibration light source is suitable for wide angle cameras/sensors at 120 degrees, 180 degrees, and over 180 degrees, and even 360 degree panoramic cameras/sensors. The light source adopts white LED/halogen lamp/xenon lamp as the illumination source, which can also be customized according to needs. The light uniformity of the light source is very good, with a uniformity performance of over 98%. The camera/sensor is placed inside the integrating sphere for calibration, and the lighting is uniform throughout the integrating sphere, resulting in excellent testing results.

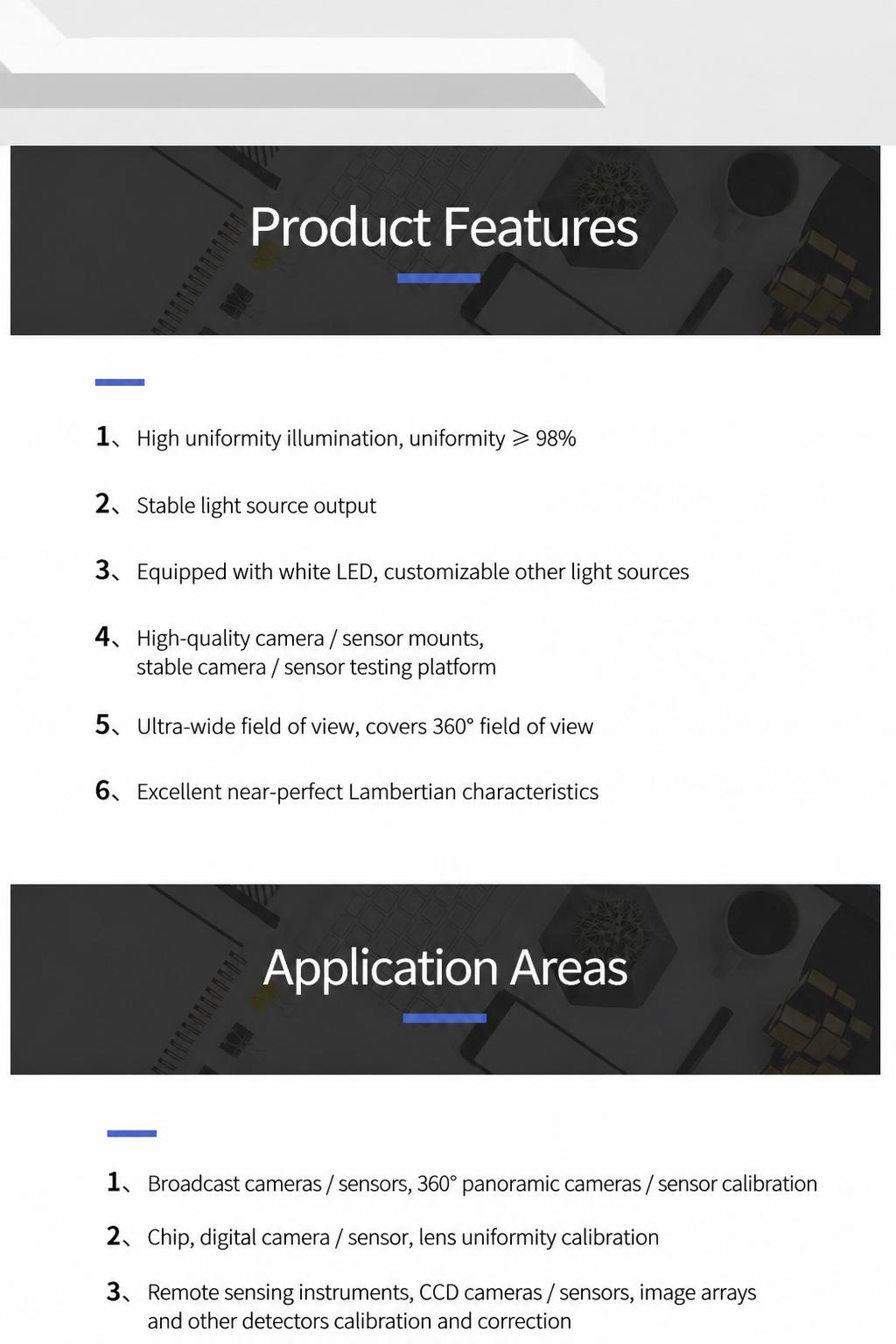

Product features: 1. High uniformity illumination surface, with a uniformity of over 98%. 2. Stable light source output. 3. Standard white LED, customizable for other light sources. 4. High quality camera/sensor bracket, stable camera/sensor testing platform. 5. Ultra wide viewing angle, covering 360 ° viewing angle. 6. Almost perfect Lambertian characteristics
Application areas 1. Calibration of large field of view cameras/sensors, 360 ° panoramic cameras/sensors 2. Film, digital cameras/sensors, camera uniformity calibration 3. Calibration and calibration of remote sensing instruments, CCD cameras/sensors, image arrays, and other detectors

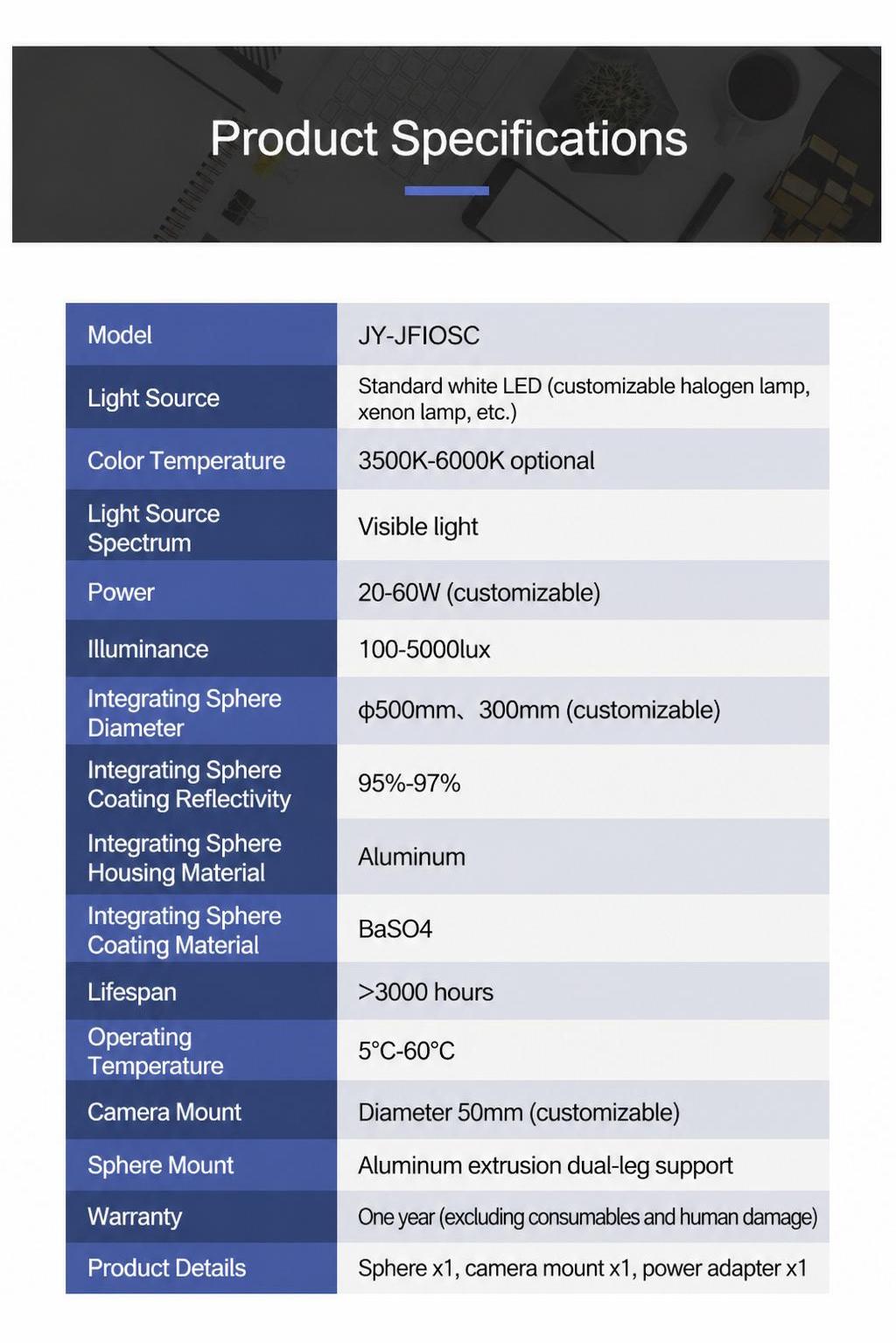

Product Specifications
