Product Introduction

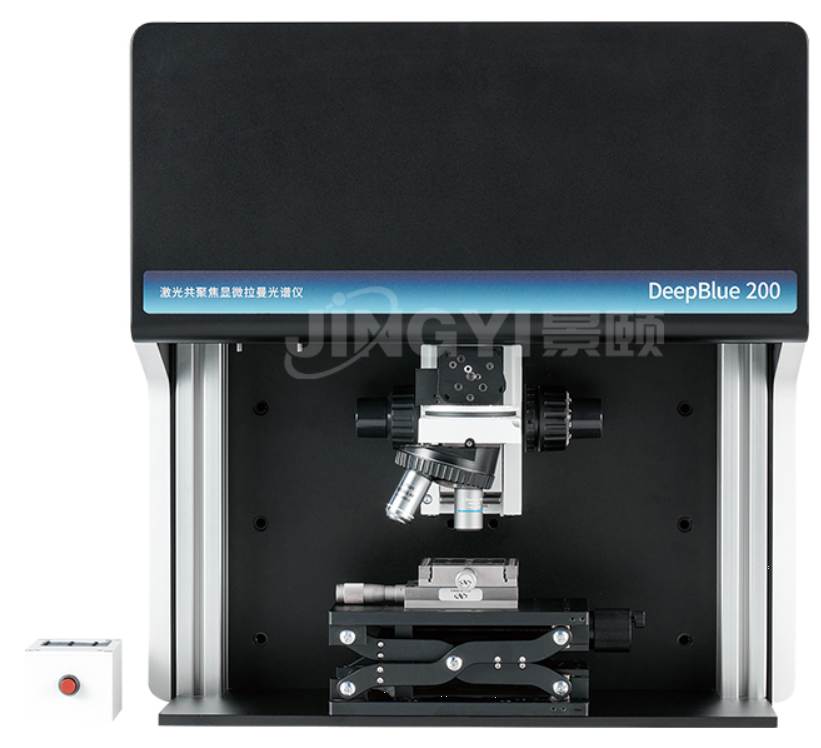

High performance fully automatic laser confocal microscopy Raman imaging spectrometer, used for Raman spectroscopy measurement of solid and liquid samples, used for Raman spectroscopy scanning imaging of bulk materials, with a variety of in situ Raman loading pools to choose from.



Product Features

Sensitivity

Automatic switching, sitting with sitting posture

Automated integrated design, automatically switches between white light/laser paths according to requirements, and automatically converts laser power. The test can be easily completed on the seat without the need to fidget and manually switch the optical components back and forth.



Raman soul (sensitivity), always online

True confocal design, extremely simple optical path, high stray light suppression ability, fearless of the challenge of silicon third-order peak signal-to-noise ratio, facing the test of difficult samples such as thin films, small particles, and dilute solution samples, such as laser intolerance and weak Raman signals.



Neon lamp spectrum

You can have both fish and bear paw

Single window one-time acquisition of 70-4500CM - ¹ full Raman spectral range, 4-7CM - ¹ spectral resolution, not only meets the requirements of conventional scientific research for Raman spectral resolution, but also meets the needs of large-scale spectral acquisition of different samples.



Wavelength Repeatability

Solid and reliable, as stable as Mount Tai

The main mechanical structural components and optical components are made of high-strength alloy materials. The center of gravity of the structural mechanics is shifted downwards, and the optical components are rigidly coupled. The instrument has excellent stability and strong resistance to environmental disturbances.

Good weather resistance and low environmental requirements for use

No need for optical platform installation, no need for air conditioning to be constantly on, no need for UPS power stabilization, can be used and turned on at any time, and a regular laboratory or office equipped with a stable experimental table can meet the usage requirements.



Product Advantages

The sky is high for birds to fly, the sea is wide for fish to leap

Adopting an open microscope design, with a free space of 135mm below the objective lens, the Z-axis objective lens actively focuses (the sample remains stationary). Users can disassemble the standard sample assembly as needed, install customized sample tables or fix large samples to meet different research needs. An optional automatic scanning platform can be used to achieve Raman scanning imaging.

In-situ Raman

The open sample stage coupling method of DEEPBREE 2OO confocal Raman spectrometer is very suitable for in situ Raman applications. We have developed some practical in-situ Raman sample cells:

▪ High temperature and high pressure hydrothermal reactor

▪ In situ photocatalytic cell

▪ In situ gas/solid/thermal catalytic pool

▪ Low temperature and high pressure hydrate in-situ tank

▪ In-situ mechanical tensile bonding

▪ In situ CVD furnace



High performance upgrade

Upgrading the XYZ automatic scanning platform enables confocal Raman scanning imaging with sub micron spatial resolution. Upgrading the high-resolution spectrometer enables Raman spectroscopy measurements with a resolution of<1cm - ¹.



accurate

Raman spectroscopy is the "fingerprint spectrum" of a substance, and the analysis of its composition is absolutely accurate



fast

Just a few seconds



lossless

Only weak laser irradiation will not damage the sample



cheap

Just charge it, no other consumables are needed.



Application areas

Lithium ion batteries, biology, vitamin materials, food and pharmaceuticals, polymers, legal and criminal investigations, semiconductors, archaeology, catalysis, geology, public security drug enforcement, hazardous chemical detection at high-speed rail, subway, BRT entrances, identification of raw materials in the pharmaceutical industry, food safety testing, gemstone identification, industrial substance identification, process control, cultural relic identification, ore screening, research institute research, forensic identification, water pollution analysis, medical immune analysis, environmental science, agriculture and food identification



Technical Parameters

	Standard Configuration	upgrade
excitation wavelength	532nm	633nm, 785nm or other wavelengths
spectral resolution	4~7cm-¹	≤1cm-¹
Raman spectral range	70-4500cm - ¹ (532nm excitation)	40-9000 cm-1 (532nm excitation)
Wavelength Repeatability	±0.1cm-¹	± 0.05cm - ¹
sensitivity	10: 1 (Silicon third-order peak)	30:1 (silicon third-order peak)
stage	Minimum step size of 1 μ m	Minimum step size 50nm
Raman scanning imaging	100*100nm	70 * 50mm range





Consult customer service to obtain detailed materials and exclusive solutions.
