Product Introduction

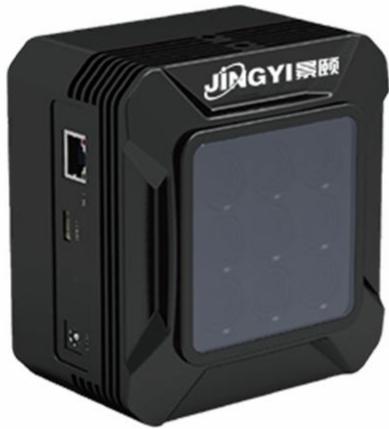

Jingyi Optoelectronics' JY-MAX-G series multispectral cameras support the integration of drone (fixed-wing, rotary-wing, etc.) flight platforms. They feature high-precision radiometric calibration paired with real-time ambient light radiation correction, ensuring more accurate spectral data acquisition. These cameras are primarily used in fields such as ecological environment, smart agriculture, industrial inspection, land resources, and scientific research.



Product Features

8-channel, capable of acquiring more spectral information
Multiple spectral bands are available, providing a robust data foundation to meet the specific needs of different application scenarios
Supports simultaneous imaging of multispectral and color RGB, and features high-definition image resolution (1440 * 1080)
Support real-time image transmission and built-in basic models, allowing real-time viewing of data results
It can be mounted, portable, and used in various indoor scenarios, making it easy to integrate into industrial inspection automation systems
High-precision radiometric calibration, coupled with real-time correction of ambient light radiation, ensures more accurate spectral data acquisition



Application Scenarios

Origin tracing of red dates







Tobacco grading



Identification of Sorghum Varieties





Product Specifications

Product Model	JY-MAX-G800
Multispectral imaging	7 + RGB
Multispectral band	Standard Configuration：450nm、550nm、 650nm、720nm (Narrowband)、750nm (Narrowband)、800nm、 850nm Optional：410nm、490nm、 530nm、 570nm、 600nm、660nm、 680nm、720nm、750nm、780nm、900nm
image sensor	1/2.9 inch CMOS，global shutter，155Ten thousand pixels
image resolution	1440 * 1080
Data Depth	12 bit
optical lens	focal length f=5.35 mm，aperture F/2.0
field of view	HFOV: 49.8°，VFOV: 38.4°
Capture frame rate	20 Frame/second (real-time)
Spectral image format	IMG (ENVIStandard) / TIFF / JPG
storage capacity	MicroSDcard，Standard capacity128GB
device interface	1 x Mini-HDMI，1 x RS232，2 x I/O interface，1 x RJ-45 Gigabit Ethernet port，1 x USB 3.0
Device Expansion	Support can be extended through interfacesGPS/IMU、WIFI、Downward light sensor
Software support	Specialized spectral acquisition and control software, providing SDK for secondary development
Shooting method	Real time collection and support for external triggered collection
power supply	DC 12V 2A
power consumption	< 10 W
weight	766 g
size	123mm * 115mm * 79mm
Operating Temperature	-20°C ~ 50°C
Storage temperature	-20°C ~ 60°C





Consult customer service to obtain detailed materials and exclusive solutions.
